Оригинальная Подлинная горелка Riello G5LC G10LC G20LC G5 G10 G20
US $486.00-$745.00
Линейная горелка лучшего китайского производства для прямого нагрева
- Категория: Boiler Parts >>>
- Поставщик: Guangzhou,Liancheng,Energy,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 188.32 $* | 197.80 $* |
| Aug-15-2025 | 186.17 $* | 195.9 $* |
| Jul-15-2025 | 156.28 $* | 164.1 $* |
| Jun-15-2025 | 183.51 $* | 192.52 $* |
| May-15-2025 | 160.88 $* | 168.40 $* |
| Apr-15-2025 | 180.39 $* | 189.16 $* |
| Mar-15-2025 | 179.43 $* | 188.89 $* |
| Feb-15-2025 | 177.22 $* | 186.56 $* |
| Jan-15-2025 | 175.93 $* | 184.49 $* |
Характеристики
Product Description
Characteristics
¢ For direct fired fresh air heating applications
¢ Operates economically (100 % thermal efficiency) and installs easily
¢ Burns clean and odor-free with most gaseous fuels, meeting or exceeding most known
standards for direct-fired make-up air and space-heating applications
¢ Modular design configured within your duct for optimal temperature distribution
¢ No need for a combustion air blower
¢ Extremely low maintenance cost thanks to robust design (no moving parts) and high quality
materials

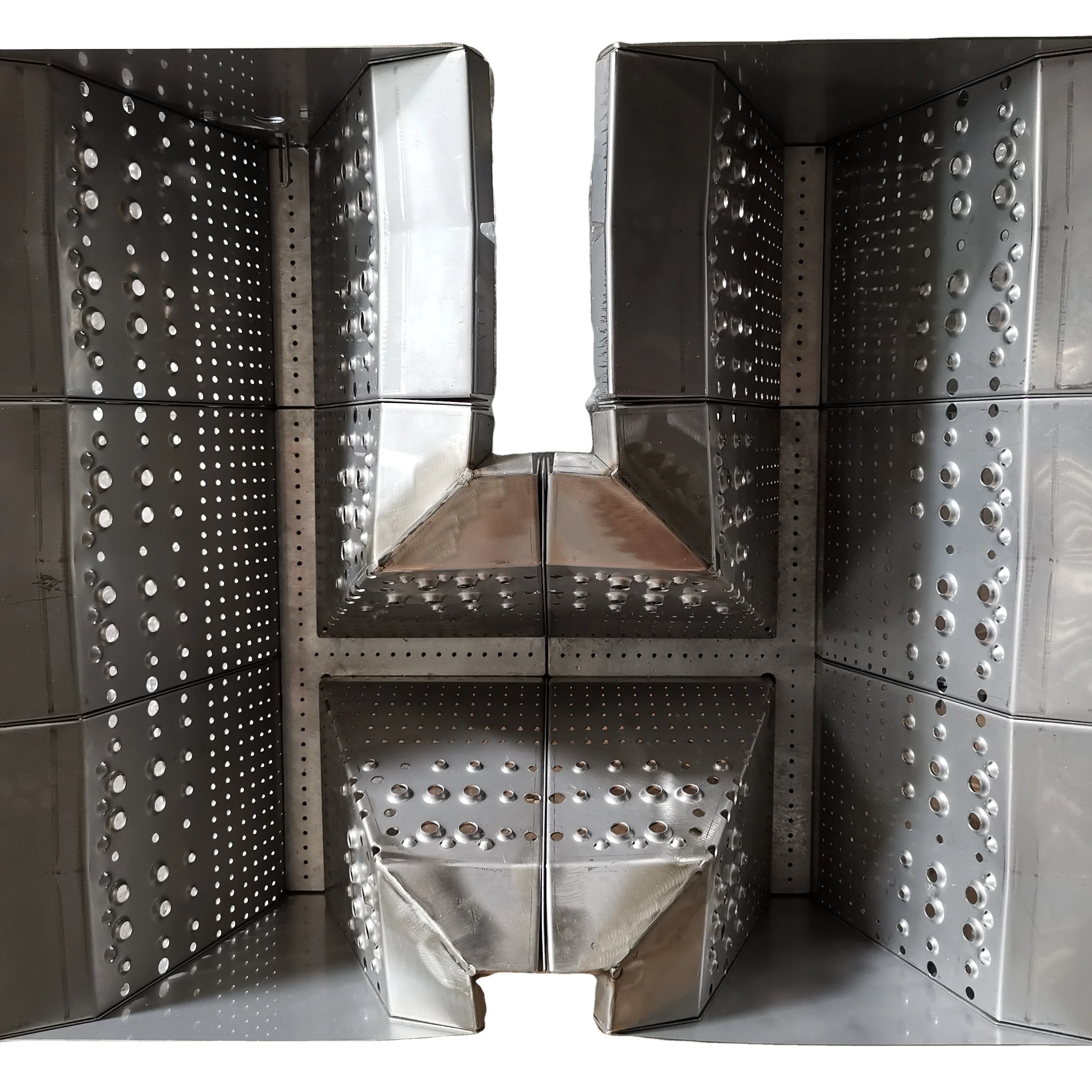

The burners are mounted directly into the air
stream being heated. Gaseous fuel is injected
into the process air stream. The unique
designed V-shaped burner mixing plates are
intimately mixing both gas and process air
together.
All available heat from the gaseous fuel is
released directly into the air stream.
The required oxygen for the combustion is
progressively drawn from the process air
stream.
Carefully controlled aeration patterns provide progressive mixing, superior cross-ignition, flame
retention and odor-free combustion.
Air velocities across the burner (the key to successful operation) are established by the use of
profile plates. Optimum performance demands that air velocities be uniform across the entire
burner.
Applications
Typical low temperature applications include humidity-controlled dual stage paint spray booths, general
make-up air applications, packaged units, door heaters, grain drying, malt drying, etc.
Typical high temperature process air applications include spray dryers, chemical dryers, fresh air oven
heating, drying, baking and curing operations, metal parts finishing and all fresh air heating applications
up to 650° C.
These burners can also be mounted downstream of a steam or hot water coil thus bringing the air to a
higher temperature. This can boost the capacity of an existing installation.
