Product Description

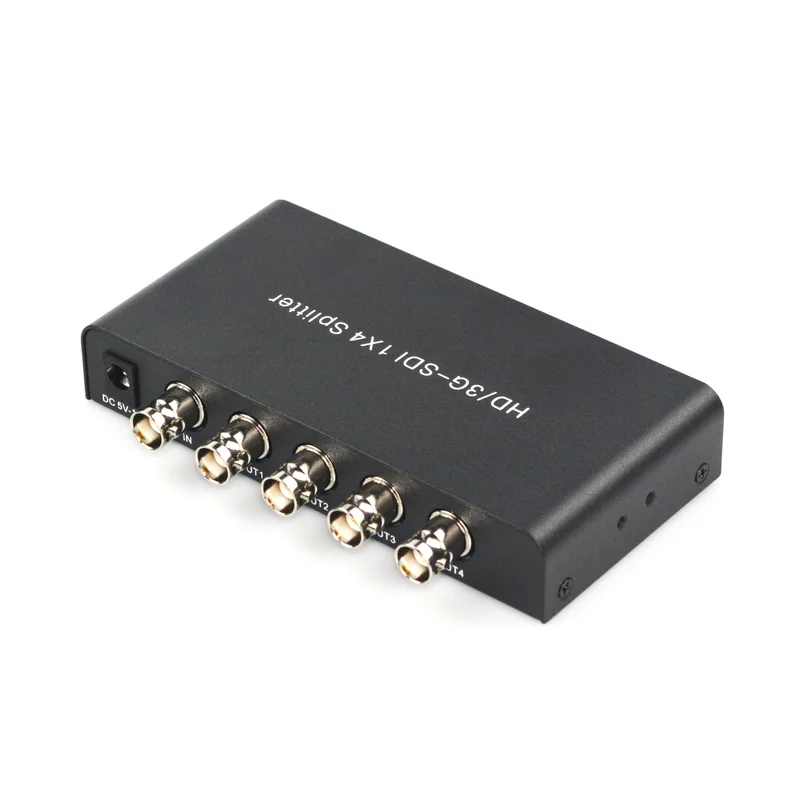

TL MEDIA Hot Sell HD-3G 1X4 SDI Splitter
Model# SDI-SP4
Product introduction
Product introduction
This SDI splitter can split one SDI signal into four SDI signals, that is, the output interface can connect four SDI display
devices and display the same picture, and the input end has a built-in equalizer, which can realize long-distance transmission.
This product is suitable for the places with restrictions on noise, transmission distance and safety, data center control,
information distribution, remote monitoring, conference room presentations, digital environments and company training venues.
Product Features
One SDI signal input, which can be allocated as four SDI outputs
Use 24bit/192KHz DAC chip to ensure high-quality sound quality (the splitter only supports 48khz audio sampling rate)
No signal loss
Support 5V to 12V DC wide voltage input
Low power consumption, low requirements for power adapters

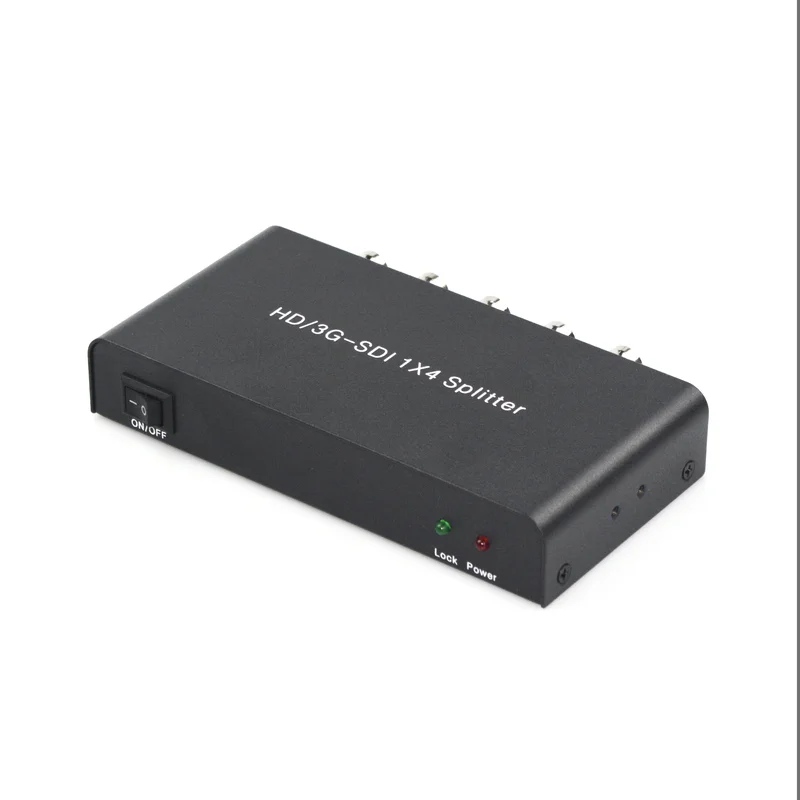

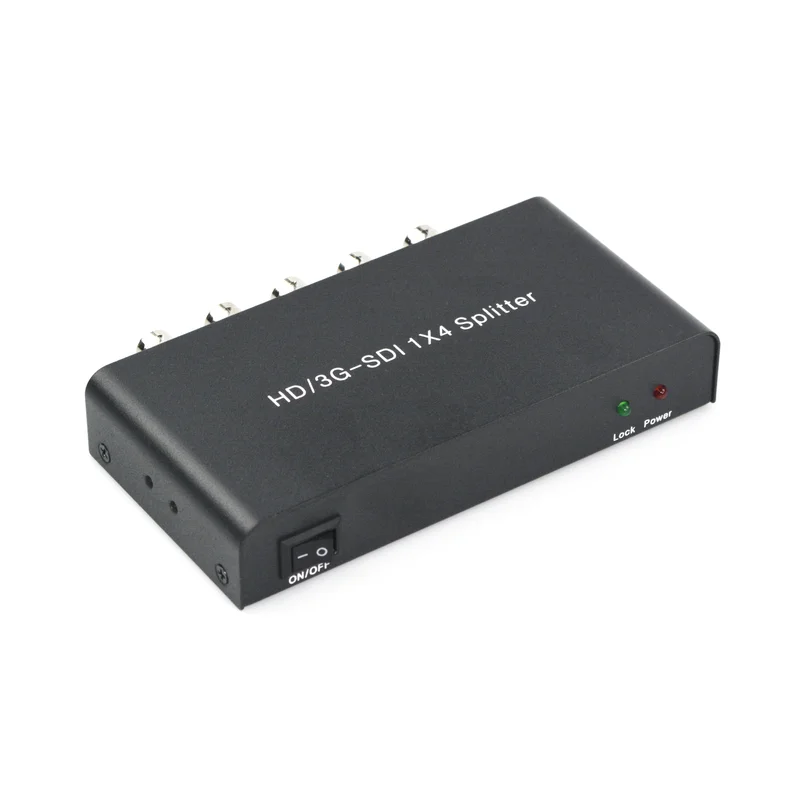

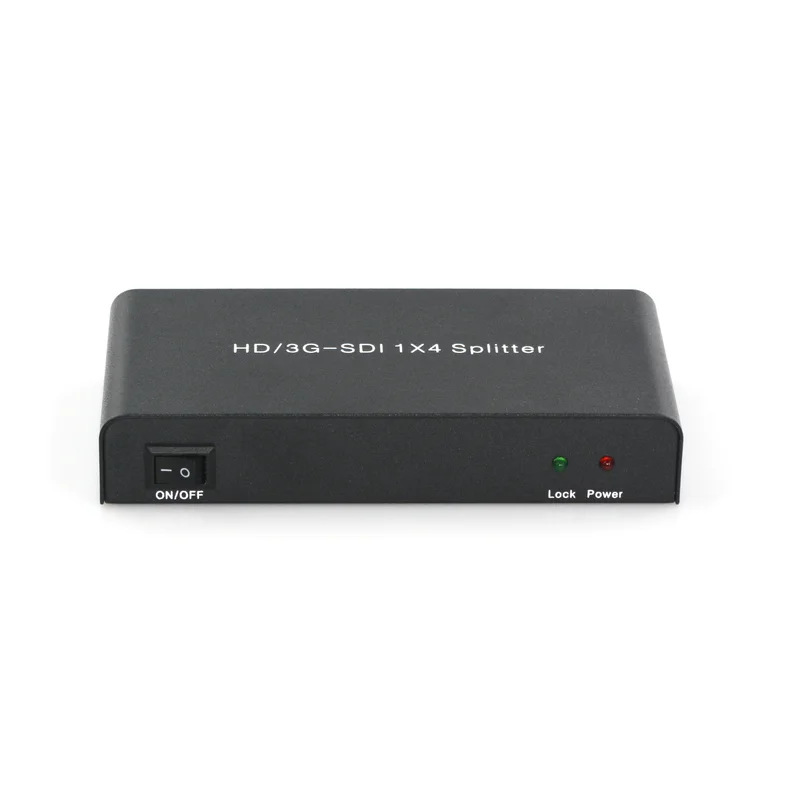

With input status indicator, it clearly shows the usage status of the equipment
Multiple distributors can be connected to realize long-distance, multi-interface expansion function
Product Parameters
SMPTE standard 425M Level A&B , 424M, 292M, 259 MC
SDI transmission rate 270Mb/s(SD), 1.485Gb/s(HD), 2.97Gb/s(3G)
Input/output resolution SD: 480i@60, 576i@50 HD: 720p@50/60, 1080i@50/60 3G: 1080p@24/25/29.97/30 /50/59.94/60
SDI output resolution Depends on the input resolution
Audio sampling rate 48KHZ
Input port 1 x BNC(SD / HD / 3G-SDI)
Output port 2/4 x BNC (SD / HD / 3G-SDI)
SDI transmission cable
The input can reach 100 meters and the output can reach 80 meters
Input up to 80 meters, output up to 100 meters
Input voltage DC5V―12V
Maximum power consumption 1.5W
Human Body Model Electrostatic Discharge Protection...±8kV (air gap discharge ), ±4kV (contact discharge)
Operating temperature -10~+55℃
Storage temperature -20~+60℃
Working humidity 10~90%RH (non-condensing)
Storage humidity 5~95%RH (non-condensing)
Unit Size 125*66.5*22 (mm)
Weight 230g
Connection Method
1. Connect the SDI camera output terminal to the IN terminal of the distributor through the SDI cable.
2. Connect the OUT1-OUT2/4 end of the distributor to the input end of the SDI display device through the SDI line.
3. Finally, connect the DC head of the power adapter to the DC input end of the distributor, and then insert the adapter plug into the power socket.

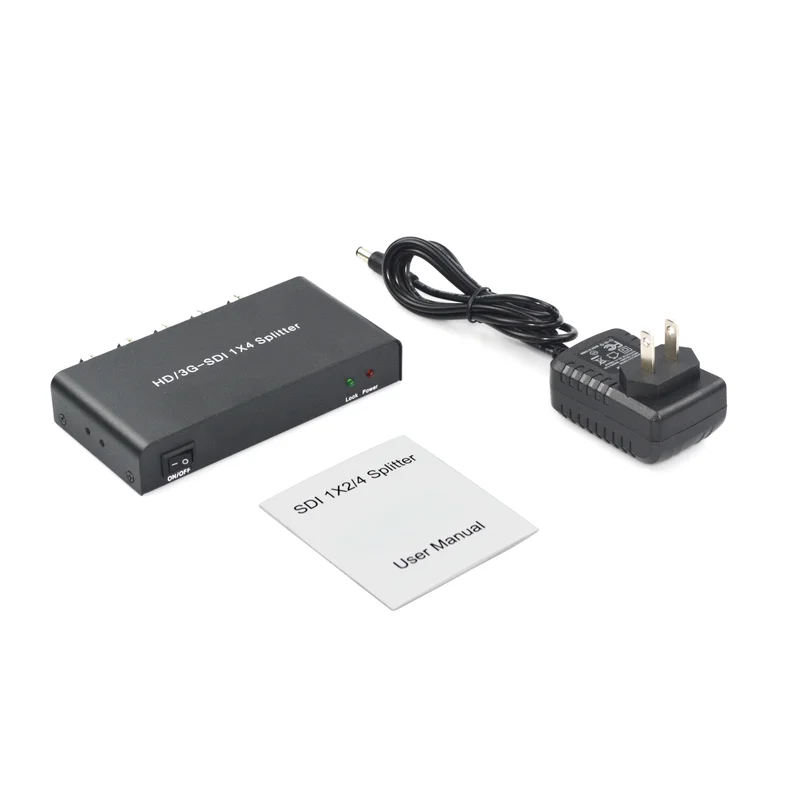

Package Contents
3G SDI Splitter 1PC
DC5V/DV12V power adapter 1PC
User Manual 1PC
Signal | SDI |
Input port | 1 x BNC(SD / HD / 3G-SDI) |
Output port | 2/4 x BNC (SD / HD / 3G-SDI) |
SDI transmission rate | 270Mb/s(SD), 1.485Gb/s(HD), 2.97Gb/s(3G) |
