Рациональное качество CPJ3020A аналог прожектора Mitutoyo
- Категория: >>>
- Поставщик: Guangdong,Rational,Precision,Instrument,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.92 $* | 0.70 $* |
| Aug-15-2025 | 0.72 $* | 0.50 $* |
| Jul-15-2025 | 0.45 $* | 0.15 $* |
| Jun-15-2025 | 0.71 $* | 0.32 $* |
| May-15-2025 | 0.7 $* | 0.67 $* |
| Apr-15-2025 | 0.26 $* | 0.97 $* |
| Mar-15-2025 | 0.2 $* | 0.18 $* |
| Feb-15-2025 | 0.1 $* | 0.66 $* |
| Jan-15-2025 | 0.7 $* | 0.57 $* |
Характеристики
Product Paramenters
Model | Reverse image Erect image | CPJ-3015A CPJ-3015AZ | CPJ-3020A CPJ-3020AZ | CPJ-3025A CPJ-3025AZ | CPJ-3030A CPJ-3030AZ | CPJ-3040A CPJ-3040AZ | |||||
Metal table size (mm) | 354*228 | 404*228 | 450*280 | 500*330 | 606*466 | ||||||
Glass table size (mm) | 210*160 | 260*160 | 306*196 | 321*221 | 450*350 | ||||||
X-axis Travel (mm) | 150 | 200 | 250 | 295 | 400 | ||||||
Y-axis Travel (mm) | 100 | 100 | 150 | 195 | 300 | ||||||
Z-axis Travel (mm) | 100 (Focusing) | ||||||||||
Indication error (mm) | E1XY=(2.5+L/100) | ||||||||||
Resolution (μm) | 0.5μm | ||||||||||
Dimension (mm) | 780*780*1100 | 780*780*1100 | 810*780*1120 | 900*780*1020 | 1040*780*1120 | ||||||
Weight (kg) | 160 | 160 | 180 | 250 | 250 | ||||||
Projector screen | Size (mm) | ∅312 Worktable range > ∅300 (crosshairs) | |||||||||
Rotary range | 0 ~360° | ||||||||||
Resolution | 1' or 0.01° | ||||||||||
Optional 10X,20X,50X or 100X objective lens for Profile Projector
Magnification | 10× (Optional) | 20×(Optional) | 50×(Optional) | 100×(Optional ) | ||||
Field of view (mm) | ∅30 | ∅15 | ∅6 | ∅3 | ||||
Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||||
Max. measuring Height (mm) | 90 | 90 | 90 | 90 | ||||
Power supply: AC 100-240V 50/60Hz. Total power: 400W | ||||||||
Products Description
1 | High precision with foot switch and multifunctional data processing meter |
2 | Easy to operate |
3 | Resolution of linear scale: 0.5um |
4 | Powerful Digital Readout to support easy and accurate measurement |
5 | Precise and accurate |
6 | Low maintenance cost |
7 | Optional Proprietary software |
8 | Reliable and cost-effective |
Application
Product brief

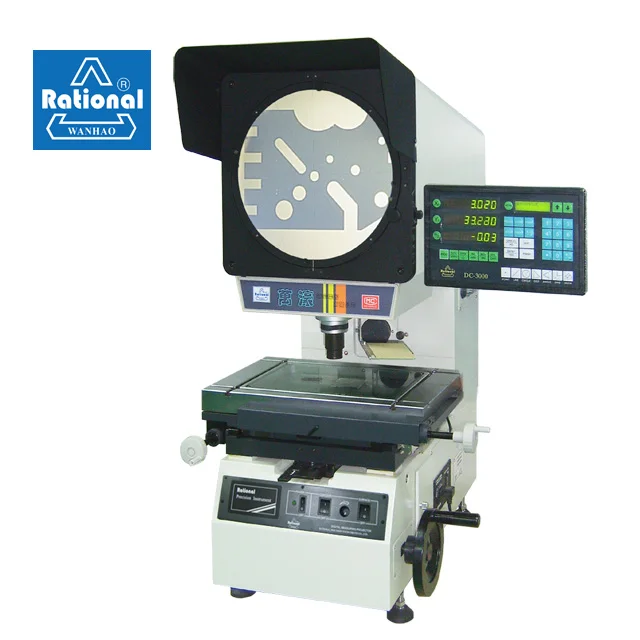

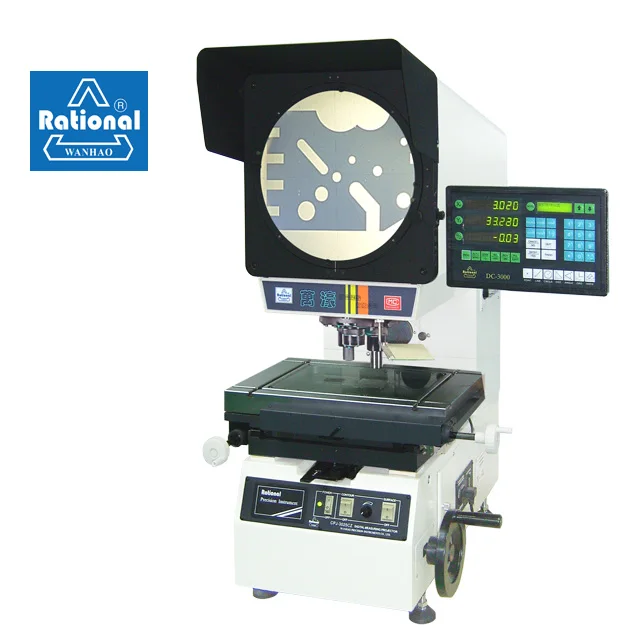

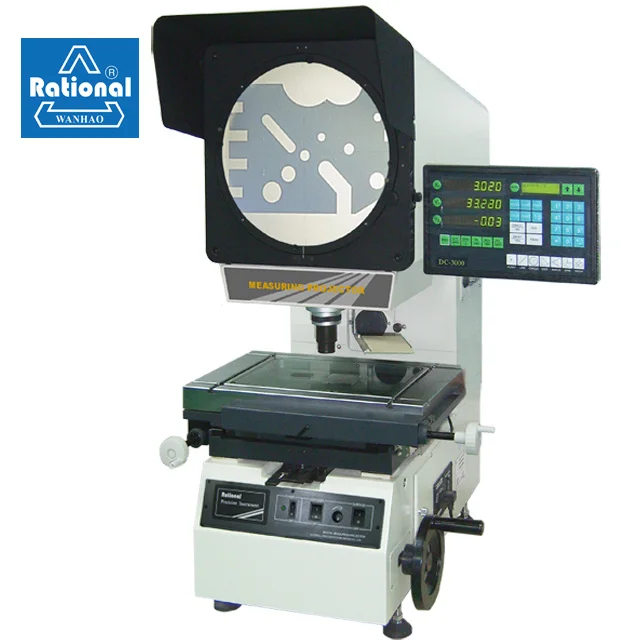

1.CPJ-3000A/AZ series digital profile projector is an ergonomic and reliable measuring instrument with premium quality.This instrument is equipped with foot-switch and multi-functional data processing system, which is convenient to output data and sample, enabling the user to effectively and sufficiently inspect the measured objects. This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
1.CPJ-3000A/AZ series digital profile projector is an ergonomic and reliable measuring instrument with premium quality.This instrument is equipped with foot-switch and multi-functional data processing system, which is convenient to output data and sample, enabling the user to effectively and sufficiently inspect the measured objects. This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
Recommend Products
Long Strode Horizontal Profile Projector
Floor-Type Profile Projector
Product packaging
After-sale service
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves. If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience. We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us. We devote ourselves to providing continuous technical support and services
including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software, etc.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software, etc.
