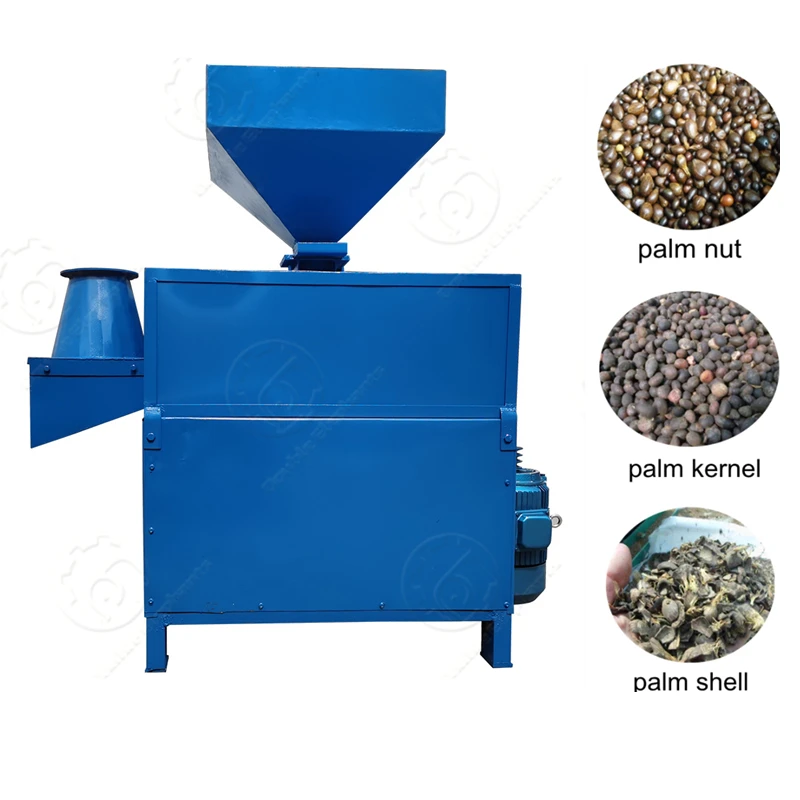

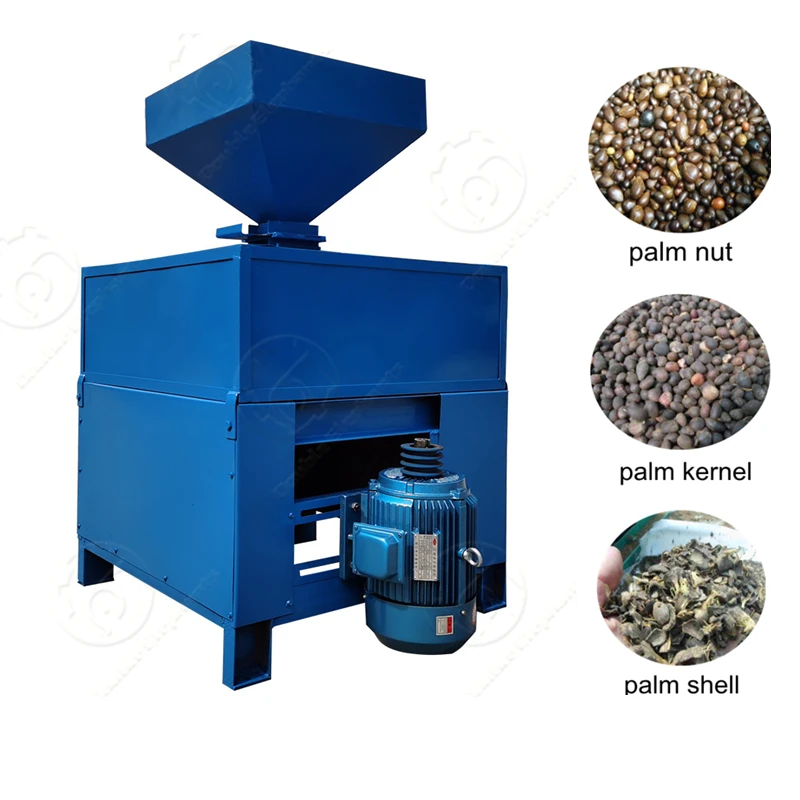

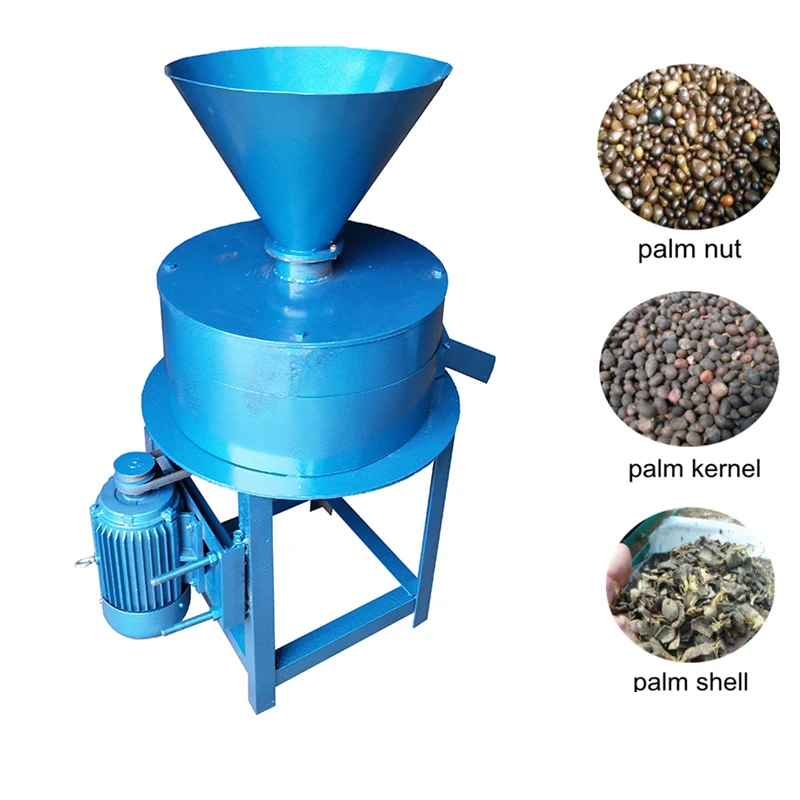

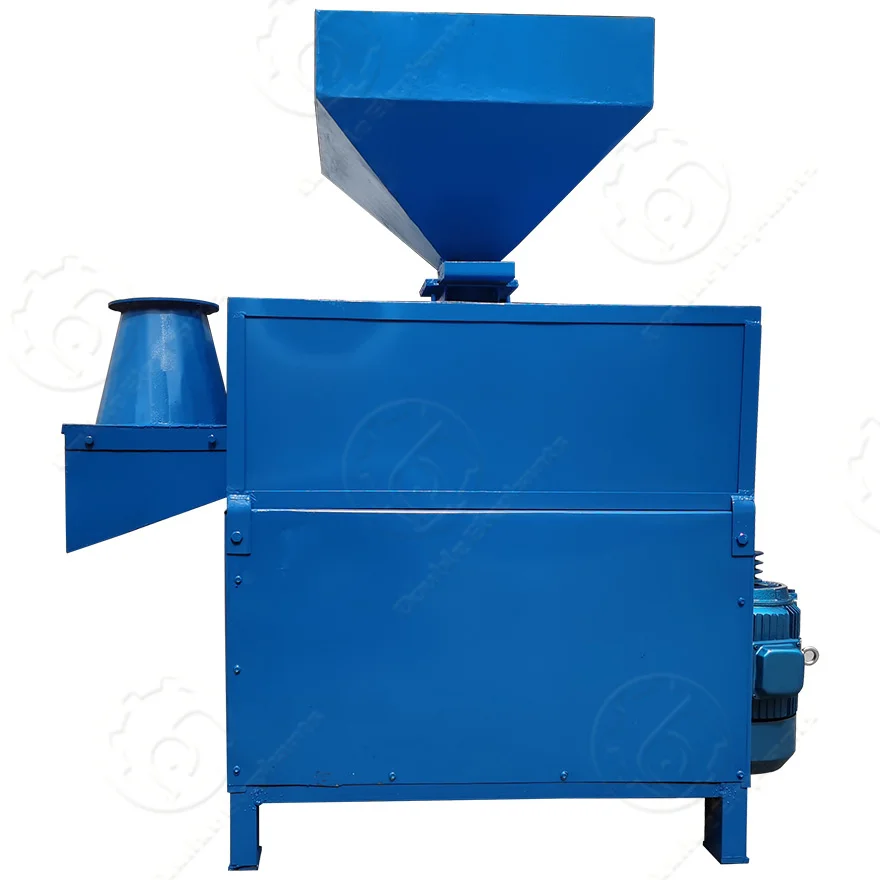

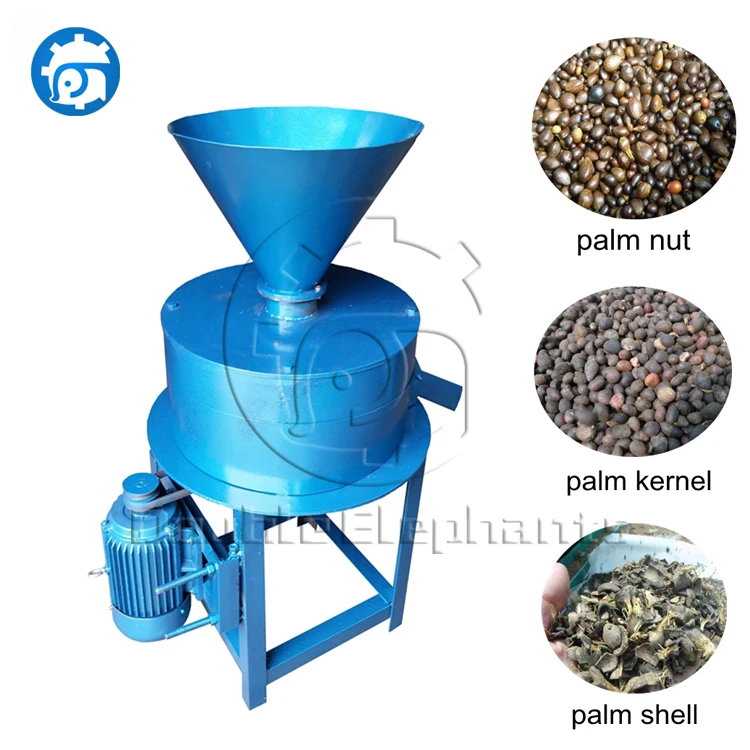

Palm kernel cracker,palm kernel cracker and separating machine





Palm kernel oil contains slightly more unsaturated acids than coconut oil, so its iodine value is higher. Fresh palm kernel oil is edible. Palm kernel oil can also be divided into solid and liquid by crystallization and pressing. Solid fat can be used as a substitute for cocoa butter, and liquid oil is used for baked goods, hydrogenation or soap making. Palm kernel oil has no special color reaction. If it is mixed with cocoa butter or other fats, it can only be identified by the refractive index and saponification value.





Introduction for palm kernel cracker

Palm kernel cracker machine is ideal equipment used for palm kernel oil processing plant.

palm Kernel cracker is used in collecting places of small scale palmery and wild palm nut, which can shell the palm core. At the same time, it can also shell the hard oil seeds like walnut. This machine can use electricity motor or diesel engine, which can used to match with movable process and palm kernel oil press plant. It has the features of easy operation and convenient maintain, wide usage etc.



Working Principle

With the high speed rotation of special hammers which inside the shelling room, the hard shell of palm kernel (walnut) was cracked.



Technical data

Model	TK-500	TK-1000
Capacity(kg/h)	300-500kg/h	1000kg/h
Shelling rate(%)	98%	98%
Power(kw)	2.2kwkw	5.5kw
Size:	1200*600*1000	1300*900*1000
Weight:	300kg	600kg/







After Cracking Palm kernel,you have to separate the palm kernel and hard cover,so we suggest Palm Kernel Shell Separator



We also produce Complete Palm Kernel Oil Pressing Line if you needed.



The Flow process for palm kernel oil processing plant:

 Palm nut--Cracker--Palm kernel and shell separator--Kernel Crusher--Kernel Roaster--Kernel Oil Extraction--Filter Machine--Final oil



Palm kernel Cleaning : It is used for removing the iron impurities, stone, fiber and pthers. These impurities are bad for crude palm kernel oil pressing production line, especial for the palm kernel expeller

Palm kernel crushing: because the palm kernel is hard and big size, it is required to crash to smaller and even pieces. If once cruhsing can not reach the requirements, the second crushing is required. Palm kernel crushing machine can make it easy to extract palm kernel oil.

Cooking section: It is used for heating and cooking the crushed materials, to make is suitable for crude palm kernel oil pressing production line, doing like this can help user get the maximum oil and good quality cakes.

Palm kernel oil expeller. Palm kernel oil expeller plays a key role in palm kernel oil production line, no palm kernel oil expeller machine, we can't get crude palm kernel oil and refined palm kernel oil. Palm kernel oil expeller machine can help us to extract out most of palm kernel oil.

Palm kernel Filtering section: after palm kernel oil expeller pressing, there are some oil dregs in the crude oil, after clarifying, we need to filter the crude oil to avoid to jam the oil pipes during palm kernel oil refinery processes.
