Характеристики
Product Overview

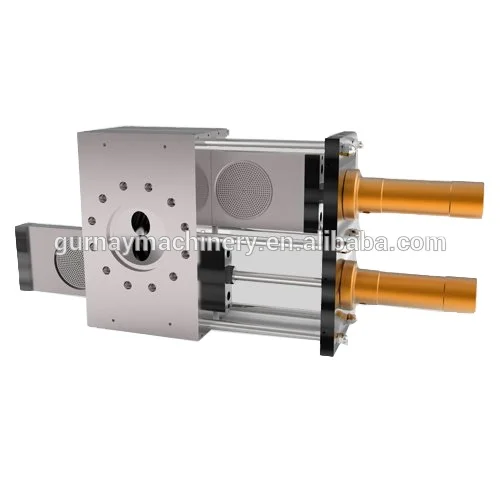

Double plate hydraulic screen changer
Double plate hydraulic screen changer, there are two plates, realizing one plate’s screens working with another one changing, without the continuous extrusion production. Every plate have two screens, so this type screen changer can keep double filtering areas, improve the filtration speed.
Applications
Pelletizing, pipe, sheet, plates, casting film, chemical fiber, blown film, flat film cutting grain line, recovery and so on.
Pelletizing, pipe, sheet, plates, casting film, chemical fiber, blown film, flat film cutting grain line, recovery and so on.
FEATURES AT A GLANCE
Features
1. suitable for kinds of polymer extrusion production
2. screen having flow and venting function
3. non-stop production
4. bear pressure of 25-30MPa
5. having unique sealing design
2. screen having flow and venting function
3. non-stop production
4. bear pressure of 25-30MPa
5. having unique sealing design
PRODUCT SPECIFICATIONS
Type | Screen Diameter(mm) | Screen Area(cm2) | Heating power(kw) | Capacity(kg/h) |
GY-DP-80 | 80 | 50*2 | 7.2-10.2 | ≤300 |
GY-DP-100 | 100 | 78*2 | 9.6-12 | ≤500 |
GY-DP-120 | 120 | 113*2 | 12-14.4 | ≤800 |
GY-DP-150 | 150 | 176*2 | 14.4-18 | ≤1200 |
GY-DP-180 | 180 | 254*2 | 24-28.8 | ≤1500 |
GY-DP-200 | 200 | 314*2 | 27-31.8 | ≤2500 |
GY-DP-250 | 250 | 490*2 | 30-36 | ≤3700 |
PRODUCT CONFIGURATION

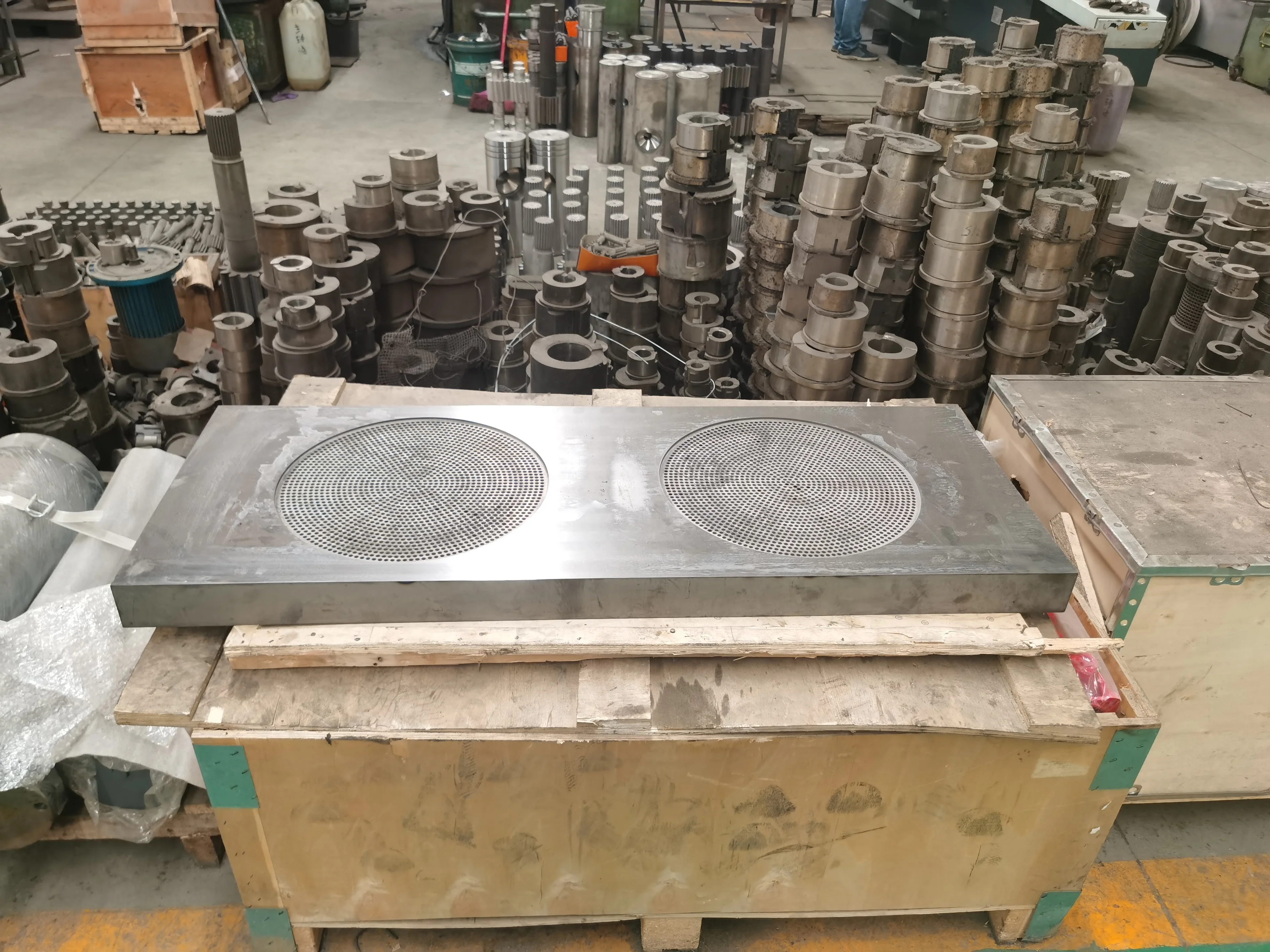

High quality plate with screen

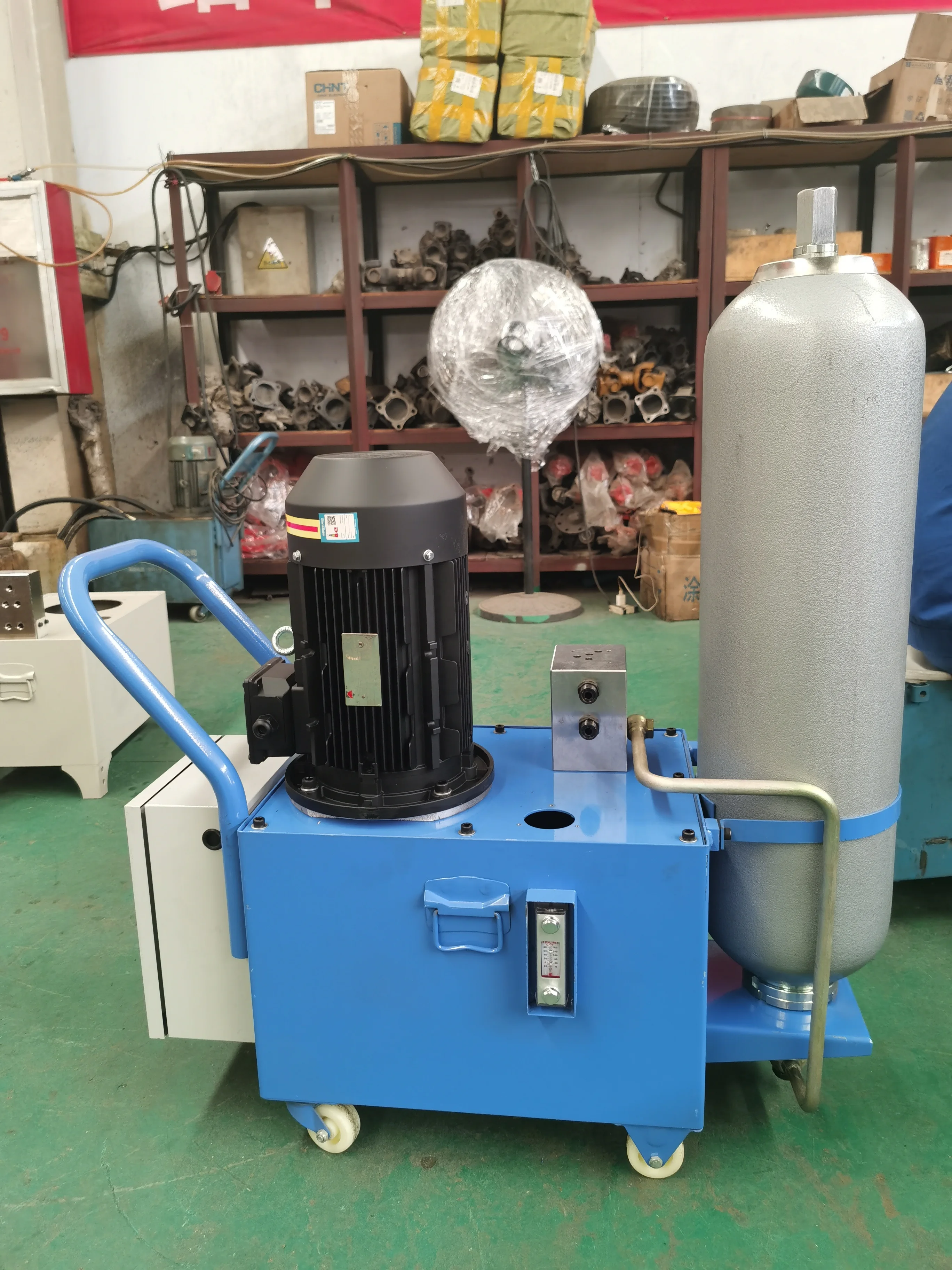

Hydraulic station
Control system
SALES AND SERVICE NETWORK
Successful Project
Project on recycling line
Project on pp sheet line
Project on plastic plate line
SIMILAR PRODUCTS
FAQ
Q1:How to choose a suitable screen changer?
A1:As for screen changer, we need to be told as follow:
1. What is the processed material, PP/PE/ABS/PET/HDPE/LDPE? Is it new material or recycled material?
2. Is the extruder single screw or twin screw? What size is the screw diameter?
3. Production capacity (Kg/h)? Max operating pressure?
4. What is the finial product, plastic pipe or sheet, pellets, film?
5. Do you require continuous or discontinuous process?
According to the technical feedback, we will suggest that screen changer more suitable your processing requirement.
Q2:What are the benifits of screen changer on extruder?
A2:1. Improve the quality of the final products
2. Greatly improve the plasticizing of the raw material
3. Make the product structure more homogeneous and product surface smoothness.
4. Protect the down stream equipments, such as melt pumps and the extrusion dies.
A1:As for screen changer, we need to be told as follow:
1. What is the processed material, PP/PE/ABS/PET/HDPE/LDPE? Is it new material or recycled material?
2. Is the extruder single screw or twin screw? What size is the screw diameter?
3. Production capacity (Kg/h)? Max operating pressure?
4. What is the finial product, plastic pipe or sheet, pellets, film?
5. Do you require continuous or discontinuous process?
According to the technical feedback, we will suggest that screen changer more suitable your processing requirement.
Q2:What are the benifits of screen changer on extruder?
A2:1. Improve the quality of the final products
2. Greatly improve the plasticizing of the raw material
3. Make the product structure more homogeneous and product surface smoothness.
4. Protect the down stream equipments, such as melt pumps and the extrusion dies.
