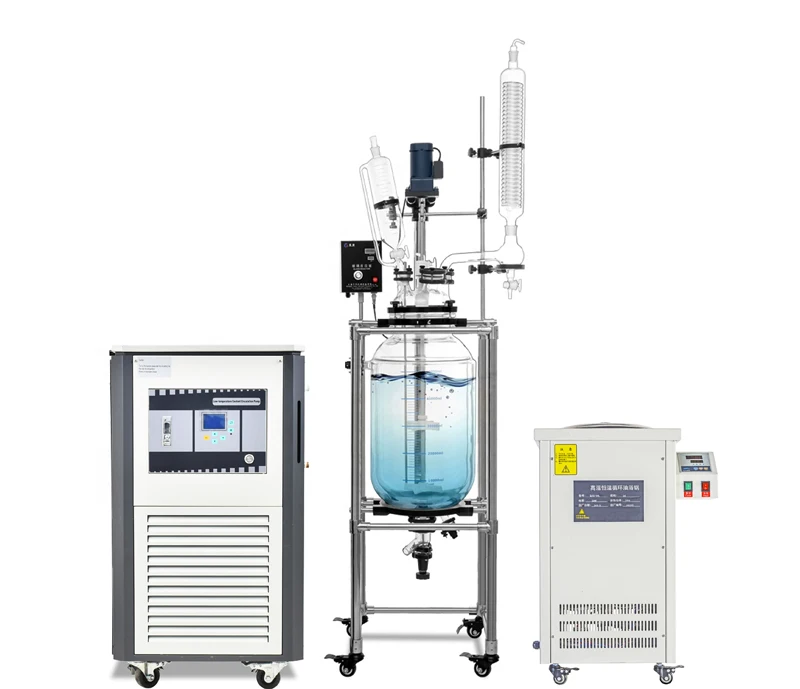

Реактор из жаккардового стекла 100 л с охладителем и нагревателем для
- Категория: Reactors >>>
- Поставщик: Henan,HOPE,Industrial,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.0 $* | 0.32 $* |
| Aug-18-2025 | 0.29 $* | 0.77 $* |
| Jul-18-2025 | 0.62 $* | 0.94 $* |
| Jun-18-2025 | 0.85 $* | 0.35 $* |
| May-18-2025 | 0.28 $* | 0.83 $* |
| Apr-18-2025 | 0.4 $* | 0.23 $* |
| Mar-18-2025 | 0.81 $* | 0.57 $* |
| Feb-18-2025 | 0.74 $* | 0.1 $* |
| Jan-18-2025 | 0.20 $* | 0.42 $* |
Характеристики
100L Jacketed Glass Reactor with Chiller and heater for Winterization Decarb
Product Description
10L 20L 50L 100L jacketed glass reactor is designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Parameters
Parameters of 10L 20L 50L 100L Jacketed Glass Reactor
Model | HPGT-10L | HPGT-20L | HPGT-30L | HPGT-50L | HPGT-100L |
Reaction capacity | 10L | 20L | 30L | 50L | 100L |
Jacketed volume | 3L | 6L | 10L | 16L | 30L |
Collection Flask | Optional: 2L, 5L, 10L, 20L, 50L, 100L. Customizable | ||||
Port No. on Lid | 5+1 ports: stirrer, thermometer, feeding funnel, solid charging port, reflux unit, liquid/exhaust port | ||||
Motor power | 120W | 200W | |||
Rotation speed | 0~600rpm | ||||
Controller | Frequency Conversion Speed, LED, Temperature&Speed digital display | ||||
Seal mixing shaft | PTFE and special rubber compound seal ring seal, can withstand different solvents and maintain high vacuum degree. (Anti-acid ceramic mechanical sealing optional) | ||||
Glass material | High borosilicate glass, Temperature range: -120℃~300℃ | ||||
Thermometer tube | PTFE Coat, PT100 sensor | ||||
Feeding Funnel | 2L | ||||
Solid feeding port | DN80 Flange, With PTFE Lid (Customizable) | ||||
Condenser | Vertical Serpentiform Condenser | ||||
Frame material | 304 stainless steel, Black PTFE frame is optional | ||||
Power supply | Single phase 110V/220V, 50/60Hz | ||||
Stirring rod | Anchor type, frame type, propeller type, four-blade type multi-layered type is optional | ||||
Discharging valve | PTFE+Glass, DN60 Flange (Customizable) | ||||
Connect tube | Standard Configuration | ||||

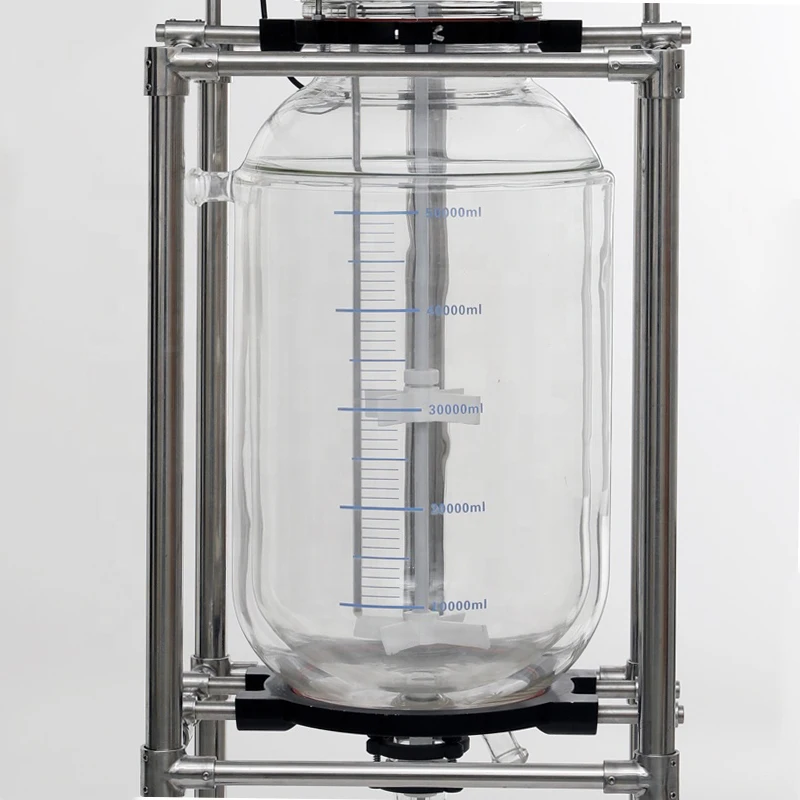

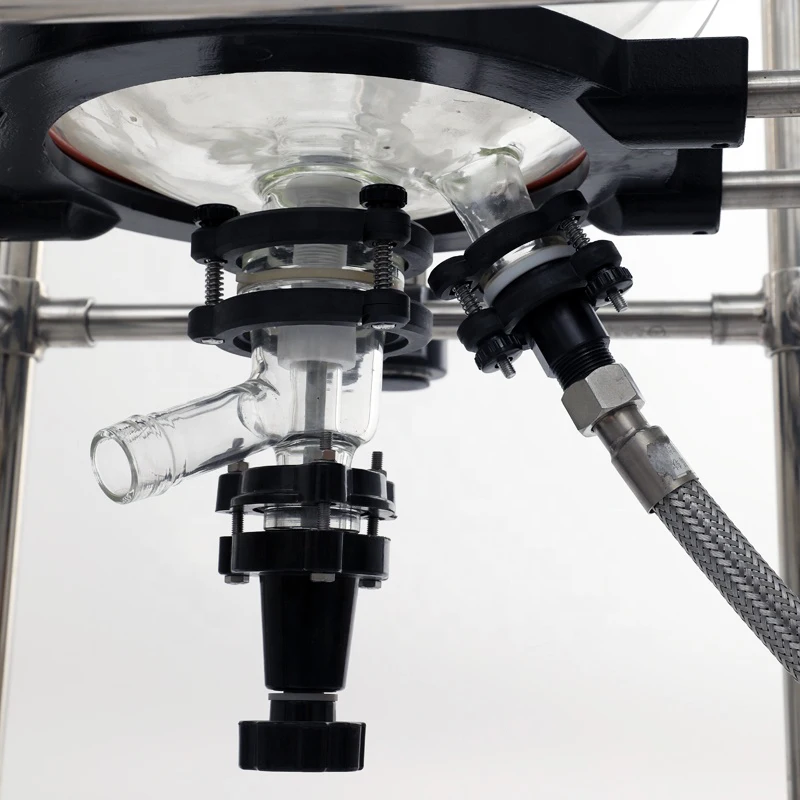

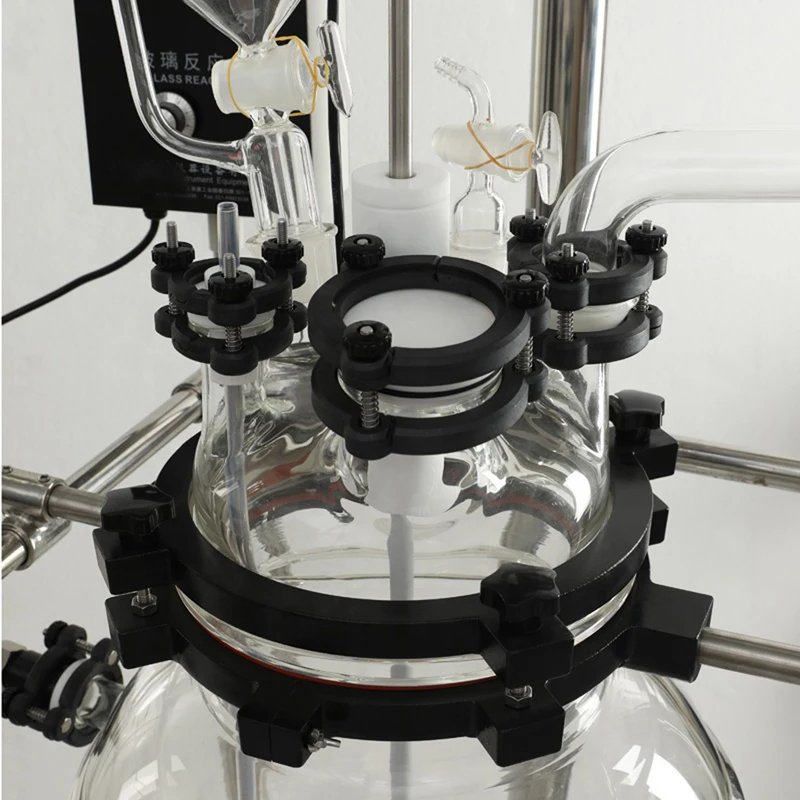

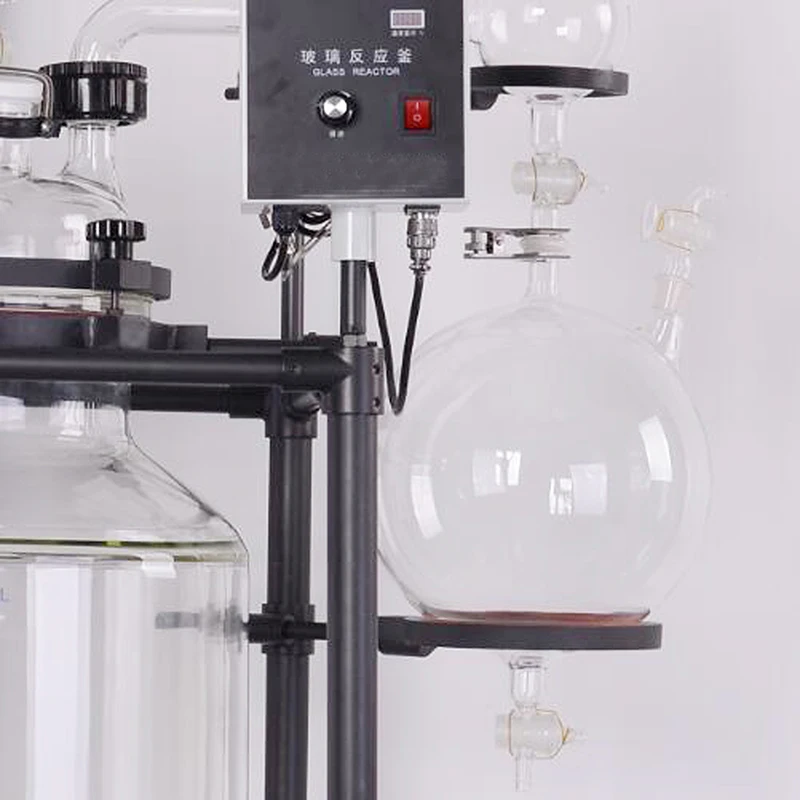

Detailed Images
Packaging & Shipping
We can ship the 100l jacketed glass reactor by sea, by air, by train, also you can use your own forwarder.
We can help you employ freight and insurance services in China . China's shipping agents are the most efficient and best served in the world in my opinion . They can work more than 16 hours a day.
HOPE Industrial
We know how important product quality is to your business, and thus our detail-oriented R&D and QC team are always doing their best for product quality. Our sales team are qualified engineers, we make sure that we know our products very well and are capable of providing professional suggestions before you make your decision.We also speak fluent English. So please feel free to call us for a real-time discussion if you have urgent questions. Moreover, we have a super fast after-sales supporting Team. We often ship replacement components via DHL/UPS Express, to make sure you can get it in less than 1 week.
