Преобразователь постоянного тока 1200 Вт 20 А повышающий Автомобильный режим питания 8-60 в до 12-83 оптовая
- Категория: Power Supplies >>>
- Поставщик: Shenzhen,Robotlinking,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 4.24 $* | 4.82 $* |
| Jul-19-2025 | 3.3 $* | 3.22 $* |
| Jun-19-2025 | 4.2 $* | 4.17 $* |
| May-19-2025 | 4.57 $* | 4.99 $* |
| Apr-19-2025 | 3.54 $* | 3.69 $* |
| Mar-19-2025 | 4.67 $* | 4.21 $* |
| Feb-19-2025 | 4.32 $* | 4.24 $* |
| Jan-19-2025 | 4.61 $* | 4.12 $* |
Характеристики

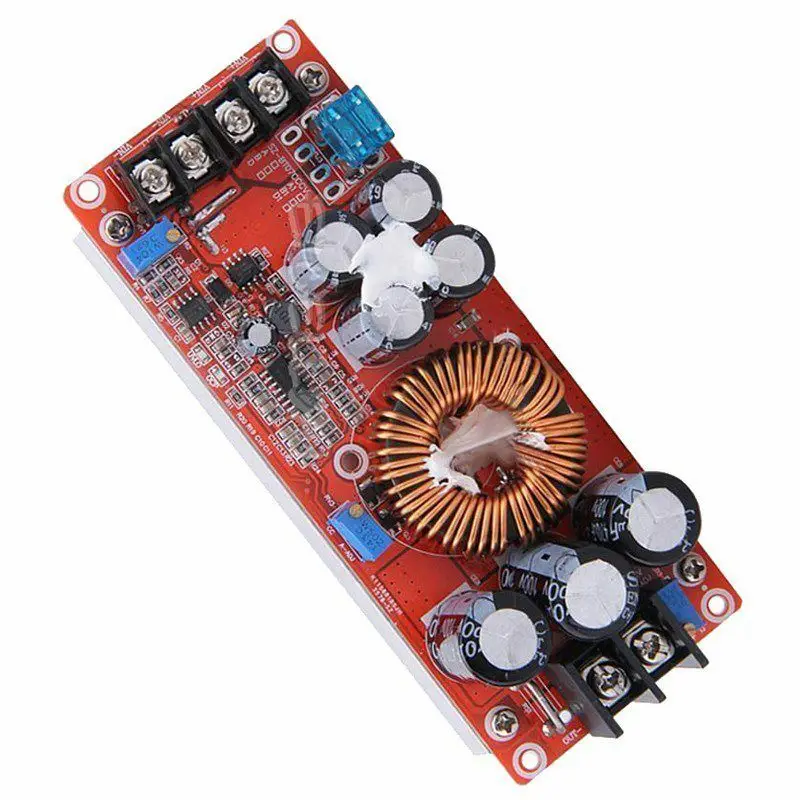

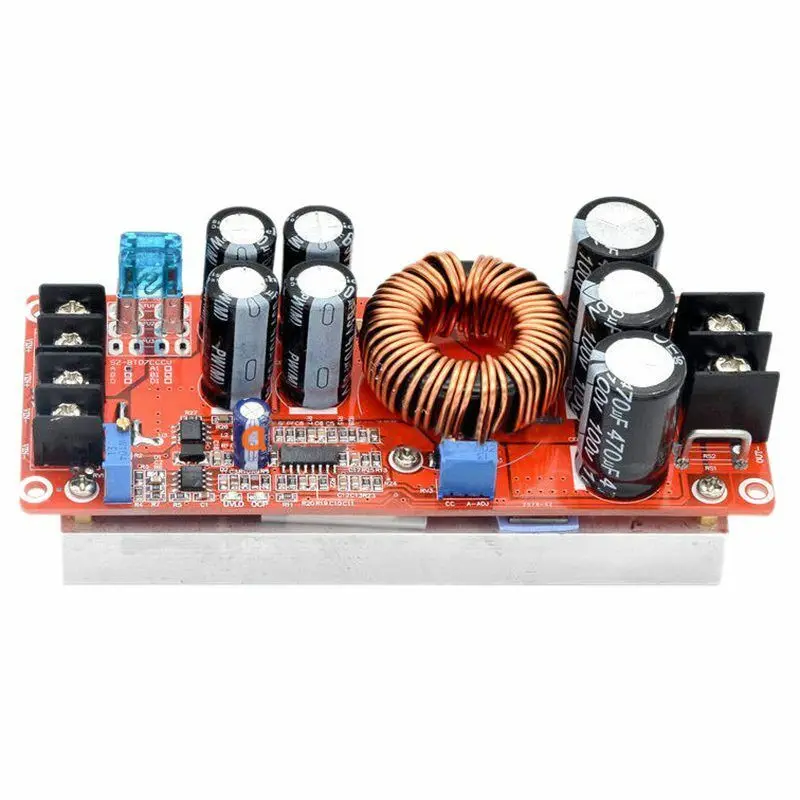

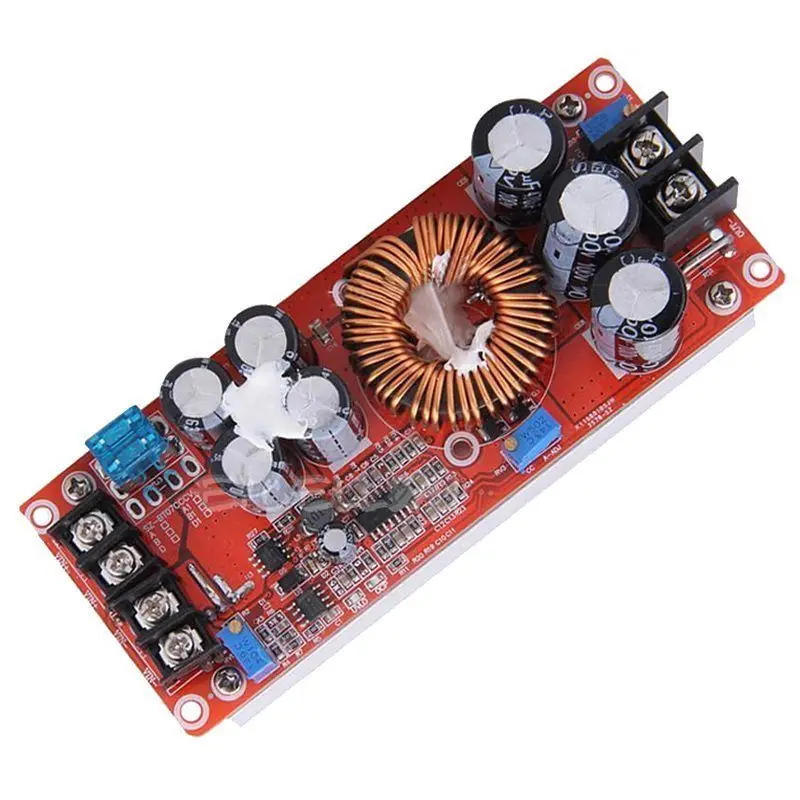

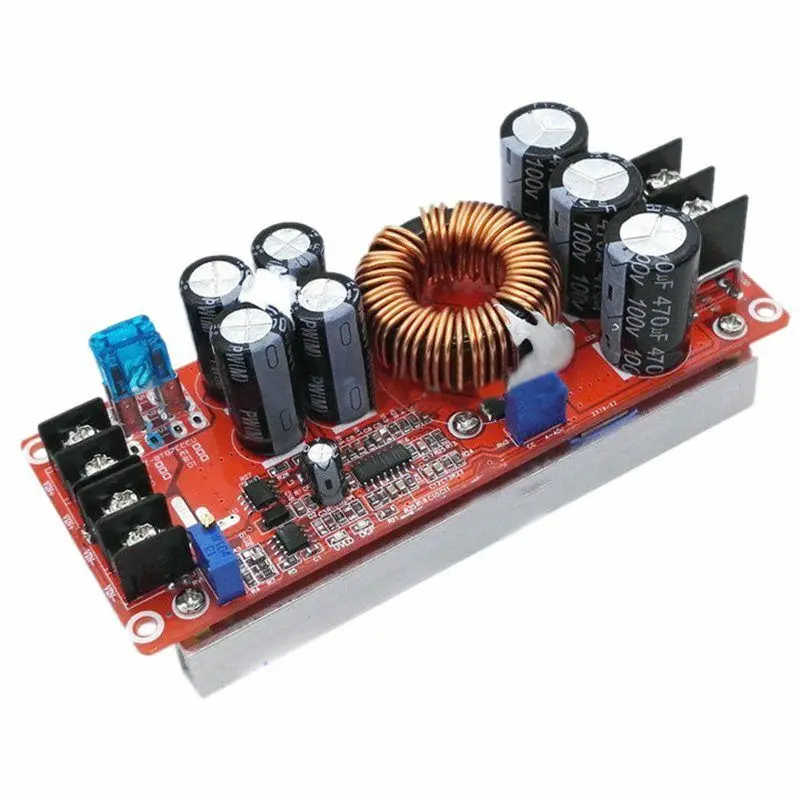

Wholesale 1200W 20A DC Converter Boost Car Step-up Power Supply Mode 8-60V to 12-83V
Description:
Input voltage: 8-60V
Input Current: 20A
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-83V
Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the
smaller the output current)
Material: plastic
Color: red
Constant Range: 0.5-20A
Output Power:
Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W,
Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W
If you need more power, you can use two modes in parallel, such as the output to 30A, two modes can be used in parallel,
The current per mode can be adjusted to 15A.
Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)
Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the
output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.)
Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security.
Input reverse polarity protection: None, (if necessary, please enter the string into the diode)
Output Counter filling: Yes, for charging plus blocking diode is not required.
Installation: four 3mm screws
Connection: solderless terminals output
Mode dimensions:116x52x15mm
Weight: 300 g
Package Contents
1 x1200W 20A DC Converter Boost Power Supply Mode
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Robotlinking |
Model Number | NA503 |
Product Name | dc dc converter |
Type | dc boost converter |
Payment | Paypal\\TT\\Western Union\\Trade Assurance |
MOQ | 1 Piece |
Condition | 100%new |
Quality | Guarantee |
Model | NA503 step up voltage converter |
Delivery time | 3-5 Workdays |
Brand | Robotlinking |
Package | Standard Package (plastic Bag+carton Box) |
