Уникальный дизайн лидер продаж летательный аппарат G7 VTOL с неподвижным крылом для отображения карты
- Категория: Aircraft >>>
- Поставщик: Shenzhen,Gy,Uav,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 5841.98 $* | 5958.28 $* |
| Jul-16-2025 | 4737.56 $* | 4832.77 $* |
| Jun-16-2025 | 5749.68 $* | 5864.3 $* |
| May-16-2025 | 5703.36 $* | 5817.31 $* |
| Apr-16-2025 | 4553.49 $* | 4644.87 $* |
| Mar-16-2025 | 5611.60 $* | 5723.6 $* |
| Feb-16-2025 | 5565.76 $* | 5676.51 $* |
| Jan-16-2025 | 5519.92 $* | 5629.82 $* |
Характеристики

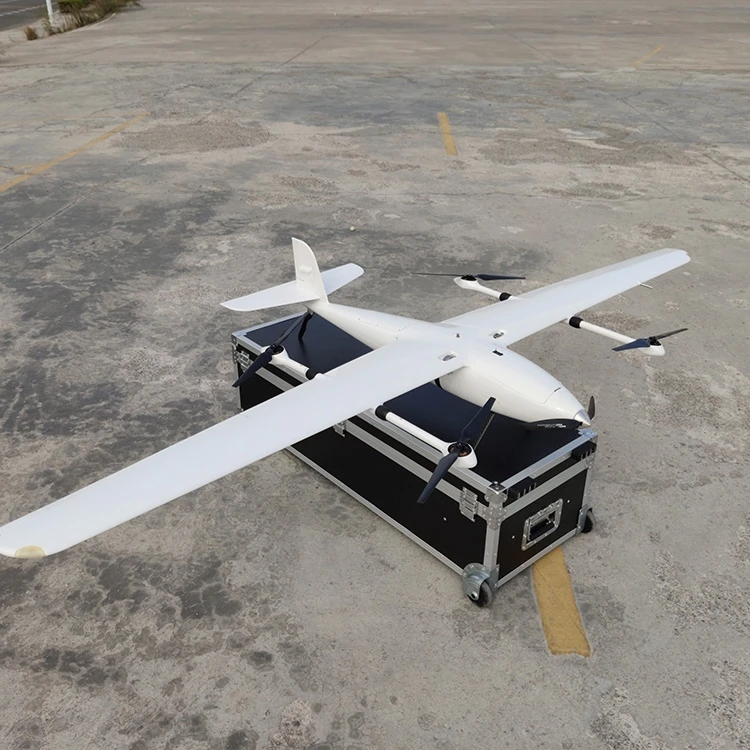

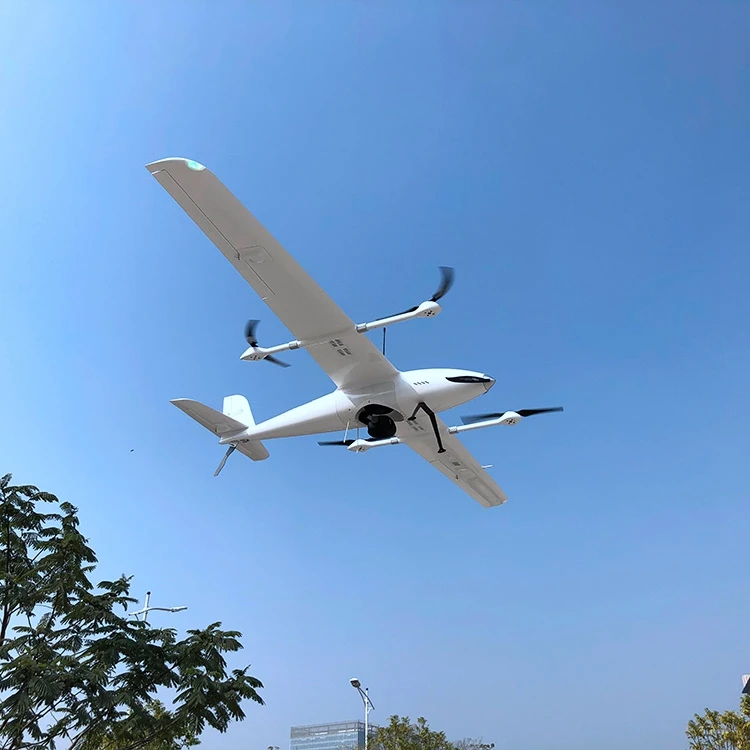

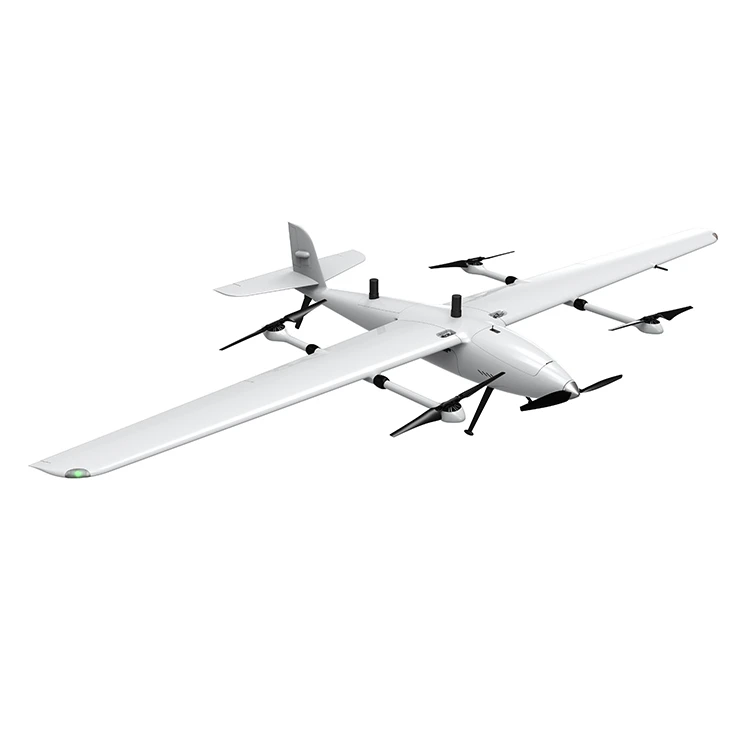

G7 is a pure electric vertical take-off and landing(VTOL) fixed-wing UAV which with a standard take off weight of 7kgs.
The development of this UAV was based on long-endurance and long-range requirements according to the characteristics of the application for surveying and mapping and patrol.One minute rapid deployment is achieved through modular design, which makes a better operating experience for users.
With the design of independent payload cabin,users can replace the payload flexibly according to the operation requirements.
The development of this UAV was based on long-endurance and long-range requirements according to the characteristics of the application for surveying and mapping and patrol.One minute rapid deployment is achieved through modular design, which makes a better operating experience for users.
With the design of independent payload cabin,users can replace the payload flexibly according to the operation requirements.
Prodcut Name | G7 VTOL fixed-wing UAV with power set version |
Material | Carbon fiber + glass fiber |
Color | White/gray |
Standard take-off weight | 7 kg |
Max. Payload Weight | 1.0 kg |
Cruise Speed | 72km/h |
Max. Flight Speed | 100km/h |
Control radius | 15km |
Max. climb speed | 4m/s |
Max. Descend speed | 5m/s |
Max. Altitude AMSL | 4000m |
Max. Wind Resistance | Level 6 |
Operating temperature | -10~60℃ |
Flight Time | 130-160min (130min with Sony A7RII Camera) |
Flight Distance | 160-190km(160km with Sony A7RII Camera) |

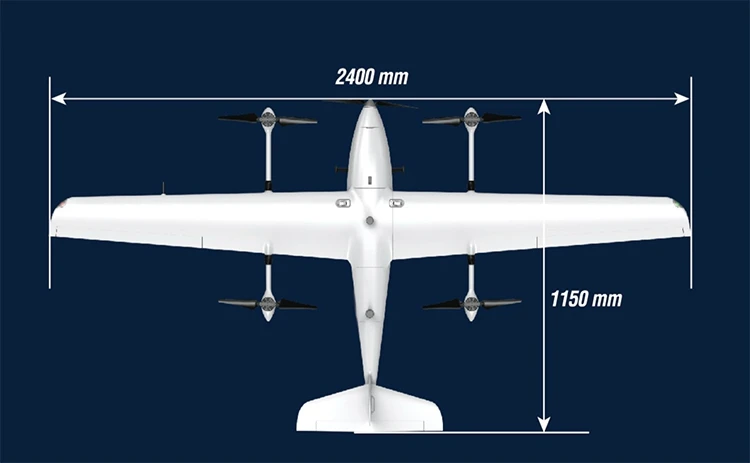

Aircraft dimensions | 2400*1150*300mm |
Configuration list of G7 each version | ||||||||||
Parts Name | SPEC | QTY | G7-1 | G7-2 | G7-M | |||||
Composite Frame(Carbon fiber + glass fiber) | Composite material | 1 | √ | √ | √ | |||||
Motor for VTOL Mode | 4112 kv485 | 4 | √ | √ | √ | |||||
ESC for VTOL Mode | 60A | 4 | √ | √ | √ | |||||
(Pairs)Propeller for VTOL Mode | 15*55 | 2 | √ | √ | √ | |||||
Motor for Fixed wing Mode | 3525 kv450 | 1 | √ | √ | √ | |||||
ESC for Fixed wing Mode | 80A | 1 | √ | √ | √ | |||||
Propeller for fixed wing Mode | 14*10 | 1 | √ | √ | √ | |||||
Servo | / | 4 | √ | √ | √ | |||||
Power board | GY powerboard v4.1 | 1 | √ | √ | √ | |||||
toolkit | RTW Hexagon screw driver set | 1 | √ | √ | √ | |||||
Aluminum packing box | Aluminum box packaging | 1 | √ | √ | √ | |||||
Pixhack V3 Flight control | pixhack v3 | 1 | √ | |||||||
Pixhack V3 GPS | GPS pixhack V3 | 1 | √ | |||||||
Air Speedometer | 1 | √ | √ | |||||||
G1 Flight control | G1 | 1 | √ | |||||||
GPS G1 V3 | G1 V3 | 1 | √ | |||||||
ET07 Radio Controller | ET07 | 1 | √ | √ | ||||||
SKYRC PC520 Charger | SKYRC pc520 | 1 | √ | √ | ||||||
Data transmission D02 10KM | D02 10KM | 1 | √ | √ | ||||||
6S 22000mAh battery | 6S 22000MAH | 1 | √ | |||||||
PPK | UAV-381-PPK | 1 | √ | |||||||
orthographic camera+Lens | sony a7rm2+FE35/2.8 | 1 | √ | |||||||
Assembling and tuned services | 1 | √ | √ | |||||||
