Дешевая цена Горячая окунутая гальванизированная стальная емкость для хранения еды 50000 100000 литров галлон HDG бак
- Категория: Water Treatment Machinery >>>
- Поставщик: Dezhou,Huili,Water,Tank,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 71.91 $* | 75.8 $* |
| Aug-17-2025 | 71.11 $* | 75.51 $* |
| Jul-17-2025 | 59.84 $* | 62.72 $* |
| Jun-17-2025 | 70.44 $* | 74.38 $* |
| May-17-2025 | 61.66 $* | 64.42 $* |
| Apr-17-2025 | 68.51 $* | 71.0 $* |
| Mar-17-2025 | 68.48 $* | 71.24 $* |
| Feb-17-2025 | 67.46 $* | 70.20 $* |
| Jan-17-2025 | 67.67 $* | 70.92 $* |
Характеристики

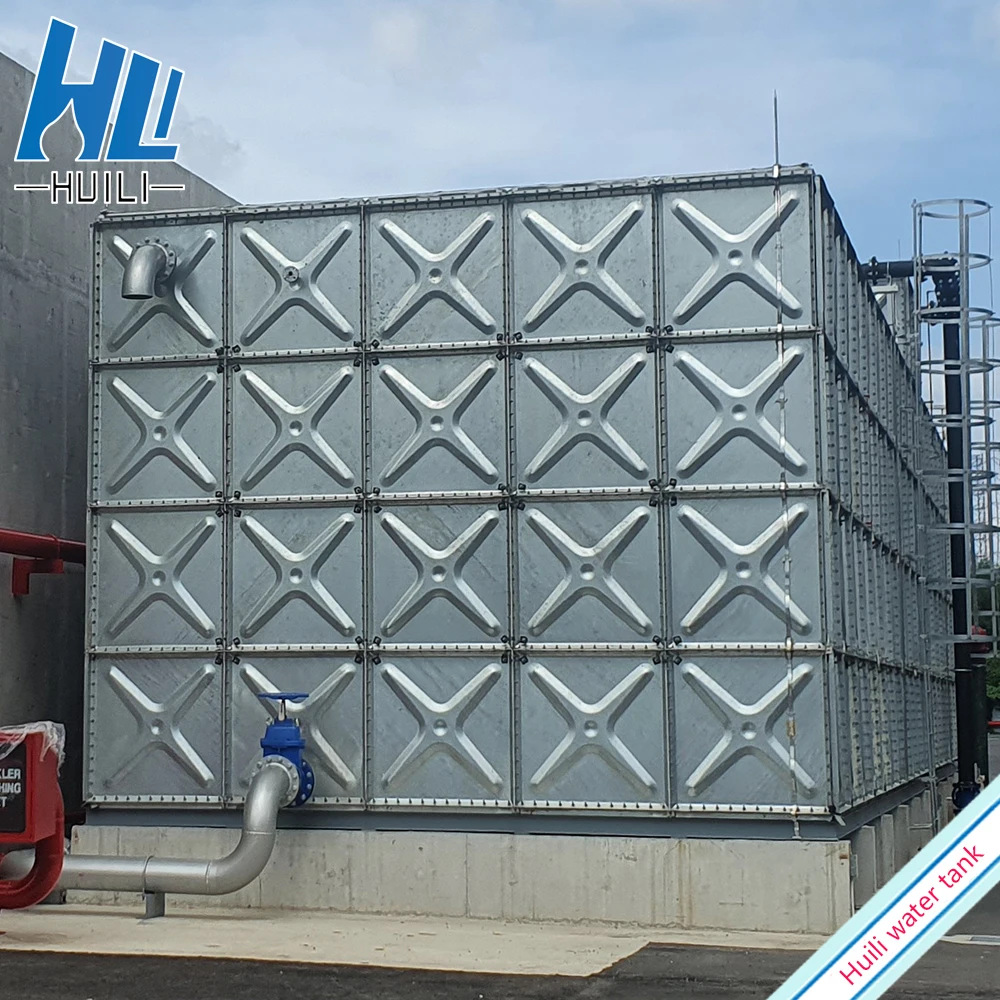

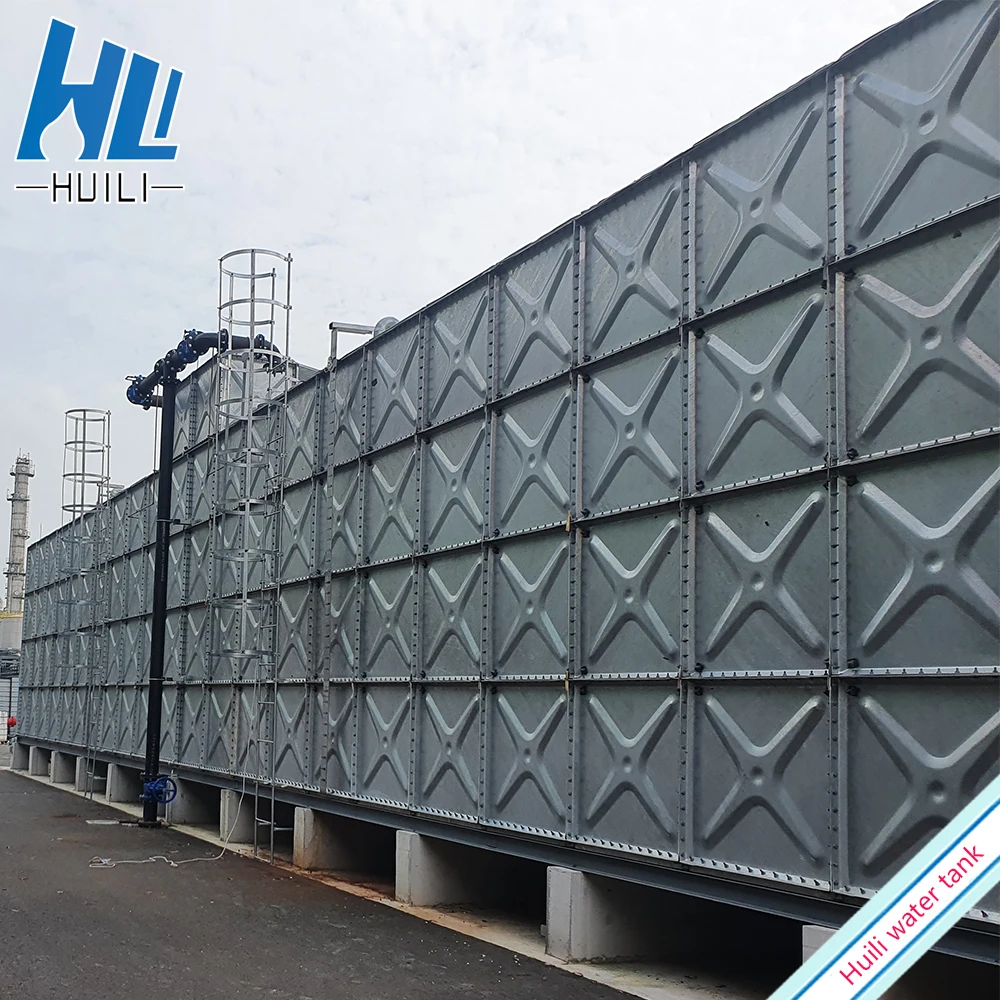

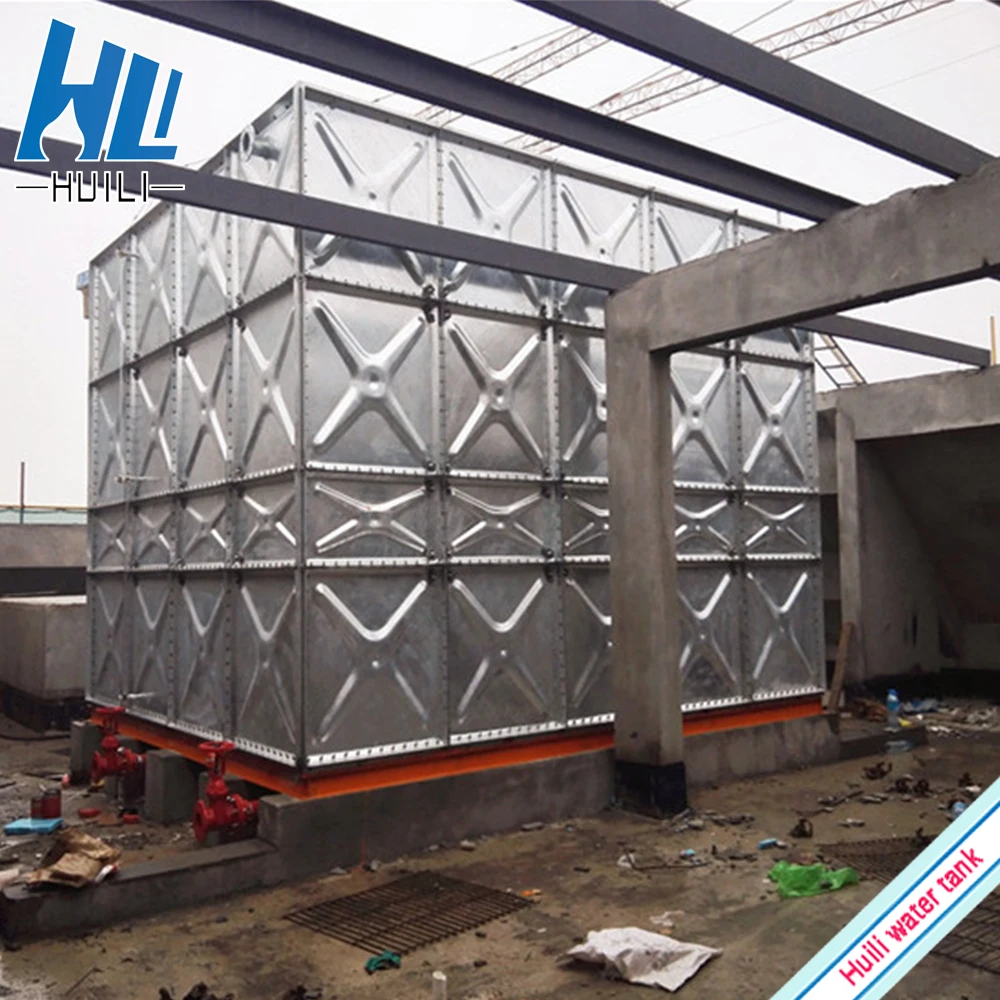

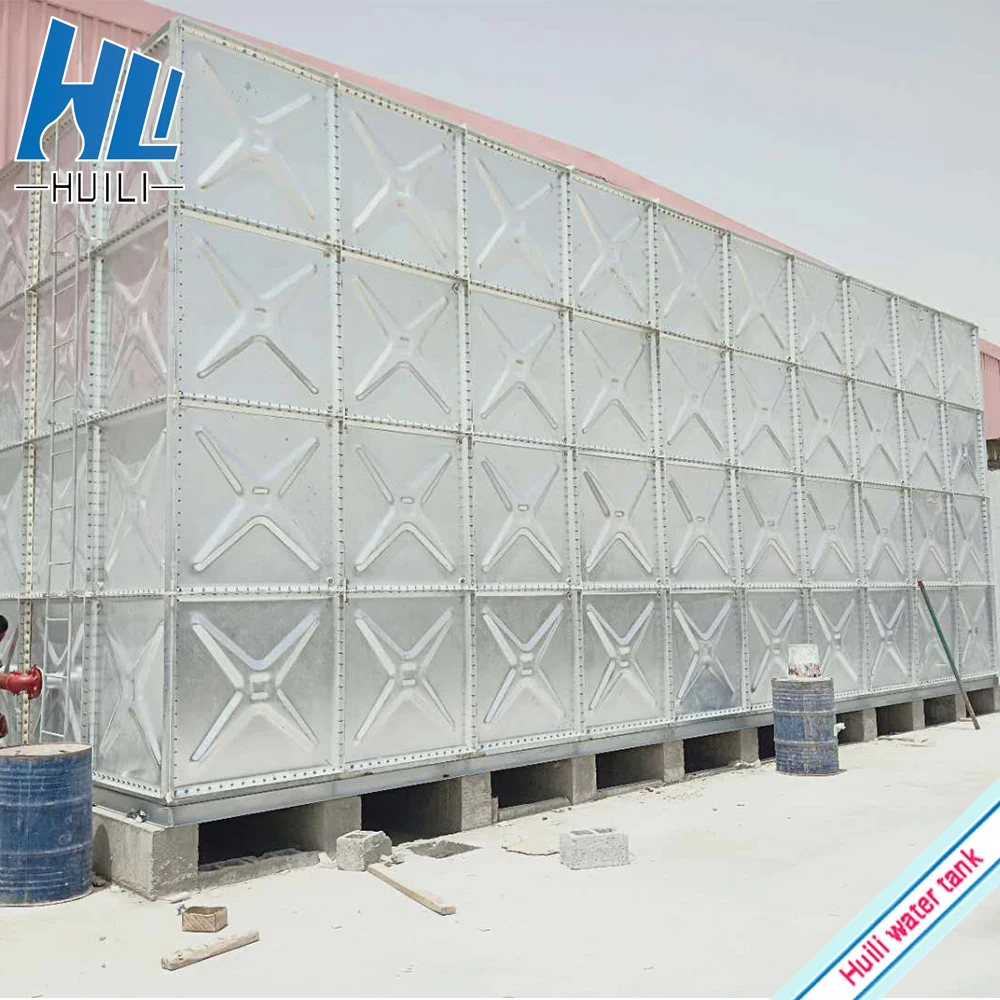

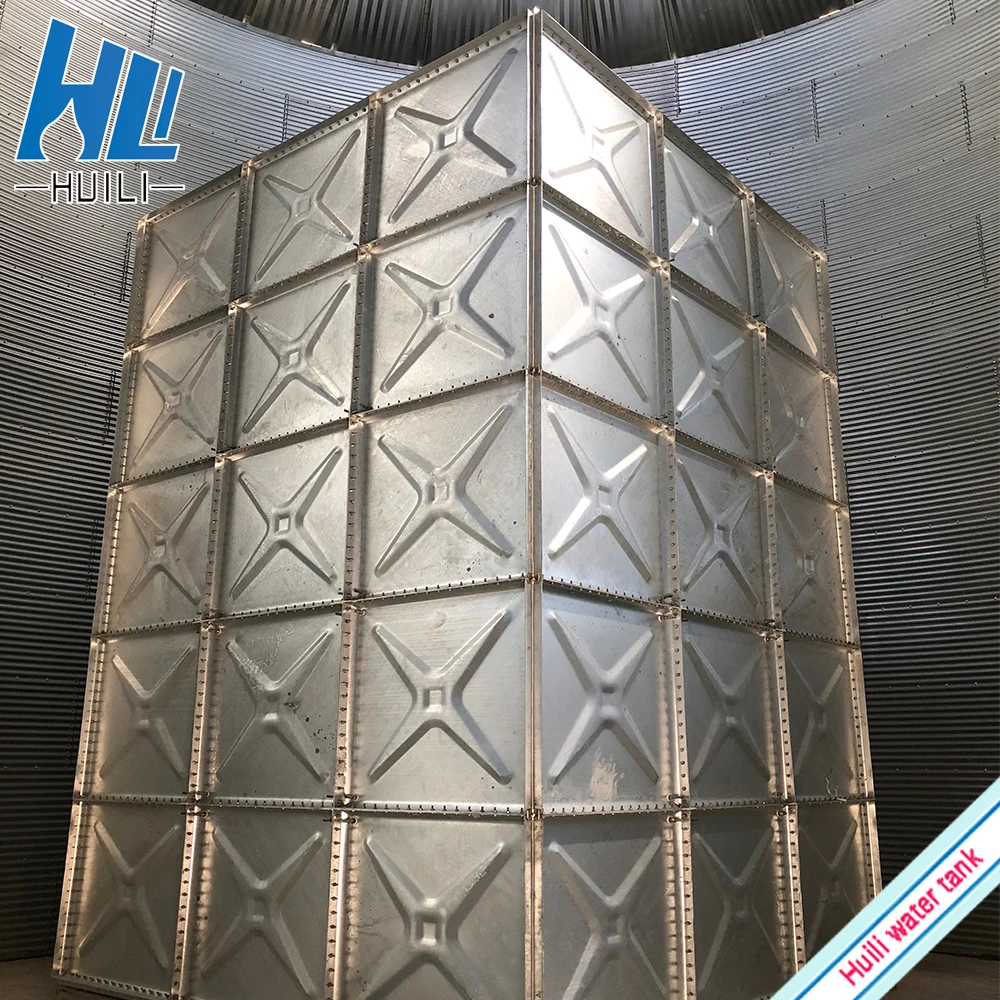

Hot Dipped Galvanized Steel Water Tank
Huili steel water tank adopt Q235B carbon steel as substrate, pressed by advanced integrated molding technique. The pipe terminal will welded on the panel before surface treatment.
Advantages
Product Structure
Accessories show
Product Paramenters
Panel Dimension | Weight of each panel | ||||||||
2mm | 2.5mm | 3mm | 4mm | 5mm | |||||
1*1m | 17.4kg | 22.7kg | 26.6kg | 36.2kg | 46kg | ||||
1*0.5m | 9.5kg | 12.5kg | 14.6kg | 19.9kg | 25.2kg | ||||
0.5*0.5m | 5.3kg | 6.9kg | 8kg | 11kg | 13.9kg | ||||
1.22*1.22m | / | 33.6kg | 39.3kg | 53.7kg | 68kg | ||||
Tank Height(mm) | Thickness of each panel | ||||||||||||
Bottom | 1st layer | 2nd layer | 3rd layer | 4th layer | 5th layer | Roof | |||||||
1000 | 3mm | 3mm | / | / | / | / | 2mm | ||||||
1500 | 3mm | 3mm | 3mm | / | / | / | |||||||
2000 | 3mm | 3mm | 3mm | / | / | / | |||||||
2500 | 4mm | 4mm | 3mm | 3mm | / | / | |||||||
3000 | 4mm | 4mm | 3mm | 3mm | / | / | |||||||
3500 | 4mm | 4mm | 3mm | 3mm | 2.5mm | / | |||||||
4000 | 5mm | 5mm | 4mm | 3mm | 2.5mm | ||||||||
4500 | 5mm | 5mm | 5mm | 4mm | 3mm | 2.5mm | |||||||
5000 | 5mm | 5mm | 5mm | 4mm | 3mm | 2.5mm | |||||||
The standard tolerance of thickness is 0.25mm. For example, the actual thickness of 3mm is 2.75mm.
Physical properties | Standard requirement | Result |
Tensile strength | ≥350 MPa | 509 MPa |
Yield strength | ≥220 MPa | 414 MPa |
Elongation | ≥23% | 24% |
Why Choose Us
Packing & Delivery
FAQ
Q: Are you trading company or manufacture?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to the
quantity.
quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment <= 1000USD, 100% in advance. Payment >= 1000USD, 30% T/T in advance, balance before shippment. If you have other questions, pls feel free to contact us as below:
