Hot selling Free Shipping switchable pdlc film glass and China hotel bathroom smart glass sample

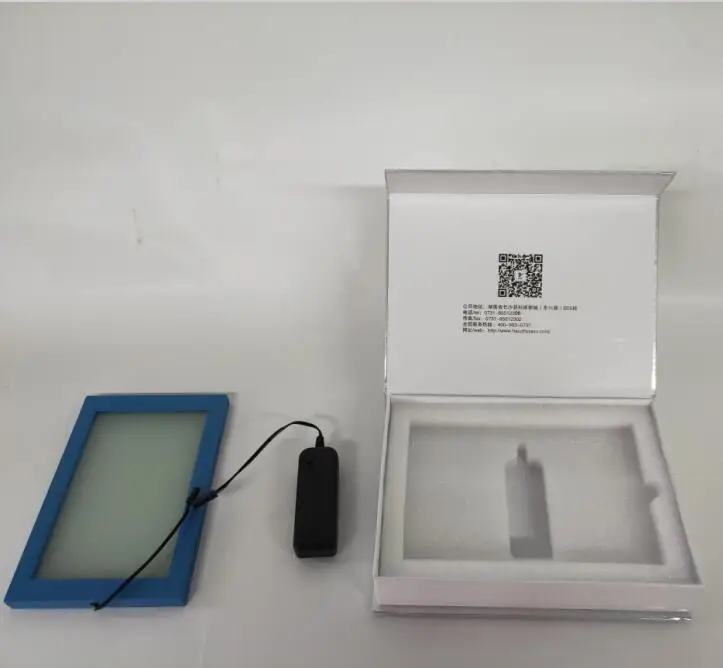

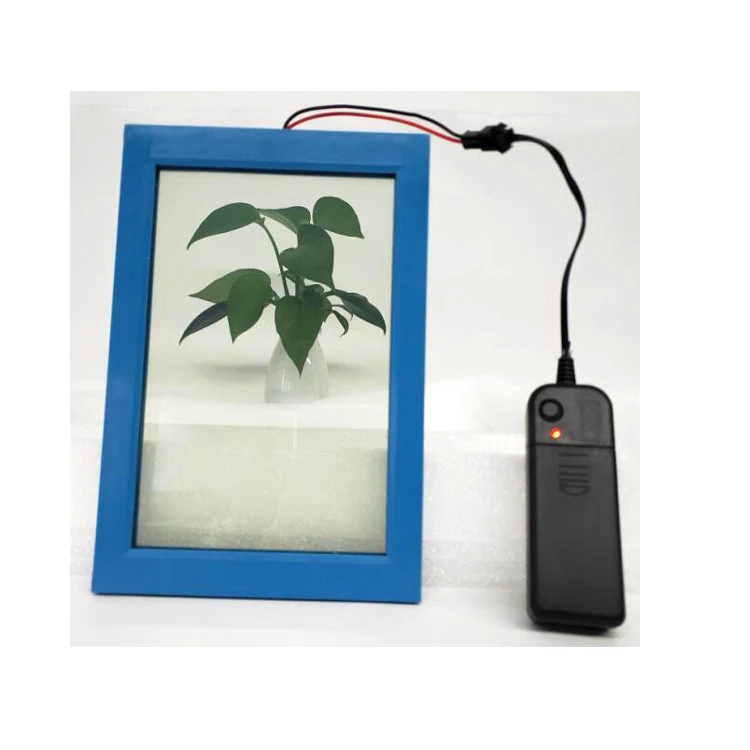

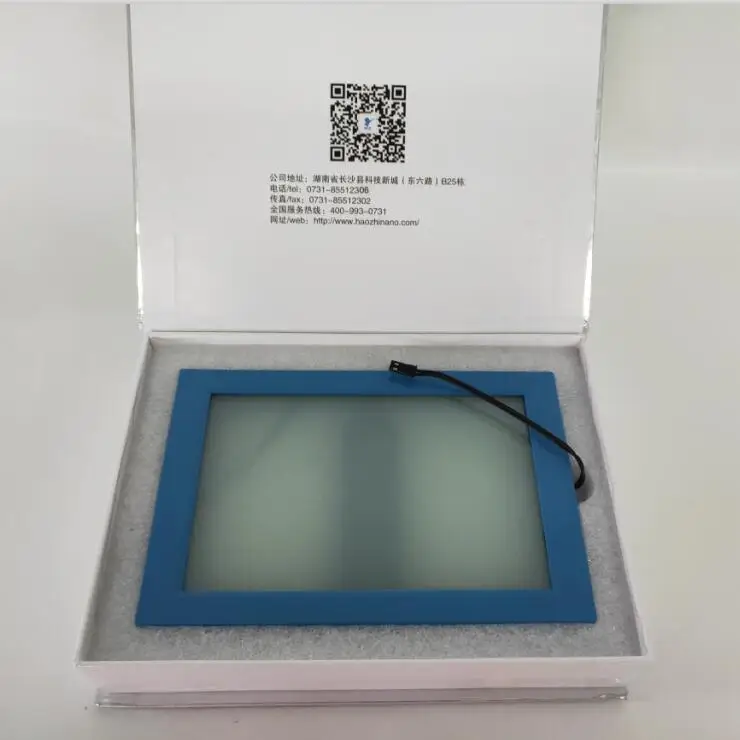

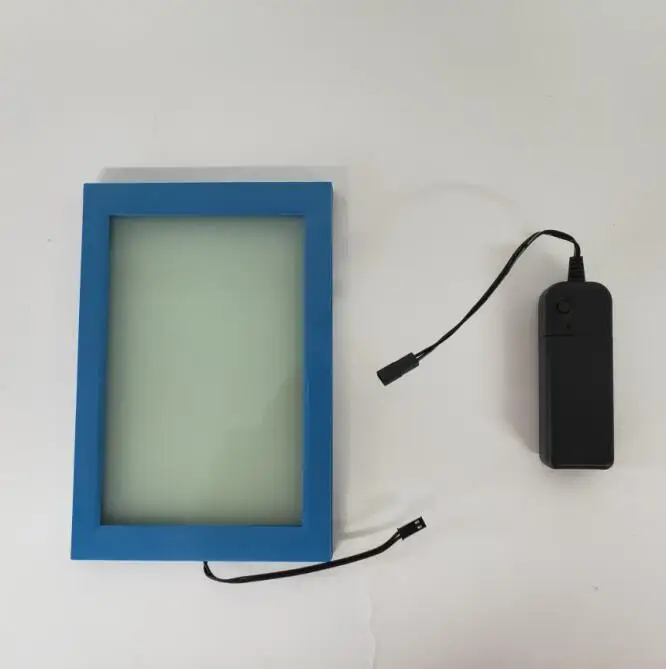

A5 sample FREE hotel smart glass, bathroom smart glass, smart glass smart film available

welcome to contact us get a factory price! Best Pirce!









In short, Iwitte hotel bathroom smart glass is privacy upon demand. With the touch of a button, you instantly have the choice between a transparent glass window and an opaque glass wall. Iwitte smart glass smart film have many useful benefits as storefront glazing,entry doors, interior partitioning, interior/exterior lighting effects, UV protection, energy conservation and environment protection.



Working Principle



PDLC (polymer dispersed liquid crystal film) Smart glass which is a kind of high-tech product can switch from transparent to opaque instantaneously under electricity application. It is transparent when power on and it is opaque when power off. It can be regulated and adjusted the light transmittance pass through the film by electricity supply.

Smart glass is composed of tempered glass, PET film, ITO film, polymer and liquid crystal molecules. When the glass is under off state, the randomly aligned liquid crystal molecules stay along on the walls of capsule, the reflection of liquid crystal molecules and polymer makes light disperses then it is opaque. While electricity supplied, these molecules arrange themselves in a specific direction then parallel light can pass through the film makes it transparent.



           PDLC Smart Glass Smart film Technical Parameters



Item		Mode	Remarks
Optical Properties	Visible light Transmittance	ON	>89%
		OFF	>55%
	Parallel light transmittance	ON	>78%
		OFF	<3%
	Haze	ON	<3%
		OFF	>90%
	UV Blocking	ON/OFF	>99%
	IR Blocking	ON/OFF	>60%
Electrical Properties	Operating Voltage	ON	48V / 65V
	Power Consumption	ON	5W/m2
	Switching Speed	ON-OFF	<20ms
		OFF-ON	<200ms
Lifespan			>10 years
Viewing Angle		160°
Operating Temperature		-30℃ to 50℃
Storage Temperature		-30℃ to 70℃
Product Dimension	Thickness	0.4mm
	Length & Width	Customized
Controlling Ways		Switch, voice, remote control, remote network control are available, any combination can be worked out according to customer request.





Product Features:
1. Privacy Protection
As the most important function, smart tint pdlc film/smart glass window films can be changed from transparent to opaque via easy model ON & OFF. Switch-OFF for privacy protection, switch-ON for great vision.
2. Energy Saving
Only 5W low power consumption per square meter per hour when power on.
3. Environmental
60% infrared rays blocking, to reduce heat radiation and transfer;
99% of UV rays blocking, to protect interior furnishings from color-fading or aging, and protect personnel from diseases caused by ultraviolet radiation.
4. Projection
Smart glass is a good projection screen, easily conversion it into home cinema or advertising wall.
5. Sound proof
With excellent damping action, the smart glass is easy to block the noise.
6. Explosion proof
That can avoid getting hurt from heavy strike/broken.
7. Diversified Control
It can be controlled by wall switch, dimmer, motion detector, light, temperature sensor, remote controller, etc.
8. Easy installation & controlling mode
With simple structure, low cost, easy installation, and easy controlling mode, there is no need for complicated installation of curtains and subsequent clean-up.



Product Application of switchable smart glass film:

Application: Conference rooms, Partitions, Windows and Doors, Front entranceways, Bathrooms, Projection Screen, Monitor room, Hospital, Museum, Exhibition hall, Jewelry shop, Bank, etc.



Wide Application of smart film:

Office doors and windows, meeting room, reception room, private room, wash room, bathroom
Medical wards, operating rooms of hospitals, monitoring rooms, police station, court ect.
jewelry shop, museums, insurance counters, automatic equipment ect.
Large-scale projection screens
Any place which needs 24 hours privacy











Hunan Haozhi Technology Co., Ltd. was established in 2005, an enterprise that focuses on R&D, production and sales of PDLC smart products. Head Quarter is located in Tianxin Dist, Changsha; R&D center is in Yuhua dist, Changsha and manufacturing base stands in Qiyang Technology Zone, Yongzhou city, which covers an area of 23,248 sqms with standard workshops and advanced equipments.



Based on the brand principle of “Let customers feel respect and esteem”, Haozhi is devoting to supply the best PDLC smart products and solutions, and trying to become a learning & technological enterprise. The market covered Asia, Europe, Australia, South Africa, and North America, etc.



We are continuing to improve the PDLC smart products and solutions, let the PDLC smart products “electrify your space”.





Our Advantage:

• Professional production line


• Focus on quality and service


• Strict quality control system of ISO9001


• Product quality in line with international standards RoHS,FCC and CE certification



PDLC Smart film Product quality in line with international standards RoHS, KC, FCC and CE









 Our Exhibition













01. Are you factory?

Yes of course, we are manufacturers cover over 20,000 square meter area. Warm welcome to visit us!

Welcome to visit our Factory VR by this link https://www.linked-reality.com/company/13949/en

02. Do you offer free samples of smart glass?

Yes, we can offer free A4 smart film sample film or small A5 smart glass for test.

03. What about warranty?

We offer 12 months for self-adhesive smart film, and 24 months for laminated smart film.

04. What is the life-span of the film?

Over 8 million times switch on and off. If no man-made damage, chemical affect edges or wrong wiring connection, over 10 years no problem.

05. What is the difference between laminated PDLC Film and self adhesive PDLC Film?

They have same function from OFF-ON with electricity applied. Laminated PDLC Film without glue is used for laminating in two pieces glass with EVA laminated machine or autoclave. The finish product we call smart glass. Self adhesive PDLC Film with one side surface glue can stick onto exit glass surface directly.

06. Can we cut the film by ourselves?

Yes, we can offer film in roll with all needed manual and accessories for making wires connection terminals.

07. How to make bus bar and how to do installation?

We can offer all needed materials for making bus bar, give training and installation manual. Also welcome to our factory to learn.

08. Do you produce irregular shape film with holes and design?

Yes, we have laser cutting machine to do it.

9. What is the lead time?

5 to 7 days of production, shipping time depends.

11. What color do you have?

We have only milky white color, grey, blue for sale, other colors are testing.

12. How to get wires connected for single opening door, sliding door and bi-folding doors?

Please contact us to get further information.

13. Can smart glass and film to be dimming control?

Yes, we have voltage regulator with dimmer special designed for PDLC products.
