Высокопроизводительный двойной блок питания модульная конструкция до 24 каналов h 264 кодировщик кабель ТВ dvb t2
- Категория: Оборудование для радио и ТВ >>>
- Поставщик: Hangzhou,Haoxun,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.10 $* | 0.7 $* |
| Aug-15-2025 | 0.79 $* | 0.25 $* |
| Jul-15-2025 | 0.80 $* | 0.87 $* |
| Jun-15-2025 | 0.36 $* | 0.73 $* |
| May-15-2025 | 0.89 $* | 0.71 $* |
| Apr-15-2025 | 0.67 $* | 0.43 $* |
| Mar-15-2025 | 0.33 $* | 0.89 $* |
| Feb-15-2025 | 0.95 $* | 0.65 $* |
| Jan-15-2025 | 0.35 $* | 0.45 $* |
Характеристики
Product Description
pluggable module 24chs HD-MI h.265 h.264 encoder ip to dvb-c modulator for operators
Q9 video platform, digital systems demand powerful, flexible, multipurpose video processing and compact solutions that allow the service provider to support new network architectures.

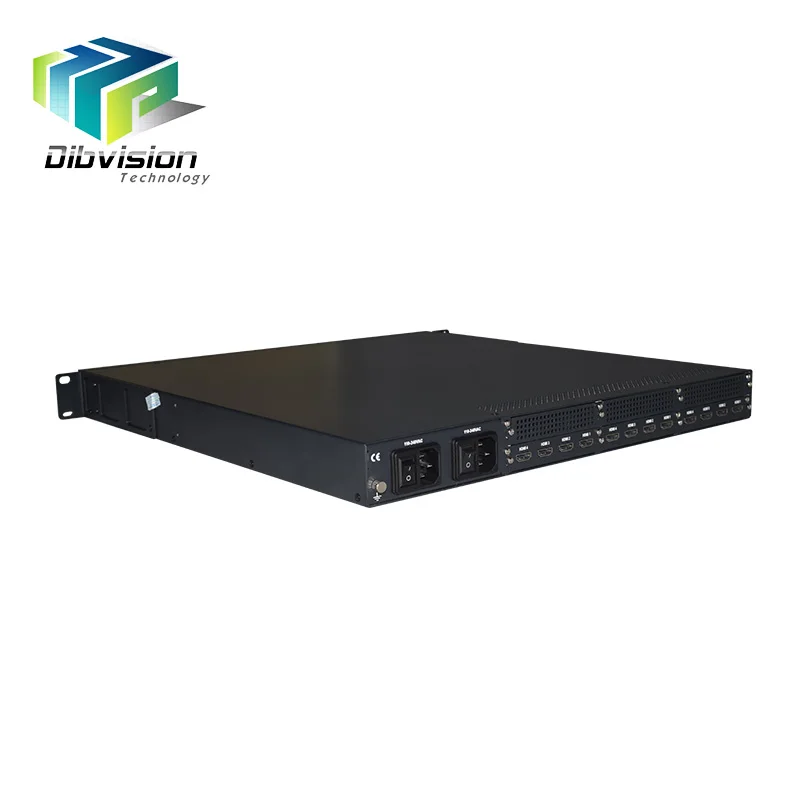

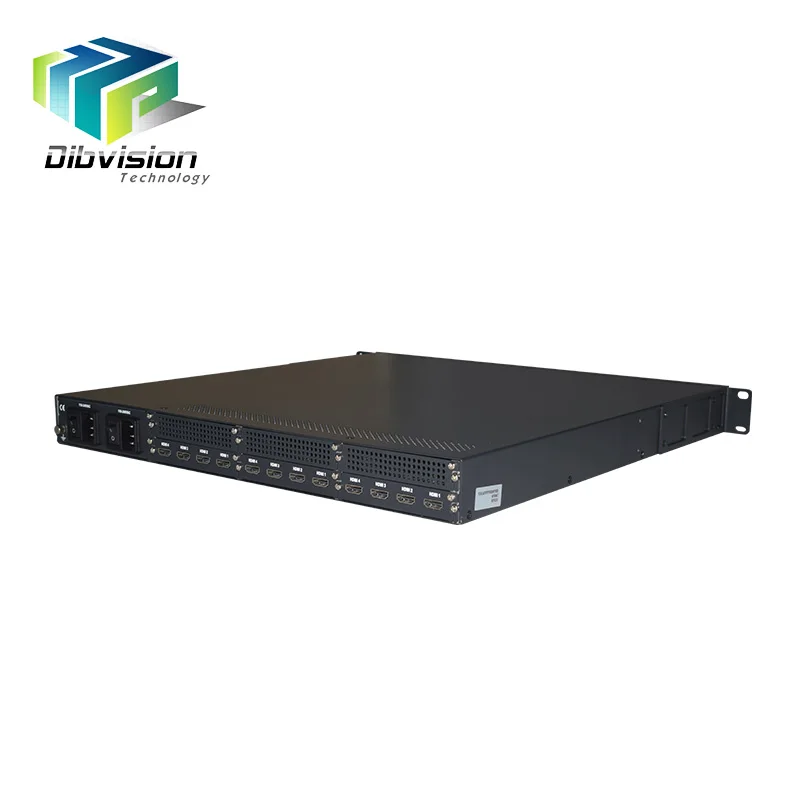

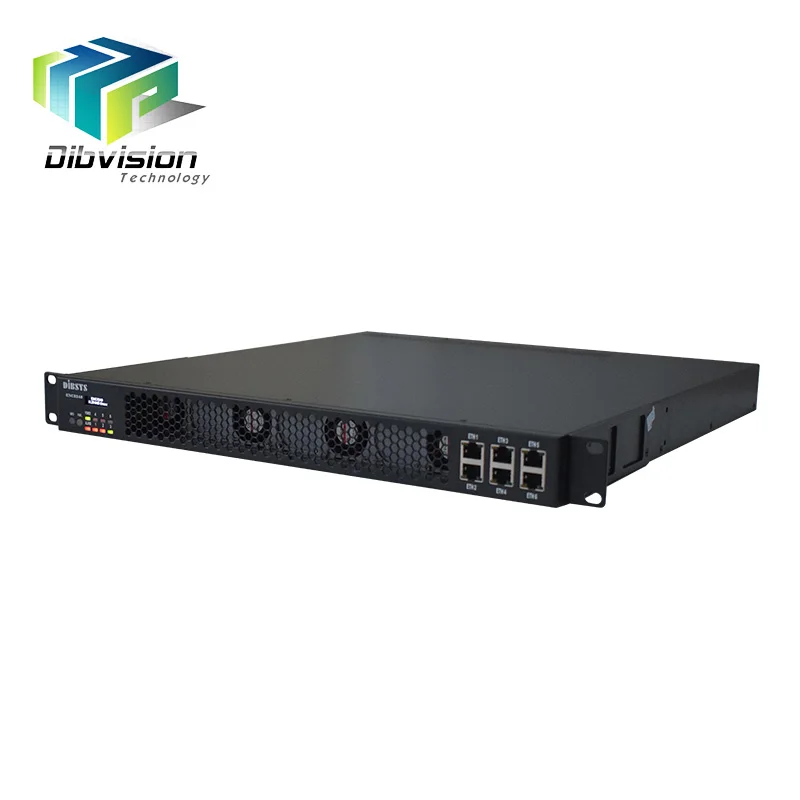

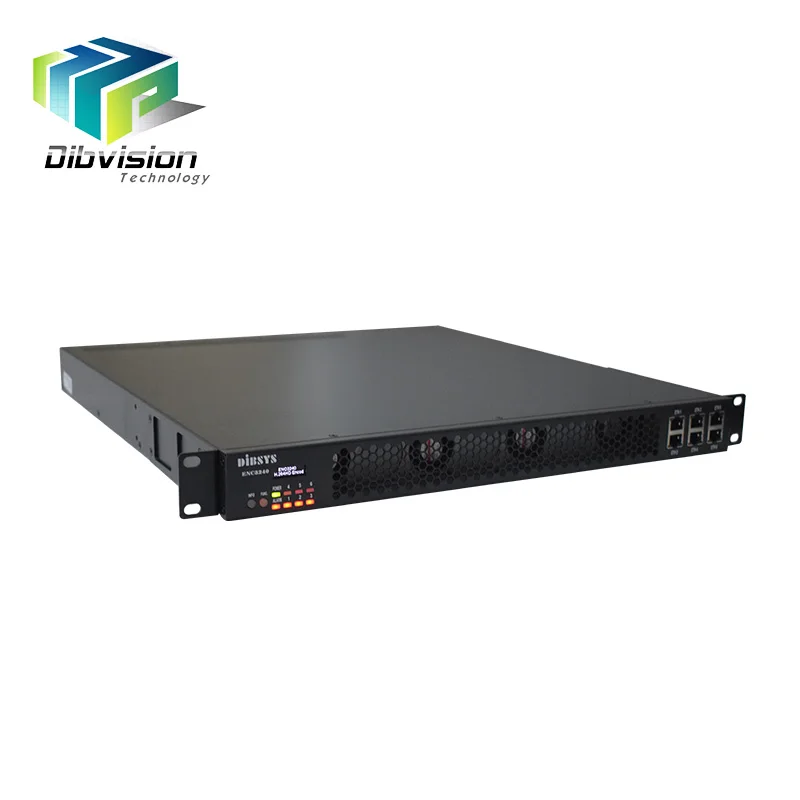

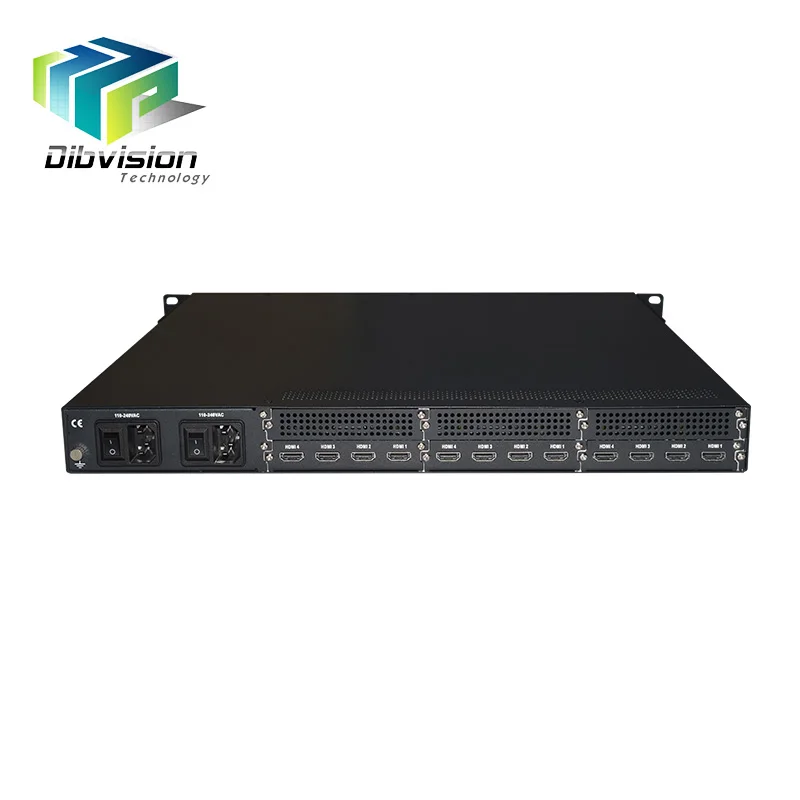

This 1RU case comes with 6 independent hot-swappable module slots, each module can be configured individually based on the applications including encoding, modulating processing and the combination of all these functions. Built in modulation board, Q9 support DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation.
Its flexible configuration is making it extremely scalable, reliable with high performance. Q9 is an efficient, low-cost digital TV headend device, which can be used in public place such as metro, market hall, theatre, hotels, resorts for advertising. It also can be used for monitoring, training and educating in company, campus, hospital.
contact us
Sales Manager: Sophie Chen
Skype: dibdvb08
Email: sophie at dibdvb.com
Phone/whatsapp/Wechat: +86 13429126900
Features
- 6 independent hot-swappable module, 4* HD-MI per module
- flexible encoding&modulating board combination
- Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation, 8/16 Carrier RF Out per port
- H.264/H.265 video encoding
- Two separate ASI input for External TS Multiplexing
- Simultaneously 4*MPTS and 512*SPTS over UDP/RTP IP out in modulation mode
- Simultaneously 8*MPTS and 512*SPTS over UDP/RTP IP out in encoder mode
- 8/16 separate multiplexing and Up-converter modulating adjacent carrier out
- support multiplexing function: multiplex any input to RF or MPTS output
- Audio encoding: MPEG-1 Layer 2, AAC-LC, AAC-HE v1(SBR), AAC-HE v2(SBR+PS), AC3 (H.265 version)
- Selectable the Value of PCR PID same as Video PID
- Support TTL editing
- PSI/SI editing & inserting
- PID Remapping & Filtering
- Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel
- Support PCR correct and PCR interval adjusting
- Easy-to-Use System Management via Web
- Redundancy Power Supply
- Remote WEB reboot supported
Advantages
6 independent hot-swappable module slots, independent coding to reduce the fault rate.
AC3 and AAC coding in H.264/HEVC coding mode, widely used ATSC, ISDB-T, DVB-T2 and IPTV application.
Up to 8 MPTS Multiplex output over IP UDP / RTP can control the bit rate of each IP packet below 50Mbps, which reduce the bit error rate and fluctuation, and enhance the accuracy of PCR value, to adapt more types of switches.
MPTS can be generated simultaneously to delivery into digital TV and N * SPTS into IPTV; widely used in multi-channel service flow platform, and DVB-C + IPTV multi-service platform, to save the investment of other equipment.
Redundancy Power Supply, 24/7 operation, safety and stability.
Specification
Independent hot-swappable module | |||||||
HD-MI H.264/H.265(optional) encode Module | |||||||
Numbers of Boards | 4 HD-MI ports per module Up to 6 independent hot-swappable module | ||||||
Numbers of Ports | 8; 12; 16; 20; 24 Channels | ||||||
Input Resolution | 1920×1080 @60P, 1920×1080 @60i, | ||||||
Output Resolution | 19201080P @60P, 1920×1080 @30P, | ||||||
Encoding format | MPEG-4 AVC/H.264 | ||||||
DVB-ASI inputs | |||||||
Connector | BNC female, 75Ω | ||||||
Signal Level | 200-800mVp-p | ||||||
Packet Length | 188 bytes | ||||||
Maximum bit-rate per port | ≤100Mbps | ||||||
Number of Input Ports | Dual separate ASI ports | ||||||
Video Processing | |||||||
Bit-rate | 1Mbps~13Mbps | ||||||
Rate Control | CBR | ||||||
| Select to configure Logo, Caption and QR Coder in any Position of Video Picture (only for HD-MI inputs) | ||||||
Audio Processing | |||||||
Encoding | MPEG-1 Layer 2, AAC-LC, AAC-HE v1(SBR), | ||||||
Sampling rate | 48KHz | ||||||
Resolution | 24-bit | ||||||
Bit-rate | 64kbps, 128Kbps, 192kbps, 224kbps,256kbps, 320kbps, 384kbps | ||||||
Audio Gain | 0-255 | ||||||
Multiplexing | |||||||
Maximum PID Remapping 180 input per channel | |||||||
PID remapping by automatically or manually | |||||||
PSI/SI | SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert Accurate PCR adjusting | ||||||
Stream Output | |||||||
DVB-ASI | 2 Separate ASI, (Select from modulation Channels or MPTS channel) 75Ω, BNC, 188Bytes MPEG-2 TS over DVB-ASI (EN 50083-9) | ||||||
RJ45 Port | Number of port 3*100/1000M GbE Port | ||||||
Total Bitrate | 1-200Mbps (Should be More than Encoding bitrate) | ||||||
Built in Modulation module | |||||||
Connector | 1 Port, F-Type, 75 | ||||||
Output Return Loss | 14 dB | ||||||
MER | ≥40dB | ||||||
RF output level | -30 ~ -10dbm,0.1db step | ||||||
RF frequency | 50-960Mhz, 1KHz step | ||||||
Numbers of RF Channe | 8 carrier by default, 16 carrier Max. | ||||||
Modulation Mode | DVB-C, DVB-T, ATSC, ISDB-T, DTMB | ||||||
DVB-T Standard | EN300744 | ||||||
FFT mode | 2K, 8K | ||||||
Bandwidth | 6M, 7M, 8M | ||||||
Constellation | QPSK, 16QAM, 64QAM | ||||||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||
DVB-C Standard J83.A (DVB-C, J83.B, J83.C | |||||||
Carrier | ANNEX A | Annex B | Annex C | ||||
Constellation(QAM) | 16,32,64,128, 256 | 64 | 256 | 64/256 | |||
Bandwidth(Mhz) | 8 | 6 | 6 | 6 | |||
Symbol Rate(Mbaud) | 5-7 | 5.057 | 5.361 | 4.2-5.3 | |||
ISDB-T Standard | ARIB STD-B31 | ||||||
Constellation | DQPSK, QPSK, 16QAM, 64QAM | ||||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||||
Transmission Mode | 2K, 4K, 8K | ||||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||||
Code rate | 1/2, 3/4, 5/6, 7/8 | ||||||
BandWidth | 6Mhz | ||||||
ATSC Standard 6Mhz | ATSC A/53 | ||||||
Constellation | 8 VSB | ||||||
DTMB Standard | GB20600-2006 | ||||||
Constellation | 4QAM, 16QAM, 32QAM, 64QAM | ||||||
Code rate | 0.4, 0.6, 0.8 | ||||||
Guard Interval | 420, 595, 945 | ||||||
System | |||||||
Local interface | LCD + control buttons | ||||||
Remote management | We b/NMS | ||||||
NMS interface | RJ45, 100M | ||||||
Language | English | ||||||
Environment | |||||||
Voltage range | 100 to 120/200 to 240V AC ±10%; 50/60Hz | ||||||
Power consumption | 60W | ||||||
Operation Temperature | 0 ~ 45℃ | ||||||
Storage Temperature | -20 ~ 80℃ | ||||||
Dimensions | 482mm (L) * 380mm (W) * 44mm (H) | ||||||
Weight | 4.5 kg | ||||||
