Чистое серебро провода 9999, акустический кабель провод
US $0.85-$1.20
Удлинительный кабель на солнечной батарее нить постоянного тока и шлейки PV-разъем Мужской Женский пара солнечных мульти-разъемов 4 мм2
- Категория: Wires, Cables & Cable Assemblies >>>
- Поставщик: Shanghai,Hongsheng,Wire,&,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.56 $* | 0.13 $* |
| Aug-16-2025 | 0.21 $* | 0.61 $* |
| Jul-16-2025 | 0.57 $* | 0.14 $* |
| Jun-16-2025 | 0.13 $* | 0.13 $* |
| May-16-2025 | 0.2 $* | 0.33 $* |
| Apr-16-2025 | 0.56 $* | 0.47 $* |
| Mar-16-2025 | 0.79 $* | 0.63 $* |
| Feb-16-2025 | 0.66 $* | 0.17 $* |
| Jan-16-2025 | 0.36 $* | 0.8 $* |
Характеристики
Product Overview

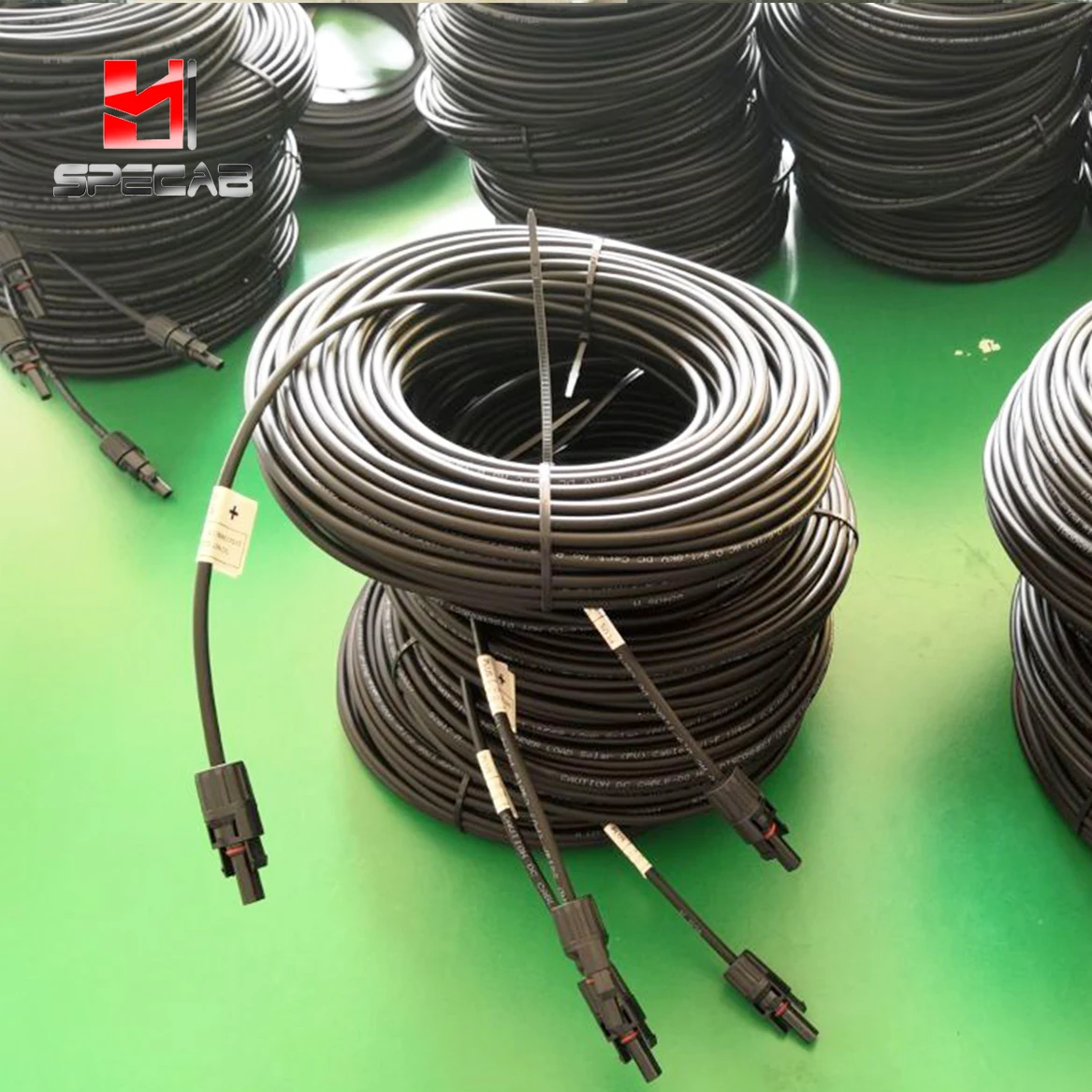

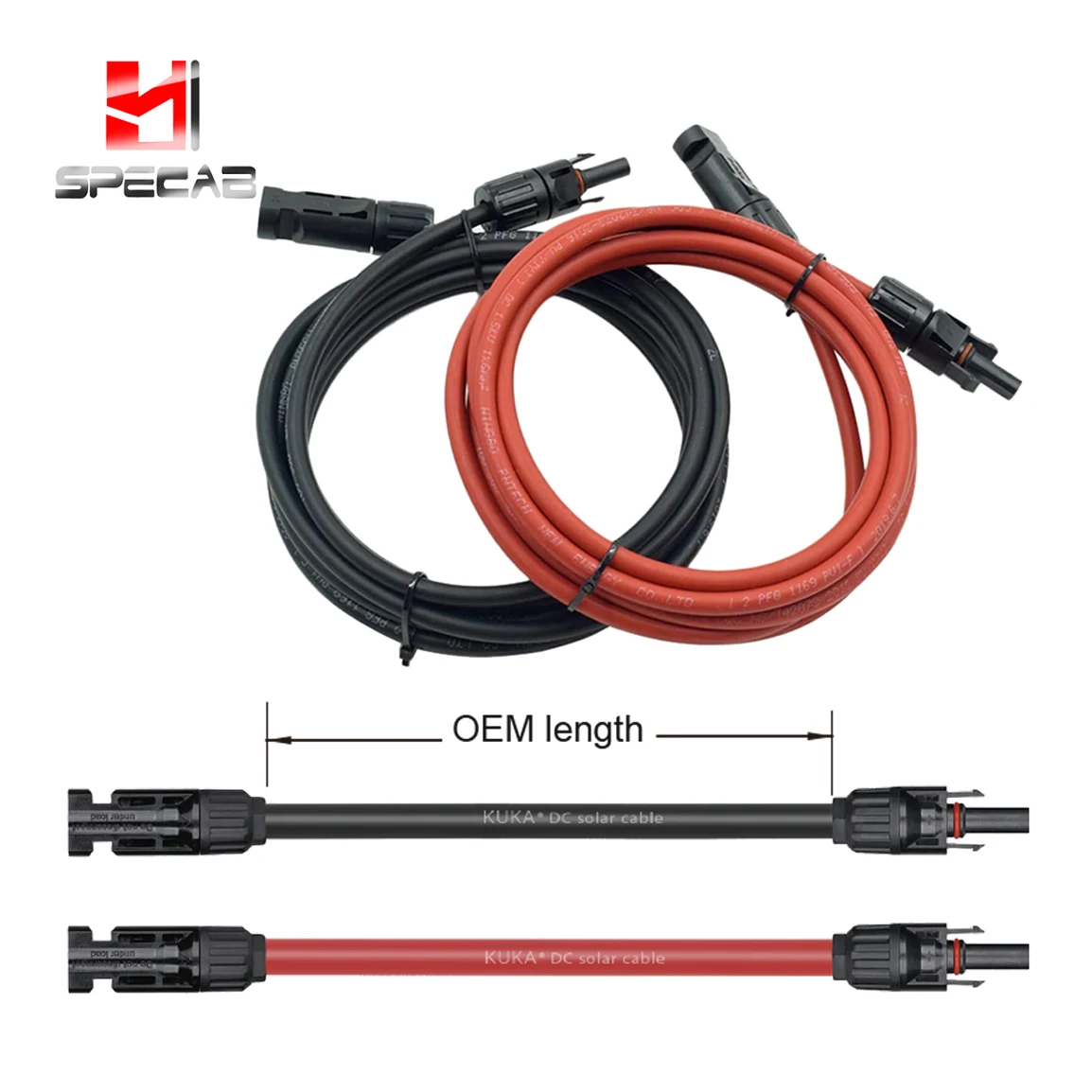

solar extension cable DC string cable and harnesses PV connector male and female pair solar and multi connector 4mm2 and 6mm2
Specification
*Solar cable
Cross section (nxmm2) | Conductor Ø (mm) | Outer Ø (mm) | Current-carrying capacity [A] at 60°C | Conductor resistance kΩ / km at 20°C | Weight app. kg / km | Cable Code |
1x1.5 | 1.5 | 4.3 | 30 | 13.7 | 40 | PV302515 |
1x2.5 | 2.0 | 5.2 | 42 | 8.21 | 50 | PV502525 |
1x4.0 | 2.5 | 5.5 | 55 | 5.09 | 70 | PV562940 |
1x6.0 | 3.3 | 6.3 | 70 | 3.39 | 80 | PV842960 |
1x10.0 | 4.3 | 7.8 | 98 | 1.95 | 130 | PV142301 |
1x16.0 | 5.3 | 9.2 | 132 | 1.24 | 200 | PV228301 |
1x25.0 | 6.6 | 11.3 | 176 | 0.795 | 290 | PV361302 |
1x35.0 | 7.8 | 13.3 | 218 | 0.565 | 400 | PV525303 |
1x50.0 | 9.3 | 14.8 | 280 | 0.393 | 550 | PV720305 |
1x70.0 | 11.4 | 16.9 | 350 | 0.277 | 750 | PV988307 |
*Solar Multi-Connector
Features
Certificates
KUKA solar cable are global approved by TÜV, CE, SGS, SAA, and produced strictly following certificates. Together with solar MC4 connectors we also offer our customers in the photovoltaic industry assembled solar cables and strings for a quick plug-and-play on site installation. All our products are RoHS complaint and certificated according to ISO9001.

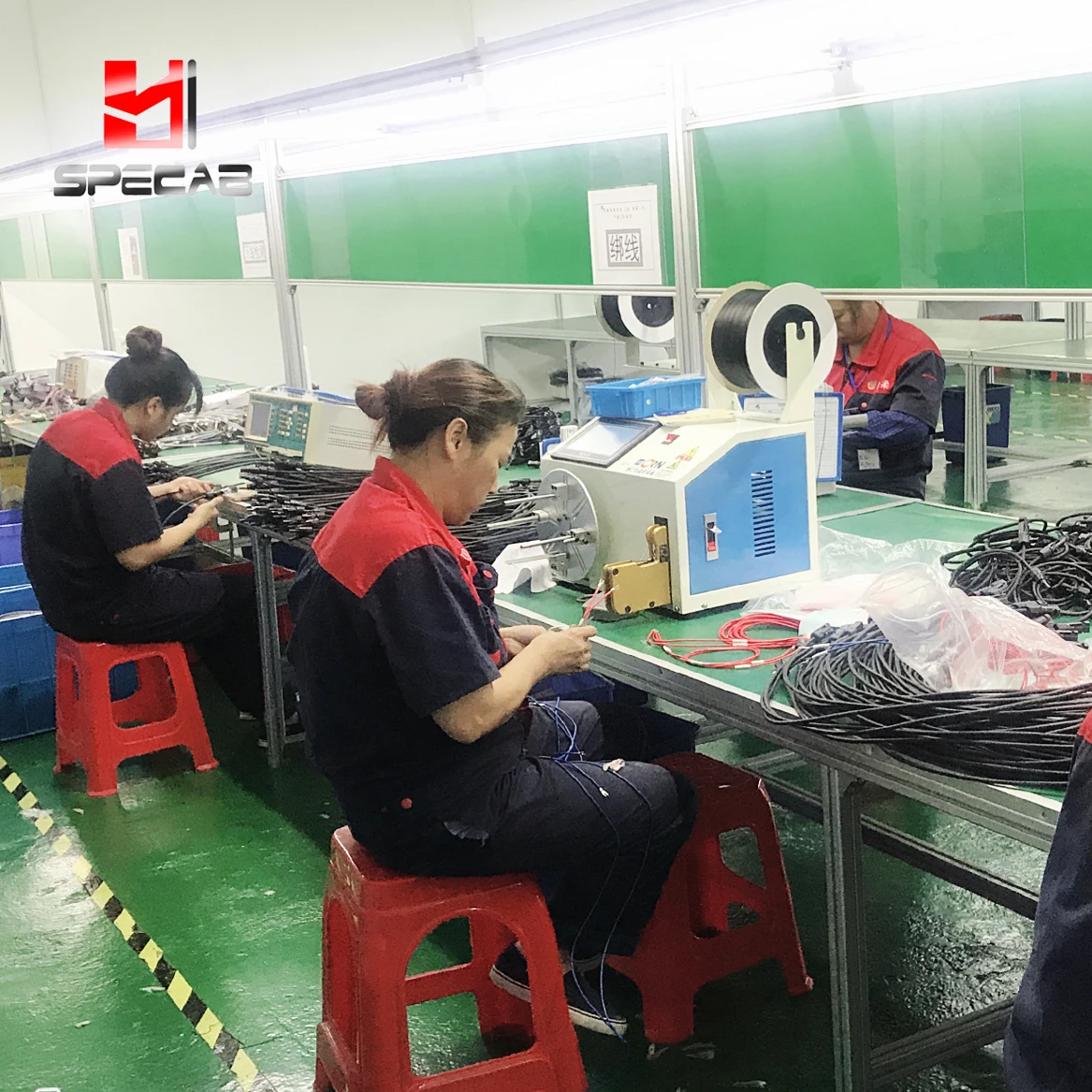

Factory
Participated Exhibition & Projects
