Характеристики

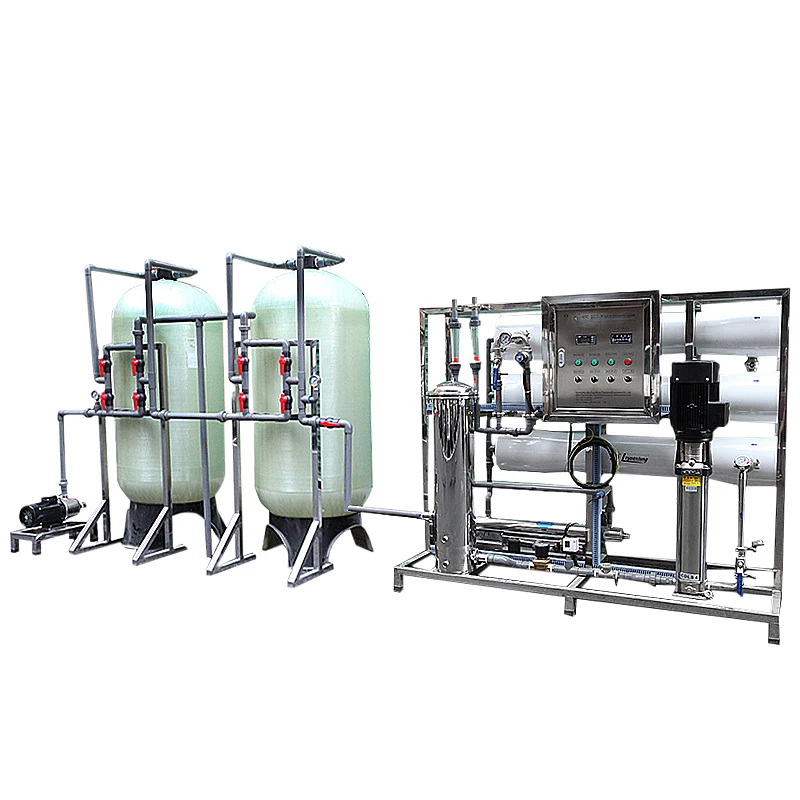

Reverse Osmosis Purifier Filtration System Machine Plant Water Treatment Ro Water Filter


Product Paramenters






Mode
KYRO-3000
Production capacity
3000L/H
Power
About 4 KW
RO membrane
USA RO membrane  8040
Voltage
380V/3ph/50Hz (could be change)
Desalination rate
97% - 99%
Recovery rate
50%-70%
Material
FRP,SUS,PVC
Certificate
CE&ISO9001
Warranty
One year


Every part of the reverse osmosis system


S/N.
Commodity name
Application

1

Raw water tank
Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously
for whole system. (Customer provide for themselves, because big size will result in expensive freight.)
2
Raw water pump or called booster pump
Provide needed pressure for every pretreatment filter

3
Mechanical filter or called quartz sand filter or sand filter
We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended
substances, colloids etc.

4

Activated carbon filter
We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics
substances.

5
Water softener, demineralizer, or called Na+ exchanger
Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling
6
Security filter or pp filter, or called PP sediment filter
prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm,

7

High pressure pump
Provide needed working pressure for RO system, ensure production capacity of pure water. (CNP pump or custom other brand)

8
RO(reverse osmosis) system
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99%
dissolved salts. (RO membranes USA Filmtec)


Products Description






RO membrane
Using the world’s advanced and energy-saving and effective RO membrane separation technology, with a filtration accuracy of 0.0001 um, it can completely remove all particles of sand, colloids, rust, bacteria, scale, heavy metals, etc. in the water. The water produced is live water, sweet and delicious. Effectively avoid secondary pollution

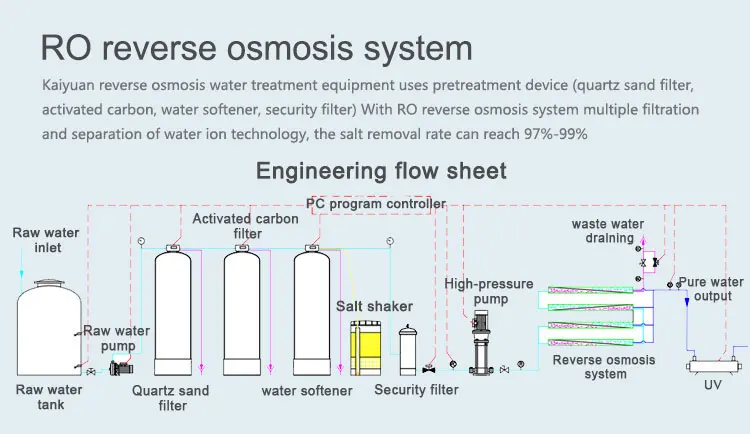

RO reverse osmosis system
Kaiyuan reverse osmosis water treatment equipment uses pretreatment device (quartz sand filter,
activated carbon, water softener, security filter) With RO reverse osmosis system multiple filtration
and separation of water ion technology, the salt removal rate can reach 97%-99%


Working Process Chart:
Raw water pump→ Quartz sand filter→ activated carbon filter→ Anti-scale dosing system→security filter → high pressure pump→Reverse osmosis system→UV → pure water tank

Function of every part:
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/ water softener
2. Sand filter-- get rid of turbidity, suspended matter
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 97% and above, removing over 99% ions.





Laser engraving to customize your logo company and language, Simple operation, real-time display of data, monitoring of equipment working conditions
Label each wire and synchronize engineering drawings for easy operation, 4 independent air switches + 2 fuses, 6-fold safety protection, the equipment is more durable




High pressure pump CNP pump, The famous pump brand in China.It is to provide the pressure for water into ro membrane.It is the improtant part in the system




Laser engraving to customize your logo company and language,MOQ 1set, Our craft, Single-sided welding, double-sided molding,no dead -angle, won't leak water and grow bacteria




How long the consumables should be replaced?
All the consumable replace period will be depend on the feed water quality.


PP filter cartridge
Advice Replacement time: every month
Quartz sand
Advice Replacement time: Every 15 - 18 months
Activated Carbon
Advice Replacement time: Every 15 - 18 months


Resin
Advice Replacement time: Every 15 - 18 months
RO membrane (LCLE4040)
Advice Replacement time:
Every 2 years
UV lamp
Advice Replacement time:
9000 hours


Certifications




Contact US




Company Profile






Guangzhou Kai Yuan Water Treatment Equipment Co. Ltd. is located in Guangzhou, China, has
been engaged in water treatment equipment since 2006. Our company is ISO9001:2008 certified company and our products are approved CE and SGS. We are specialized in manufacturing reverse osmosis pure water machines, industrial pure water equipment, ultra pure water equipment, underground water treatment equipment, brackish water treatment systems, EDI systems, water softener, ultrafiltration(UF) and sea water desalination equipment


Exhibition

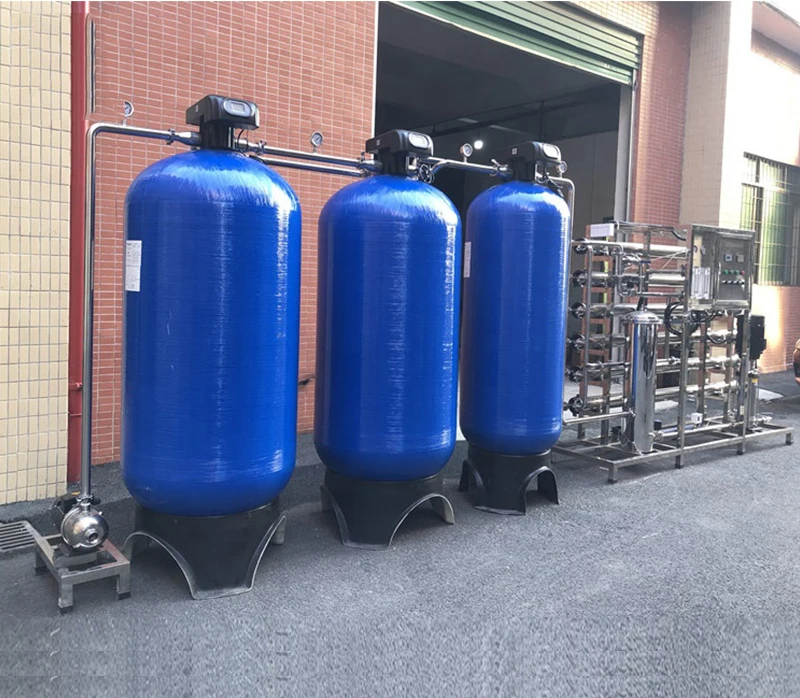

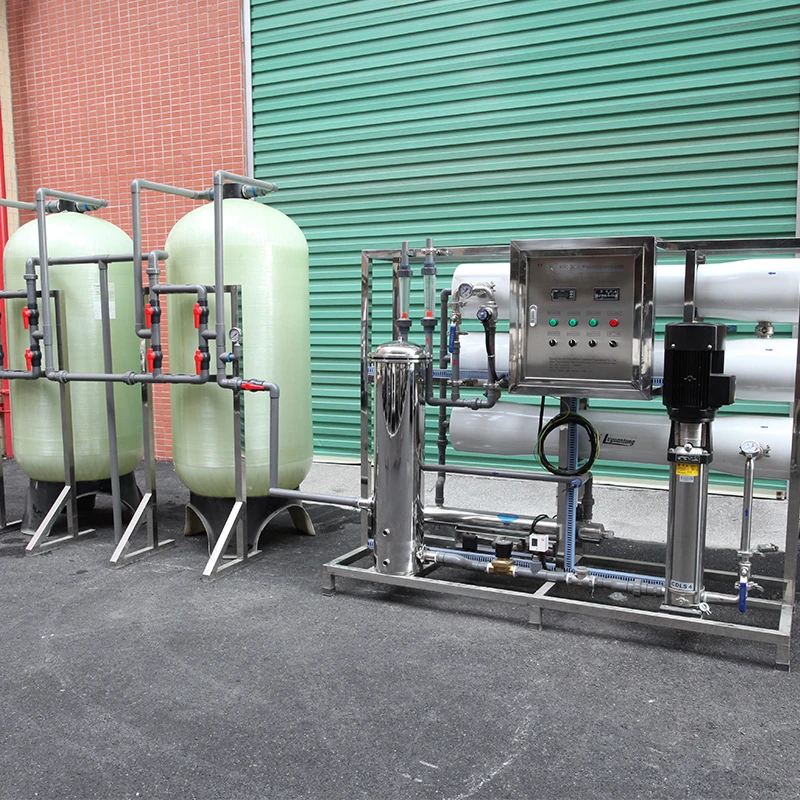

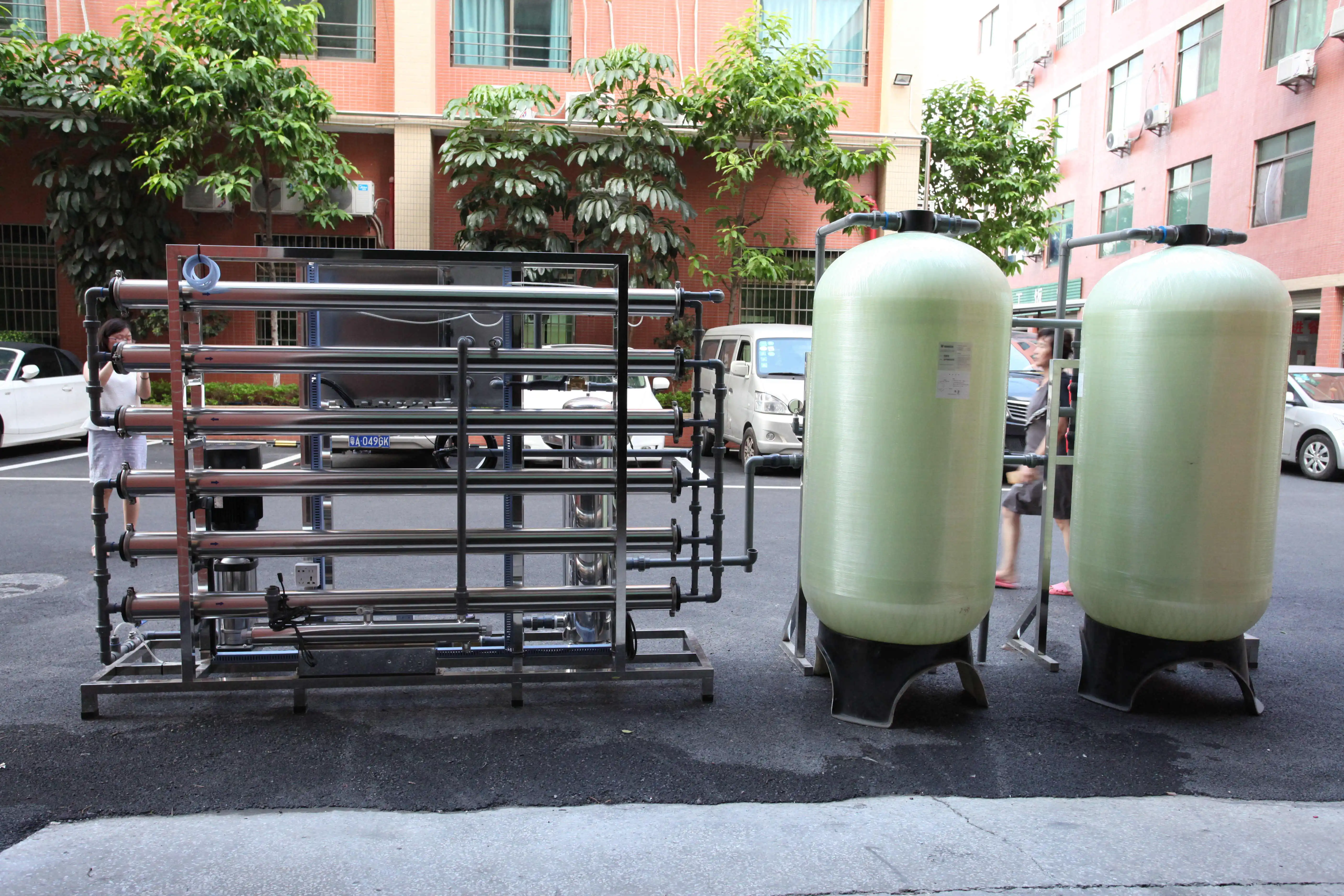

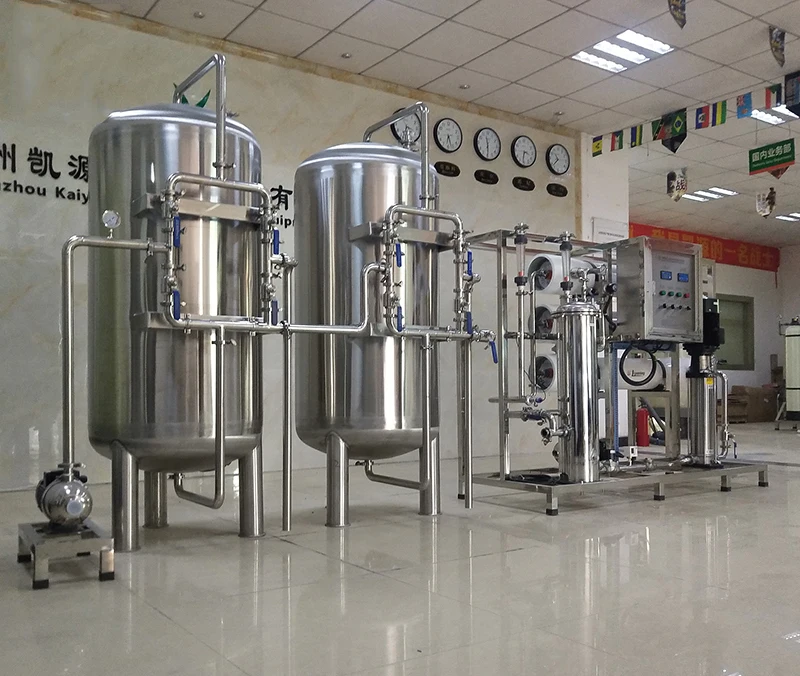

We install on-site photos for customers
