CR-C электрический инжектор тестер диагностики форсунки системы питания с общей топливной магистралью многофункциональная
- Категория: Diagnostic Tools >>>
- Поставщик: Taian,Dxm,Import&Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 60.96 $* | 63.56 $* |
| Aug-15-2025 | 59.63 $* | 62.87 $* |
| Jul-15-2025 | 50.85 $* | 53.51 $* |
| Jun-15-2025 | 58.24 $* | 61.63 $* |
| May-15-2025 | 51.62 $* | 54.97 $* |
| Apr-15-2025 | 57.80 $* | 60.60 $* |
| Mar-15-2025 | 57.73 $* | 60.62 $* |
| Feb-15-2025 | 56.41 $* | 59.51 $* |
| Jan-15-2025 | 56.27 $* | 59.43 $* |
Характеристики
CR-C common rail injector tester for all common rail injector and Piezo injector testing.
CR-C high-pressure common rail injector controller function is to mimic the engine ECU (Engine Control Unit), while providing, Denso, Delphi and other common-rail system control signal to drive the high-pressure common rail fuel injection pumps and high-pressure common rail device to work, drive signal parameters users can set their own situation, and saved in groups, to facilitate the maintenance staff working on high-pressure common rail system and maintenance of the state to judge.
Kindly Note: CR-C common rail injector tester is only for electromagnetic injector, it's not with piezo function .
Product Description

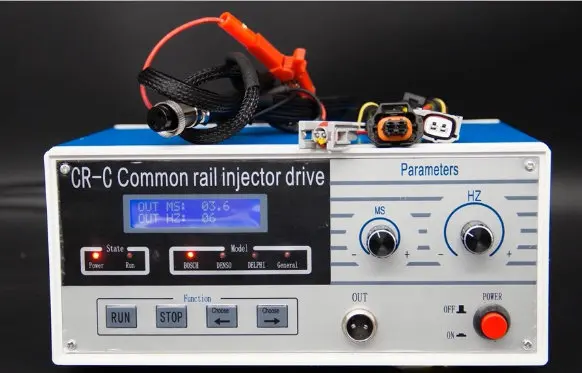

Common rail injector tester
CR-C

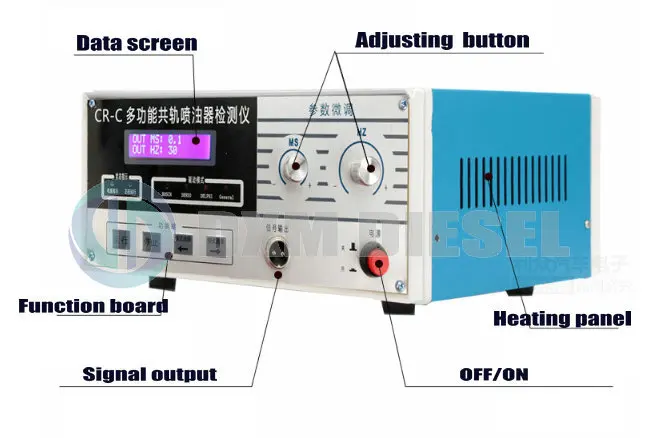

CR-C Common rail injector tester is a easy operated tool , could do the test with the injector hand pumps. It's small size and light weight, could meet the requires from repairman on the simple device of testing .

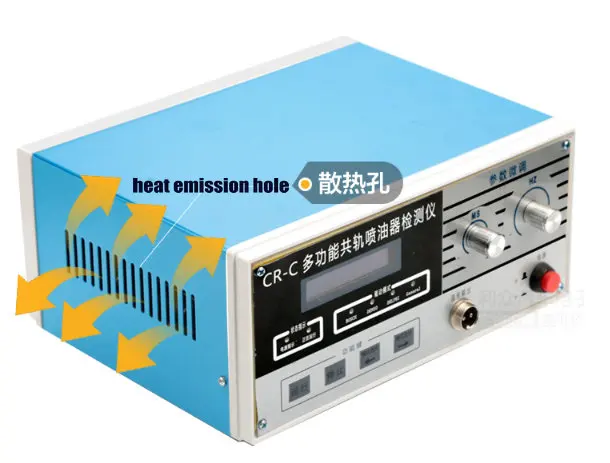

Good cooling system

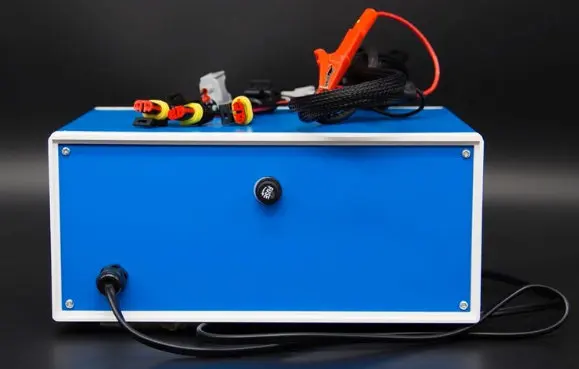

Back of the CR-C tester
Specification
Items | CR-C |
function | Test atomization effect, pilot injection, discharge point and full load point. |
Type of the motivation | BOCH,DENSO,DELPHI, modes made in China and general |
Max. pulse width | 10MS |
Max. frequency | 30HZ |
power | AC110~240V 50Hz |
Operating temperature | -30——70C° |
Packing size | 110*250*190mm |
weight | 5kg |

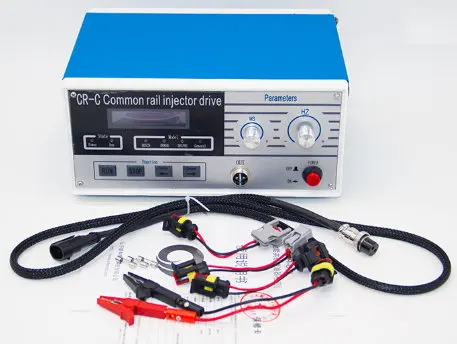

Packing List | ||
CR-C Main Unit Machine | 1pcs | |
For bosch connector | 1pcs | |
For delphi connector | 1pcs | |
For denso connector | 1pcs | |
Cable Clip connector | 1pcs | |
Fuse | 3pcs | |
Manual | 1pcs | |
