Характеристики

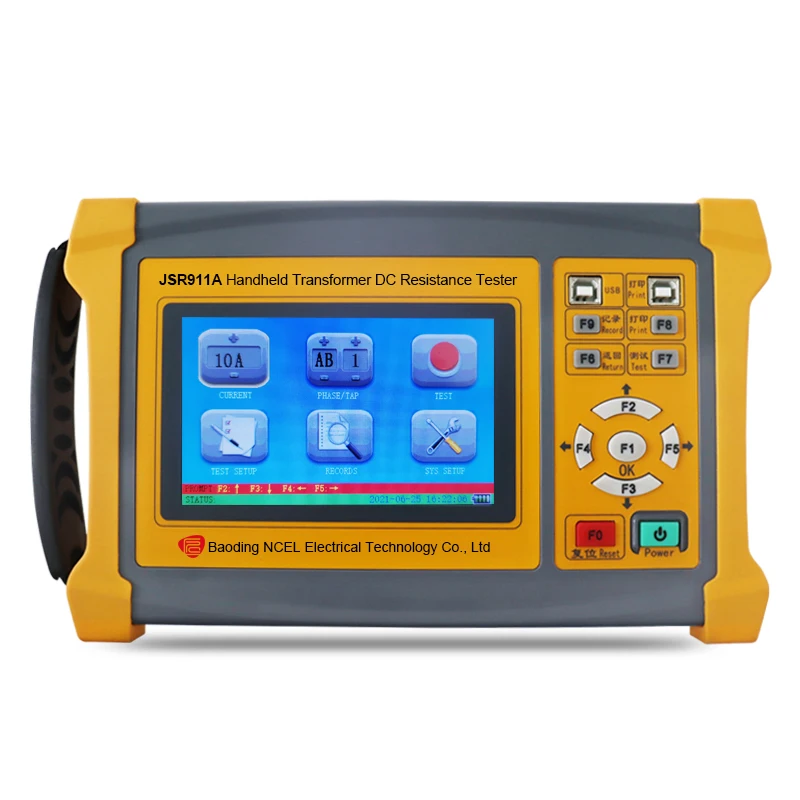

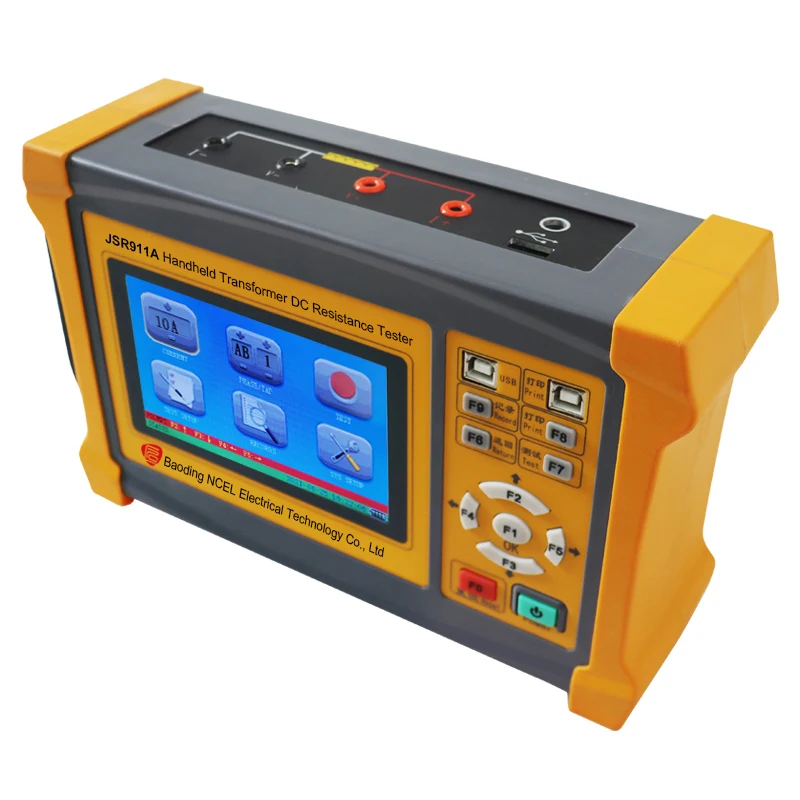

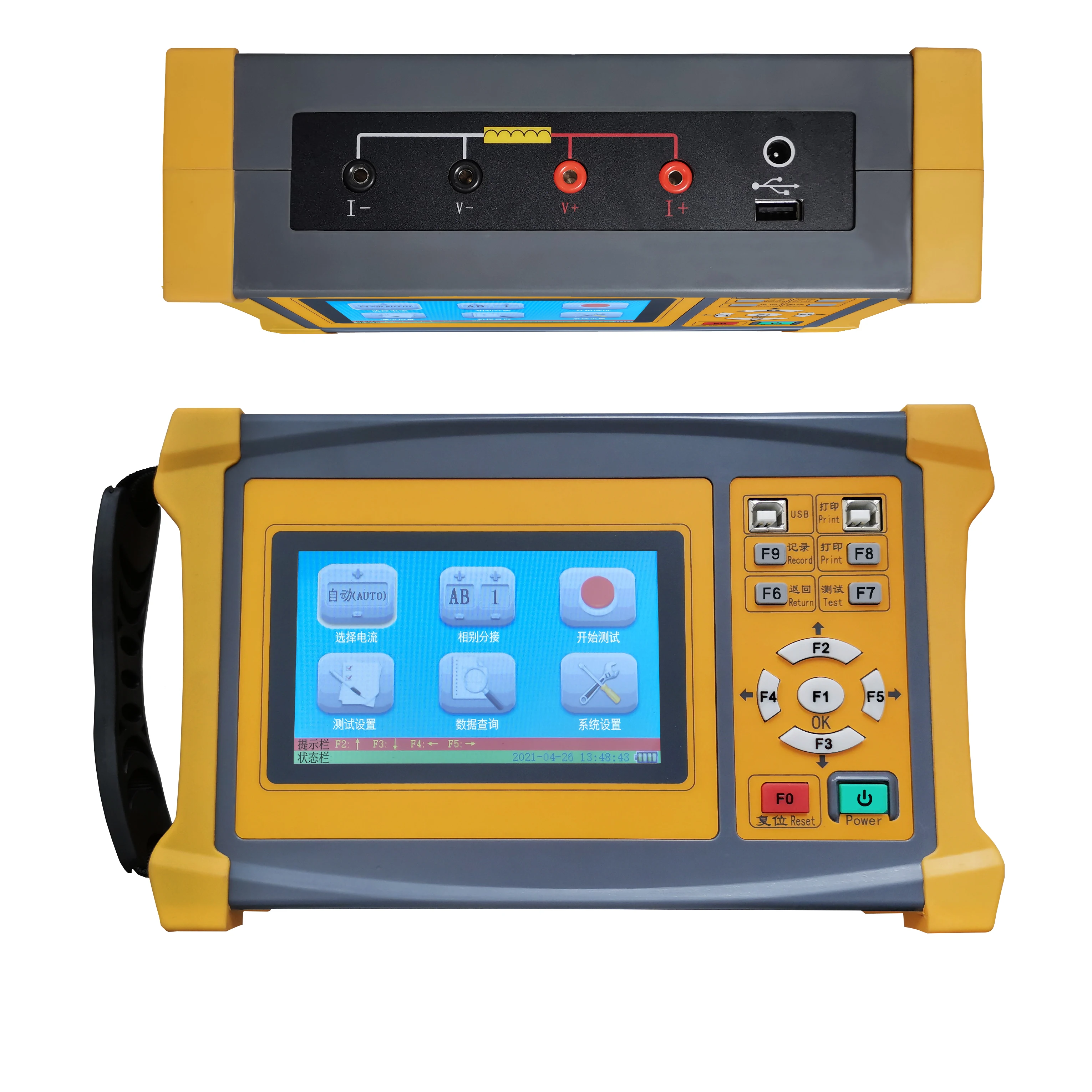

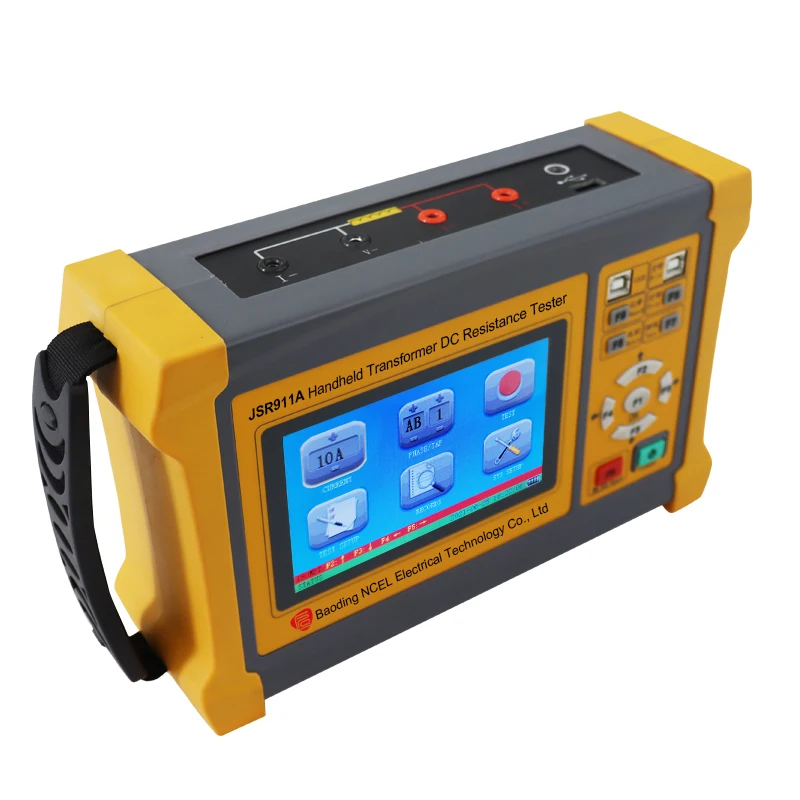

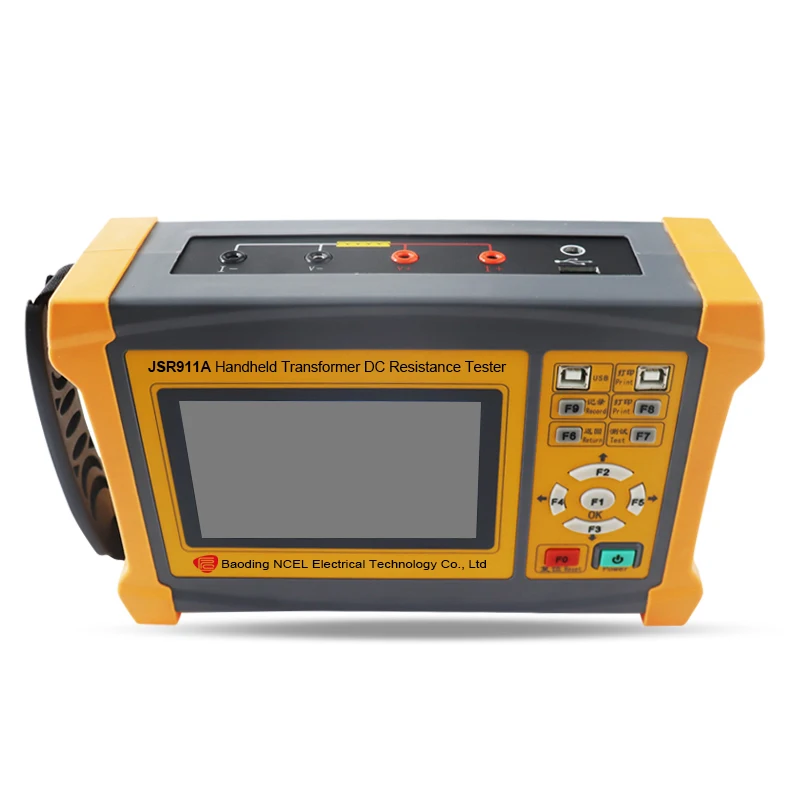

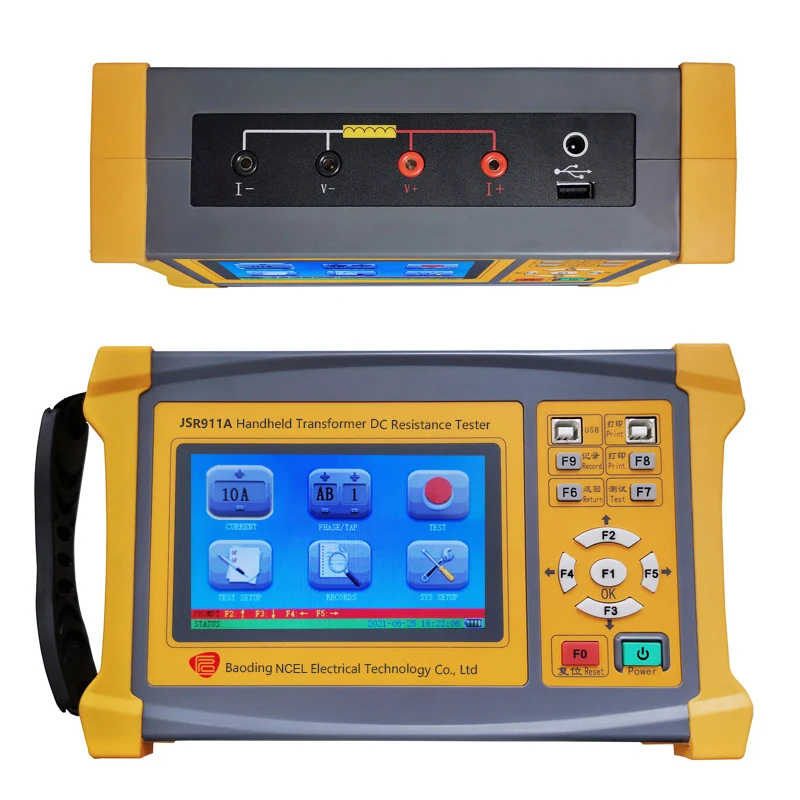

Touch screen Transformer winding coil test equipment Digital dc resistance tester
Product Description
Function and Features :
1.output current is large,weight is light, easy to carry
2.6 output current for choice, max 10A
3.adopts AC/DC dual-use mode, built-in large capacity lithium battery, easy for field operation can work for
2.6 output current for choice, max 10A
3.adopts AC/DC dual-use mode, built-in large capacity lithium battery, easy for field operation can work for
more than 8 hours
4.5 inch ture color LCD touch screen ,touch/key operation ,Chinese and English interface switch
5.Wide measuring range (0-20 k Ω), suitable for transformer transformer reactor such as perceptual try generator motor,
4.5 inch ture color LCD touch screen ,touch/key operation ,Chinese and English interface switch
5.Wide measuring range (0-20 k Ω), suitable for transformer transformer reactor such as perceptual try generator motor,
can also be used to measure the switch copper platoon contactor relay contact wire cable accessories and other
metal try measurement
6.The instrument has 99 sets of calendar data storage, manual temperature conversion and other functions,
shutdown does not lose data
7.With acoustic discharge alarm, discharge indication is clear, reduce misoperation
8. high precision, shock proof, anti-interference, high stability and easy to take ..
7.With acoustic discharge alarm, discharge indication is clear, reduce misoperation
8. high precision, shock proof, anti-interference, high stability and easy to take ..
Specification
Model Number | JSR911A |
Name | DC resistance tester |
Output Current | 5mA,100mA,300mA,1A,5A,10A |
Measurement range | 0～0.1Ω（10A） 2mΩ～1Ω（5A） 30mΩ～6Ω（1A） 100mΩ～20Ω（0.3A） 300mΩ～60Ω（0.1A） 30Ω～20kΩ（5mA） |
Resolution | 0.1μΩ |
Power Supply | AC/Built in lithium battery 12.6V/4.8AH |
ambient humidity | ≤85%RH |
relative humidity | relative humidity |
Accuracy | ±(0.2%RD+0.05%FS) |
service tempreture | -10~40℃ |
Operating temperature | -20℃~50℃ |
hoist Size | 255*150*68mm |
host net weight | 1kg |
