Product Description
Manual Horizontal Powder Coating Conveyor Line
This compact powder coating line is ideal for limited factory space, allows continuous batch production based on manual operation. It is ideal big or complex workparts that requires precise coating jobs, or suits for not large business.

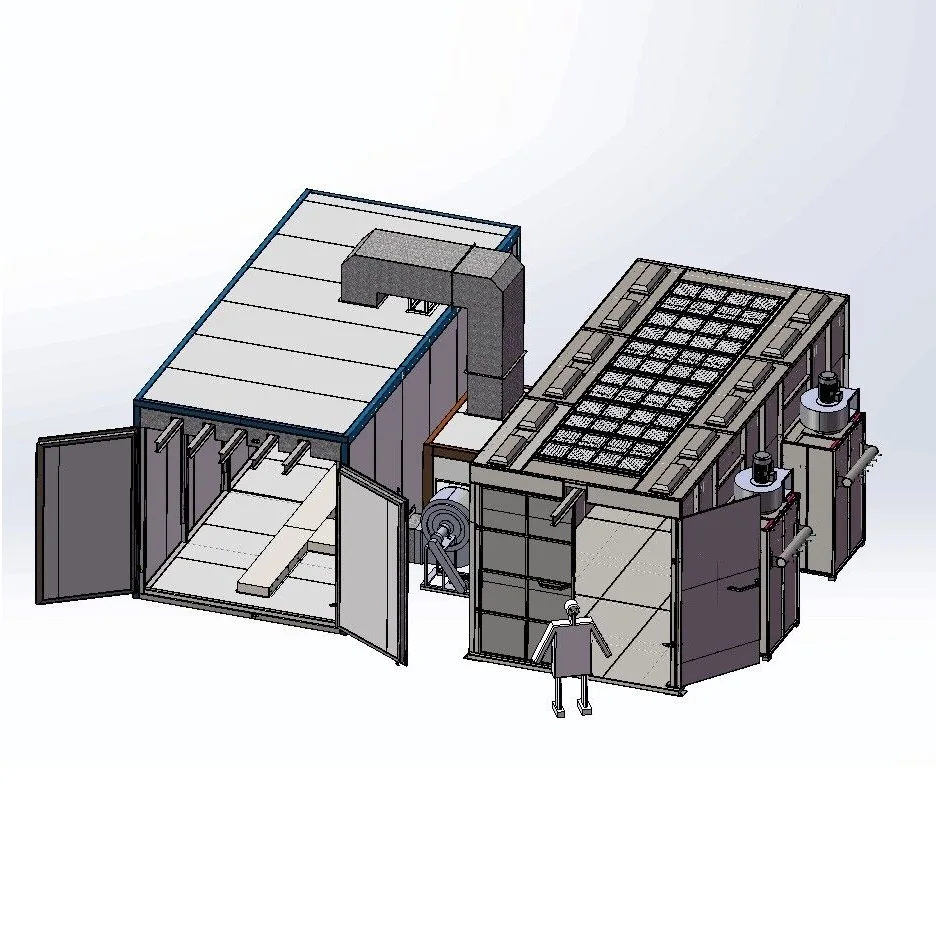

This manual coating line includes overhead track system, powder coating booth with recovery stage, curing oven, as well as manual powder painting machines.
Applications
These manual powder coating line are designed and manufactured by COLO, built in customer's Factory, they do powder coatin applicationg for aluminum profiles and metal frames, fence, steel pipes etc.
Detailed Pictures

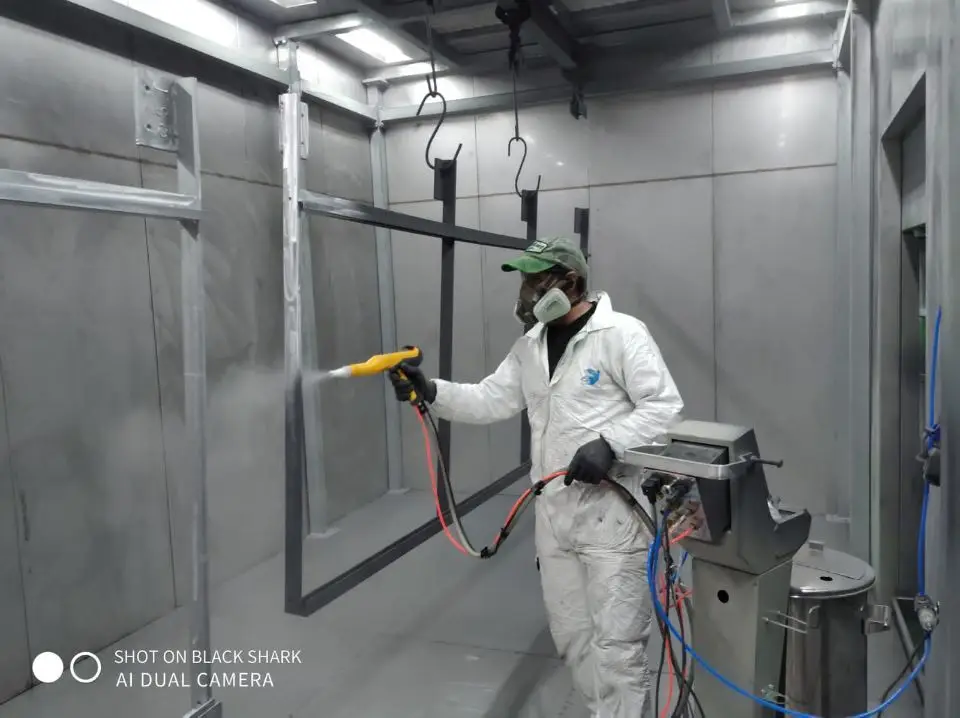

COLO-191S Manual Powder Coating Machine
COLO-191S manual powder coating gun is developed with latest technology suitable for any complex parts or any challenging powders. Our powder coating machines increase your production efficiency with great material savings.
The advanced DVC technology allows you to precisely control crucial paramters such as high voltage, spraying current and powder outpur, achieving perfect and repeatable coating results.

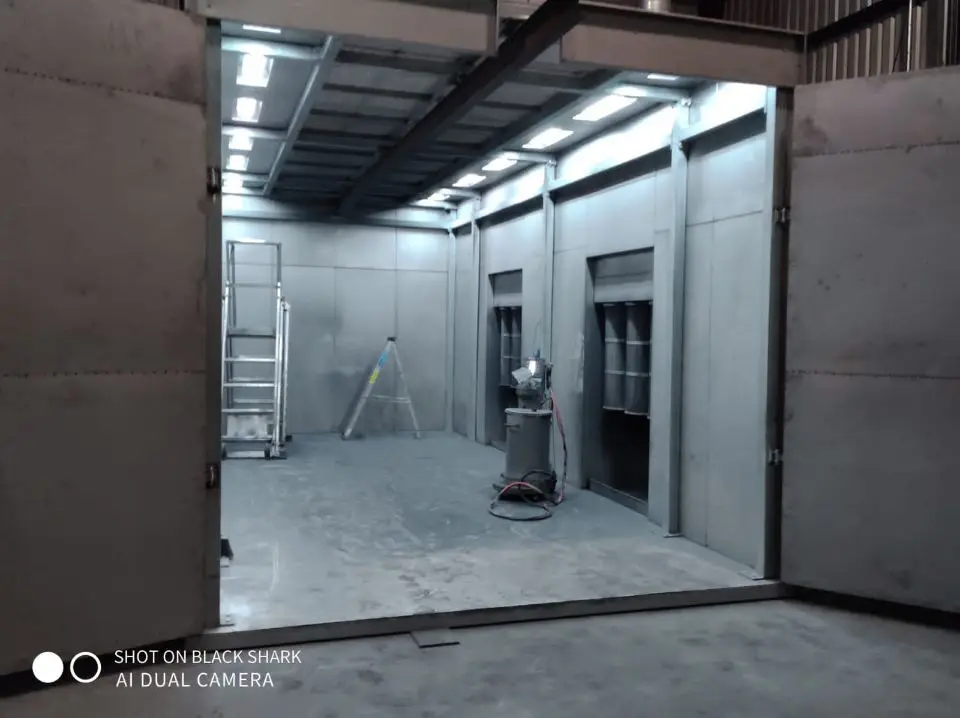

COLO Powder Spray Booth
This powder coating room allows operators walking in for the coating of large workparts. There are serveral filter stages
integrated in the booth wall for powder capture and recovery. Parts are transported by track system with less manual efforts.
integrated in the booth wall for powder capture and recovery. Parts are transported by track system with less manual efforts.
Features
1. The recovery module combines high-precision filters made of 100% polyester that maximize separating efficiency
2. Pulse jet device provides interval filters cleaning, effectively eliminates powder accumulation and prolongs filters' useful
life.
3. Full parameters and functions can be handled on the PLC panel, such turning on / off fan, setting pulse-jetting time and
interval, light on/off, emergency stop etc.
4. The booth body is made of powder-coated steel plate constructed for rust resistance, durability and ease of cleaning.
Specifications | COLO-S-3212 | |
Booth size | L7m*W3m*H3m | |
Opening Size | W3m*H3m | |
Booth Material | SUS 304, t=1.5mm, with door | |
Bottom Frame | 4# square rube | |
Spray Booth Inner Frame | 8# Square tube | |
Fan Power | 7.5kw, 2 sets | |
Filters | Cartridge Filter Stage (dia325*height900mm) , 16pcs | |
Filter hang type | easy for change | |
Filter cleaning system | Pneumatic | |
Air flow | 9500m^3/h | |
COLO Track Powder Coating Oven
This powder coating oven is designed with top tracks for loading of workparts. It can be heated by electric, gas or diesel as required. Our powder coating ovens features environmental friendly, reducing operating cost and curing more parts everyday.
Features
1. Using PLC system to control all heating process, accurate and conveninet.
2. Riello burner fully burns fuels (gas or diesel), quickly reach to required temperature.
3. Circulation fans causes uniform temperature in the entire chamber that results in quality cured finishes.
4. 100 mm thickness rockwool board always keeps the chamber with minimum heat loss.
5. We can custom powder coating ovens with required sizes, such as 6m, 7m, 8m, or more..
2. Riello burner fully burns fuels (gas or diesel), quickly reach to required temperature.
3. Circulation fans causes uniform temperature in the entire chamber that results in quality cured finishes.
4. 100 mm thickness rockwool board always keeps the chamber with minimum heat loss.
5. We can custom powder coating ovens with required sizes, such as 6m, 7m, 8m, or more..
Size | Width3 * Height3 *Length 7m |
Heating Source | Electrc/Gas/Diesel |
Heating Temperature | Max.250° C |
Heating Time | 15-30 min. (180° C) |
Temperature Stability | < ± 3.0-6°C |
Burner | Italy Riello |
Fan | 1 Set |
Application

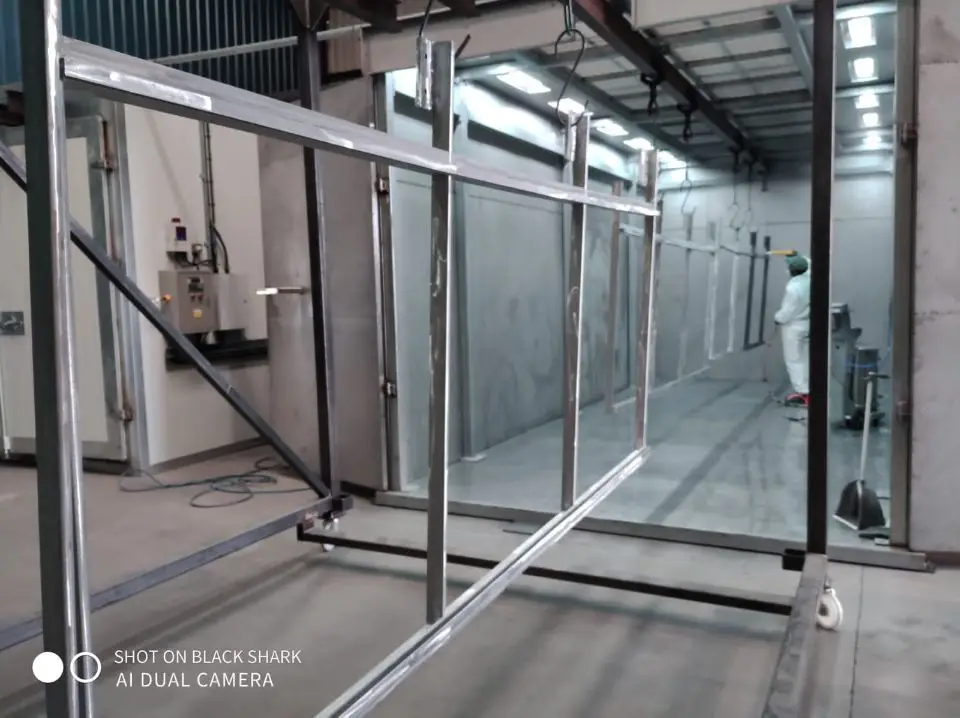

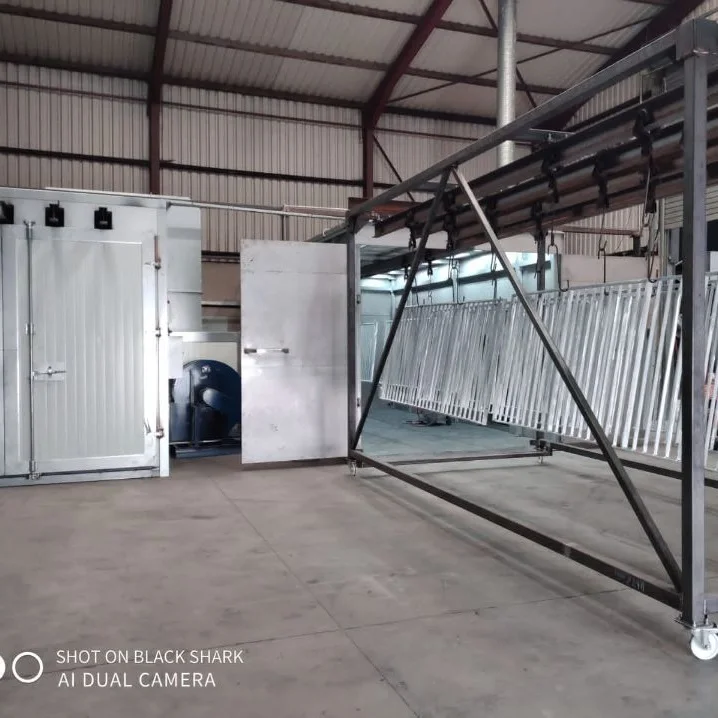

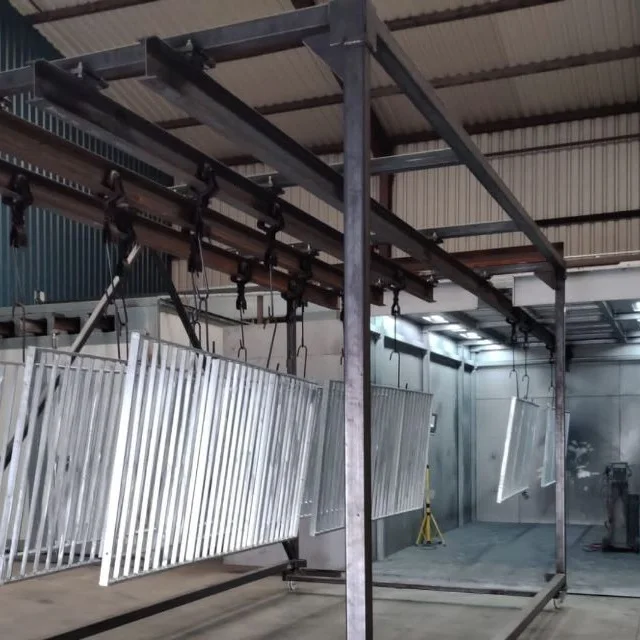

Customer Case - Manual Powder Coating Plant for Ireland Customer
This powder coating plant is specially designed for our Ireland customer that suits for their limited factory space.
Product packaging
For small parts or machines, they will be packed with wooden case for good safety.
For powder coating booths, ovens or systems, we will pack with foams and films and ship into a full container.
For powder coating booths, ovens or systems, we will pack with foams and films and ship into a full container.
Company Profile
HANGZHOU COLOR POWDER COATING EQUIPMENT CO.,LTD
COLO is an innovator of powder coating equipment industry, exporting to more than 100 countries, and over the past few years has come to be recognized as the Top powder coating equipment brand in China because of its professional teams advanced techologies, productivity solutions, reliable quality and competitive price. COLO Coating Systems is your source for all of your powder coating equipment needs. COLO conforms to CE, ISO 9001 standards.
Our product range from powder coating machines, powder spray booth, curing oven spare parts to complete powder coating line.
