Srrhx OS & Y 8 дюймов рост пожарного сигнала запорный


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.45 $* 0.51 $*
Aug-16-2025 0.50 $* 0.23 $*
Jul-16-2025 0.1 $* 0.21 $*
Jun-16-2025 0.13 $* 0.95 $*
May-16-2025 0.39 $* 0.75 $*
Apr-16-2025 0.6 $* 0.82 $*
Mar-16-2025 0.36 $* 0.8 $*
Feb-16-2025 0.15 $* 0.34 $*
Jan-16-2025 0.59 $* 0.18 $*

Характеристики


Valve Features
General gate valve adopts the soft seat structure, which avoid the defects of ordinary gate valves, such as leakage (bad sealing), elastic fatigue, aging of rubber, rusting, etc. This structure can produce the elastic micro-deformation to enhance the sealing effect.
It can be widely used in the pipeline of water supply, sewage, petroleum, chemical, food, medicine, light textile, electric power, ships, metallurgy, energy systems, to regulate&cut off flow.

Available Actuator: hand wheel,  Spur gear,  Bevel gear, Worm gear, Pneumatic, Hydraulic, Motorized

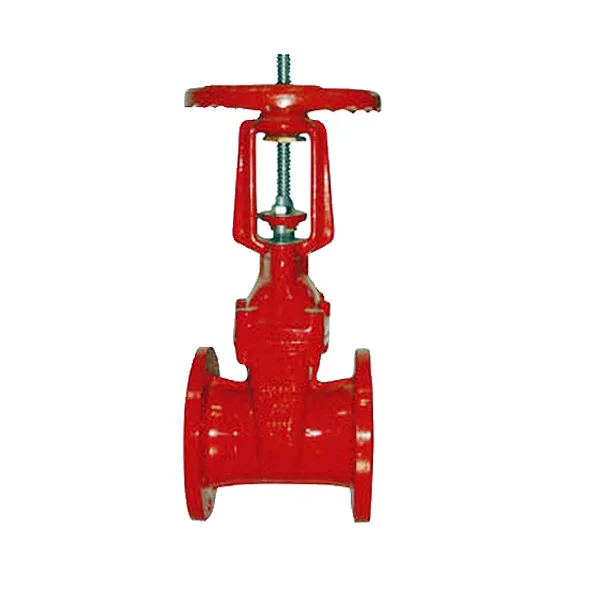

SRRHX OS&Y 8 inch gate valve

SRRHX Signal gate valve are widely used in all kinds of pipeline in drainage and fire fighting building,especially for fire fighting.Two types:
Type 1: Rising stem type gate valve indicating the operating condition; Often installed far away from the ground.
Type 2:   Gate valve with opening indication. Often installed near the ground

Material of SRRHX OS&Y 8 inch gate valve

\t
No.
\t
Name
\t
Material
\t
1
\t
Hand Wheel
\t
Ductile cast iron, Malleable cast iron, Carbon steel
\t
2
\t
Stem nut
\t
Copper Alloy
\t
3
\t
Stand
\t
Ductile cast iron, Gray cast iron, Cast steel
\t
4
\t
Gland
\t
Ductile cast iron, Cast steel
\t
5
\t
Seal Ring
\t
NBR/ EPDM
\t
6
\t
Stem
\t
Carbon steel 45#/ Stainless Steel
\t
7
\t
Middle Washer
\t
NBR/ EPDM
\t
8
\t
Disc
\t
Ductile Iron + NBR or EPDM
\t
9
\t
Body
\t
Ductile cast iron, Gray cast iron, Cast steel
\t
10
\t
Thrust Washer
\t
Tin-bronze
\t
11
\t
Stem Sleeve
\t
Tin-bronze
\t
12
\t
O-ring
\t
NBR

Features of SRRHX OS&Y 8 inch gate valve

\t
Nominal Diameter
\t
DN50-1200
\t
Nominal Pressure
\t
0.6-2.5 MPa
\t
Flange Connection
\t
GB, ANSI,etc
\t
Pressure Test
\t
GB/T13927-1992; JB/T9092-1999
\t
Media
\t
Water, sewage, oil, etc
\t
Working Temperature
\t
0-80℃
Dimension

SRRHX OS&Y 8 inch gate valve

Product Packing
YM Valves producing

YM VALVES GROUPS

We are Valve manufacture with 40 years manufacturing expertise, China Classification Society in 2007 and achieved the certificate of valve manufacturing, improved quality of valve manufacturing, shipbuilding became a professional valve manufacturer. By 2010, the United Kingdom (LR) Lloyd's approval of qualified products, the company mass 8.5MPa pressure level valve; large-tonnage dock with the cone-shaped discharge valve has a strong competitive strength; innovative valve technology important for our national defense work services. We have been to improve our level of product design to meet the requirements of the user market. Filling pressure medium sealed the success of large-diameter valve manufacturer, industrial valves in China narrowed the gap with foreign technology.

signal gate valve,rising stem gate valve,manual slide gate valve,resilient seated gate valve, fire fighting water gate valve.

Ministry of Water Resources State enterprises to obtain the production of hydraulic valve structure permits the production of large turbine main valve, vent valve, adjustable door; company has a nationally recognized NDT qualification.
signal gate valve,rising stem gate valve,manual slide gate valve,resilient seated gate valve, fire fighting water gate valve.
Double-sided sealing large diameter butterfly valve, double valve sealing surface and a half, large-diameter spherical sealing butterfly valve, fixed emission cone valve, piston valve and high wear-resistant plate-shaped valve, instrument valve has become our main products, such valves door for the oil refinery has a certain market competitiveness.
signal gate valve,rising stem gate valve,manual slide gate valve,resilient seated gate valve, fire fighting water gate valve.
American butterfly valve according to the introduction of production technology standards ANSI/AWWAC504-80 U.S. manufacturing is one of our important products, learn more advanced features of high-performance butterfly valve seal is eccentric way our water supply, environmental protection and sewage treatment., Metallurgical and chemical pipeline product of choice.
signal gate valve,rising stem gate valve,manual slide gate valve,resilient seated gate valve, fire fighting water gate valve.
Large-diameter valves are widely used in power plants nationwide and abroad, a large thermal power plants, hydropower. I produced a soft seal butterfly valve, metal sealed butterfly valve, quick exhaust valve closing, slow closing hydraulic control valve series full range of control.
signal gate valve,rising stem gate valve,manual slide gate valve,resilient seated gate valve, fire fighting water gate valve.
The company also produced a vacuum valve, hydraulic control valves, eccentric fan-shaped valves, check valves, mud valves, composite-style exhaust valve, expansion joint head, mechanical water gate boxes.ductile iron gate valve

Why Choose Us

30 years working in Valves

Our new base covers an area of 60 acres, the main production plant 10,000 square meters, office support facilities nearly 5,000 square meters, a large vertical lathe and CNC machine tools and other testing equipment.

International sales and service team

Over 20 international service working for you with SOP.

We are not only sale products, we are doing market solution for you.
