ПВХ изоляцией и оболочкой 3-жильный RVV гибкий

Описание и отзывы

Трекер стоимости

Характеристики

ODM/OEM Cable Factory More than 15years

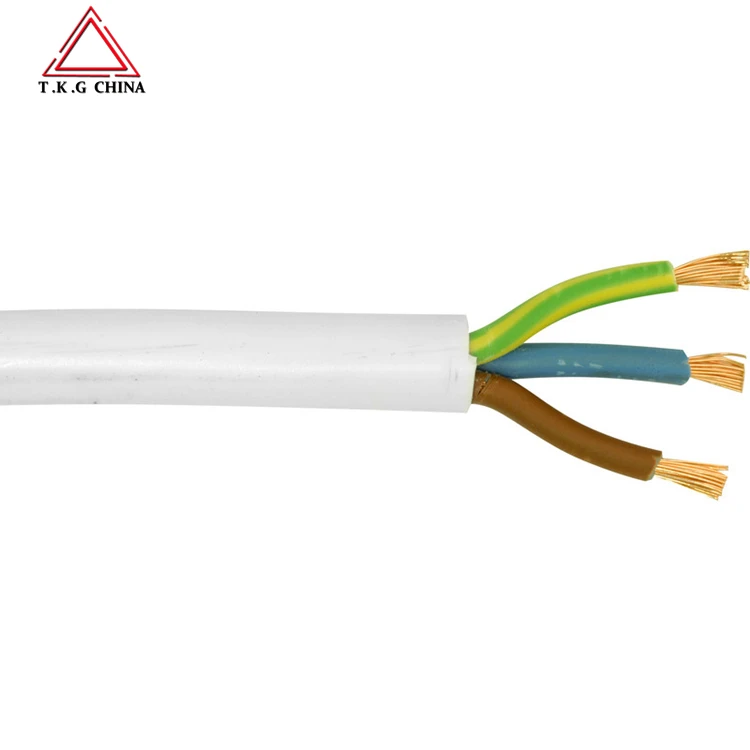

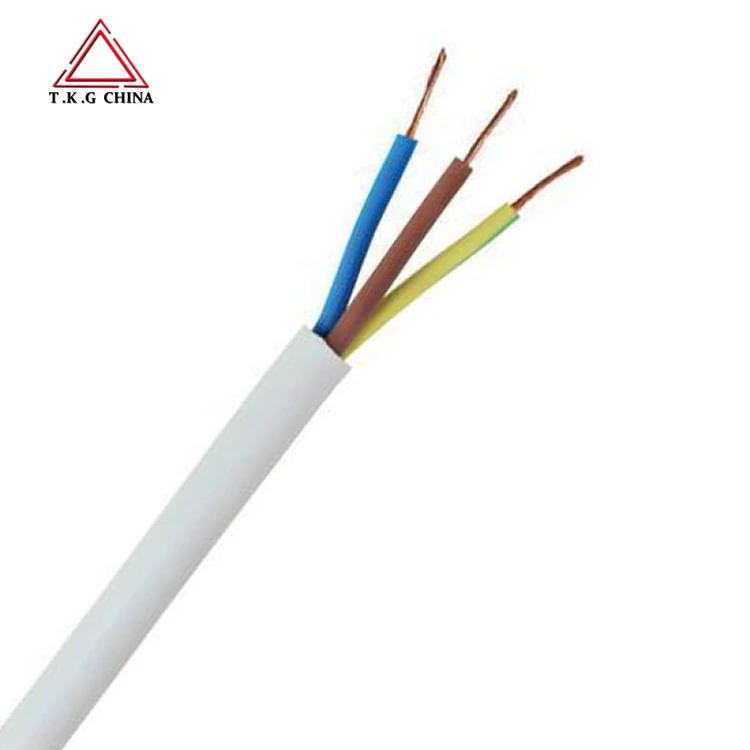

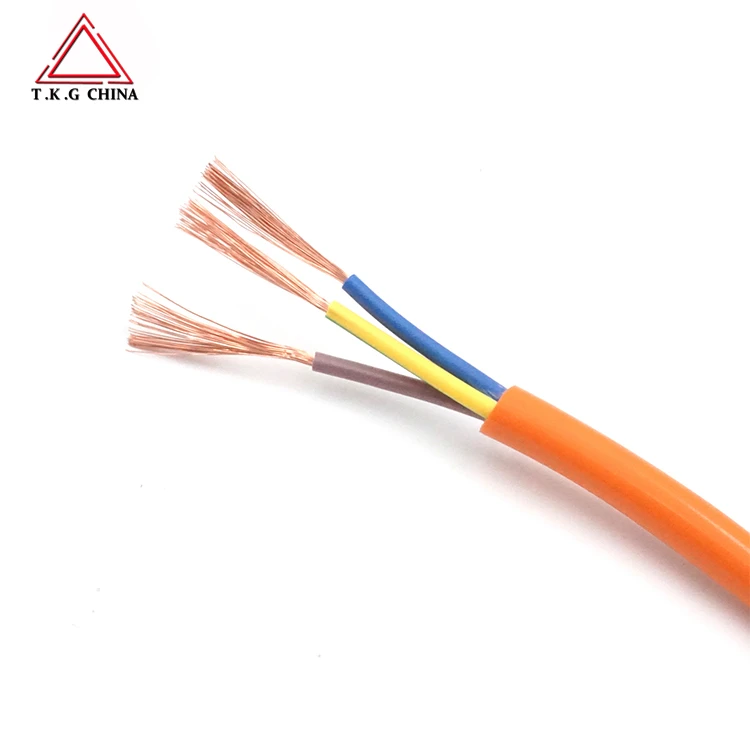

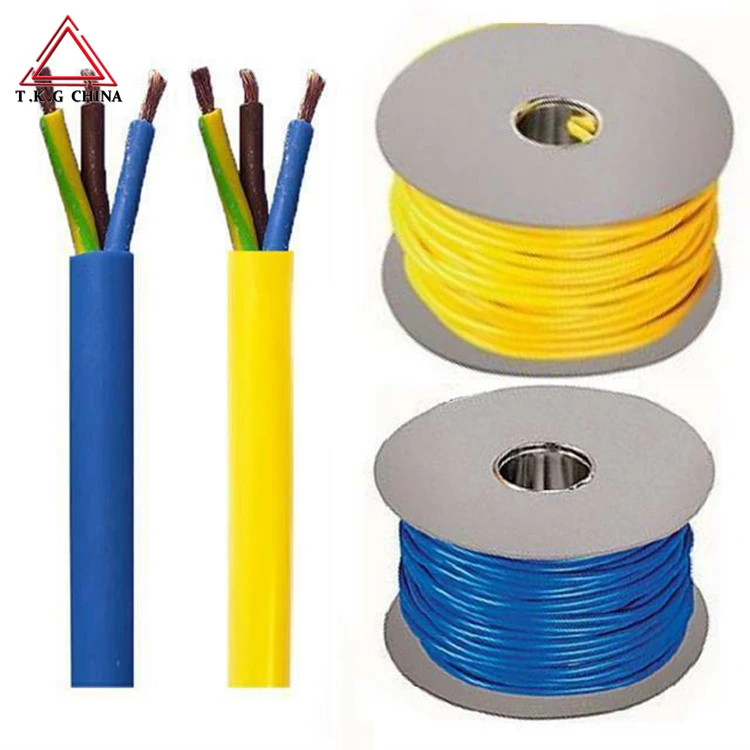

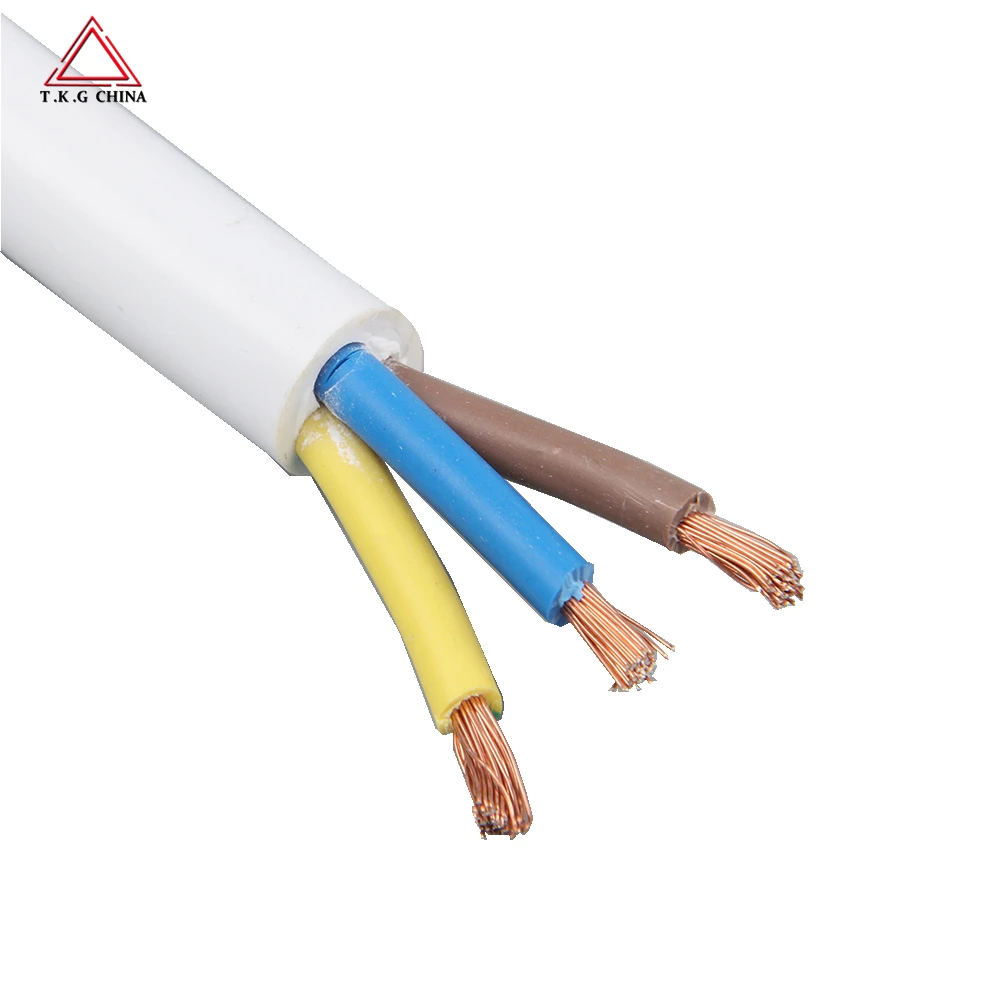

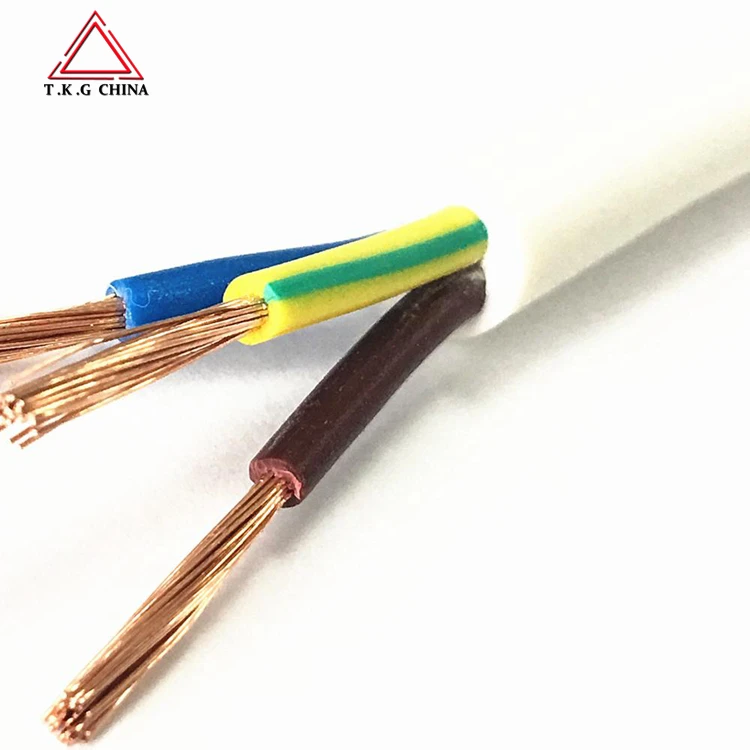

 RVV FLEXBLE ROUND Muti-core cable

•Application:



The cable is suitable forgeneral electronics,electrical equipment,power supply connection



•Performance:



Rated Voltage:300/500V

Working Temp:70℃




Number of cores			Normal area (mm²)			Structure (mm)			Approx overall dia (mm)
2 cores			0.5			28/0.15			5.2
			0.75			24/0.20			6.4
			1			32/0.20			6.6
			1.5			30/0.25			7.6
			2.5			49/0.25			9.4
3 cores			0.5			28/0.15			5.5
			0.75			24/0.20			6.8
			1			32/0.20			7.2
			1.5			30/0.25			8.5
			2.5			49/0.25			10
			4			56/0.30			11.7
			6			84/0.30			13
4 cores			1			32/0.20			8
			1.5			32/0.20			9.2
			2.5			49/0.25			11
			4			56/0.30			12.8
			6			84/0.30			15.4
			10			126/0.32			18.8
5 cores			1.5			30/0.25			10.7
			2.5			49/0.25			12.8
			4			56/0.30			14.5
			6			84/0.30			16.4
			10			126/0.32			21.1
			16			126/0.40			25.4



















TKG China is a manufacture of electric cable, power cable, electric wire, and LED light, the company is located in Tongyuan town, Haiyan city. Managing standardization and running on human resource,production model and business process helps TKG China get high speed growth. our  company focus on the R&D and production of wire and cable for different local buyers trying best to make perfect products for customer needs.T.K.G China also obtained CE, VDE, SAA, TIR, SON CAP, CCC, ROHS and other related quality certifications, meantime passed ISO9001 quality system certification.

TKG China has been the best choice for over 2000 customers in 35 countries.TKG China always believes that our life lies on quality, while our growth comes with customer satisfaction.
