Цена:8 300,00 $ - 9 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 9877.73 $* 10371.10 $*
Aug-19-2025 9794.89 $* 10284.7 $*
Jul-19-2025 8217.61 $* 8628.3 $*
Jun-19-2025 9628.52 $* 10109.52 $*
May-19-2025 8383.32 $* 8802.24 $*
Apr-19-2025 9462.27 $* 9935.43 $*
Mar-19-2025 9379.68 $* 9848.69 $*
Feb-19-2025 9296.74 $* 9761.59 $*
Jan-19-2025 9213.20 $* 9674.5 $*

Характеристики



Product Description






Specification


Name

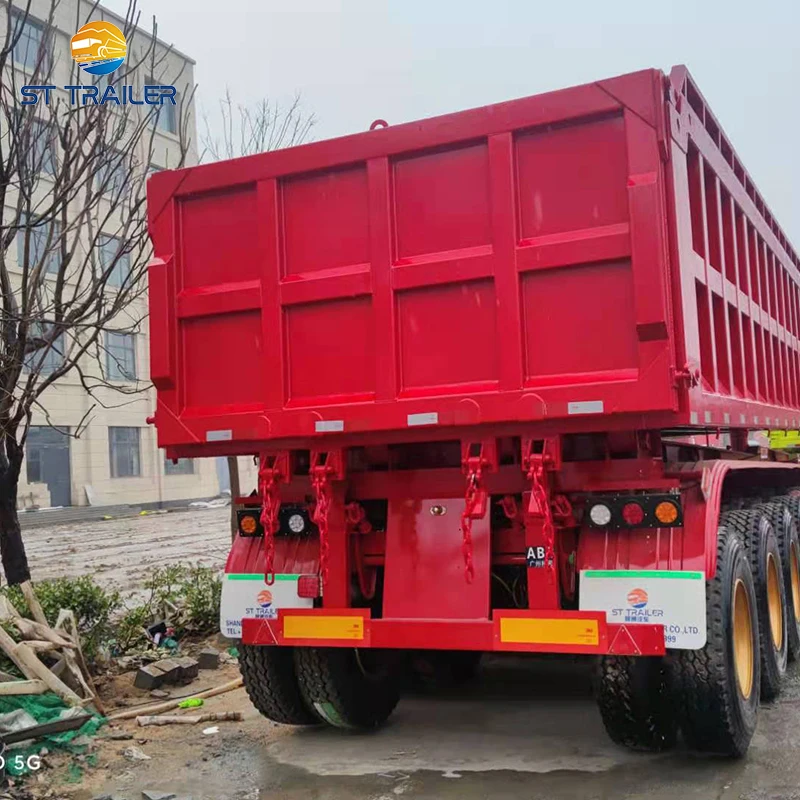

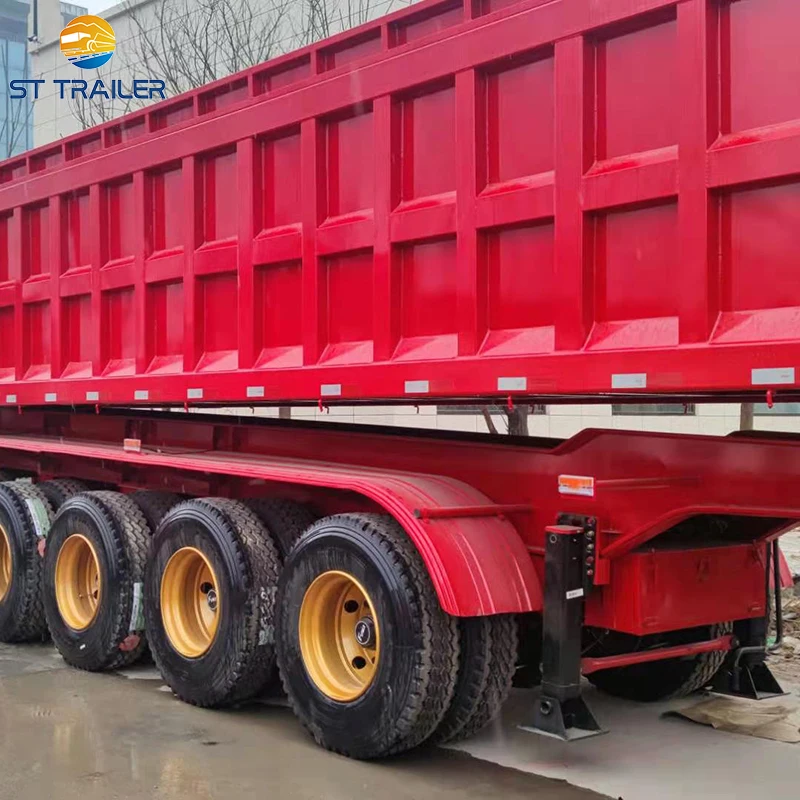

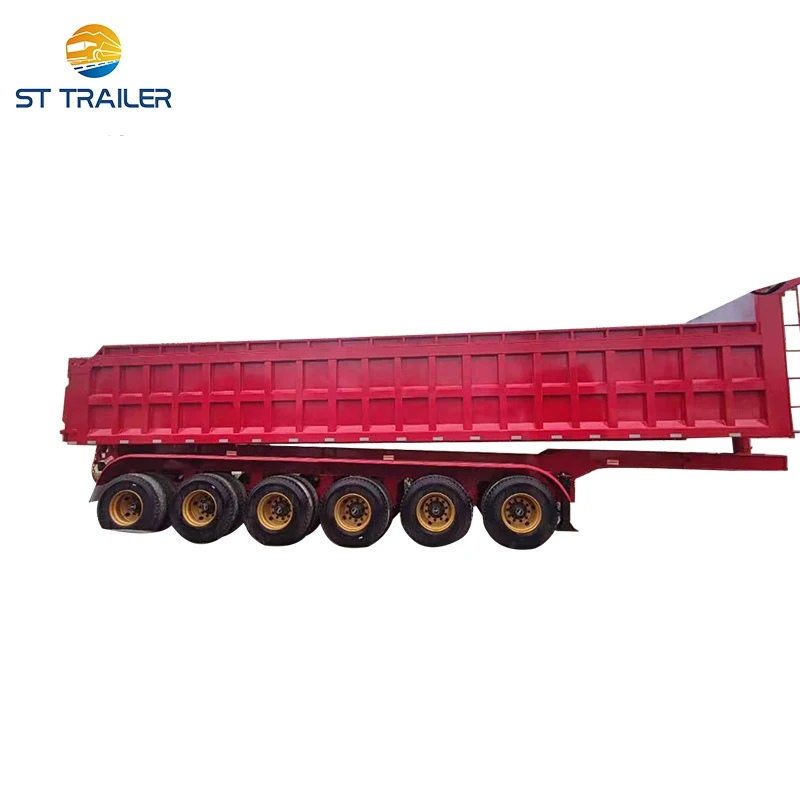

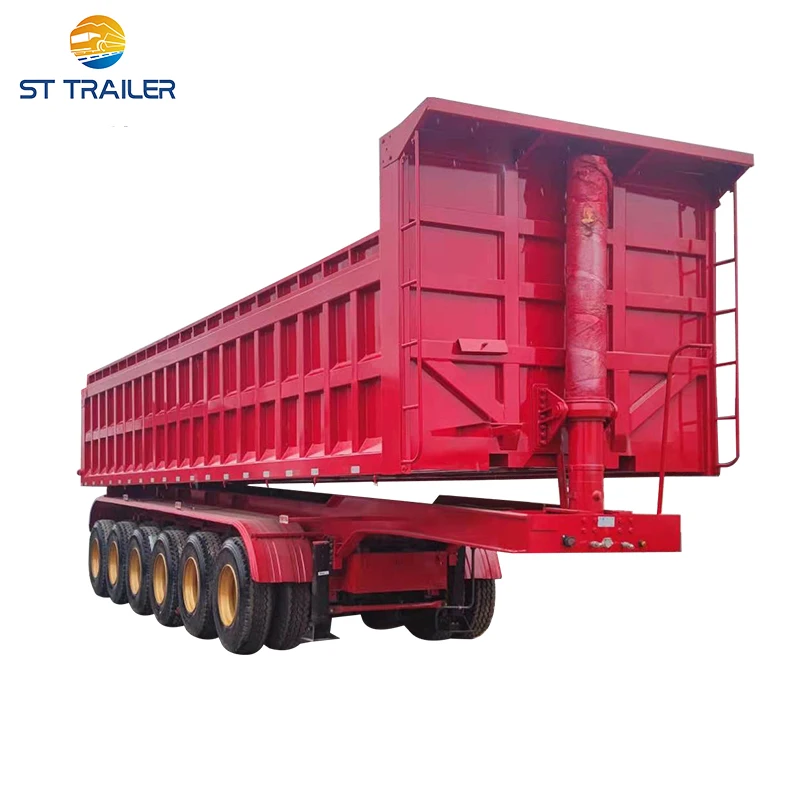

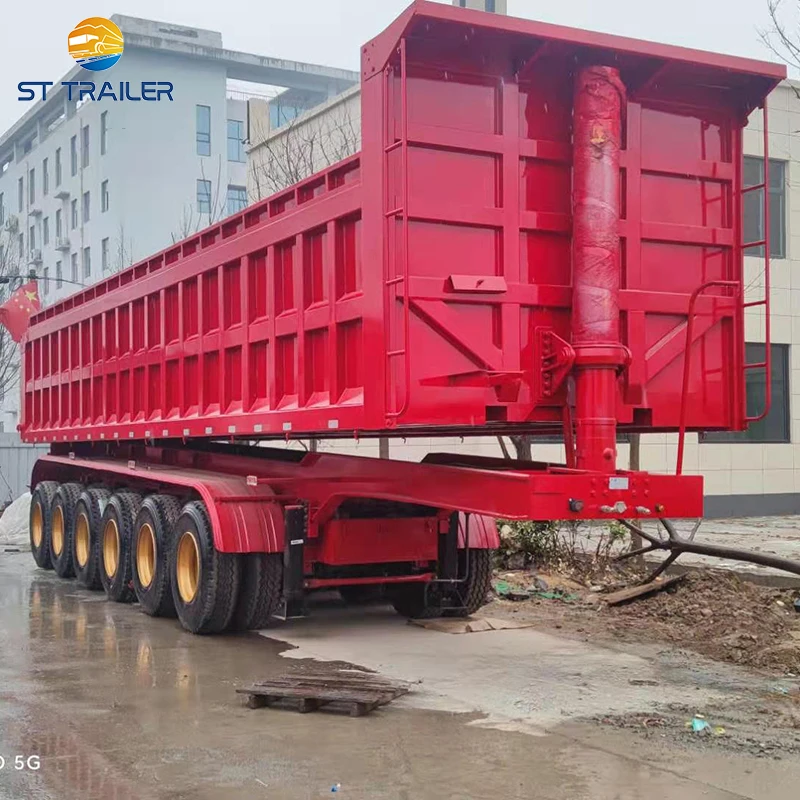

Hot sale 6 axles side tipper dump trailer, hydraulic tipper semi trailer
Function
Transporting heavy Stone and Sand
Total Volume(m3)
80 Cubic meters
Tare weight
About 10000KGS
Tyre specifications
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
Wheel rim
9.00*22.5 or 8.25*22.5 Chinese brand
Axle
3* 13T, FUWA, BPW or other brand for optional
King Pin
2 inch or 3.5 inch bolted in king pin for optional
Landing gear
28 ton standard
Suspension
Mechanical leaf spring suspension or air suspension
Dimensions (LxWxH)
1000/11000/12000/13000* 2480/2500* 3040mm(Outside)
main beam
Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Side beam
22mm channel steel
Side wall thickness(mm)
2.3mm Q235 steel (three or five door opening door )
Bottom plate thickness(mm)
3mm diamond plate /Q235 steel
Lifting system

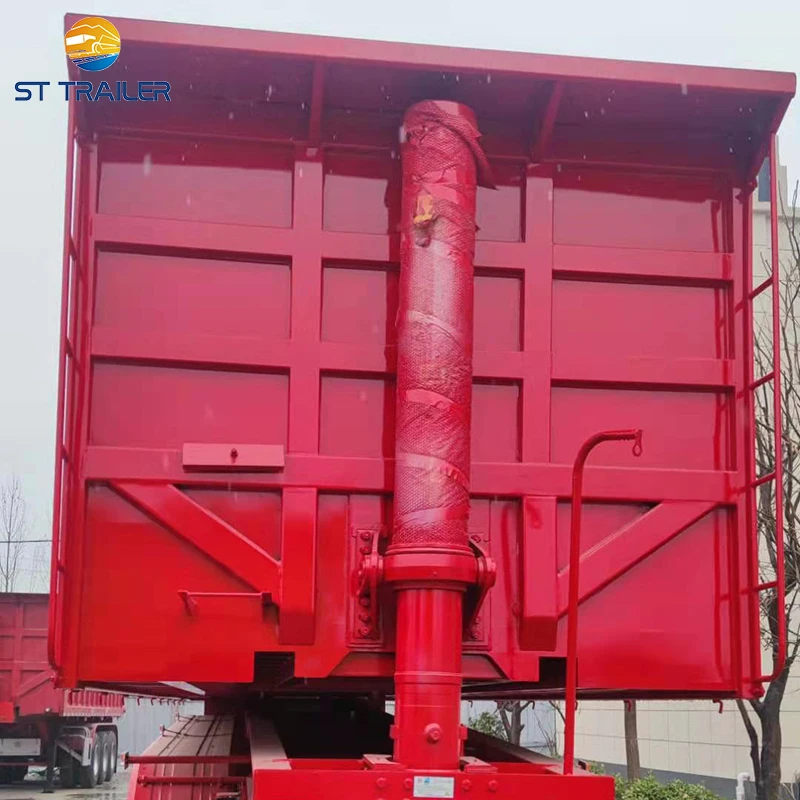

Full set of Hydraulic Lifting system (Four diameter125 lifting cylinder, and one diameter140 lifting cylinder.)
Electrical
24V 7 ways (7 wire harness)
Painting
Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint
Accessory
One standard tool box
OEM service
Our products could be customized according to customer's requirements.


Company Profile


SHANDONG ST TRAILER CO.,LTD. is a trailer sales company approved by the State Administration for Industry and Commerce, which integrates production, scientific research and sales. It has passed the mandatory "3C" certification and ISO9001:2000 quality management system certification by the China Quality Certification Center. The company is well-funded, covers an area of more than 68,000 square meters, has a production plant of 32,000 square meters, and has more than 300 employees. It has first-class standard and strong production capacity flow-through production tooling equipment, using advanced production technology and high-quality raw materials and parts. .
The company insists on taking first-class equipment, first-class technology, and first-class quality as the root of enterprise development, and adheres to the tenet of people-oriented and sincere treatment, strengthens internal management, improves various systems, and serves new and old customers. Guests from all walks of life are welcome to come to the factory to negotiate business.




Certifications






FAQ


Title goes here.
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.

Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.

Q3: Do you provide free samples ?
A3: No, we don’t provide free samples.

Q4: How about the quality?
A4: We have the best professional engineer and strict QA and QC system.

Q5: Can we be your distributor?
A5: We are looking for distributor and agent all over the world

Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
