Комби ПВХ труба воздуховод/ПВХ воздуховод
- Категория: >>>
- Поставщик: Shanghai,Qianjing,Ducting,Co.,Ltd.Shanghai,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.53 $* | 0.18 $* |
| Aug-19-2025 | 0.13 $* | 0.75 $* |
| Jul-19-2025 | 0.65 $* | 0.18 $* |
| Jun-19-2025 | 0.39 $* | 0.69 $* |
| May-19-2025 | 0.90 $* | 0.9 $* |
| Apr-19-2025 | 0.72 $* | 0.61 $* |
| Mar-19-2025 | 0.85 $* | 0.79 $* |
| Feb-19-2025 | 0.21 $* | 0.47 $* |
| Jan-19-2025 | 0.35 $* | 0.91 $* |
Характеристики
Production Paramenters
Product Code | XY-201/XY-202 | |||||||
Construction | 1/2 Aluminum Foil + 1 PET+1PVC film | |||||||
Color | White/Black/Grey/Brown | |||||||
Available Diameter | 40mm-650mm(1.5"-25") | |||||||
Available Carbon Steel Wire Diameter | 0.6mm-2.5mm | |||||||
Standard Length | 10m(Max) | |||||||
Thickness | 0.125mm-0.127mm | |||||||
Fire Resistance | Limited Combustibility(Fire Will Out Within 3 Seconds) | |||||||
Compress Ratio | 1: 25 | |||||||
Temperature Range | -30℃/+150℃ | |||||||
Operating Pressure | 2500Pa/3000Pa | |||||||
Maximum Air Velocity | 30m/s | |||||||
Standard Parameter of QianJing Company | ||||||||
Duct Diameter | Steel Wire Dia. (mm) | Steel Wire Spacing (mm) | Carton Size for 10meters(mm) | |||||
Inch | mm | |||||||
3” | 75 | 0.8 | 20 | 90*90*720 | ||||
4" | 102 | 0.9 | 30 | 125*125*520 | ||||
5" | 125 | 0.9 | 30 | 145*145*520 | ||||
6" | 152 | 1 | 37 | 175*175*450 | ||||
6.5" | 165 | 1 | 37 | 185*185*450 | ||||
7" | 180 | 1.1 | 40 | 205*205*450 | ||||
8" | 203 | 1.1 | 40 | 225*225*430 | ||||
10" | 254 | 1.2 | 45 | 275*275*430 | ||||
12" | 305 | 1.2 | 45 | 325*325*430 | ||||
12.5" | 315 | 1.2 | 45 | 335*335*430 | ||||
14" | 355 | 1.2 | 45 | 375*375*430 | ||||
16" | 405 | 1.2 | 45 | 425*425*430 | ||||
18" | 455 | 1.2 | 45 | 475*475*430 | ||||
20" | 505 | 1.2 | 45 | 520*520*430 | ||||
Products Description

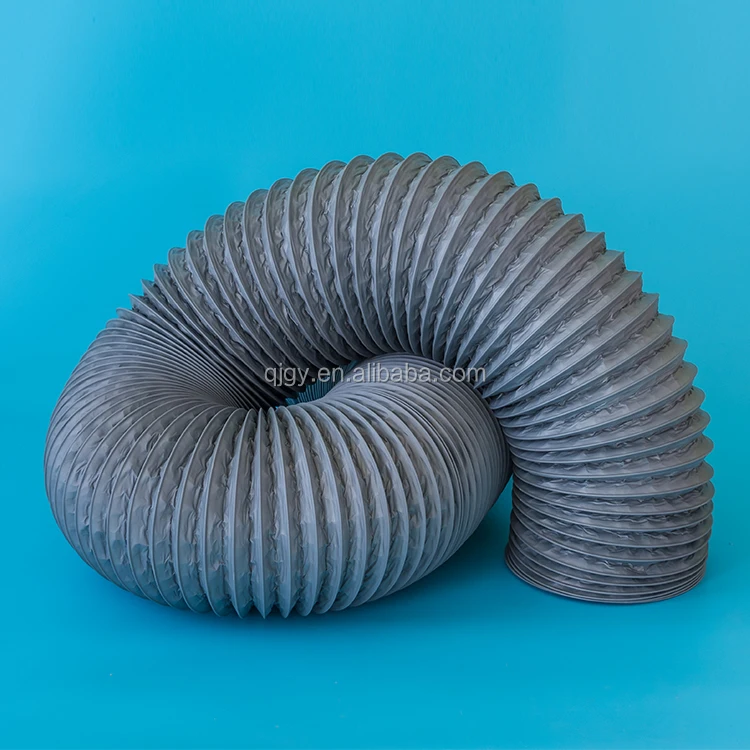

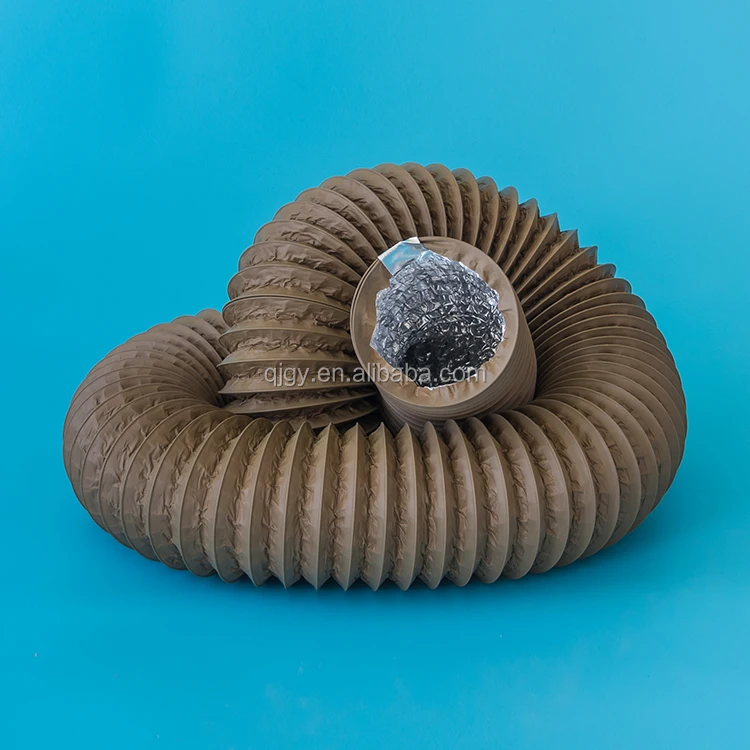

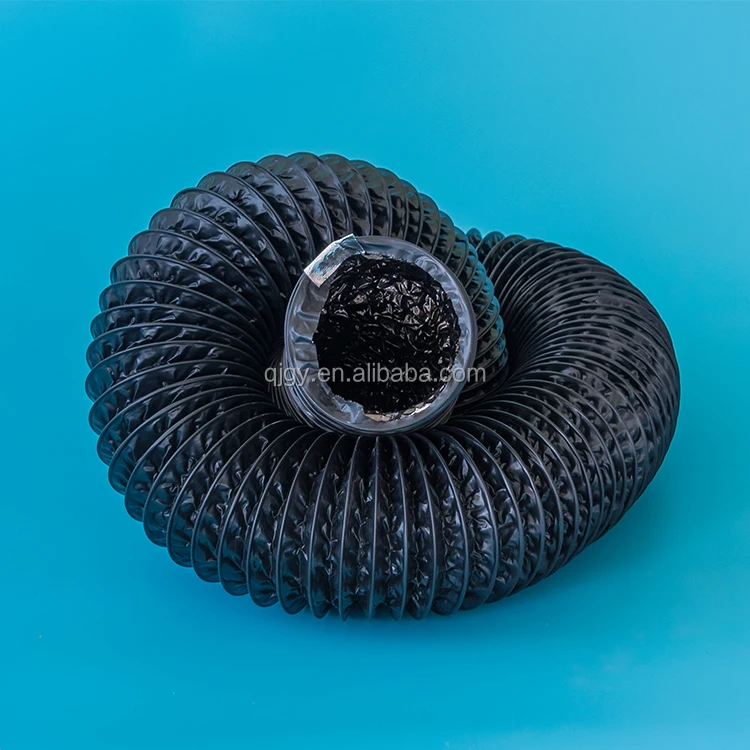

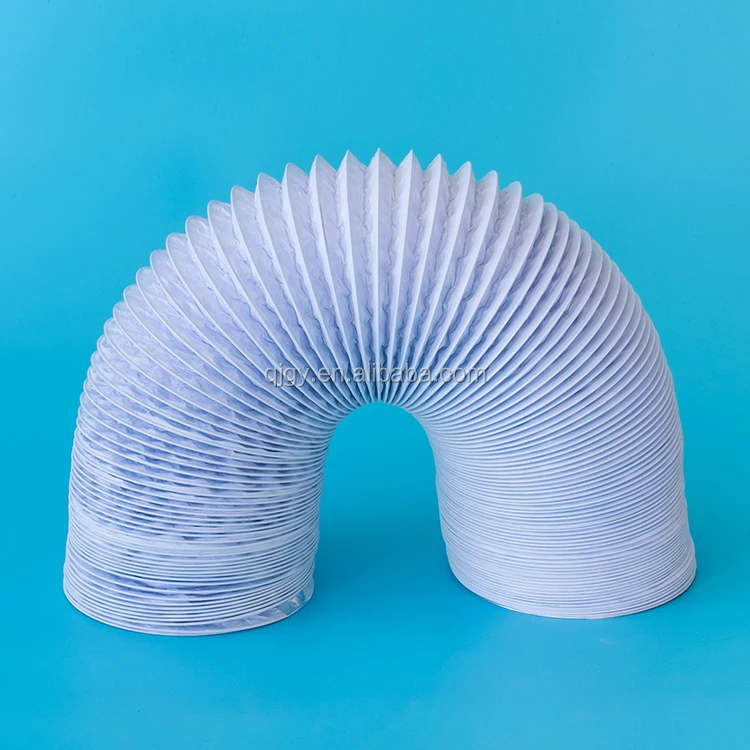

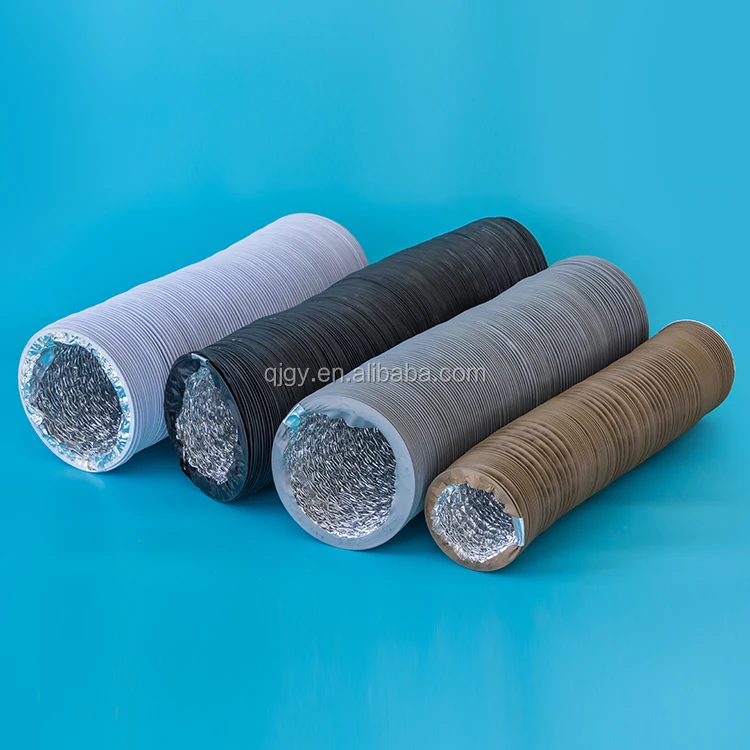

COMBI PVC Flexible Duct:
1.Aluminum COMBI PVC duct is made of aluminum+PVC.Aluminum can be single layer 0.025mm,double layers 0.032mm.2.No need special tools for cutting and it is easy to connect to ducting.
3.In case of fire no toxic gas are emitted, excellent resistance to chemicals.
4.The product has been successfully tested for fire resistance.
5.The product has been successfully tested for pressure.
6.Can be bent in any direction.(Small bending radius)
7.Standard length is 10 meters or as customized request.
8.Sapce saving, compress rate 25:1.
9.Easy installation with long service life. Ideal for using in general purpose exhaust applications.
