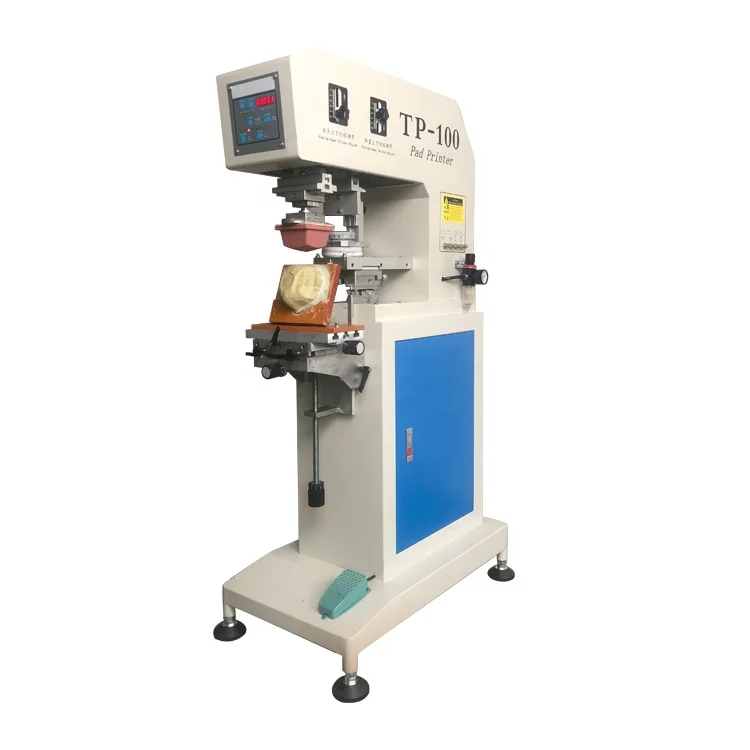

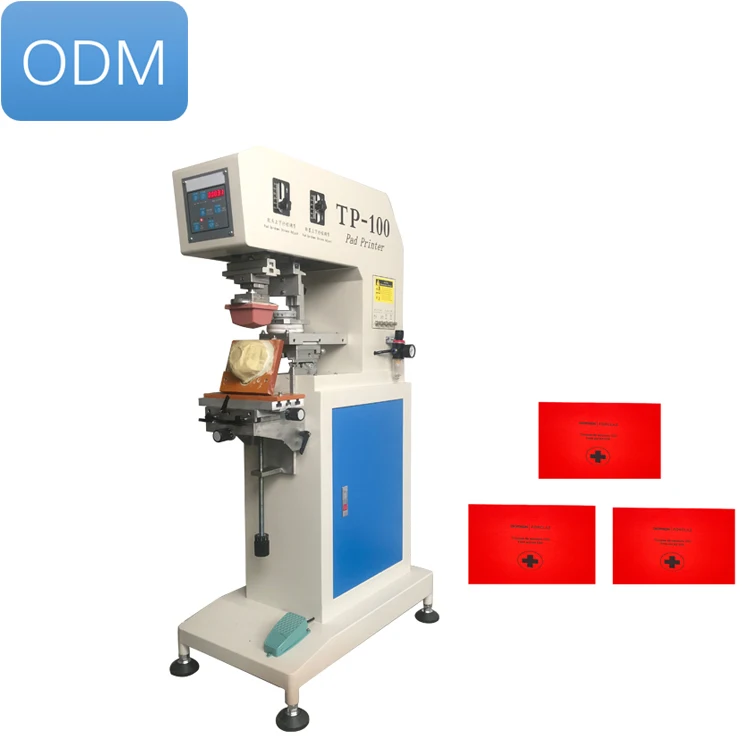

Semi-auto 1 single Color ink cup rfor Small plastic parts printing Pad Printer
1、Single Colour Ink Cup Pad Printer is well.
2、Suitable to pad printing on T-shirt, garment label printing, also easy to print on pens, toys, cups, cosmetic container, gift crafts, ball, mobile phone keypad, computer keyboard, household appliances etc. 3、It is with closed ink cup, can save 60% ink and 90% thinner comparing with open ink tray.
Feature:

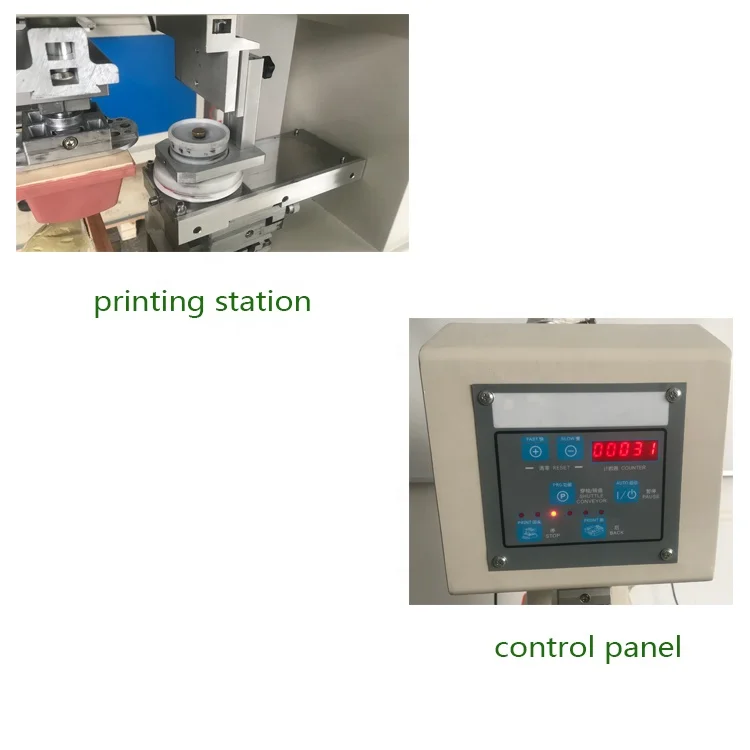

1. Controlled by microprocessor for easy operation. 2. Five-digit auto counter built-in. 3. High intensity cast aluminium machine structure frame. 4. Sealed cup is used for ink covering and store, Keep ink viscidity stabilization and environment clean. 5. Independent pads up/down stroke and speed adjustment. 6. Printing speed adjustable to fulfil various printing requirements. 7. Inking twice, printing once for thick ink film. 8. Able to sweep forward/backward without lowering pad to avoid ink drying at intervals.
Specification
Model
TP-100
Operation
Pneumatic
Printing color
1
Plate area
100*215mm, 100*225mm is available
Cup diameter
Φ 90mm
Max printing area
80*80mm
Max. Printing Speed
1000pcs/hr
Rated Voltage
220V 50Hz
Dimension(L×W×H)
900×170×1350mm
Weight
75kg(Approx.)
Company Profile
Certifications
FAQ
1.How long will it take to produce an order?
Lead Time is usually for 30-90 days, according to orders of customers and its requirement.
2. What is your payment terms?
Payment method can be deposit 30%-50%, balance before shipment or L/C at sight for container order.
100% T/T or Western Union in advance for small order.
3. Can you accept OEM/ODM service?
Yes, we can.
4. Can you test our sample before we place an order?
Yes, simple test can be free, if image is too complex, we will charge you cost of materials for cliche, pad, ink and fixture,
labor cost free.
5.Can you send your technician to our company to install and adjust machine and train our operator?
Yes, we can.
