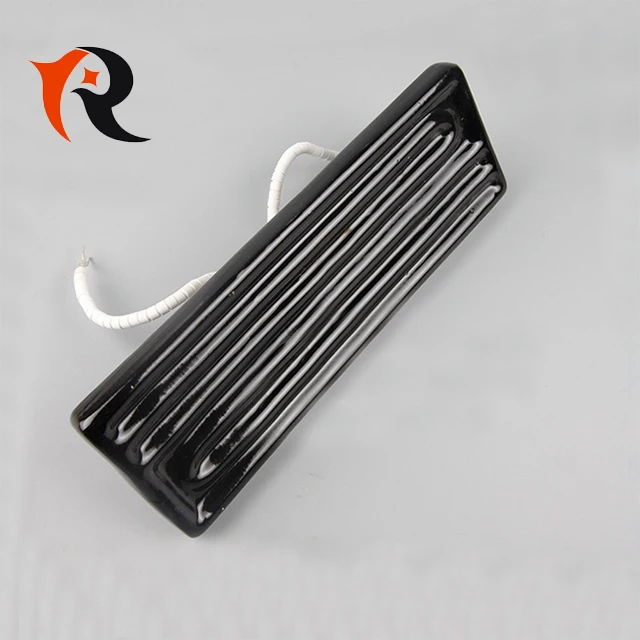

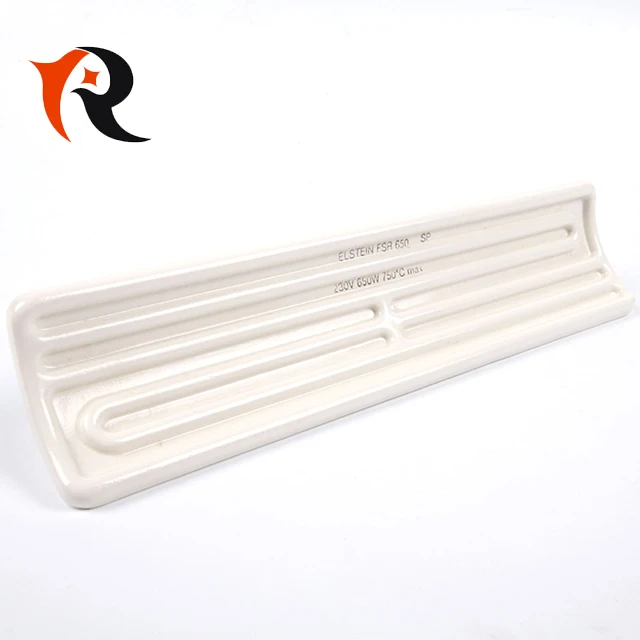

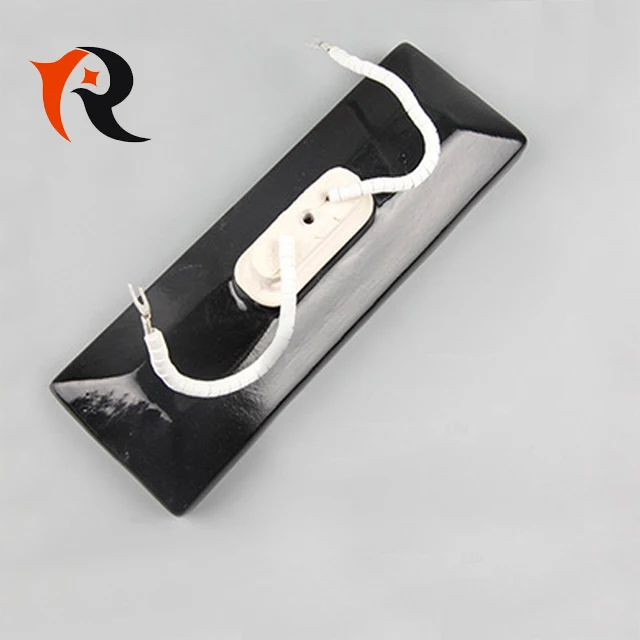

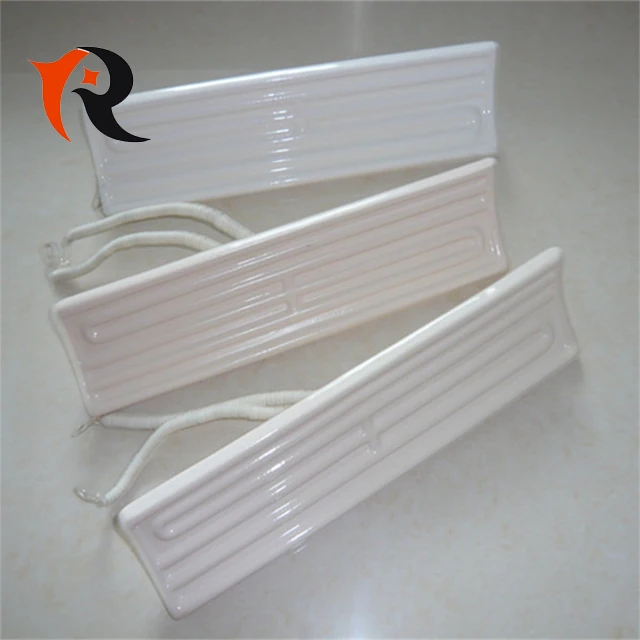

Ceramic infrared heat elements are efficient, robust heaters which provide long wave infrared radiation. The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Ceramic elements produced by Ceramicx include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.
Dimension: | 245 x 60, 240 x 80, 120 x 120, 120 x 60, 60 x 60 etc. |
Shapes: | Trough, Hollow and Flat |
Insulation Material: | Ceramic |
Conductor Material: | Nichrome Wire |
Voltage: | 220 volts, 380 volts, 110 volts |
Wattage: | 250 watts - 1000 watts |
Lead Connection: | Ceramic Bead Lead Wire 150mm |
Thermocouple: | Optional, K or J Type |
Operating Temperature: | 300C - 700C |
Recommended Radiation Distance: | 100mm - 200mm |
* Durable, splash-proof, non-corrosive finish
* Watt densities from 3 w/cm² (tolerance within +/- 2% )
* Maximum temperature output is 1292 F (700 C.)
* Available color in white/ black/yellow
* Estimated life in excess of 10,000 hours
* Available With thermocouple & without thermocouple
* Thermoforming
* Packaging
* Paint Curing
* Printing
* Drying
1.What's the type of Heater?
2.What wattage and voltage will be used?
3.What is the diameter and heated length required?
4.What is maximum temperature and how long required to reach your temperature?
5.Drawing or Sample required for special configuration
* Inquiry and consulting support.
* Sample testing support.

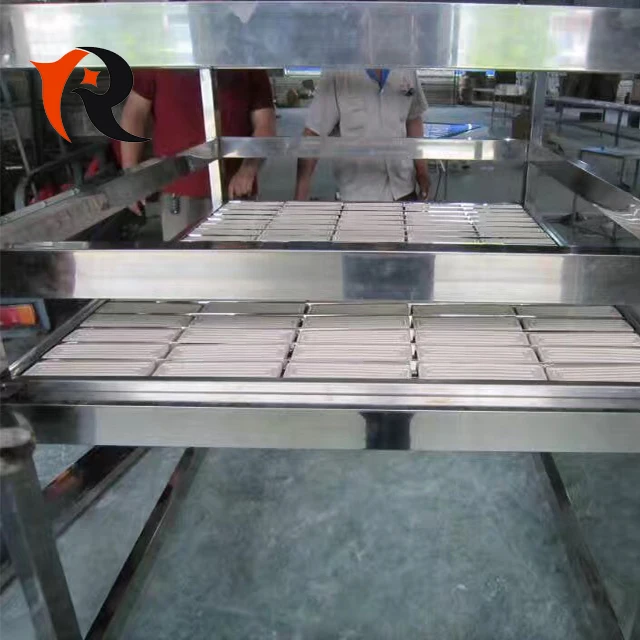

* View our Factory.
* Training how to instal the products, training how to use the products
* Service will be always online.
Yancheng Xinrong Electronic Technology Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment, who supply clients high quality goods, as well as professional R&D department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.
Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make progress together to create a better future.
Packaging | ||
Size | 40 (L) * 30 (W) * 30 (D) | |
Weight | 20KGS | |

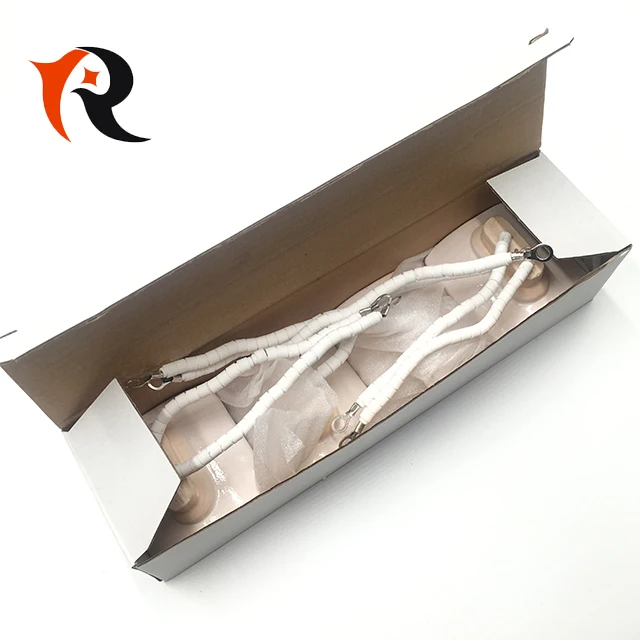

Packaging Details | The normal package is carton(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will use pe film for packing or pack it according to customers special request. |
