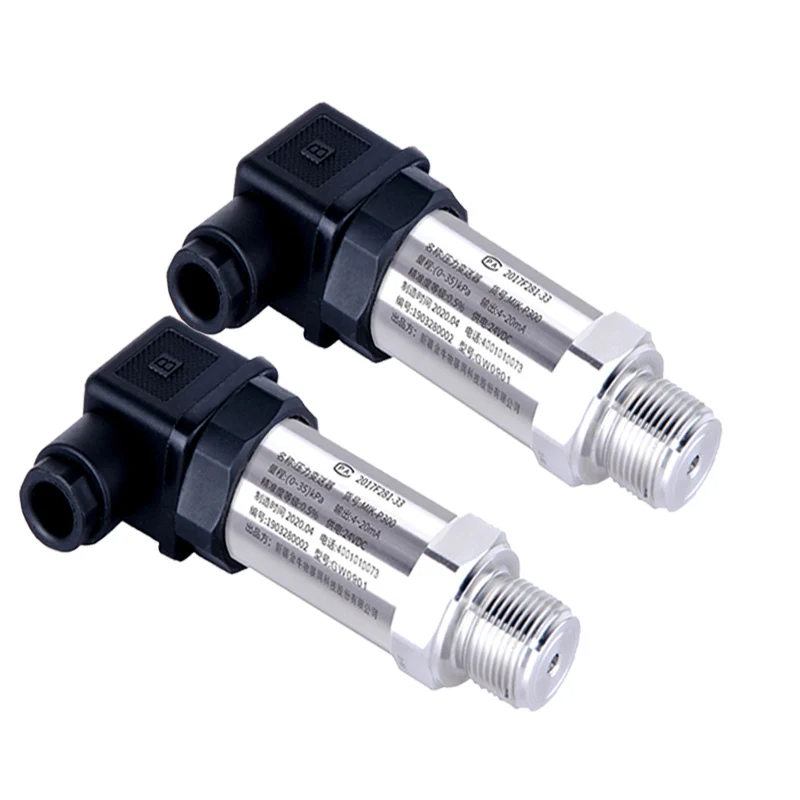

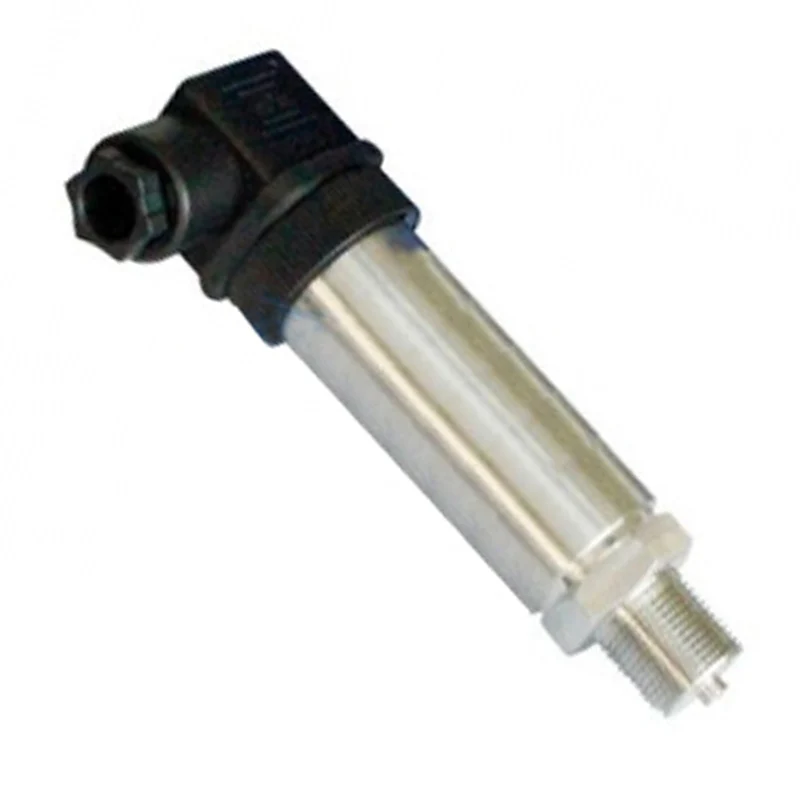

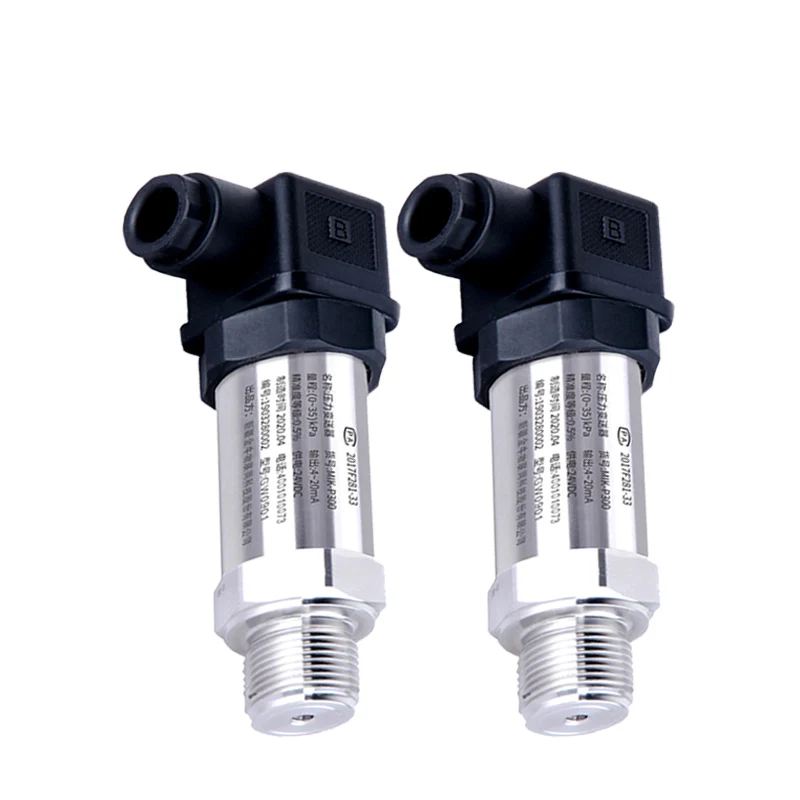

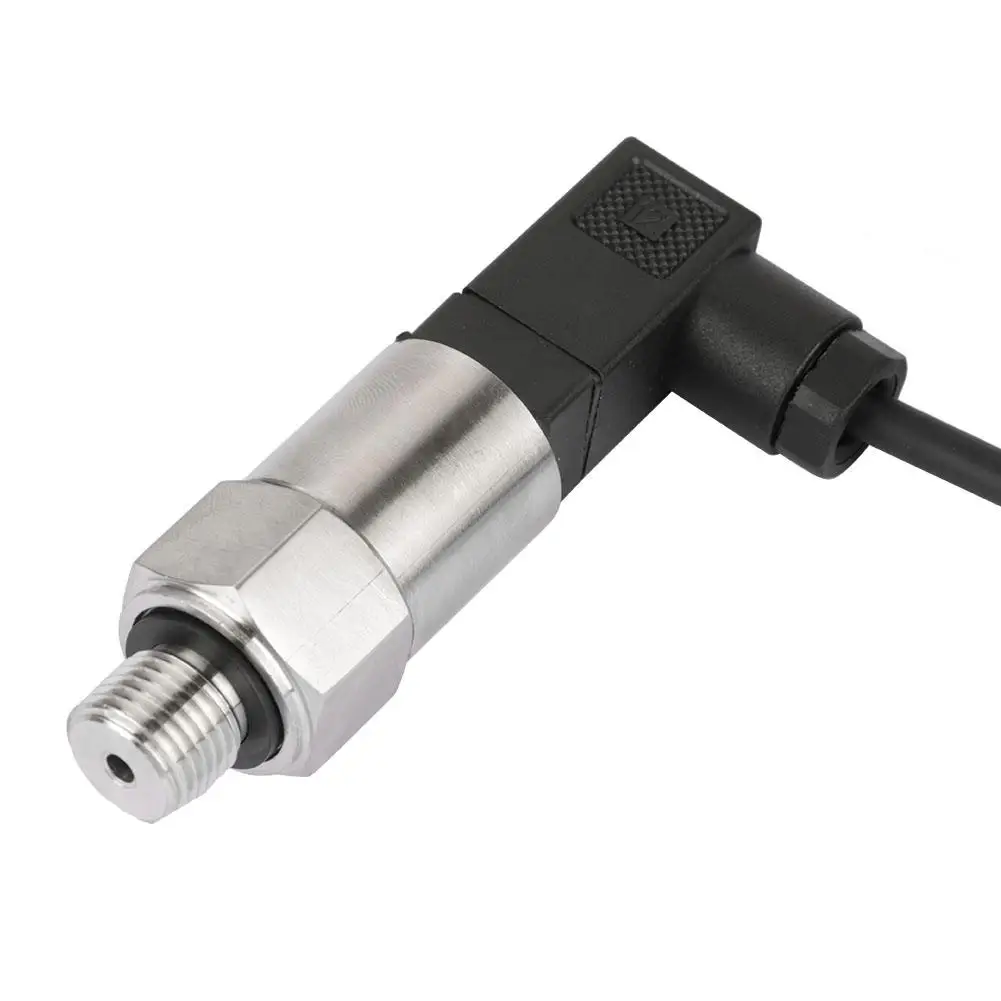

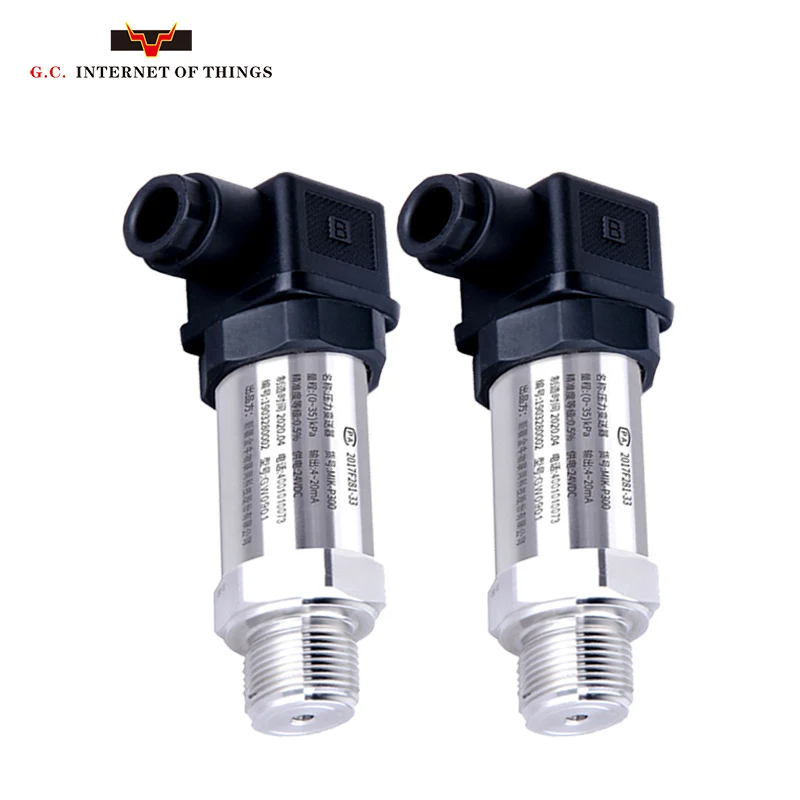

Universe Standard 0.5-4.5v 0-5v vacuum pressure sensor /4-20mA Pressure Sensor/ Transducer For Air Gas


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.67 $* 0.26 $*
Aug-19-2025 0.94 $* 0.44 $*
Jul-19-2025 0.94 $* 0.8 $*
Jun-19-2025 0.97 $* 0.31 $*
May-19-2025 0.57 $* 0.84 $*
Apr-19-2025 0.50 $* 0.82 $*
Mar-19-2025 0.68 $* 0.23 $*
Feb-19-2025 0.92 $* 0.30 $*
Jan-19-2025 0.68 $* 0.69 $*

Характеристики



Product Description


High precision pressure sensor for industrial automation measuring
1. Precision pressure transmitter has been specially designed to cover the majority of industrial applications
where need high accuracy measuring.
2. Designed with compensated technology, compact and robust construction
3. This instrument is suitable for all application in process control, laboratory and materials testing equipment.


Specification


Model Number
GW09201
product code
1A102A1XX0131S100IB65
size
120Xφ28
weigh
Gross weight 500 g,    Net weight 500 g
measuring range
0MPa-1.6MPa
precision
0.2%FS
medium temperature
-40℃-60℃
environment temperature
-20℃-60℃
power supply mode
DC24V(12V-32V)
output mode
4-20mA( two-wire transmitter)
load capacity
Current output type:≤500Ω
nonlinearity
±0.2%F.S
Hysteresis and repeatability
±0.1%F.S
Annual long-term stability
±0.1%F.S
Thermal zero per degree drift
±0.02%F.S
response time
≤50ms
maximum working pressure
  2 x range
electrical connection
 Haltzman joint
Process connection
 M20x 1.5 external thread or others
case material
Ordinary stainless steel /316 stainless steel
level of protection
IP 54
Measuring the dielectric
 Oil, water, gas and other media compatible with 316 stainless steel
Intrinsic safety explosion protection
ExiaIICT6 Ga  Auxiliary safety grid FB-A,FBE






Company Profile




Company is a professional engaged in oil field iot product research and development, production, sales of high-tech enterprises, with two modern production workshop 5500 square meters, the main products are: RTU remote controller, gateway, pressure transmitter, temperature transmitter, integrated indicator diagrams, power transmitter, flowmeter, level gauge, dynamic liquid level tester and other Internet perception layer equipment. The self-developed "intelligent identification management system of oil and water well Internet of things" is an intelligent control system of oil well based on Internet of things technology. It has been put into the market and won the national key new product certificate, the gold award of national invention exhibition, the European Union CE, the FCC certification of North America, the white alkali beach area "excellent new product of science and technology" and other honorary titles. It has obtained more than 30 national patents, software Copyrights and registered trademarks, and passed CE certification and FCC certification.
