Ротационное сито для мелкой муки DZ вибрационный
- Категория: Vibrating Screen >>>
- Поставщик: Xinxiang,Dongzhen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2321.80 $* | 2437.89 $* |
| Aug-16-2025 | 2301.42 $* | 2416.60 $* |
| Jul-16-2025 | 1931.63 $* | 2028.29 $* |
| Jun-16-2025 | 2262.79 $* | 2375.53 $* |
| May-16-2025 | 1970.39 $* | 2069.50 $* |
| Apr-16-2025 | 2223.53 $* | 2334.21 $* |
| Mar-16-2025 | 2204.20 $* | 2314.90 $* |
| Feb-16-2025 | 2184.6 $* | 2293.2 $* |
| Jan-16-2025 | 2165.64 $* | 2273.84 $* |
Характеристики
Products Description

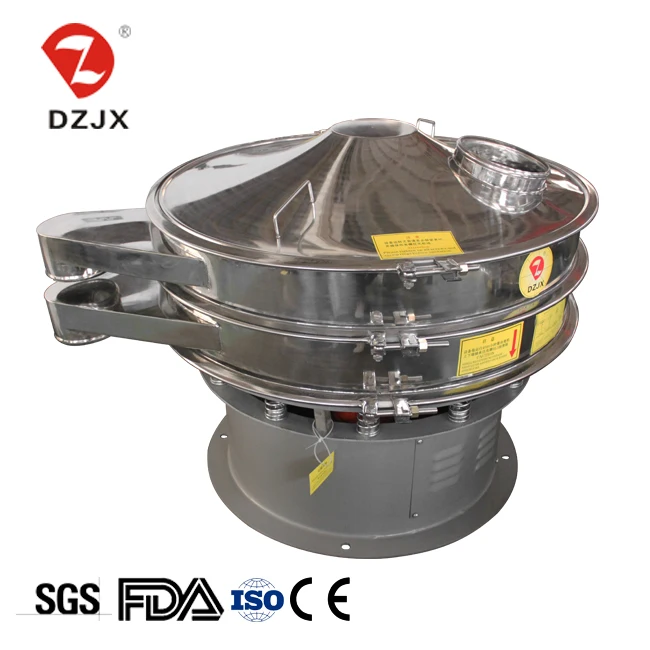

S49 -B Vibrating screen is a kind of mature technology,general and tend to be standardized classic inertia screening equipment.It can meet the requirement of most materials in grading granulated stuffs and screening out powder and liquid in different operation.High screening efficiency,it adopts whole sealing structure design which can avoid polluting effectively.The direction of outlet port can be changed within 360 degrees.We can provide customized service according to customers' requirements.
Working Principle
When the machine begins running,the operation of the vibrating motor generates exciting force,then under the power of exciting force,the machine body do compound movement,last,the materials on the sieve mesh do jumping movement with the machine body.
Product Parameters
Provide customized service
Model | Diameter(mm) | Deck | Screen mesh area(mm) | Mesh size(mm) | Max particle size(mm) | Power(kw) |
S494-B | Φ400 | 1-4 | Φ380 | 3-500 | <20 | 0.25 |
S496-B | Φ600 | 1-4 | Φ600 | 3-500 | <20 | 0.6 |
S498-B | Φ800 | 1-4 | Φ750 | 3-500 | <30 | 0.6 |
S4910-B | Φ1000 | 1-5 | Φ900 | 3-500 | <30 | 0.8 |
S4912-B | Φ1200 | 1-5 | Φ1100 | 3-500 | <30 | 1.5 |
S4915-B | Φ1500 | 1-4 | Φ1450 | 3-500 | <50 | 2.2 |
S4918-B | Φ1800 | 1-3 | Φ1750 | 3-500 | <50 | 2.5 |
S4920-B | Φ2000 | 1-3 | Φ1950 | 3-500 | <60 | 2.5 |
How To Choose Suitable Model?
1. If you have ever used the screen machine, kindly pls tell us its DIAMETER, LAYERS, MESH SIZES, MATERIALS.
2. If never use the machine until now, pls offer us the info about material as below:
2.1. Handling material? Bulk density?
2.2. Will you do a separation or dust-removal?
2.3. Production Capacity per hour(KG/H)?
2.4. How many Layers do you need? Mesh size of each layer?
2.5. Material of Construction material?(Stainless steel or Mild Steel)
2.6. Voltage(V), Frequency(Hz), Phase(P)?
2. If never use the machine until now, pls offer us the info about material as below:
2.1. Handling material? Bulk density?
2.2. Will you do a separation or dust-removal?
2.3. Production Capacity per hour(KG/H)?
2.4. How many Layers do you need? Mesh size of each layer?
2.5. Material of Construction material?(Stainless steel or Mild Steel)
2.6. Voltage(V), Frequency(Hz), Phase(P)?
Why choose us
If you want to know more about it, please click the picture to contact us
Bolt&Spring fastener
Fastening, anti falling, easy to open and close.
Polishing process
Internal and external mirror surface polishing, leaving no dead angle.
Stainless steel spring & Nylon spring seat
Strong fatigue resistance, durable.
Good shock absorption effect, safe production.
Explosion proof junction box
It is safe, dustproof, waterproof and easy to operate.
Motor angle adjustable mounting hole
Application
Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.
Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
Food industry: sugar, salt, alkali, flour powder, nut powder, whey protein powder , maltodextrin , flavors , sucralose , xanthan gum, soy lecithin ,farina, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
Food industry: sugar, salt, alkali, flour powder, nut powder, whey protein powder , maltodextrin , flavors , sucralose , xanthan gum, soy lecithin ,farina, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
Customer site
Related Products
Packing & Delivery
About us
Feedback
FAQ
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage&Frequency(Hz).
Q:What is the real delivery time of your factory?
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based
on different situations.
Q: How do your after-sale service work if the product got damaged?
on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we wouldwait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
