Оригинальный заводской бесконтактный инфракрасный датчик Кнопка выхода для контроллера
- Категория: Другие товары управления доступом >>>
- Поставщик: Shenzhen,Camel,Security,Co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 6.68 $* | 6.0 $* |
| Jul-17-2025 | 5.6 $* | 5.19 $* |
| Jun-17-2025 | 6.13 $* | 6.90 $* |
| May-17-2025 | 6.88 $* | 6.26 $* |
| Apr-17-2025 | 5.97 $* | 5.11 $* |
| Mar-17-2025 | 6.22 $* | 6.52 $* |
| Feb-17-2025 | 6.53 $* | 6.73 $* |
| Jan-17-2025 | 6.43 $* | 6.87 $* |
Характеристики

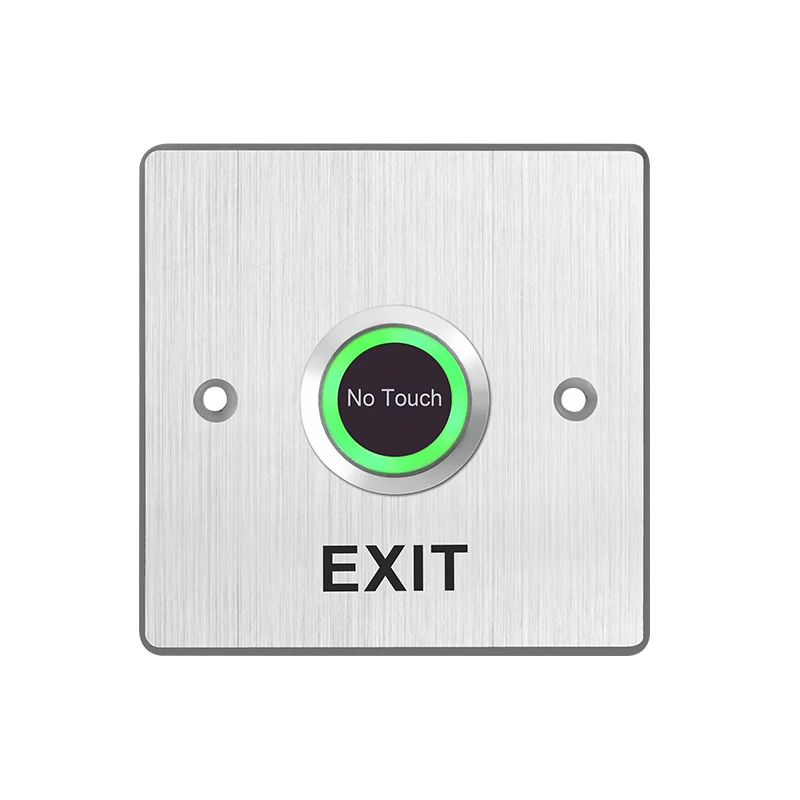

86*86mm no touch sensor button
Product Introduction
Features
1, European size 86*86mm, ANSI Size 115*70mm available
2, No Touch sign or Hand Symbol, different facelates to meet differnet requirements

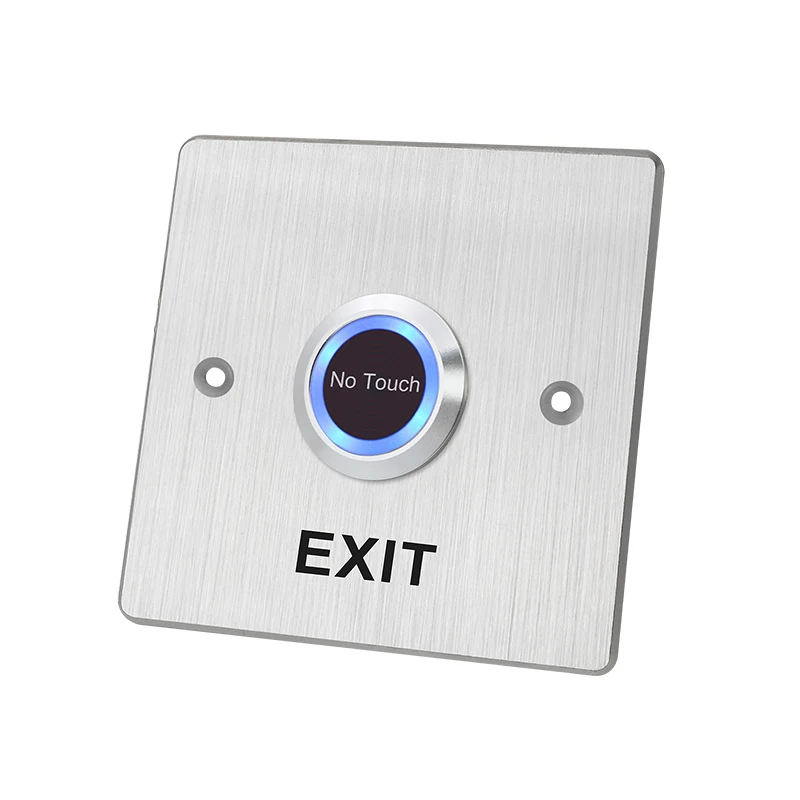

3, Blue and Green colors LED indicator, blue color when standby, green color when actived
4, 304 Stainless Steel Faceplate, elegant design with safety handle. It is same material used for turnstile gate barrier. 304 Stainless steel is much better than 201 stainless steel, which other factory used.
5, CE RoHS Certification, we are honered to provide CE RoHS Certifications
6, 3 years warranty to ensure you after sales service
Technical Parameter
| Parameter | Description |
| Size | 86L*86W*25H(mm) |
| Standard Structure | 4MM thick aluminium alloy(CNC) |
| button color | touchless sensor |
| Current | 12-24VDC |
| Output Contact | NO/NC/COM |
| surface mouting | optional M86 or PG86 Back box |
| Operating Temperature | -20-55℃ (14-131F) |
| Operating Humidity | 0-95% (non-condensing) |
| Weight | 0.115kg |
| Package | 100pcs/15kg 56*37*47cm |
Hot sale for Mushroom button
1, mushroom buttons is bigger area for press, it is better choice for eye-catching and some industry application.
2, green and red 2 colors options for many applications.
3, 304 stainless steel faceplate is 2mm thickness and anti-vandal anti-corrosion
4, brushed plate can be good scratch-resistant
5, sqaure size 115L*40W (mm) size is popular and hot sell in American markets, as well as other countries
6, Square Size and narrow size also available, such as 115L*70W (mm) and 86W*86L(mm) and 86W*50L(mm)
7, micro-switch with N.O. (normal open) and N.C. (normal close) output contacts for all kinds of locks
8, color cabled indicated wire connection
9, M40 backbox / backcase available to make it install directly on the wall surface mount
10, 3 years warranty for you full support and after-sale services
11, CE, RoHS listed
12, experienced sales team with fast prompt answer by email or online talk
More models for Big Metal Green Red Mushroom Request to Exit Switch access control door exit push button are available with unique designs.
And more optional model classic K series as below:
1, Different sizes available for different countries: European size 86*86 /50mm, ANSI Size 115*70 /40mm
2, No Touch sign or Hand Symbol, different facelates to meet different requirements
3, Blue and Green colors LED indicator, blue color when standby, green color when actived
4, 304 Stainless Steel Faceplate, elegant design with safety handle. It is same material used for turnstile gate barrier. 304 Stainless steel is much better than 201 stainless steel, which other factory used.
5, CE RoHS Certification, we are honered to provide CE RoHS Certifications
6, 3 years warranty to ensure you after sales service
7. OEM/ODM experiences for top ranking brands, customization available.
More models for no touch door exit buttons are available with unique designs:
