Окрашенная кабина CE/комната для покраски автомобиля цена лучшее качество кабинет
- Категория: Spray Booths >>>
- Поставщик: Guangzhou,Hechuang,Coating,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.6 $* | 0.53 $* |
| Aug-20-2025 | 0.57 $* | 0.29 $* |
| Jul-20-2025 | 0.26 $* | 0.87 $* |
| Jun-20-2025 | 0.89 $* | 0.87 $* |
| May-20-2025 | 0.54 $* | 0.62 $* |
| Apr-20-2025 | 0.29 $* | 0.95 $* |
| Mar-20-2025 | 0.25 $* | 0.9 $* |
| Feb-20-2025 | 0.92 $* | 0.19 $* |
| Jan-20-2025 | 0.68 $* | 0.34 $* |
Характеристики

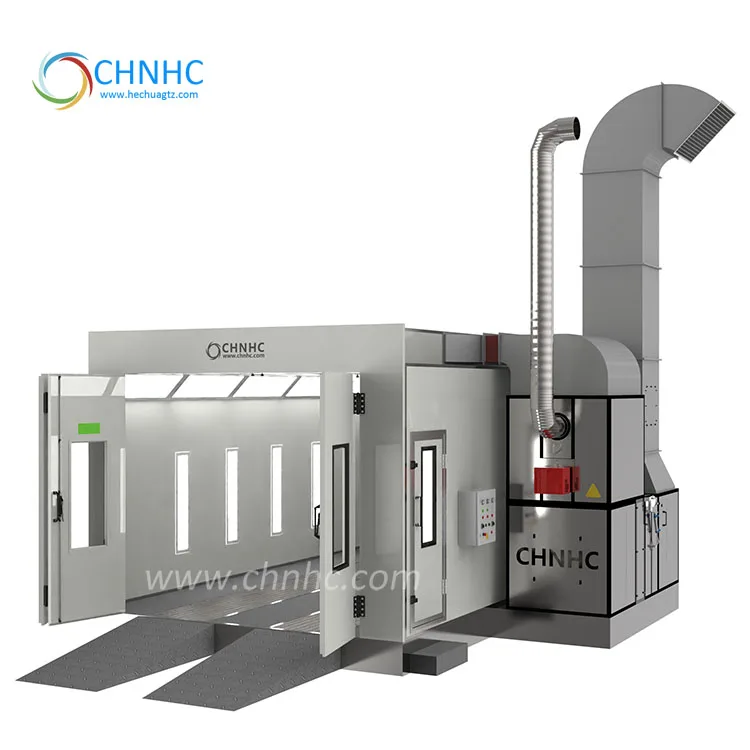

Full downdraught spray booth E602 | ||
Size (L x W x H) | Inside Size | 6900 x 4000 x 2800mm |
| Outside Size | 7010 x 5570 x 3610mm |
Foundation and Floor | Foundation | Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates |
| Metal Basement | 350mm height, the ventilation effect is better than traditional spray booth |
| Drive-in Ramps | 2 units, each size: 2000x1000mm, diamond plate construction |
Wall and Door | Wallboard | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm (rock wool panel as option) |
| Roof Panel | Roof panels adopt galvanized steel plate bending forming |
| Entrance Door | Door with steel frame, 1 set, size: 3100 x 2700mm (W x H), tempering glass observation window |
| Personnel Door | 1 set, size: 800 x 2000mm (W x H),tempering glass observation window |
Light System | Ceiling Lighting | 8 units, each 4 x 16w, adopt LED energy saving light, tempering glass |
| Side Lighting | 8 units, each 2 x 16w, adopt LED energy saving light, tempering glass |
| Brightness | ≥1000 LUX |
Filtration System | Pre-filters | EU3 grade pocket filter, filter effect is much better |
| Ceiling Filters | Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98% |
| Bottom filter | Fibreglass paint-stop filter |
| Exhaust Filters | Fibreglass paint-stop filter and active carbon filter |
Ventilation System | Inlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (SIEMENS motor as option) |
| Outlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (SIEMENS motor as option) |
| Total Fan Capacity | 25,000m³/h |
| Air Flow Speed in Cabin | 0.25-0.35m/s in loaded booth |
| Painting and Baking Exchange System | Solenoid valve+ pressure adjustment control cylinder driven damper exchange |
| Air flow adjust | Option |
| Manometer | Option |
| Duct | Straight pipe: 3.7 meters, bending pipe: 3 units, reducing pipe: 2 units, soft connection: 1 unit, flange connection |
Heating System | Heating Exchanger | Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger |
|
Burner Model | Adopt 1 set RIELLO diesel burner G20, each heating capacity 180.000kcal/h (gas burner or infrared light heater as option) |
Company Information
HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. The core products in our company are spray booth, bus spray booth, preparation station, mixing room, brake lathe, car bench and so on. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.

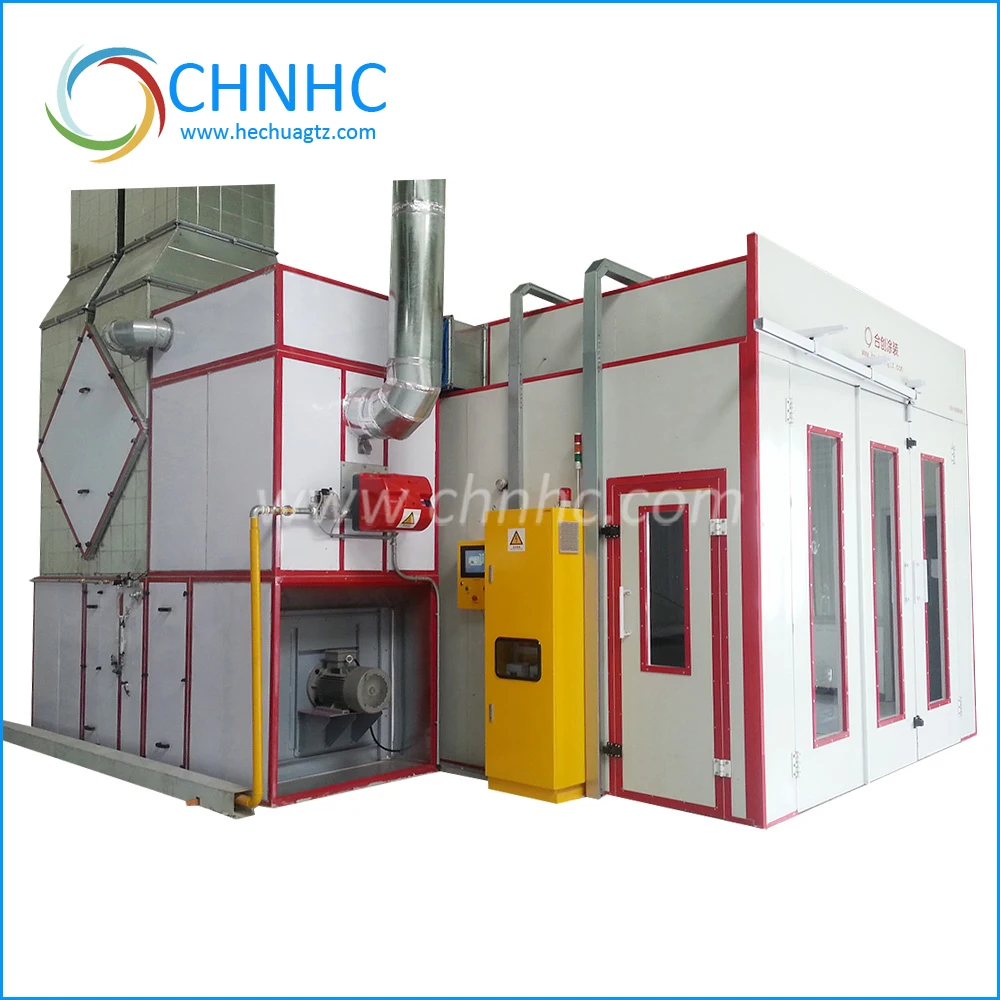

Our product in exhibition
FAQ
Q: Are you a factory or a trading company?
A: We are a factory and all machines are produced at our own factory.
Q:Can I order special color which I like?
A: Yes, we can also produce machines with special color according to client's request.
Q: Can I order spray booth in any special size?
A: Yes,you can.
The size is customized.
Q: I don't know how to assemble your spray booth
A: The complex installation is already finished before delivery, what you need to
do is finishing the simple procedures according to the installation instructions.
Q: When the product can be delivered?
A: Commonly the lead time will be within 7 working days after receiving 30% deposit by T/T.
