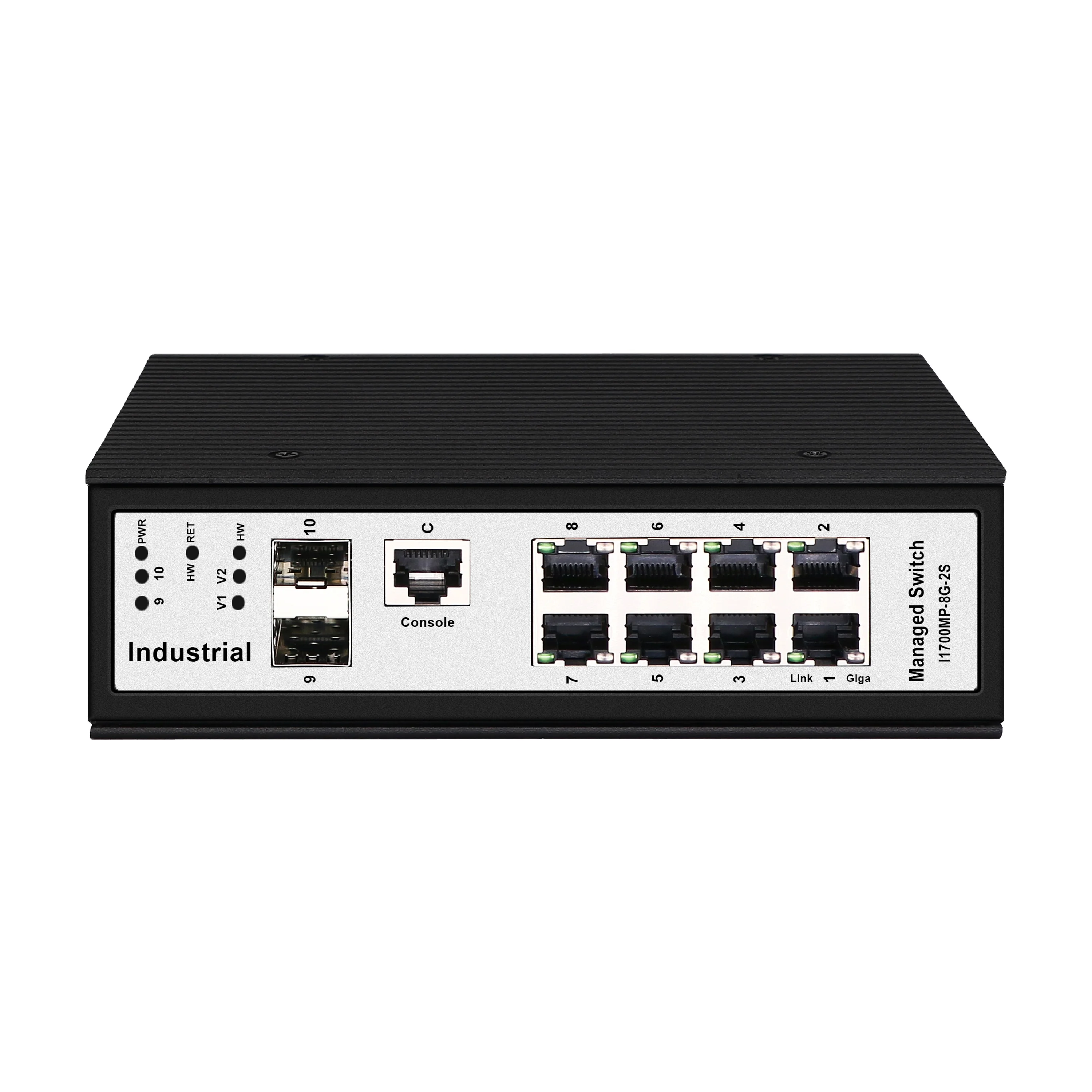

10 портов гигабитный промышленный Ethernet коммутатор 10/100/1000 8 1000mpbs POE с 2 портами SFP

8*10/100/1000M

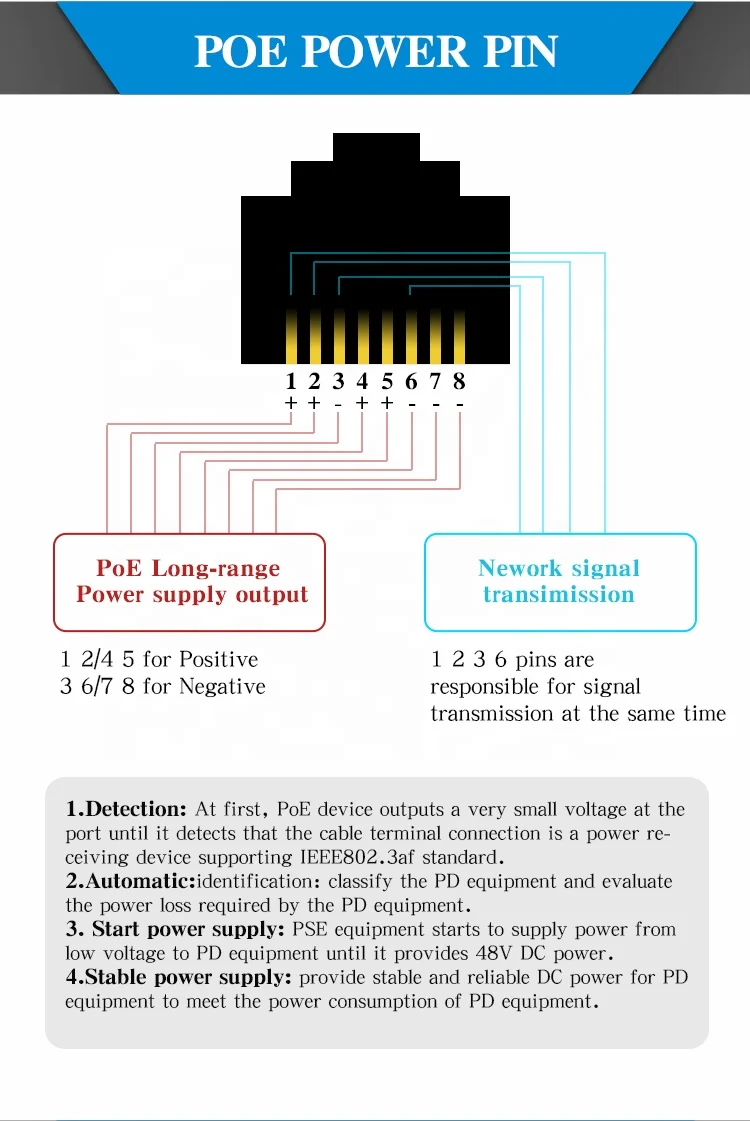

Port 1~2 support 24V/48V PoE(single port power MAX 30W)

Port 3~4 support BT PoE(single port power MAX 90W)

Port 5~8 support AT PoE

2*1000M SFP

2 group of independent power input

SW:DC12-57V

PoE:DC37-57V

1 group of input detection of environment temperature and humidity

1 switch for quick formation of ring network.

2 group of independent power input, having under- and over-voltage protection.

1 group of wide voltage alarm input at a range of DC5-57V.

1 group of alarm output and relay output, can define various custom condition trigger.

1 group of environmental temperature and humidity detection, can make real-time monitoring of the environment Real-time system of crucial voltage monitoring and alarm output function. Real-time system temperature,environment temperature,humidity and alarm output function. Real-time detection and display of input voltage,current,power Multiple custom port control and intelligent management.

56Gbps

14.44Mpps

8K

4.1M

16M

128M

Standby power consumption≤5W;

Network Full-load power consumption≤15W；

Full load power consumption≤360W

160mm*130mm*45mm(L*W*H)
