Низкотемпературный Саморегулирующийся нагревательный кабель трубный бак провод для отслеживания
- Категория: Прочие провода, кабели и кабельные сборки >>>
- Поставщик: Anhui,Huanrui,Heating,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.10 $* | 0.92 $* |
| Aug-20-2025 | 0.58 $* | 0.60 $* |
| Jul-20-2025 | 0.46 $* | 0.4 $* |
| Jun-20-2025 | 0.16 $* | 0.73 $* |
| May-20-2025 | 0.76 $* | 0.48 $* |
| Apr-20-2025 | 0.35 $* | 0.95 $* |
| Mar-20-2025 | 0.62 $* | 0.37 $* |
| Feb-20-2025 | 0.46 $* | 0.99 $* |
| Jan-20-2025 | 0.69 $* | 0.43 $* |
Характеристики
Product Description
Self-regulating inside pvc pipe heat cable for pipe flow maintenance
MOQ: 2000 meters
OEM and ODM available
OEM and ODM available
Introduction
MSR pipe heat cable provides the most versatility in heat trace designs and applications. Constructed of a semiconductor heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length. As temperature increases, the heater’s resistance increases which lower the output wattage.
Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length. As the result, we got an energy efficient heating cable.
Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length. As the result, we got an energy efficient heating cable.
Technical Data
Power output: 10, 15, 25, 30 (W/m)
Max. maintain temperature: 65°C
Max. exposure temperature: 85°C
Min. installation temperature: -40°C
Rated voltage: 110V-120V / 220V-240V
Max. maintain temperature: 65°C
Max. exposure temperature: 85°C
Min. installation temperature: -40°C
Rated voltage: 110V-120V / 220V-240V
Applications
MSR pipe heat cable is ideally used for process temperature maintenance and frost protection of small diameter pipelines, tanks, valves, flanges. It is suitable for non-hazardous area, and cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area. What's more, the MSR with Fluoropolymer out jacket can be used inside the water pipe heating.
The material has the drinking water certificate. It's safety and made to comply with the environmental protection standards.
The material has the drinking water certificate. It's safety and made to comply with the environmental protection standards.
Product Parameters
MSR pipe heat cable series: | ||
MSR-P | Tinned copper braid provides additional mechanical and ground protection. | |
MSR-PB | Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage. | |
MSR-PF | Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions. | |
Max. resistance of braid | ≤18.2Ω/km | |
Bus wire gauge | 20 AWG | |
Certificates | CE, EAC, EAC ex, ATEX, ISO9001, ROHS | |
Technical Summary | ||||||||||||||
Part Number | Output power @+10°C (W/m) | Max. maintain temperature (°C) | Max. length @+10°C 16/25A (m) | Max. length @+0°C 16/25A (m) | Max. length @-20°C 16/25A (m) | Dimension (mm) | Weight (kg/100m) | |||||||
10MSR-PB | 10 | 65 | 60/80 | 54/70 | 40/60 | 8.3×5.4 | 6.6 | |||||||
10MSR-PF | 10 | 65 | 60/80 | 54/70 | 40/60 | 8.0×5.1 | 6.0 | |||||||
15MSR-PB | 15 | 65 | 57/86 | 51/68 | 38/55 | 8.3×5.4 | 6.6 | |||||||
15MSR-PF | 15 | 65 | 57/86 | 51/68 | 38/55 | 8.0×5.1 | 6.0 | |||||||
25MSR-PB | 25 | 65 | 46/55 | 38/50 | 33/49 | 8.3×5.4 | 6.6 | |||||||
25MSR-PF | 25 | 65 | 46/55 | 38/50 | 33/49 | 8.0×5.1 | 6.0 | |||||||
30MSR-PB | 30 | 65 | 37/45 | 35/43 | 30/39 | 8.3×5.4 | 6.6 | |||||||
30MSR-PF | 30 | 65 | 37/45 | 35/43 | 30/39 | 8.0×5.1 | 6.0 | |||||||
Recommend Products
Underfloor heating cable
Underfloor heating cable diameters from 3.6mm to 5.8mm, available for in-concrete heating, for bathroom and little rooms
Our Advantages
Product Characters
1.Long life time: PTC semi-conductive matrix with high quality and excellent technology.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation cross linking reaction. High insulation
resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation cross linking reaction. High insulation
resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

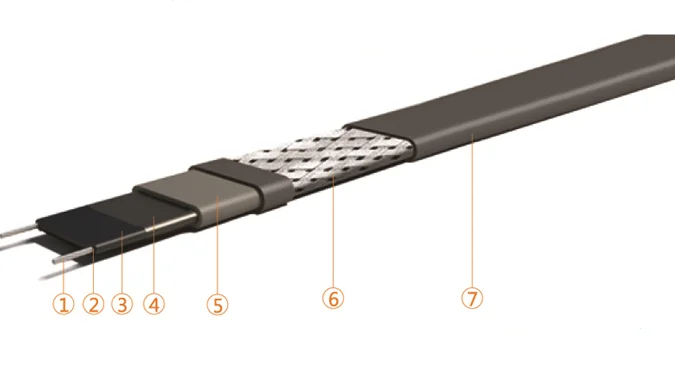

Three layer co-extrusion technology
1. Conductor
2. Low resistance transition layer
3. PTC Semi-conductive
4. Inner insulation layer
5. Outer insulation layer
6. Metal braid
7. Outer jacket
2. Low resistance transition layer
3. PTC Semi-conductive
4. Inner insulation layer
5. Outer insulation layer
6. Metal braid
7. Outer jacket
1. Definition
Three-layer co-extrusion technology of self-regulating heating cables is characterized in: the cables consist of two conductive
wires with a low resistance transition layers, PTC semi-conductive matrix, inner insulating layer and outer insulating layer,
metal braid and outer jacket. Among them the three layers — low resistance transition layer, PTC Semi-conductive matrix and inner
insulting layer are extruded in one step.
2. Advantages
A. Owing to three-layer co-extrusion technology, the inner insulating layer wrapped the PTC semi-conductive matrix tightly. No gap, no air, no water, no oil and no impurities will contaminate the matrix, which reduces the cable decay rate.
B. Low resistance transition layer contacts the PTC semi-conductive matrix tightly, effectively reducing the current impact to the material of PTC, reducing the start current, prolonging service life.
C. Most of out-sourcinginsulation resin will damage the PTC matrix on the performancesuch as life-span and insulation safety. Huanrui improved it by using self-made special modified insulation resin, the resin matches the PTC well and avoids the damaged to both layers, with longer life-span and higher performance.
Material properties:
Excellent weather resistance and ultraviolet radiation.
High and low temperature resistance, -50°C—140°C.
Great insulating property. 2000MΩ per 100 meters.
Three-layer co-extrusion technology of self-regulating heating cables is characterized in: the cables consist of two conductive
wires with a low resistance transition layers, PTC semi-conductive matrix, inner insulating layer and outer insulating layer,
metal braid and outer jacket. Among them the three layers — low resistance transition layer, PTC Semi-conductive matrix and inner
insulting layer are extruded in one step.
2. Advantages
A. Owing to three-layer co-extrusion technology, the inner insulating layer wrapped the PTC semi-conductive matrix tightly. No gap, no air, no water, no oil and no impurities will contaminate the matrix, which reduces the cable decay rate.
B. Low resistance transition layer contacts the PTC semi-conductive matrix tightly, effectively reducing the current impact to the material of PTC, reducing the start current, prolonging service life.
C. Most of out-sourcinginsulation resin will damage the PTC matrix on the performancesuch as life-span and insulation safety. Huanrui improved it by using self-made special modified insulation resin, the resin matches the PTC well and avoids the damaged to both layers, with longer life-span and higher performance.
Material properties:
Excellent weather resistance and ultraviolet radiation.
High and low temperature resistance, -50°C—140°C.
Great insulating property. 2000MΩ per 100 meters.
