Новый кузов фургона для электрического прямого грузовика изготовлен из композитного материала логистики экспресс и почтовой
- Категория: >>>
- Поставщик: Hangzhou,Holycore,Composite,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.59 $* | 0.42 $* |
| Aug-19-2025 | 0.44 $* | 0.16 $* |
| Jul-19-2025 | 0.49 $* | 0.24 $* |
| Jun-19-2025 | 0.96 $* | 0.33 $* |
| May-19-2025 | 0.88 $* | 0.70 $* |
| Apr-19-2025 | 0.88 $* | 0.16 $* |
| Mar-19-2025 | 0.70 $* | 0.13 $* |
| Feb-19-2025 | 0.25 $* | 0.8 $* |
| Jan-19-2025 | 0.9 $* | 0.47 $* |
Характеристики
Product Description
Lighter than aluminum, strong as galvanized steel
· 30% Lighter Than Traditional Truck Bodies
· Easy Washable From the Outside as From the Inside
· Translucid/Opaque Wall and Roof
· Hardly Scratched and Resistant to Impact
HolyPan Introduction
HolyPan is one of the lightest and strongest composite sandwich panels produced for the transportation industry,
This innovative sandwich panel is thermally fused with polypropylene honeycomb core and fiberglass reinforced polypropylene skin.
The core material gives HolyPan high resistance due to its honeycomb structure, and the super strong fiberglass-reinforced skin materials provide high stiffness and an extremely good impact resistance of the panel surface.
The thermally fused connection between the honeycomb core and the skins leads to an indivisible connection and makes HolyPan much lighter and ecofriendly. And the delamination of the skin is almost impossible which distinguishes it from other traditionally glued or laminated panel systems.
The surface of HolyPan can be painted to be used as roof panel and wall panel, and after anti-skid treatment, HolyPan can be also used as floor panel in the truck bodies.
This innovative sandwich panel is thermally fused with polypropylene honeycomb core and fiberglass reinforced polypropylene skin.
The core material gives HolyPan high resistance due to its honeycomb structure, and the super strong fiberglass-reinforced skin materials provide high stiffness and an extremely good impact resistance of the panel surface.
The thermally fused connection between the honeycomb core and the skins leads to an indivisible connection and makes HolyPan much lighter and ecofriendly. And the delamination of the skin is almost impossible which distinguishes it from other traditionally glued or laminated panel systems.
The surface of HolyPan can be painted to be used as roof panel and wall panel, and after anti-skid treatment, HolyPan can be also used as floor panel in the truck bodies.
Easy to connect by profiles
As a sandwich panel, HolyPan is suitable for most common profiles, and could effectively reduce the assembly time and cost.

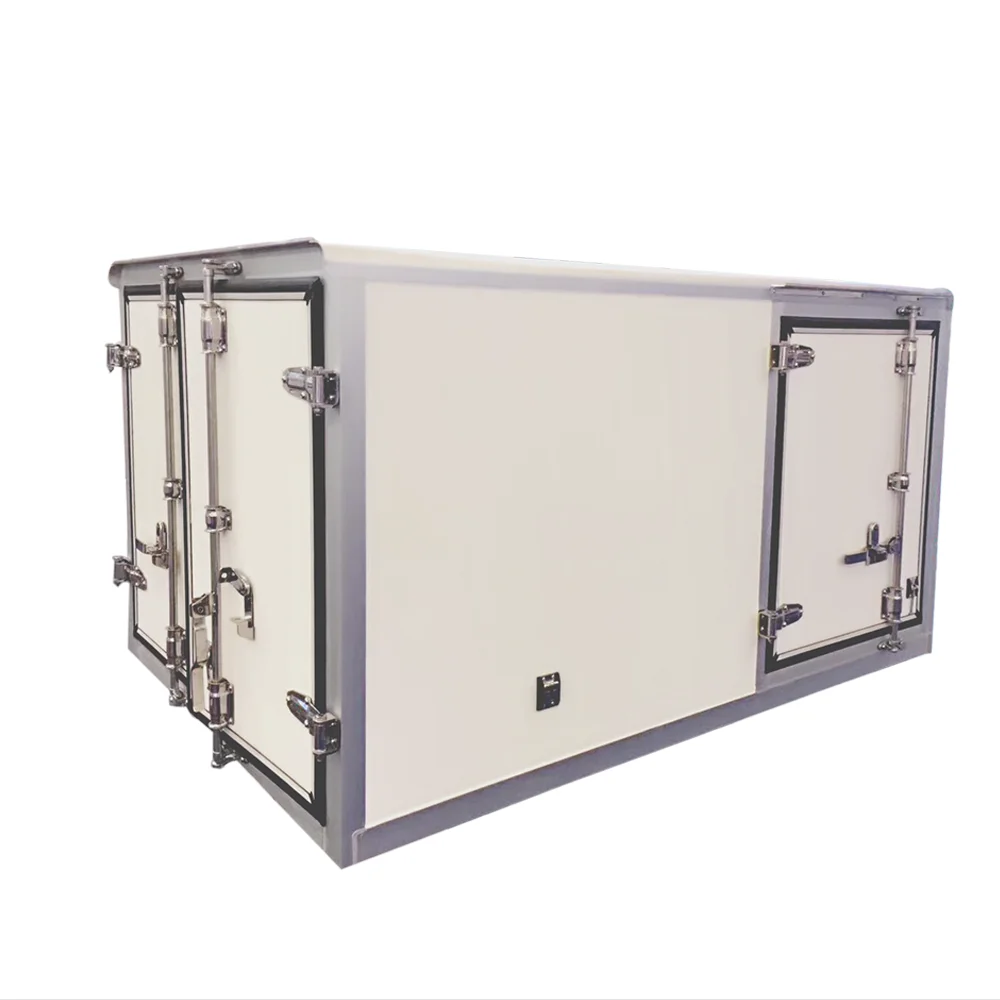

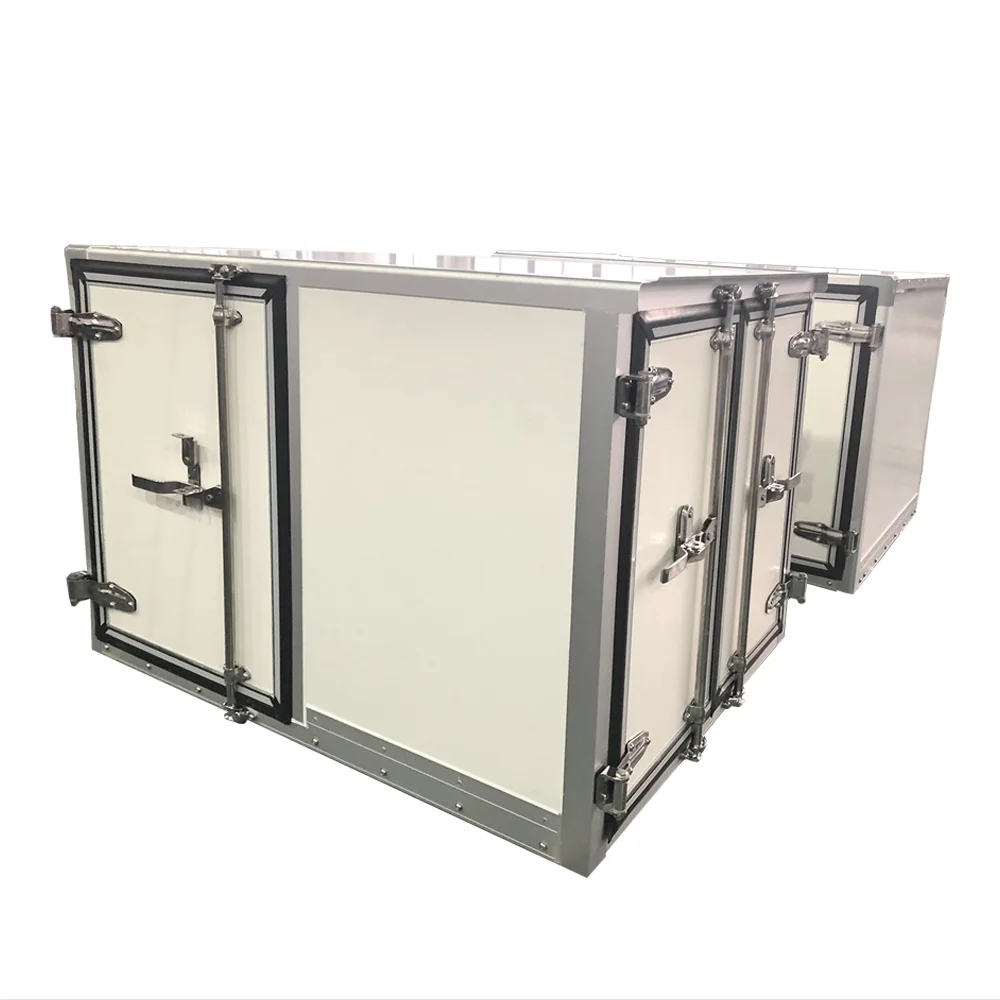

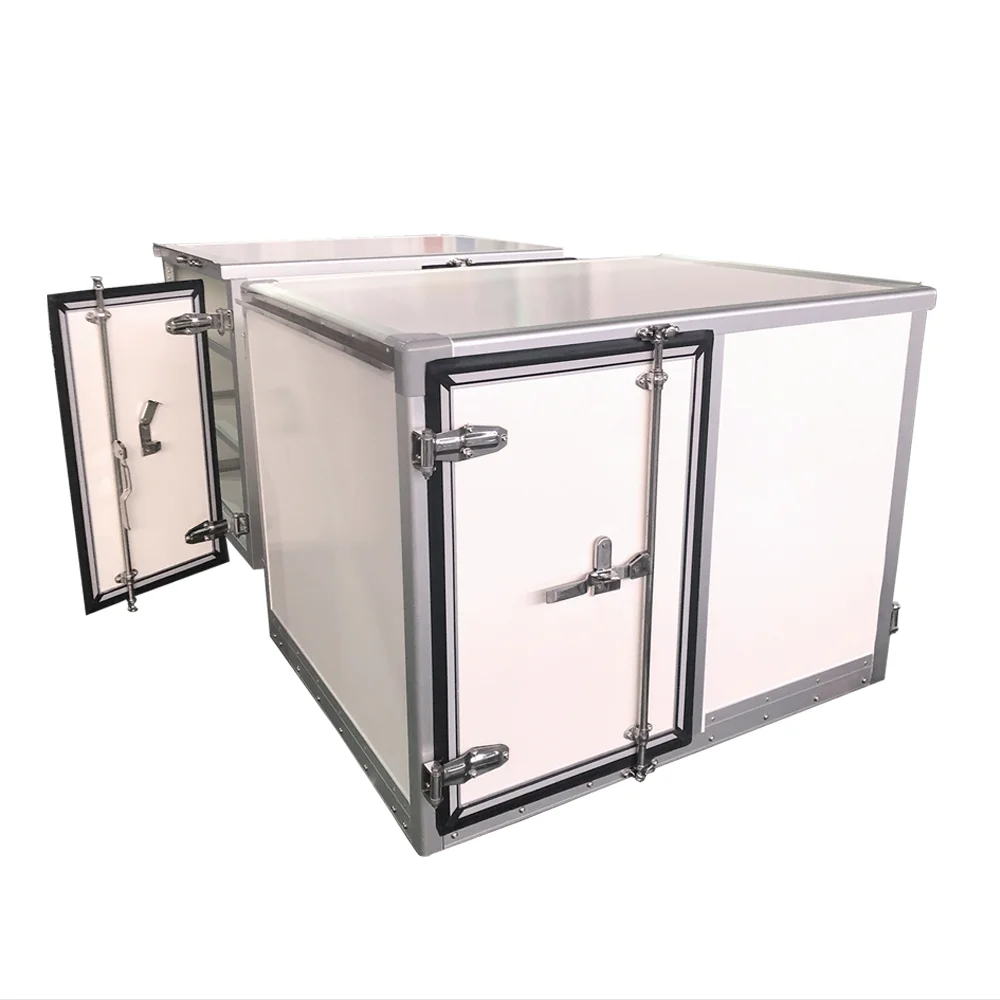

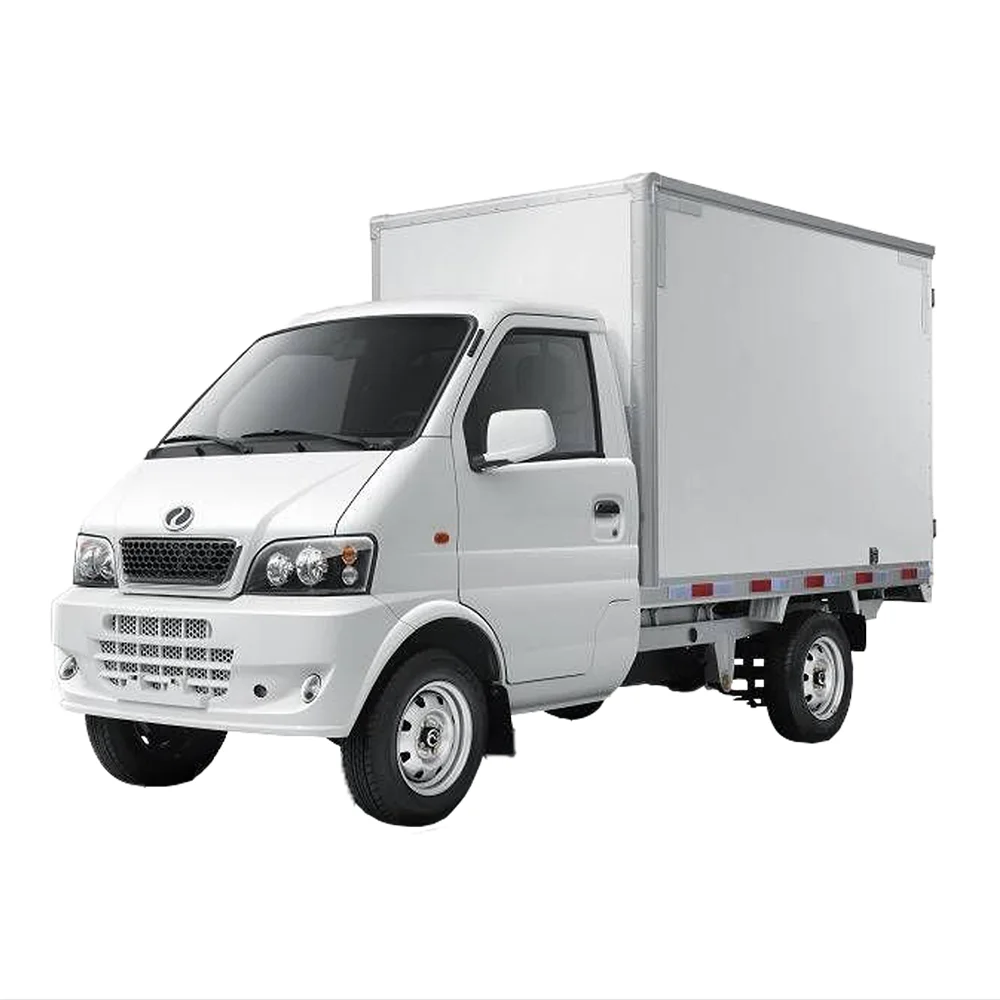

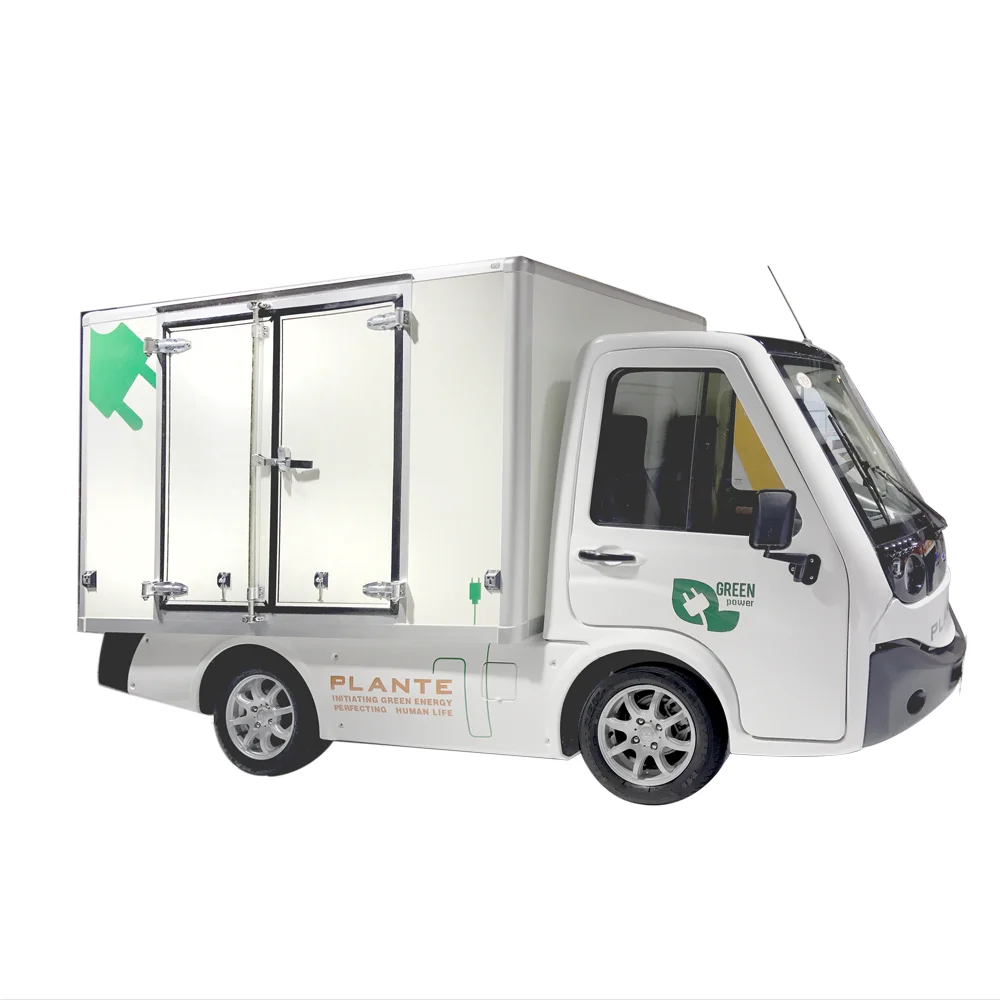

HolyPan - Perfect box material for electric mail box or express box
Due to the light weight of the panel, we can make the boxes much lighter than traditional materials, for example steel or FRP honeycomb panels.
Below is a chart we take 4.2m truck bodies for examples
4.2m truck body | ||||||||
Material | Steel（1.2mm） | FRP Honeycomb Panel（18mm） | HolyPan（25mm） | |||||
Weight（Kgs） | 910 | 800 | 450 | |||||
Fuel Saving | According to our experience, for every 450 kilograms lightened by a vehicle, driving 100 kilometers will save about 1.5 liters of fuel. | |||||||
The HolyPan Truck Body is 460kg lighter than the steel truck body, and 350kg lighter than the FRP honeycomb truck body. Assume one truck's annual mileage is 100,000 kilometers | ||||||||
Comparing the steel and FRP honeycomb panel truck bodies, the HolyPan body can save 1500 liters and 1150 liters of fuel each year. | ||||||||
The service life of the general truck body is about 5 years, while the service life of the HolyPan body will be at least 10 years or more. | ||||||||
Payload Increasing | Assuming that a 4.2m truck runs 100 kilometers per trip and the annual mileage is 100,000 kilometers, so 1,000 trips per year. | |||||||
Compared with the steel body, each trip can load 0.45 tons more, and it can transport about 450 tons more each year | ||||||||
Compared with glass fiber reinforced plastic honeycomb panels, each trip can load 0.35 tons more, and it can transport about 350 tons more each year | ||||||||
Reference Price（USD/Box） | 1,500-1,600 USD | 2,500-2,800 USD | 2,500-2,650 USD | |||||
Note: The price of the car body is also affected by the specific internal and external configuration, and the custom size needs to be manually verified | ||||||||
Please contact us for more information
We have different choices for you, please contact us for more information
Packing & Delivery
To delivery CKD products, we will carefully fix all the parts in the container with packing strap.
A 20 FT container could load about 7-8 unites of 4.2 meters truck bodies, depending on whether you need the sub frames or not.
FAQ
1. How can I order the truck bodies?
First we need the exterior dimension of the box you need,and after we confirm the configurations we will be able to make quotations for you, and then we need a draft of the chassis to process the order if you need the floor or sub-frames.
2. Why choose HolyPan for the van bodies?
HolyPan is really light, a lighter body means higher loading capacity, or just simply to save fuel cost. HolyPan could also help reduce assemble labor cost and make the production more efficient.
3.How to fix HolyPan truck bodies?
As HolyPan is thermoplastic, it will be quite easy to fix, we have demo videos on youtube.
4.Do you have any distributors?
We have the distributors of HolyPan all over the world, but so far so distributors of truck bodies.
5.What is the service life of HolyPan truck body?
We guarantee 10 years in appropriate using conditions
