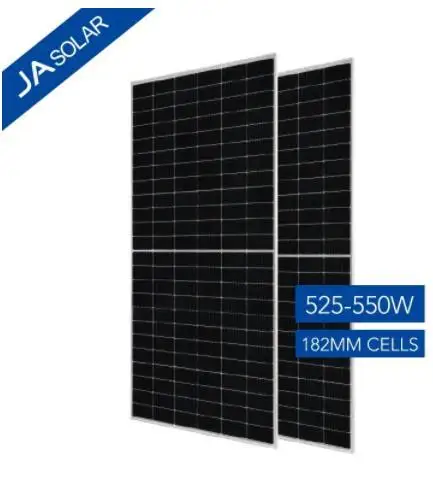

Лидер продаж 2021 полуэлементный двухслойный модуль JAM72D30 525 Вт 530 535 540 545
- Категория: Solar Cells >>>
- Поставщик: Jiangsu,Morel,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.37 $* | 0.37 $* |
| Aug-19-2025 | 0.44 $* | 0.30 $* |
| Jul-19-2025 | 0.95 $* | 0.29 $* |
| Jun-19-2025 | 0.64 $* | 0.3 $* |
| May-19-2025 | 0.80 $* | 0.43 $* |
| Apr-19-2025 | 0.9 $* | 0.2 $* |
| Mar-19-2025 | 0.42 $* | 0.44 $* |
| Feb-19-2025 | 0.84 $* | 0.10 $* |
| Jan-19-2025 | 0.85 $* | 0.22 $* |
Характеристики
Product Description
Specification
ELECTRICAL PARAMETERS AT STC | ||||||||||||
TYPE | JAM72D30-525MB | JAM72D30-530MB | JAM72D30-535MB | JAM72D30-540MB | JAM72D30-545MB | JAM72D30-550MB | ||||||
Rated Maximum Power(Pmax)[w] | 525 | 530 | 535 | 540 | 545 | 550 | ||||||
Open Circuit Voltage(Voc)[V] | 49.15 | 49.30 | 49.45 | 49.60 | 49.75 | 49.90 | ||||||
Maximum Power Voltage(Vmp)[V] | 41.15 | 41.31 | 41.47 | 41.64 | 41.80 | 41.96 | ||||||
Short Circuit Current(Isc)[A] | 12.76 | 12.83 | 12.90 | 12.97 | 13.04 | 13.11 | ||||||
Maximum Power Current(Imp)[A] | 12.76 | 12.83 | 12.90 | 12.97 | 13.04 | 13.11 | ||||||
Power Tolerence | 0~±5W | |||||||||||
Temperature Coefficient of Isc | +0.045%/℃ | |||||||||||
Temperature Coefficient of Voc | -0.275%/℃ | |||||||||||
Temperature Coefficient of Pmax | -0.350%/℃ | |||||||||||
STC | Irradiance 1000W/㎡,cell temperature 25℃,AM1.5G | |||||||||||
Remarks:Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types. | ||||||||||||
***The above parameters are for your reference only, if you have any special requirements ,please feel free to contact us in time***
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip design glue injection
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip design glue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Humanized design
>More protection with practical and effective design
>Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
>More protection with practical and effective design
>Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
Packing & Delivery
In well protected carton with pallet
Projects

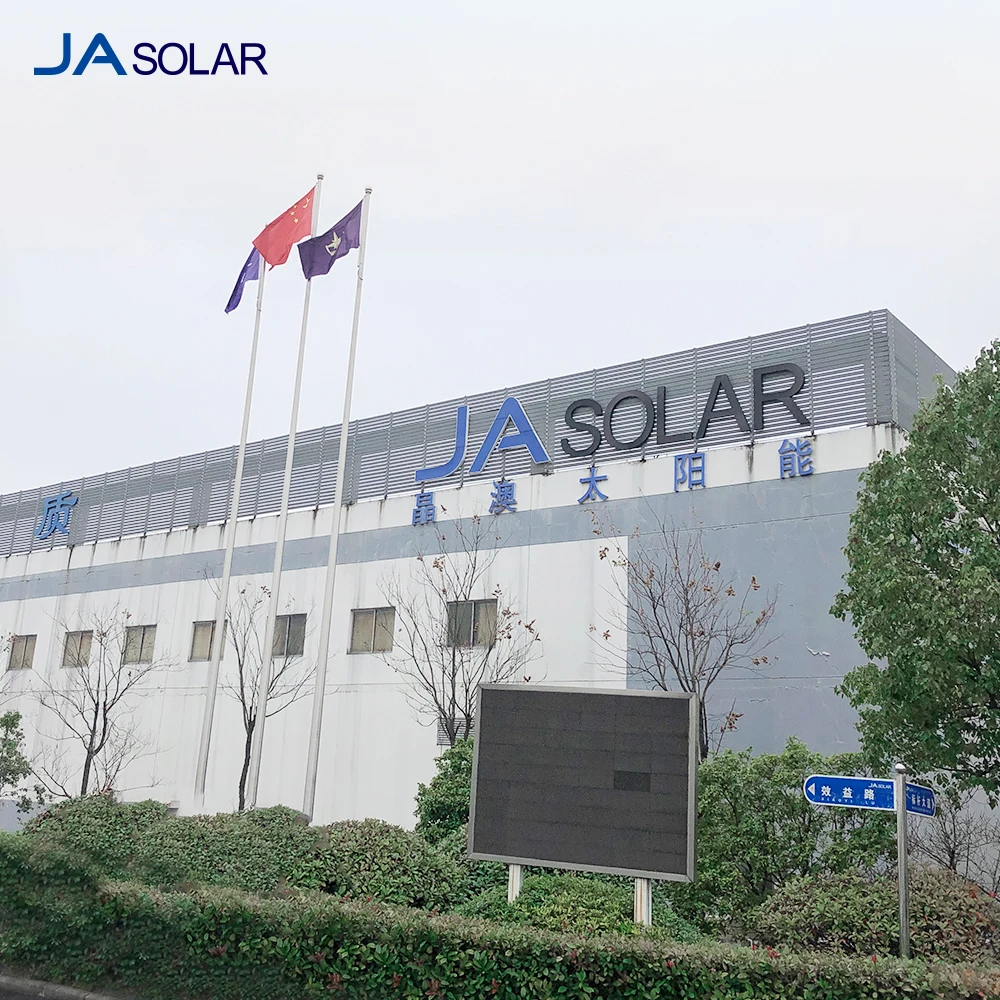

Company Profile
