Высокая яркость 22 дюймовые передние IP64 сенсорный монитор сердечного ритма X86 моноблок Win7/10 Linux промышленный
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Leadingtouch,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.51 $* | 0.34 $* |
| Aug-18-2025 | 0.16 $* | 0.49 $* |
| Jul-18-2025 | 0.62 $* | 0.82 $* |
| Jun-18-2025 | 0.12 $* | 0.21 $* |
| May-18-2025 | 0.36 $* | 0.19 $* |
| Apr-18-2025 | 0.93 $* | 0.0 $* |
| Mar-18-2025 | 0.62 $* | 0.39 $* |
| Feb-18-2025 | 0.24 $* | 0.40 $* |
| Jan-18-2025 | 0.28 $* | 0.58 $* |
Характеристики

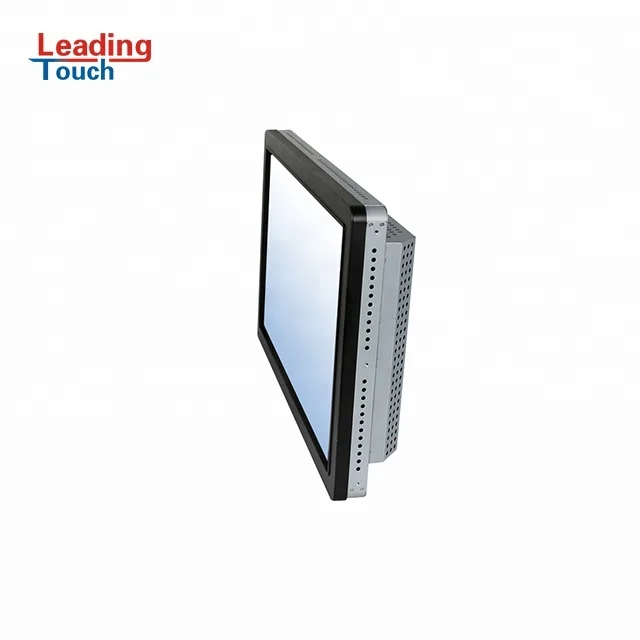

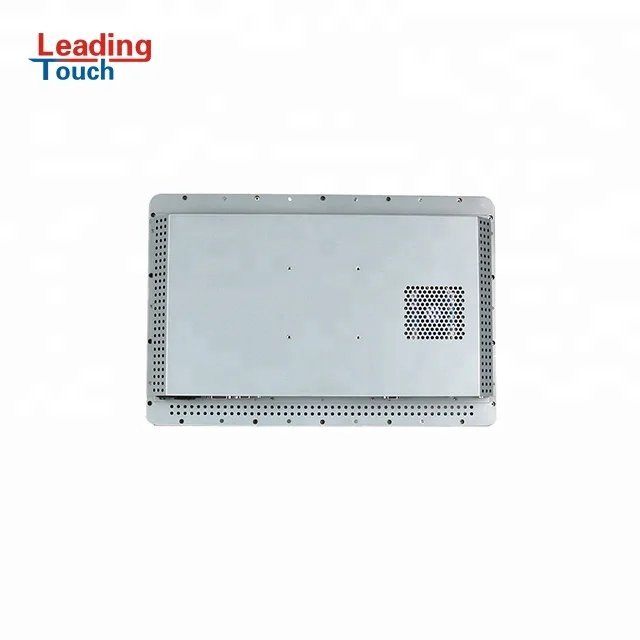

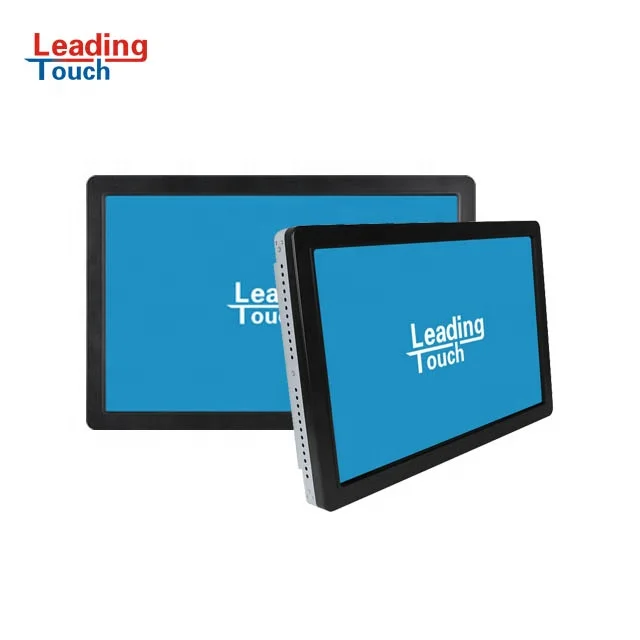

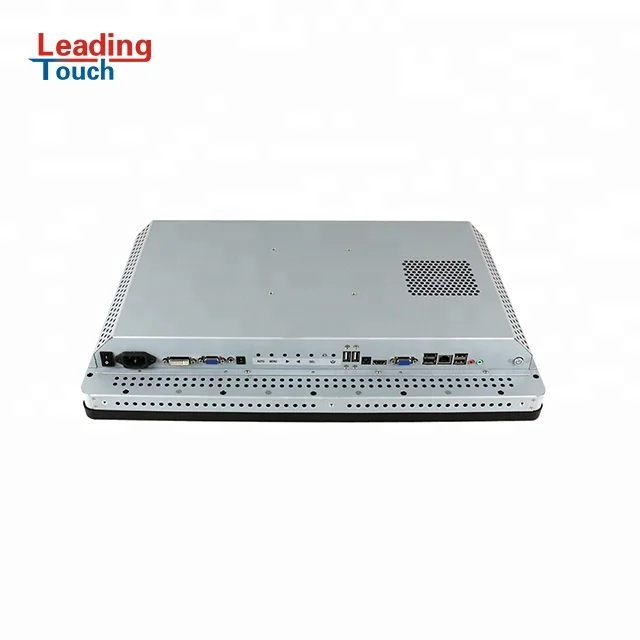

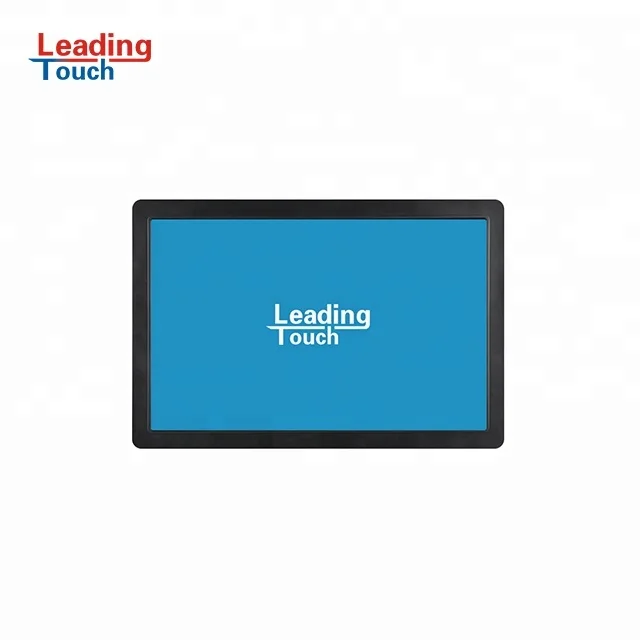

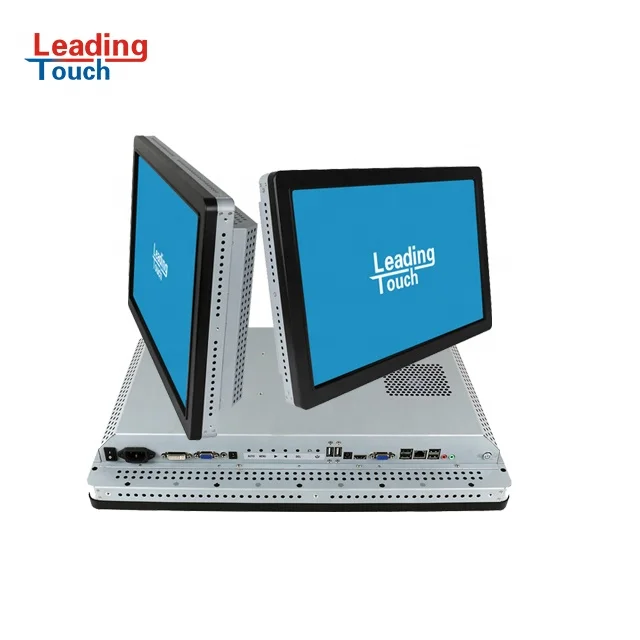

22” SAW touch All-in-one Touch Computer
LeadingTouch's TC-2239 is 22inch SAW touch All-in-one touch computer, uses the IP64 SAW touch technology. Cost-effective touch solution which is designed for Kiosks, ATM, Casino, Interactive digital signage, Education, etc., is easy connected and integrated by user.
Product Description
Features
Economy choice, Reliable quality, Easy operation
SAW touch technology
Dual RS232 and USB touch interface
Standard VESA hole as mounting options
On-screen display (OSD)
Dust proof and waterproof reach IP64
Optional mounting brackets ( Front, side or rear)
Combinations of features indicate that LeadingTouch All-in-One Touch Computer is the best choice for you.
Model | TC-2239 |
Description | 22" All-in-one SAW touch computer |
Case/Bezel Color | Black |
Display | 16:10 Active Matrix TFT LCD |
Optimal (native) Resolution | 1680×1050 @60Hz |
Synchronization Range | Horizontal:57.2-83.2 KHz, Vertical:53-76 Hz |
Useful Screen Area | 474mm × 296mm |
Colors | 16.7 M |
Brightness | 300 cd/m2 |
Pixel Pitch | 0.282mm × 0.282mm |
Response Time | 5ms (Typically) |
Contrast Ratio | 1000:1 (Typical) |
Viewing Angle(CR≥10) | Horizontal: ±80°or 160°total, Vertical: ±80°or 160°total |
Backlight Lamp Life | 50000 hrs |
Input Video Format | VGA / DVI |
Input Video Signal Connector | VGA/ DVI |
On Screen Display(OSD) | Remote OSD with 1.2m Cable |
Touch Technology | LeadingTouch Surface Acoustic Wave(SAW) |
Touch Interface | Dual RS232&USB interface |
CPU | Intel, i3 |
Memory | Kingston 4G |
HardDisk | 320G SATA |
USB Interface | 6 USB interface |
Audio input | 1 port |
Network Connection | RJ45 Web |
Video output | DVI/HDMI |
Mounting Options | VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket |
Power Supply | External Adapter: 100-240VAC, 50-60Hz |
Power Consumption | 150W Max |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ |
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% |
Dimension and Weight | Touch Computer 530 x 352 x 87.9mm 9.2KGS |
Warranty | 1 year |
Agency Approvals | FCC, CE, RoHS |
Packing & Delivery
Related Products
Certifications
Our Company
Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.
FAQ
Q1: Which kind touch technology is it?
A1: It is SAW touch screen.
Q2: Is it Elo compatible?
A2: Yes, Elo compatible. You can use Elo driver.
Q3: How long is the warranty time for your products?
A3: We provide 1 year warranty for all of our products and supply life-time maintenance.
Q4: What payment methods your company accept?
A4: We accept T/T, L/C, Western Union, Pay Later, Credit card, paypal, Alipay.
