Характеристики
Overview

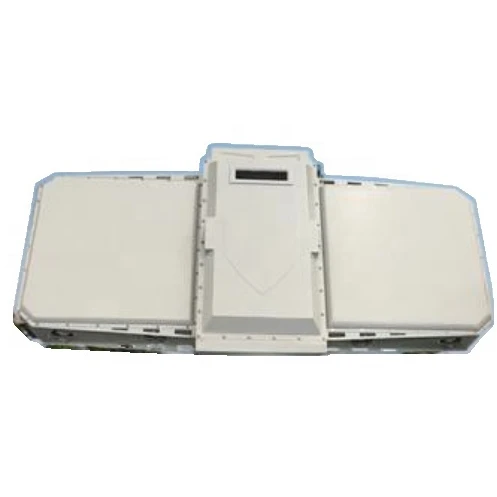

AR621 Low Air Space Small Target Searching Radar is a full coherent 3-D radar. It has the system of “active one-dimensional phased scan + LFMCW”. Due to it adopts multiple advanced technologies, this radar can continuously detect multiple types of small low-flying targets with slow speed, especially multiple-rotor-wing UAV upon city or mountain land. Its deployment can either be independent or form a network. This radar can integrate with EO system to fulfill radar detection and EO confirmation. And it also can work with jammer, cyber, laser system and so on to softly or hardly kill illegal UAV to meet the needs of political/military ground, airport, Olympic stadiums, large hydraulic power plant and nuclear power plant.
Features
· All-day work in all weather
· Detecting small low-flying target with slow speed
· Automatic warning
· High detection probability, low false alarm probability
· Good interface for end-user
· Color terminal display
· Lightweight, low consumption
· Advanced BIT
· Radar networking controlled by remote terminal
· Integrated and interoperated with EO sensors
Application
· Airport security system
· Key fields, such as, military ground, nuclear power plant, and Olympic stadiums
· Avoiding UAV to cross the frontier
· Sentry post of frontier defense
Specification
Radar system | full solid, full coherent, active one-dimensional phased scan + LFMCW
|
Frequency | Ku-band |
Range coverage (Antenna rotation speed 20 rpm, RCS=0.01m2,Pd=90%,Pf=10-6) | Rmax ≥ 5 km |
Rmin ≤ 300 m | |
Azimuth coverage | 360° |
Elevation coverage | 0°~50° |
Azimuth accuracy | ≤ 0.3°(RMS) |
Elevation accuracy | ≤ 0.4°(RMS) |
Range accuracy | ≤ 10 m (RMS) |
Weight | ≤ 150 kg (Main body of the radar) |
Input voltage | AC 220V/50Hz |
Power consumption | ≤ 1200 w |
