Brief Introduction

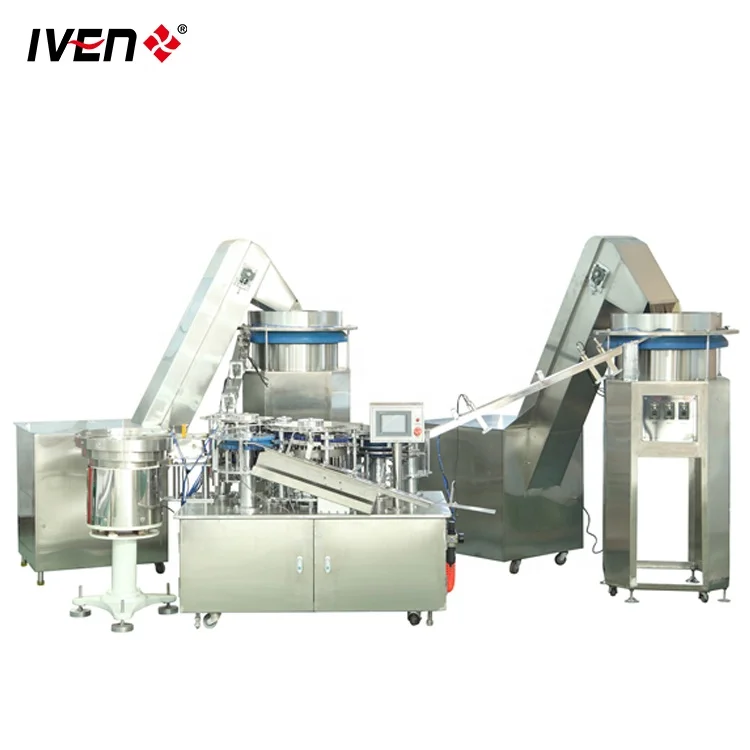

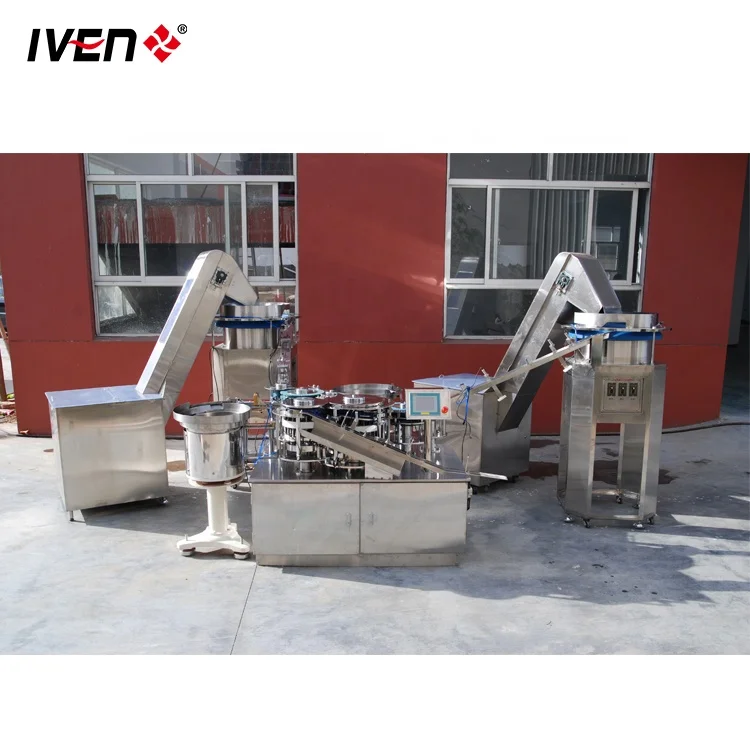

Full-automatic assembly machine of injector Model QZ-005 is a kind of automatic equipment that is

specially designed for medical instrument industry. Pinpoint, drum body, piston and core rod of injector are assembled organically together, the machine adopts rotary disc drum pulley type rotating movement, and the assembly of injector is automatic completely.Operating panel with touch screen, finished products are of electronics counting, high efficient, simple to operate, and running is stable without noise. It meets the demand of high-purified space. It has gotten practial new style patent certificate, Patent No.:ZL01.2.53215.0.



Technical parameters

Physical dimension:L×W×H=4200×3000×2200(mm)

Production specifications respectively:1ml,2-3ml,5ml,10ml,20ml,30ml,50ml

Production rate:

1ml	2~3ml	5ml	10ml	20ml	30ml	50ml
180pcs/min	200pcs/min	220pcs/min	220pcs/min	160pcs/min	150pcs/min	120pcs/min

Power:2.5KW

Air consumption :0.3 cubic meter/min

Weight:1500kg



Features

A. Assembling capacity is 250 pcs/ min.

B. Operating panel with touch screen, finished products are of electronics counting, high efficient, simple to operate, and running is stable without noise.

C. It has gotten practical new style patent certificate, Patent No.:ZL01.2.53215.0.
