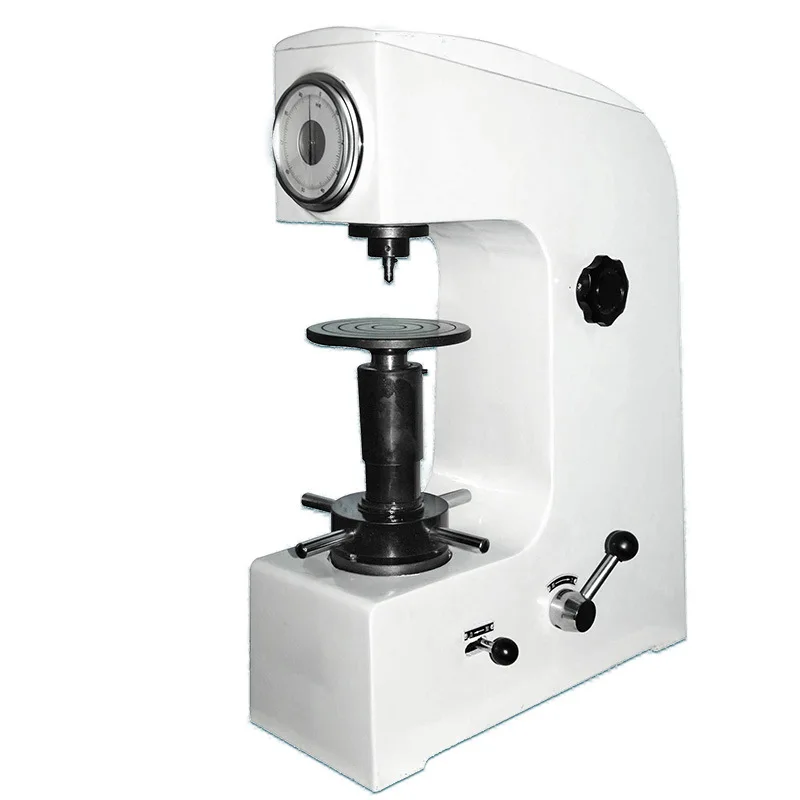

PJ-HR-150A тестер твердости ROCKWELL ручной из легированной
- Категория: Физические измерительные приборы >>>
- Поставщик: Shenzhen,Pengjie,Precision,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 476.27 $* | 500.5 $* |
| Aug-18-2025 | 472.27 $* | 496.20 $* |
| Jul-18-2025 | 396.82 $* | 416.68 $* |
| Jun-18-2025 | 464.81 $* | 487.64 $* |
| May-18-2025 | 404.8 $* | 424.81 $* |
| Apr-18-2025 | 456.37 $* | 479.12 $* |
| Mar-18-2025 | 452.21 $* | 475.41 $* |
| Feb-18-2025 | 448.24 $* | 470.3 $* |
| Jan-18-2025 | 444.11 $* | 466.15 $* |
Характеристики
Products Description
Main feature:
Lever loading, manual operation, reliable and durable; frictionless spindle, high precision of test force;
Dial direct reading, HRA, HRB, HRC, and optional Rockwell's other scales;
Precise hydraulic buffer, stable loading and adjustable speed;
Accuracy complies with GB/T230.2, ISO6508-2 and American ASTM E18 standards.
Application and scope:
Determine the Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials;
It has a wide range of applications and is suitable for Rockwell hardness measurement of heat-treated materials such as quenching and quenching and tempering.
The main technical parameters:
Measuring range: 20-95HRA, 10-100HRBW, 20-70HRC (customized diamond indenter with measuring range 10-70HRC is optional);
Test force: 588.4, 980.7, 1471N (60, 100, 150kgf);
The maximum allowable height of the sample: 170mm; the distance from the center of the indenter to the machine wall: 135mm;
Hardness resolution: 0.5HR;

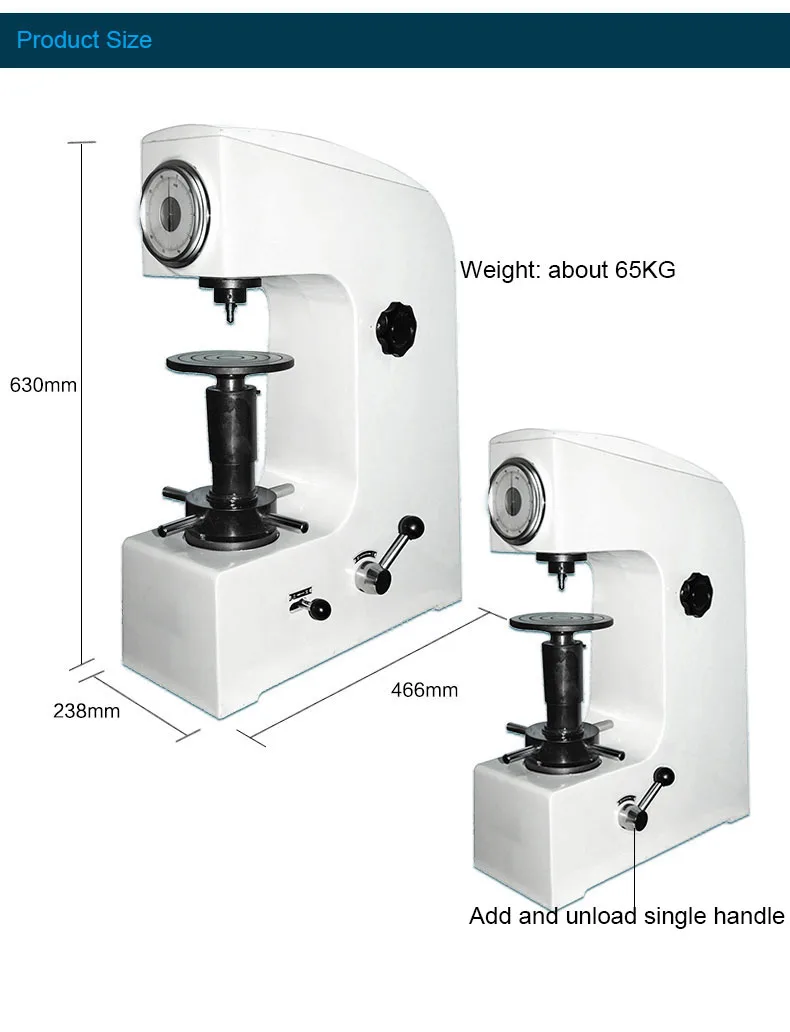

Dimensions: 466*238*630mm; Weight: 65KG.
Standard accessory box:
Large flat workbench, small flat workbench, V-shaped workbench: 1 each;
Diamond cone indenter, 1/16”φ1.5875mm tungsten carbide indenter: 1 each;
Standard Rockwell hardness block: 5 blocks.
Lever loading, manual operation, reliable and durable; frictionless spindle, high precision of test force;
Dial direct reading, HRA, HRB, HRC, and optional Rockwell's other scales;
Precise hydraulic buffer, stable loading and adjustable speed;
Accuracy complies with GB/T230.2, ISO6508-2 and American ASTM E18 standards.
Application and scope:
Determine the Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials;
It has a wide range of applications and is suitable for Rockwell hardness measurement of heat-treated materials such as quenching and quenching and tempering.
The main technical parameters:
Measuring range: 20-95HRA, 10-100HRBW, 20-70HRC (customized diamond indenter with measuring range 10-70HRC is optional);
Test force: 588.4, 980.7, 1471N (60, 100, 150kgf);
The maximum allowable height of the sample: 170mm; the distance from the center of the indenter to the machine wall: 135mm;
Hardness resolution: 0.5HR;
Dimensions: 466*238*630mm; Weight: 65KG.
Standard accessory box:
Large flat workbench, small flat workbench, V-shaped workbench: 1 each;
Diamond cone indenter, 1/16”φ1.5875mm tungsten carbide indenter: 1 each;
Standard Rockwell hardness block: 5 blocks.

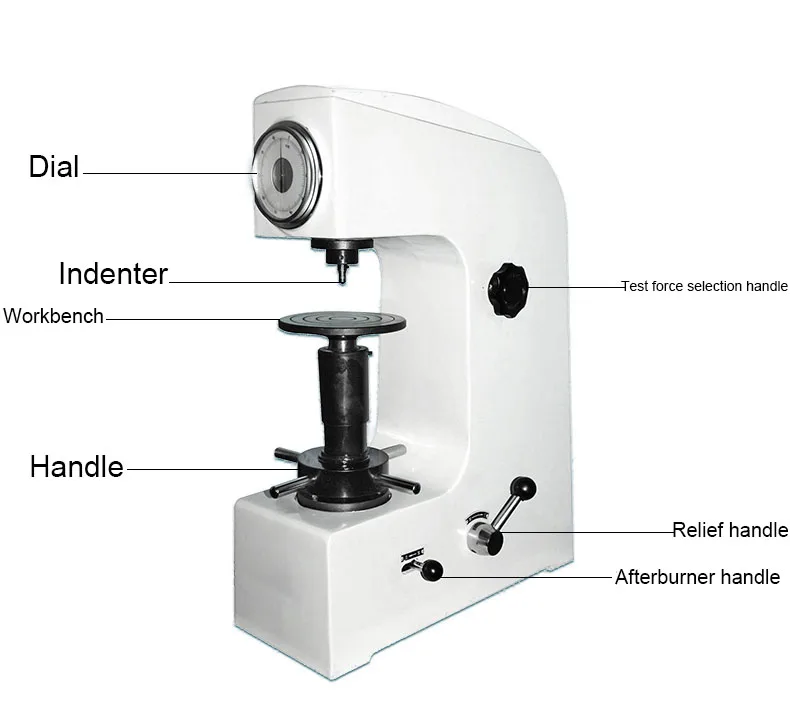

Details Images
