2 года гарантии энергосберегающий волоконно-металлический сварочный мини портативный лазерный аппарат ручной 1500
- Категория: Лазерные сварочные станки >>>
- Поставщик: Suzhou,Haiyi,Laser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 8330.13 $* | 8747.22 $* |
| Aug-18-2025 | 8260.61 $* | 8673.11 $* |
| Jul-18-2025 | 6930.18 $* | 7277.78 $* |
| Jun-18-2025 | 8120.73 $* | 8526.44 $* |
| May-18-2025 | 7070.13 $* | 7424.45 $* |
| Apr-18-2025 | 7980.54 $* | 8379.50 $* |
| Mar-18-2025 | 7910.32 $* | 8306.29 $* |
| Feb-18-2025 | 7840.91 $* | 8232.9 $* |
| Jan-18-2025 | 7770.76 $* | 8159.37 $* |
Характеристики
Product Description
Product Application
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries.
TECHNICIAL PARAMETERS | ||||||
Model | HY-WF01 | |||||
Maximum Laser Power | 500W/1000W/1500W/2000W | |||||
The Laser Wavelength | 1.06um | |||||
Operation Model | Continuity | |||||
Laser Welding Depth | 1mm~2.5mm | |||||
Positioning System (GPS) | Red light indication | |||||
Power Demand | 220V/50HZ, 380V/50HZ | |||||
Cooling Mode | Water Cooling | |||||
The Whole Machine Consumes Power | <3KW | |||||
The Whole Machine Size | WLH (700*1400*1400mm) | |||||
Main Advantages:
Laser welding is to irradiate a high energy density laser beam on two parts of the material, so that the local heating melt, and then cooling and solidification into one. Compared with traditional welding technology, laser welding has the following advantages:
1. Precise positioning
Optical fiber laser welding machine is equipped with CCD camera monitoring system, which is convenient to observe, and can precisely locate by spot in micro-welding.
2. Uniform weld spot
The spot energy distribution of optical fiber laser welding machine is uniform, and it has the best spot needed for welding characteristics.
3. Suitable for all kinds of weld's screams
Fiber laser welding machine adapts to all kinds of complex welds, spot welding of various devices, and welding seams of thin plates within 1mm. It has fast welding speed, large depth and small deformation.
4. Batch & Mass Production
Optical fiber laser welding machine can customize special automatic fixture to realize mass production of products.
5. Corrosion Resistance and High Temperature Resistance
Fiber laser welding machine uses ceramic concentrator, which can be welded at room temperature under special conditions, such as vacuum or through glass materials, and has simple equipment, corrosion resistance and high temperature.

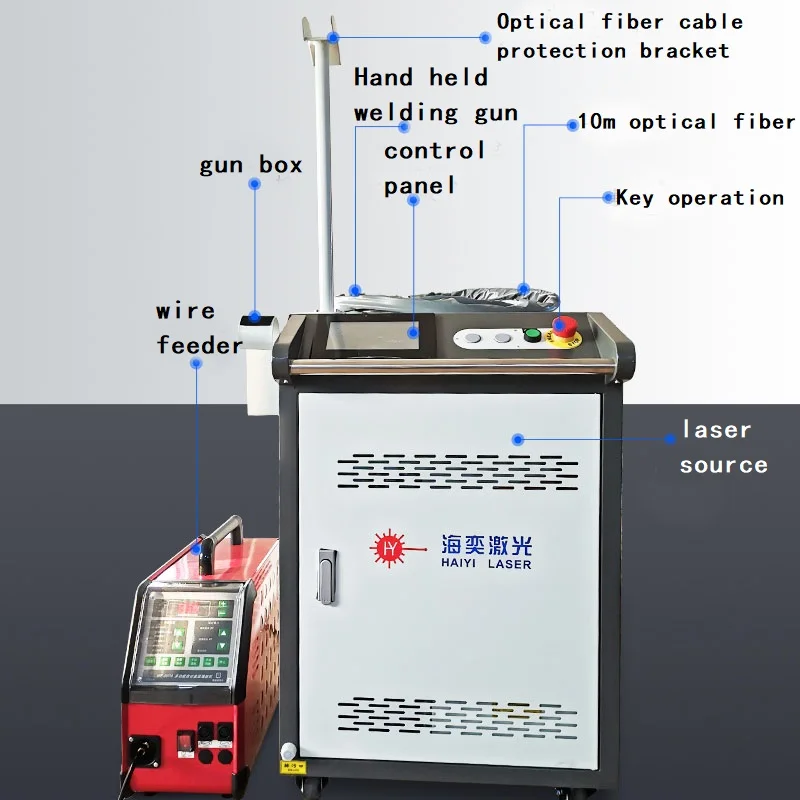

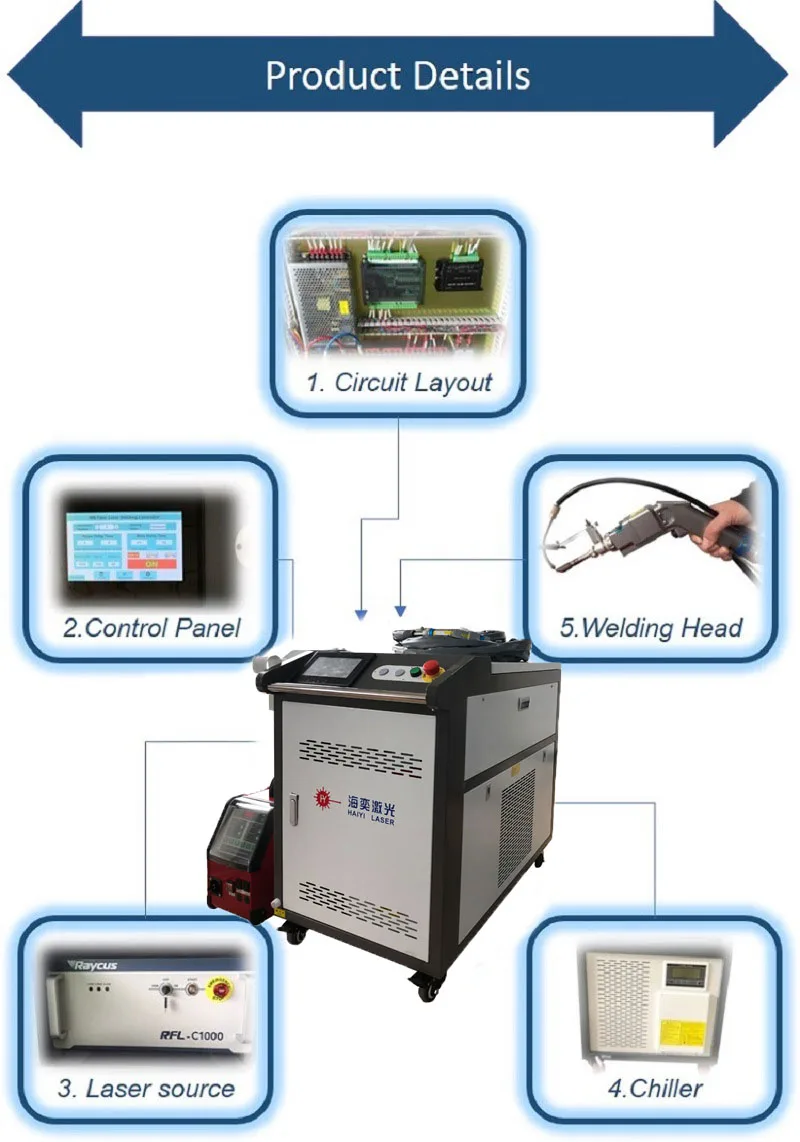

Detailed Images
1.LASER RESOURCE
Original: China
Use the Raycus laser resource, the top1 brand in China.
It's high quality and long life time around 100000 hours.
At the same time, it introduces the optimized second generation optical fiber transmission system to ensure more stable and precise welding effect in plate welding.
2.Welding Head
Original: China
The laser head is equipped with nitrogen/argon blowing device and with the welding guide.
The operators can easy to handle it and needn't the specially requirement.
3.Transmission Optical Fiber
Original: China
With 5m 10m 15m different optical fiber line selections, It can be easy to move to long-distance welding on the differernt size products.
4.Cooling System
Original: China
The Water chiller can cool the machine and make the machine work in good condition.
The operators can adjust the temperature parameters on the chiller panet easly..
Packing & Delivery
Packaging | ||
Size | WLH (660*1450*1200mm | |
Weight | 200kg | |
Packaging Details | The normal package is plywood box. If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Service
1. 1 year Guarantee for the whole machine.
2. 12 months Guarantee and free spare parts supply during this period
3. 24 hours on line service
4. 3-7 days lead time
5. We will provide the Instruction Book, Operational manual and Training Video
6. Provide technical support for the whole lifetime on line
7. TT/Ali Trade Assurance payment
8. Shipping By air, DHL, Sea.
Related Products
Our Company
FAQ
Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.
Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.
Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.
Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
