Характеристики
Product Description

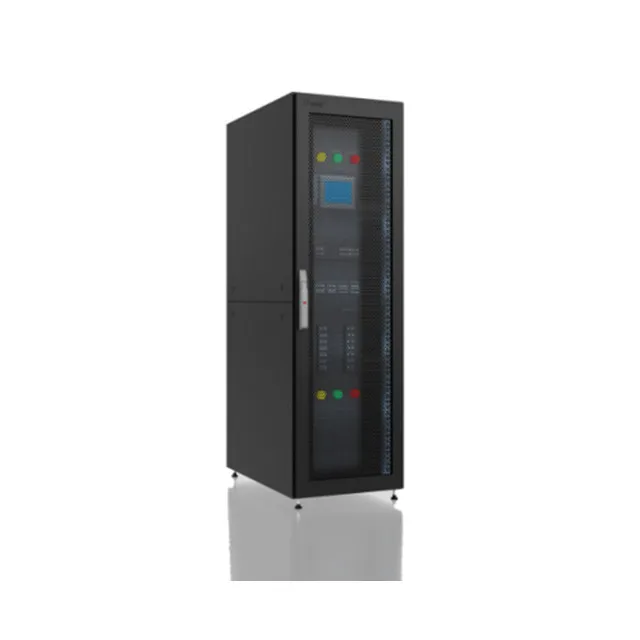

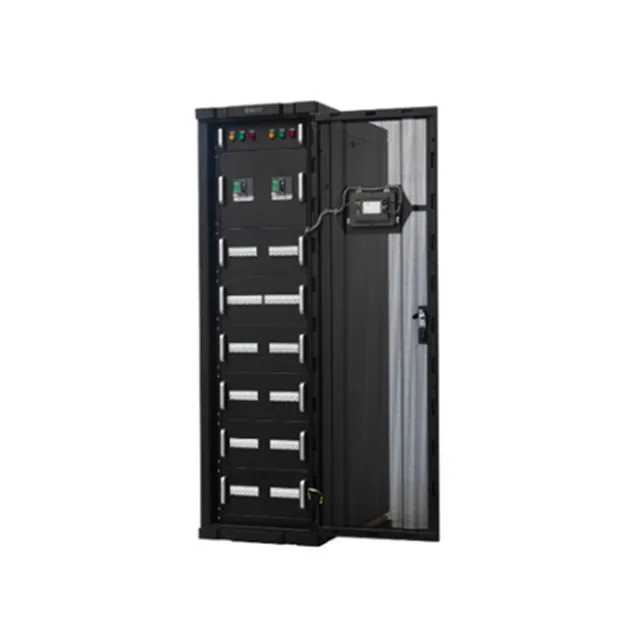

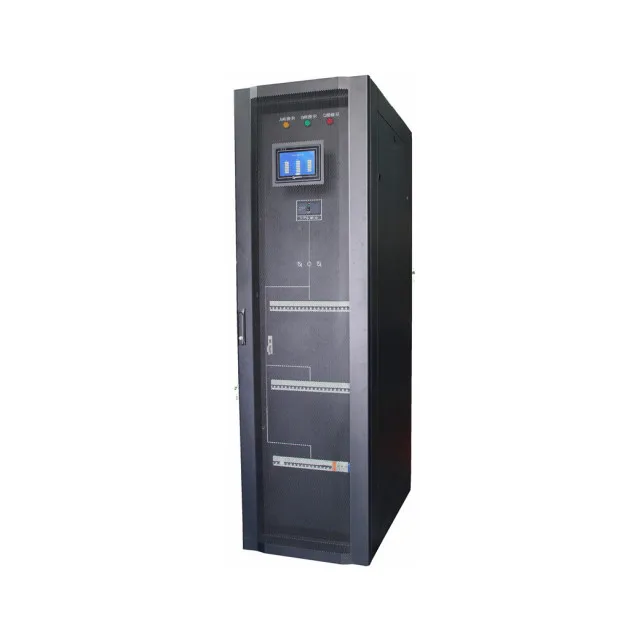

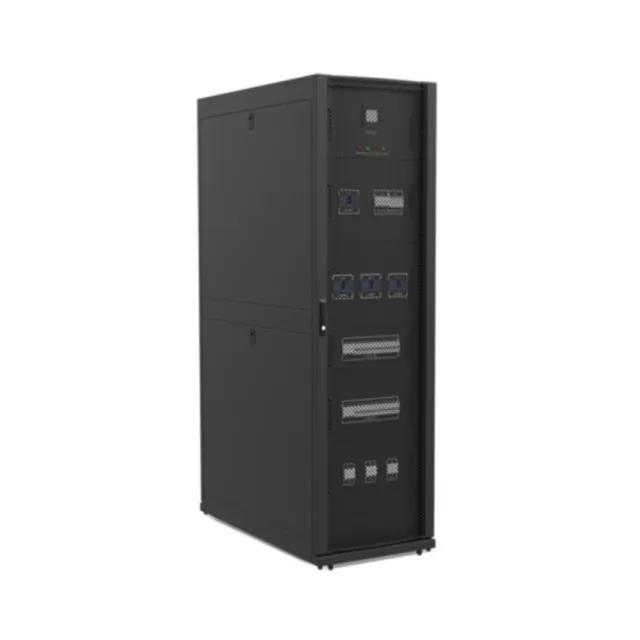

Remote power panel for data center
Data center remote power panel monitoring and management system is the company based on the current data center is higher and
higher precision of power distribution management requirements and the independent research and development of multi-function AC/DC monitoring system, support 4 circuits AC or 2circuits DC incoming line, 192 circuit feeder line, all power parameter measurement and (incoming line, surge protection ,feeder) switch state monitoring. All kinds of alarms can be independently controlled, supporting sound and light independent alarm relay output. The system uses a 24-bit color industrial-grade color touch screen with English man-machine interface to support the configuration of the customer's circuit (custom circuit name) and
functions.
higher precision of power distribution management requirements and the independent research and development of multi-function AC/DC monitoring system, support 4 circuits AC or 2circuits DC incoming line, 192 circuit feeder line, all power parameter measurement and (incoming line, surge protection ,feeder) switch state monitoring. All kinds of alarms can be independently controlled, supporting sound and light independent alarm relay output. The system uses a 24-bit color industrial-grade color touch screen with English man-machine interface to support the configuration of the customer's circuit (custom circuit name) and
functions.
Specification
ted voltage | Rated insulation voltage | 660V | ||||
Rated working voltage | 220V (single phase three wire system), 380V (three phase five wire system) | |||||
Rated impact withstand voltage Uimp | 8kV | |||||
Overvoltage class | III | |||||
Pollution levels | Class 2 | |||||
Rated frequency | 50HZ | |||||
Rated current | Rated current | 100A to 630A(configurable as request) | ||||
Rated short-time withstand current | 6kA | |||||
EMC Electromagnetic compatibility | Industrial 2 class | |||||
insulation resistance | ≥10MΩ | |||||
dielectric strength | 1min 2500V | |||||
Grounding Resistance | ≤0.1Ω | |||||
structural characteristics | ||||||
Size(mm) | width | 600、800、1000 | ||||
height | 2000、2200 | |||||
depth | 600、800、1000、1100 | |||||
oscillation specification | 5Hz~50Hz,amplitude 20mm/s | |||||
Cabinet color | RAL9004 | |||||
Surface treatment | Epoxy resins electrostatic powder spraying | |||||
Protection level | IP20 | |||||
Componenets installation in cabinet | Fixed type or plug-in type | |||||
Installation | Floor type | |||||
Installation place | indoor | |||||
Material specifications | frame | RKIII | ||||
mounting plate | ALZINC | |||||
Door plank | Mesh or glass doors | |||||
Output switch | 6A~63A（single phase or three phase） | |||||
Output circuit | 21-84 channels | |||||
alarm style | Audible and visual alarm | |||||
Communication port | RS485,RS232 and LAN(ethernet) optional | |||||
Main feeder monitoring parameters | Three-phase voltage, current, frequency, zero sequence current, active/reactive power, power factor,Active/reactive energy, total harmonic content, 2~15 harmonics, etc | |||||
Main feeder alarm item | Three phase overvoltage/undervoltage, phase deficiency, imbalance, three phase current overcurrent, zero sequence overcurrent, high/low frequency | |||||
Outgoing circuit | Outgoing voltage, current, load percentage, switch on/off state, etc | |||||
Sub-alarm item | Outgoing circuit overload warning, outgoing open circuit alarm lamp, etc | |||||
Ground/zero connection | Single floor row/zero row | |||||
Feeder and outgoing mode | Up incoming or down incoming | |||||
Two circuits system | Optinal | |||||
Environment | operating temperature | -5℃ to 40℃ | ||||
Relative humidity | ≤93%RH(25℃±5℃时) | |||||
altitude | ≤2000m | |||||
storage | Well ventilated, temperature -25℃ ~ +55℃, relative humidity ≤85%, the surrounding environment does not contain corrosive gas, no harmful chemicals and gases in the warehouse | |||||
Data Center Layout
Customized service
If you have any special requirements, for example another current input and analog output or special power supply and size ,please feel free to Contact Us.
Dimensions
Size(Unit:mm) | W | H | D |
1 | 600 | 2000 | 1000 |
2 | 600 | 2200 | 1000 |
3 | 600 | 2000 | 1200 |
4 | 600 | 2200 | 1200 |
