Характеристики
Product Description

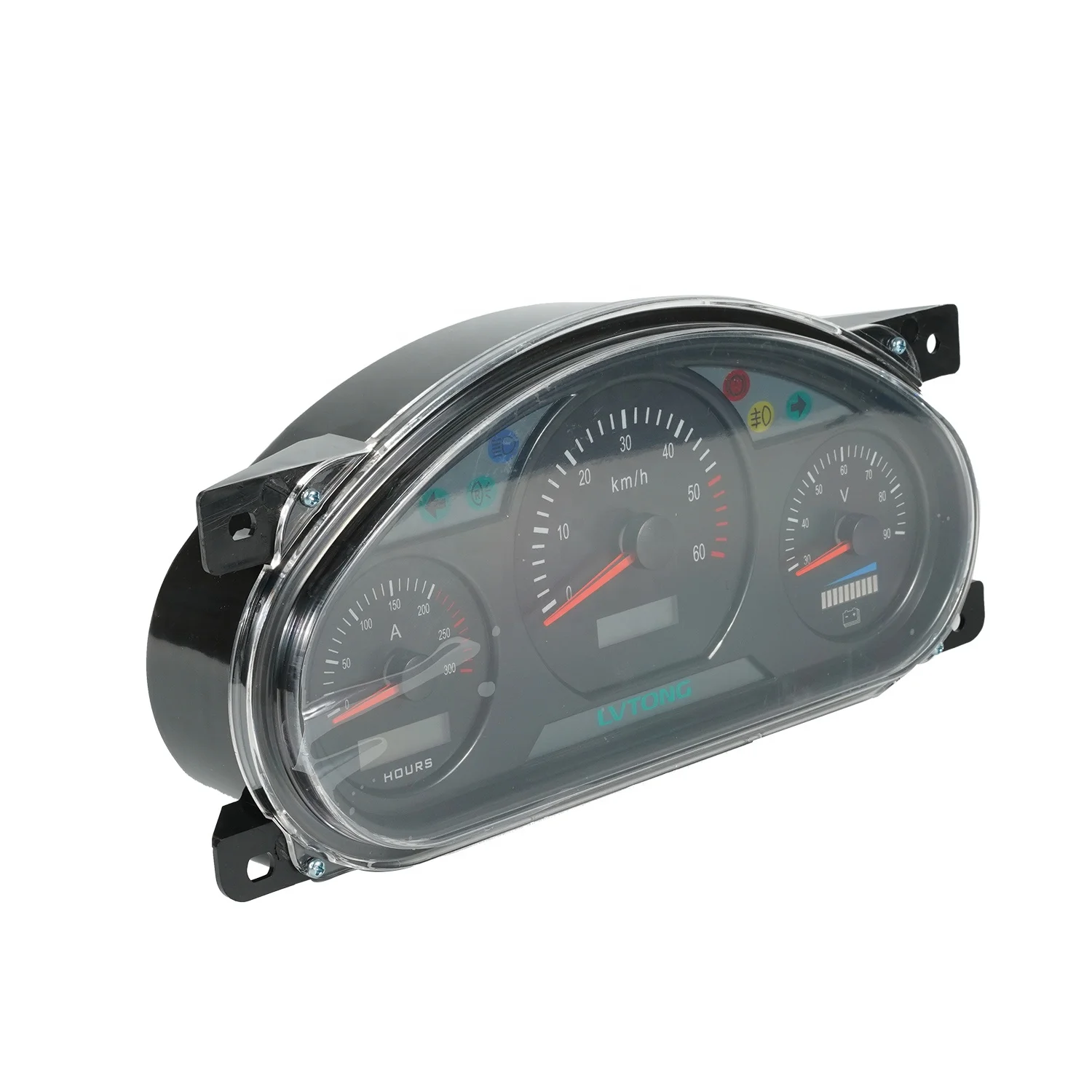

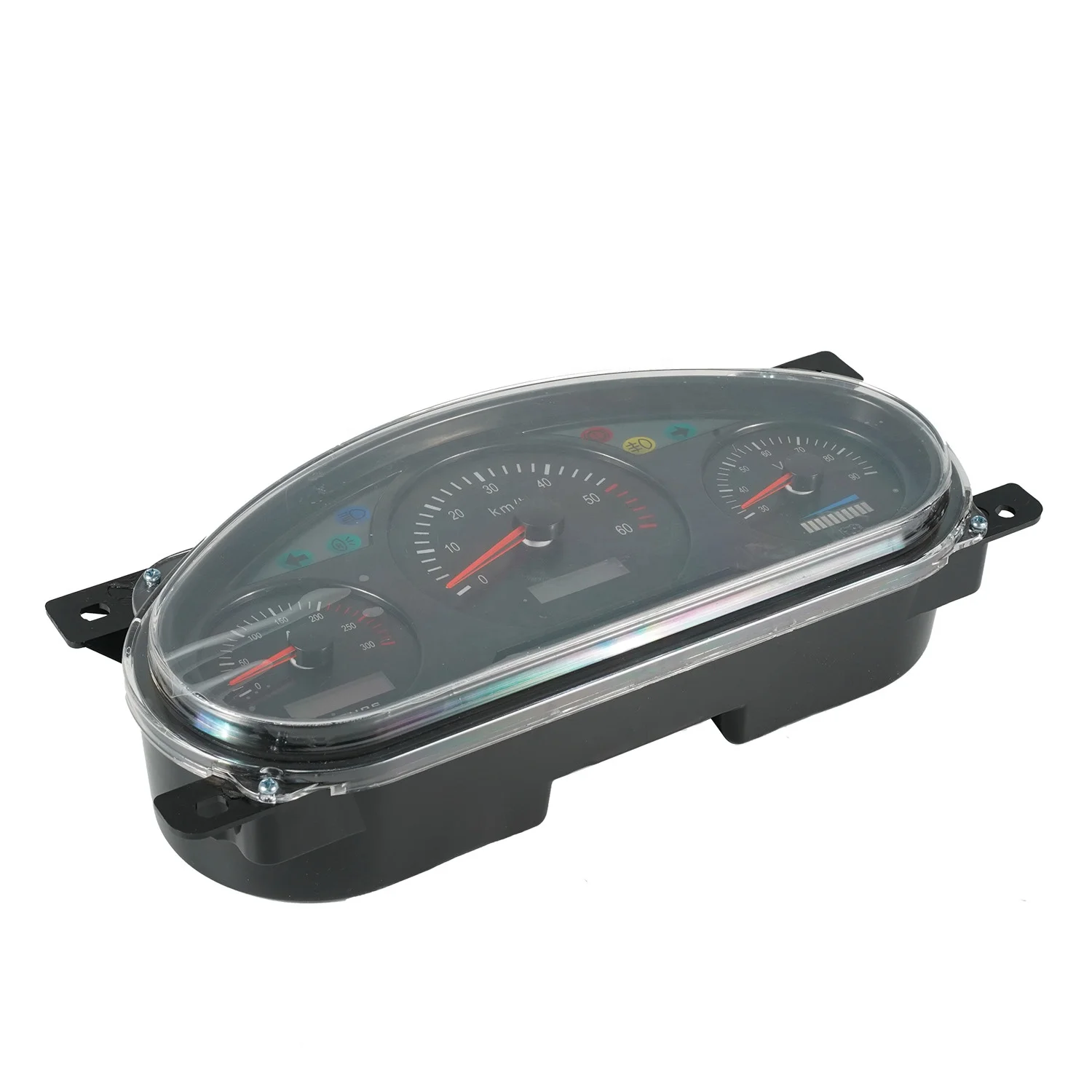

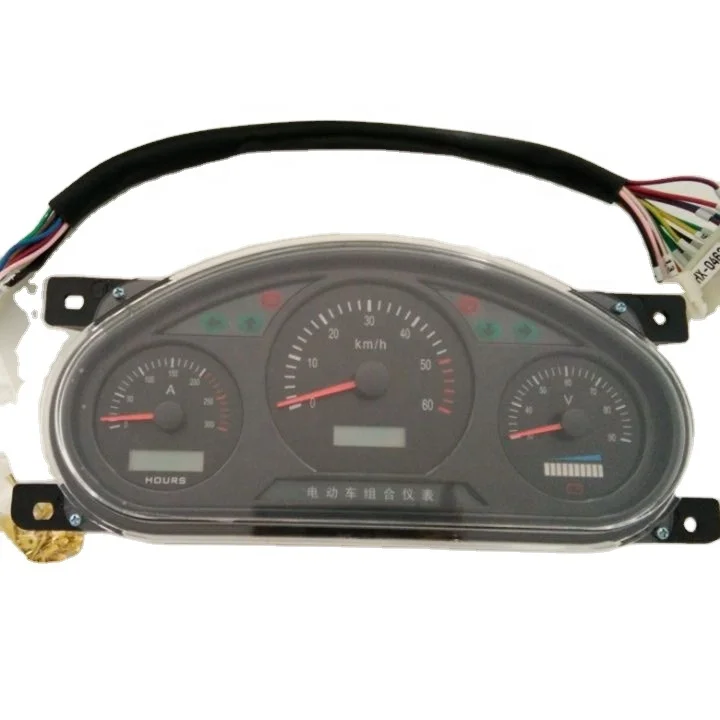

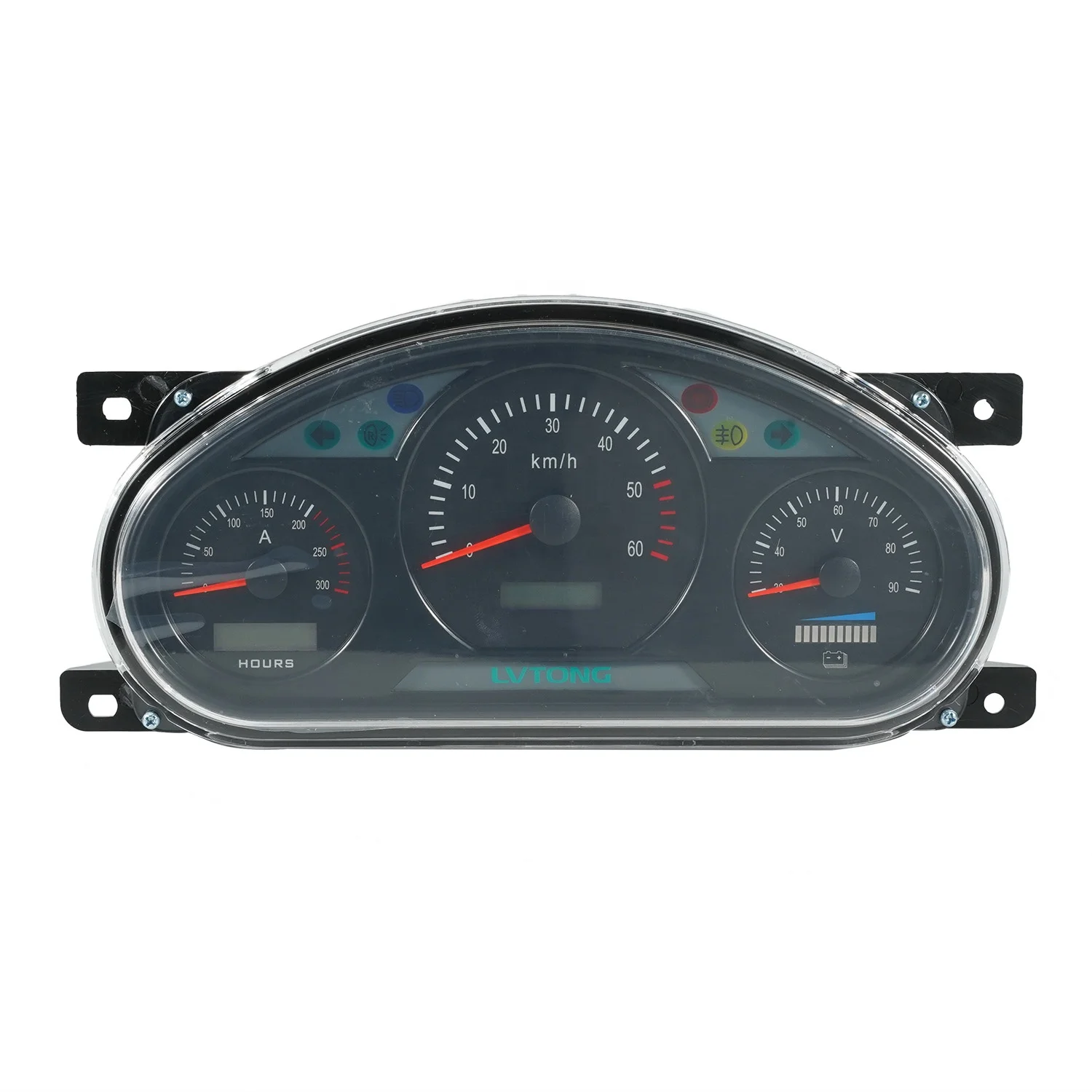

Electric Vehicle Dashboard
Hour Meter + Speedometer + Voltmeter + Ampere Meter + Turning + Brake + Forward / Reverse
For setting correctly the speedometer, we may need the buyer to provide the exact vehicle information:
* tire size (tire diameter)
* gear ratio (transmission gearbox reduction ratio)
* speed sensor tachometer poles
Hour Meter + Speedometer + Voltmeter + Ampere Meter + Turning + Brake + Forward / Reverse
For setting correctly the speedometer, we may need the buyer to provide the exact vehicle information:
* tire size (tire diameter)
* gear ratio (transmission gearbox reduction ratio)
* speed sensor tachometer poles
Overview
B4801 / B7201 instruments assemblages are designed for electric vehicles information indication, integrating indicating light,
ampere meter, voltage meter, battery meter, hour meter, speed meter and odometer into a single device panel.
Specifications
* Model: B4801 / B7201
* Working voltage: 20-70V (B4801) / 48V-84V (B7201)
* Forwarding/Reversing lights working voltage: 12V (a DC-DC converter should be available)
* Motor speed pulse sensor voltage: 2~12V
* Light color: * Turn-left: green
* Turn-right: green
* Forwarding/Reversing: green
* Braking: red
* Parking: red
* Ampere meter’s indicating range: 0-300A (error range < 2A)
* Voltage meter’s indicating range: 30-90V DC (error range < 0.2V)
* Battery meter: digital 10-sector LED display * Battery low warning: flash between the first and second LED, with buzzing
* Battery empty warning: the first LED stay lighting, with buzzing
* Key-on checking: if the battery is charge to full, 10 LEDs light on; or the
meter will display the last record
Features include:
* Attractive, easy-to-read, 8 character dot matrix Liquid Crystal Display enhances the look of any vehicle.
* Two display versions available: * Three LEDs: Green to indicate that hour meter is being displayed; Amber to indicate that
battery state-of-charge is being displayed; and Red to indicate that a fault has occurred.
* Six LEDs: Five Green to indicate battery state-of-charge; and one Red to indicate that a
fault has occurred
* Standard models display hours of use, battery state-of-charge and messages from a CURTIS motor controller.
* Interfaces directly to CURTIS motor controllers and displays various system parameters.
* Molded-in rear Molex style connector provides a low-cost, rugged and reliable installation.
* Front sealed (IP65) for use in harsh environments.
B4801 / B7201 instruments assemblages are designed for electric vehicles information indication, integrating indicating light,
ampere meter, voltage meter, battery meter, hour meter, speed meter and odometer into a single device panel.
Specifications
* Model: B4801 / B7201
* Working voltage: 20-70V (B4801) / 48V-84V (B7201)
* Forwarding/Reversing lights working voltage: 12V (a DC-DC converter should be available)
* Motor speed pulse sensor voltage: 2~12V
* Light color: * Turn-left: green
* Turn-right: green
* Forwarding/Reversing: green
* Braking: red
* Parking: red
* Ampere meter’s indicating range: 0-300A (error range < 2A)
* Voltage meter’s indicating range: 30-90V DC (error range < 0.2V)
* Battery meter: digital 10-sector LED display * Battery low warning: flash between the first and second LED, with buzzing
* Battery empty warning: the first LED stay lighting, with buzzing
* Key-on checking: if the battery is charge to full, 10 LEDs light on; or the
meter will display the last record
Features include:
* Attractive, easy-to-read, 8 character dot matrix Liquid Crystal Display enhances the look of any vehicle.
* Two display versions available: * Three LEDs: Green to indicate that hour meter is being displayed; Amber to indicate that
battery state-of-charge is being displayed; and Red to indicate that a fault has occurred.
* Six LEDs: Five Green to indicate battery state-of-charge; and one Red to indicate that a
fault has occurred
* Standard models display hours of use, battery state-of-charge and messages from a CURTIS motor controller.
* Interfaces directly to CURTIS motor controllers and displays various system parameters.
* Molded-in rear Molex style connector provides a low-cost, rugged and reliable installation.
* Front sealed (IP65) for use in harsh environments.
Specification
Voltage | 12-72v |
Application | Electric use |
Port | Shanghai |
Color | black |
