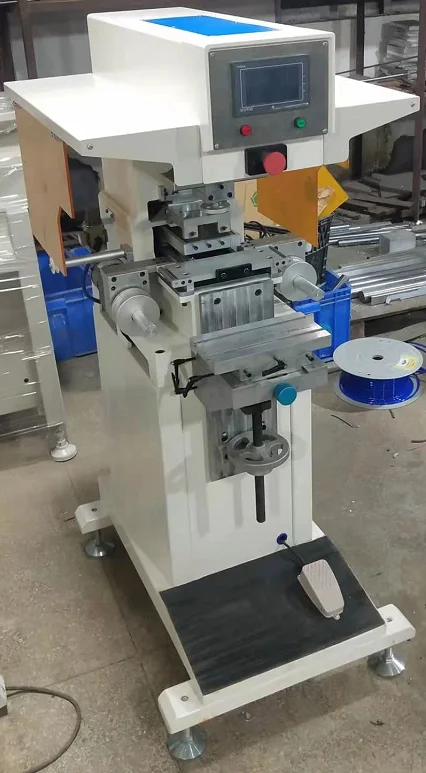

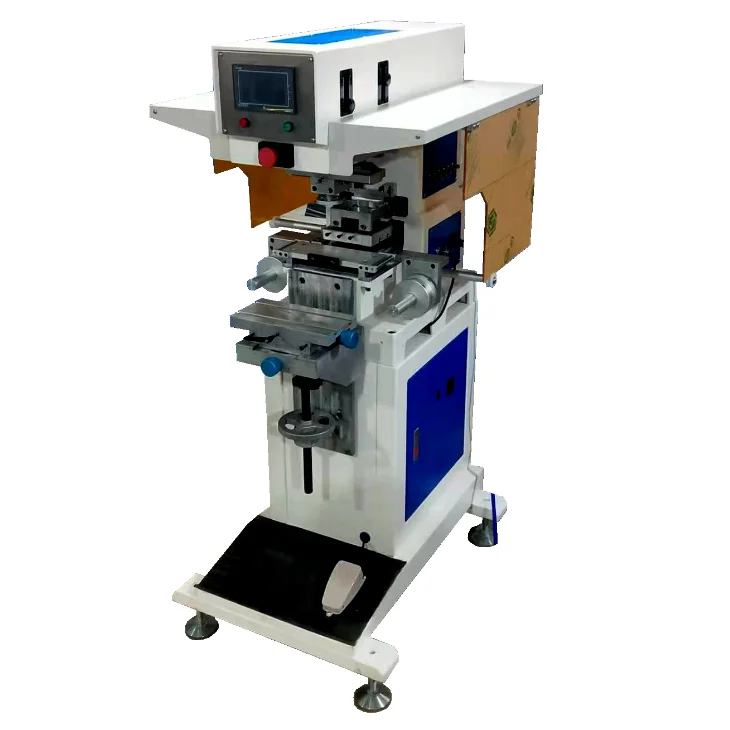

HP-160AY High  Precision Touch Screen Panel 1 color pad printing machineHP-160AYC11












Product Description


 This item is well-designed and universal type which apply for necessitiestoys, electrons, electrical equipment, plasticsleathermetalglasslight industry and food packages ETC.







metal tag printing machine Feature


1 Seal ink cup style, then have high-usage of ink and environmental.


2 Printing speed is swiftly and a few of piece machine can make up a produce line.


3 This machine is Semi-automatic ( Pneumatic) with automatic counter for 4 digits;


4 The machine can printing the design as your requested and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;


5 This machine  installing two programs, single cycling printing and automatic printing.


6 The cylinder of Machine is Germany FESTO. And thickness of the screw we used 8.75 Degree.


7 The body is Cast alloy Aluminum, then it is lighter, more durable and better structure.


metal tag printing machine Parameter:






























































Item Number:



HP-160AY



Printing Speed



1800pcs/ hour



Max metal plate:



100x250mm(4x10)



Ink cup Dia.



90mm



Adjustable pads size on target products



10-40 mm



Printing colors:



ONE



Max height of products



200mm



Max printing Size:



70x 70mm Or Φ: 75mm



Stroke of Ink Cup



100mm



Adjustable pads size on the metallic plate



10-40 mm



Air supply



6 Bar



Net Weight



160 KGS



Voltage of source



220 VAC/ 1 Phase 20W



Dimension:



710mm X 600mm X 1420mm






ThOur Service:


1 Warrantee time: 1 year.  Within this 1 year, any parts can not work or damage naturally, the parts will be provide ree of charge. But the carrier cost must be in your sides.


2 Lead time: 5 work days when receive your deposit.


3 Payment: 40% deposit T/T to our bank, the balance against the goods are ready to leave our factory.


4. The validity of this quotation in August 30th. 2014.








sensor.jpgElectric valve.jpgpad printer cylinder.jpgBarometer.jpg





90 ink cup 2.jpg90 ink cup.jpgone color ink system 2.jpgink cup system 1.jpgink cup system 2.jpgone color ink system 1.jpg















Company Information





Hengjin has been a industry leading supplier of Pad printer, Screen printer, Hot Stamping Machine and the relative Accessories supplies for 12 years under the same ownership. We have become well respected by our customers and others in the industry due to our knowledge of the pad printer process and the personal attention we give to each and every customer. We offer a complete line of machinery and supplies of top quality and performance.





Hengjins Printing machines which above mention have CE approval.  And our customer from American, United Kindom, Germany, South American Etc more then 50 countries.  Sure Hengjin is a satisfying supplier to you.





Dongguan Hengjin Printing Machinery Co. Ltd (HENGJIN) is located in Guangdong Province, Dongguan City.  From Guangzhou or ShenZhen about 1.5 hours. If your come to China, welcome visit us.





Hengjin as main an exporting Supplier in China. In order to give our customer more guarantee, avoiding more after-service caused. Only we using the spare parts to our machine good quality. The material of our machine is alloy cast aluminum and the surface is Powder spraying. The main parts which cylinder is from Original Germany FESTO.
