Cover all cell phone wifi  communication include 2G/3G/4G/2.4G/5.8G jamming range 30~80M radius

Used The most advanced FPGA digital technology(Not a VCO DDS analog jammer) support 14 frequency bands and used only less antennas

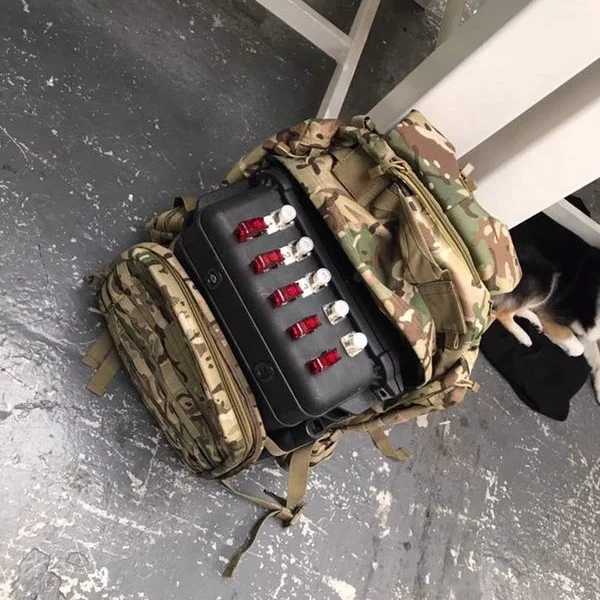

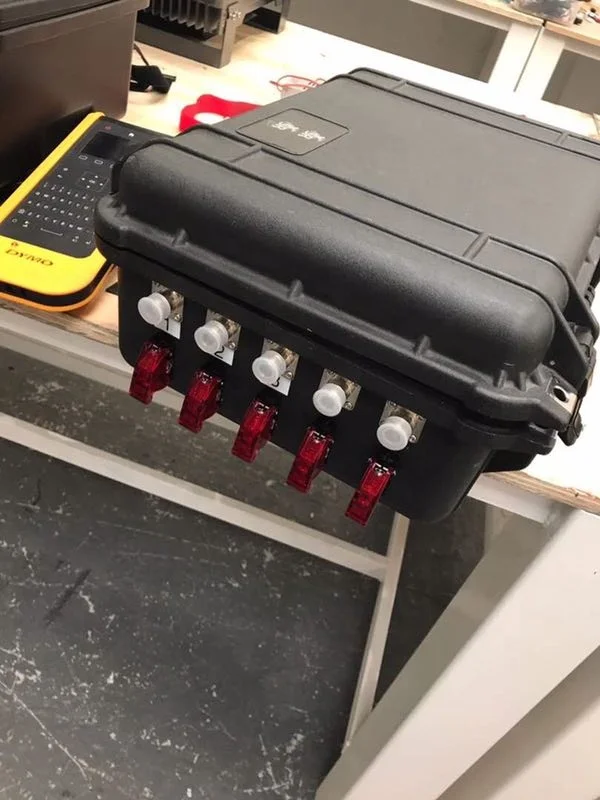

Technical specifications of knapsack shield
Electrical technical index
	parameter	requirement	remarks
1	Working frequency	758~788MHz
		869~880MHz
		925~960MHZ
		1805~1920MHz
		2010-2025MHz
		2110~2170MHZ
		2300~2390MHZ
		2515~2675MHZ
		3300~3400MHZ
		3400~3500MHZ
		3500~3600MHZ
		4800~5000MHZ
		2400~2500MHz
		5150~5850MHz
2	Jamming source	Digital jamming source
3	RF Output	40±2dBm@758~788MHz
		40±2dBm@869~880MHz
		40±2dBm@925~960MHZ
		40±2dBm@1805~1920MHz
		38±2dBm@2010-2025MHz
		40±2dBm@2110~2170MHZ
		38±2dBm@2300~2390MHZ
		40±2dBm@2515~2675MHZ
		37±2dBm@3300~3400MHZ
		37±2dBm@3400~3500MHZ
		37±2dBm@3500~3600MHZ
		36±2dBm@4800~5000MHZ
		30±2dBm@2400~2500MHz
		30±2dBm@5150~5850MHz
4	Cover range	30~80M radius
5	Antennas	omni direction antennas
6	Power on initialization time	≤5S
7	Waterproof grade	can customized
8	Working  environment  temperature	-5~55°C
9	Power supply	AC220V
10	Heat dissipation mode	Air cooling
Overall function
1	Power indicator	The green LED @ power supply is normal, the light is off @ the power supply is abnormal or not powered on
2	Working status indicator	Green light @ normal, red light @ abnormal
3	Alarm indication	Buzzer sounds @ RF any channel failure	Low or no power output
4	Power on switch	Power up the equipment and check the program
5	RF channel switch	Realize the opening and closing of RF channel transmission







Advantages and Disadvantages of Three Common jamming technology

1, Analog VCO technology:

• The design is simple


• low cost


• short development cycle


• It requires large power, large volume, large heat output and poor effect

2.DDS technology(Based on VCO analog technology)

• More complex than VCO analog technology


• High cost


• Longer development cycle than VCO Technology


• Better effect than VCO Technology


• Can be programmed, can select the specified band bandwidth, can allocate power


• Because based on VCO analog technology, the jamming mode is single

3.Digital source jamming technology

• The design includes hardware and software Pure digital signal source
  High cost


• Long production cycle(Digital programming and hardware design take time)


• Perfect performance (Depends on hardware design and software programming)


• Small size, light weight, low power consumption


• Different jamming modes can be loaded at the same time (Multiple jamming modes superposition)
