Установка для очистки речного песка барабанная машина большой емкости оборудование
- Категория: Sand Washer >>>
- Поставщик: Henan,Victory,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.72 $* | 0.73 $* |
| Aug-19-2025 | 0.11 $* | 0.63 $* |
| Jul-19-2025 | 0.8 $* | 0.6 $* |
| Jun-19-2025 | 0.66 $* | 0.97 $* |
| May-19-2025 | 0.28 $* | 0.5 $* |
| Apr-19-2025 | 0.75 $* | 0.30 $* |
| Mar-19-2025 | 0.73 $* | 0.91 $* |
| Feb-19-2025 | 0.14 $* | 0.71 $* |
| Jan-19-2025 | 0.83 $* | 0.57 $* |
Характеристики
Product Overview

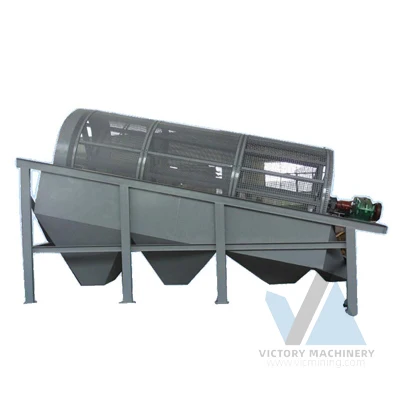

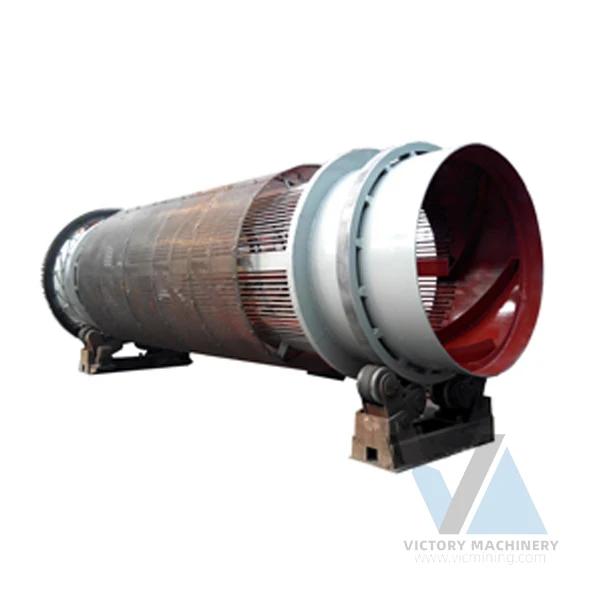

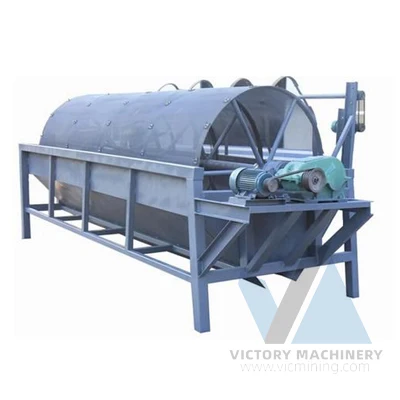

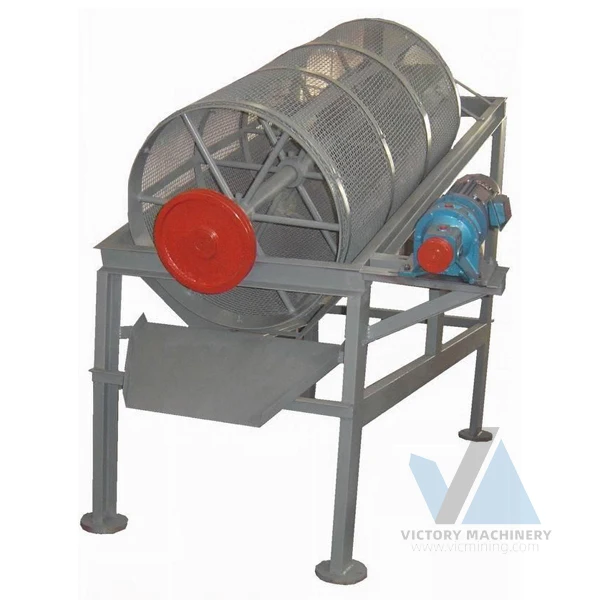

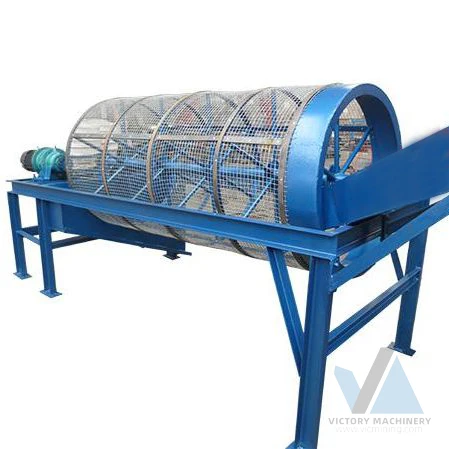

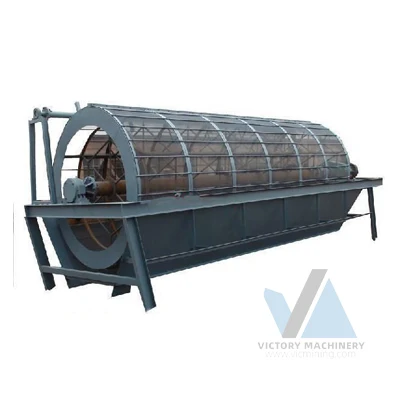

Drum Screen Washing Machine
Drum screen washing machine, also known as rotary screen washing machine, is a new multi-purpose water washing equipment with strong mixing function, cleaning function and screening function. The roller screen washing machine mainly deals with the raw materials with mud content more than 20%. It is a multi-functional equipment that can not only clean the raw materials initially, but also screen the raw materials according to the size of particles.
FEATURES AT A GLANCE
1. Wide adaptability of materials: rotary screen is widely used for screening of all kinds of materials. No matter it is inferior coal, slime, soot and other materials, they are screened smoothly.
2. Simple and diverse feeding modes: the feeding port of rotary screen developed by our company can be designed according to the actual situation on site. No matter it is belt, funnel or other feeding modes, it can be smoothly fed without taking special measures.
3. High screening efficiency: the equipment can be equipped with a comb type cleaning mechanism. In the screening process, no matter how dirty and miscellaneous the materials entering the screening cylinder can be screened, thus improving the screening efficiency of the equipment.
2. Simple and diverse feeding modes: the feeding port of rotary screen developed by our company can be designed according to the actual situation on site. No matter it is belt, funnel or other feeding modes, it can be smoothly fed without taking special measures.
3. High screening efficiency: the equipment can be equipped with a comb type cleaning mechanism. In the screening process, no matter how dirty and miscellaneous the materials entering the screening cylinder can be screened, thus improving the screening efficiency of the equipment.
PRODUCT SPECIFICATIONS
Model | Feed Size (mm) | Drum length (mm) | Sieve length (mm) | Sieve size (mm) | Power (KW) | Speed (r/min) | Capacity (t/h) |
Φ1.5×6m | 250 | 4000 | 2000 | 5-20 | 11 | 12.5 | 30-60 |
Φ1.8×9m | 300 | 6000 | 3000 | 5-20 | 15 | 10.3 | 50-100 |
Φ2.0×11m | 350 | 8000 | 3000 | 5-20 | 18.5 | 9.2 | 80-150 |
Φ2.2×13m | 400 | 10000 | 3000 | 5-20 | 30 | 8.5 | 100-200 |
Φ2.5×15m | 400 | 10000 | 5000 | 5-20 | 37 | 7.8 | 150-250 |
WORKING PRINCIPLE
The main structure of drum screen washing machine is the screening cylinder, which is composed of several circular screens. The screen is inclined to the ground plane as a whole, and the outside is sealed by a sealed isolation cover to prevent environmental pollution. The screening cylinder rotates at a certain speed through the variable speed deceleration system, the materials are separated from top to bottom through the screening cylinder, the fine materials are discharged from the lower part of the front end of the screening cylinder, and the coarse materials are discharged from the lower end of the screening cylinder. The cylinder rotary screen can be equipped with a comb type cleaning mechanism. In the screening process, the relative movement of the comb type cleaning mechanism and the screening cylinder can achieve the effect of continuous cleaning of the screen body, so that the screening cylinder is always clean, non stick, non blocking and does not affect the screening effect in the whole working process.
SALES AND SERVICE NETWORK
Application:
Washing and screening process of mud ore, mountain sand, weathered sand, weathered ore, stone yard waste rock and many other materials.
Packing & Delivery
Packaging Details:
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
Delivery Time:
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
CONTACT US
Company Profile
Henan Victory Machinery Co., Ltd is located in the important central hub city of China – Zhengzhou. It is a high-tech enterprise provides "environmental mine construction and operation" as the main and integrates design and development, machinery manufacturing, equipment procurement, management services, mine operations, mining materials procurement management and industry resource integration. The company's business scope covers all over the world. So far, it has completed more than 100 mining and mining industry chain service projects, with more than 40 kinds of ore mining technology and experience.
CONTACT US
Are you want more detail of this machine? Please send your inquiry details in the below for free sample, Click "send" Now! The best price you may get early. Mobile/Whatsapp: 0086135 9808 0722
Tel: 0086 37167917723
Web: www.vicmineral.com
www.chinaminingcrusher.com
www.chinaminingcrusher.com
Henan Victory Machinery Co.,Ltd
ADD: No.16, Gongye Road, Mazhai Town, Erqi District, Zhengzhou, Henan, China
FAQ
Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment?
A3: 30% advanced payment by T/T, balance paid before shipment.
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment?
A3: 30% advanced payment by T/T, balance paid before shipment.
