Wholesale Custom New 1.44 Inch Transmissive Touch Screen Normally White Lcd Display
- Категория: LCD Module >>>
- Поставщик: Shenzhen,Chenghao,Optoelectronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.58 $* | 1.69 $* |
| Jul-16-2025 | 1.41 $* | 1.20 $* |
| Jun-16-2025 | 1.48 $* | 1.26 $* |
| May-16-2025 | 1.79 $* | 1.16 $* |
| Apr-16-2025 | 1.37 $* | 1.31 $* |
| Mar-16-2025 | 1.23 $* | 1.45 $* |
| Feb-16-2025 | 1.74 $* | 1.37 $* |
| Jan-16-2025 | 1.74 $* | 1.10 $* |
Характеристики
Product Description
Product Description
ChengHao Display model CH144T006A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.

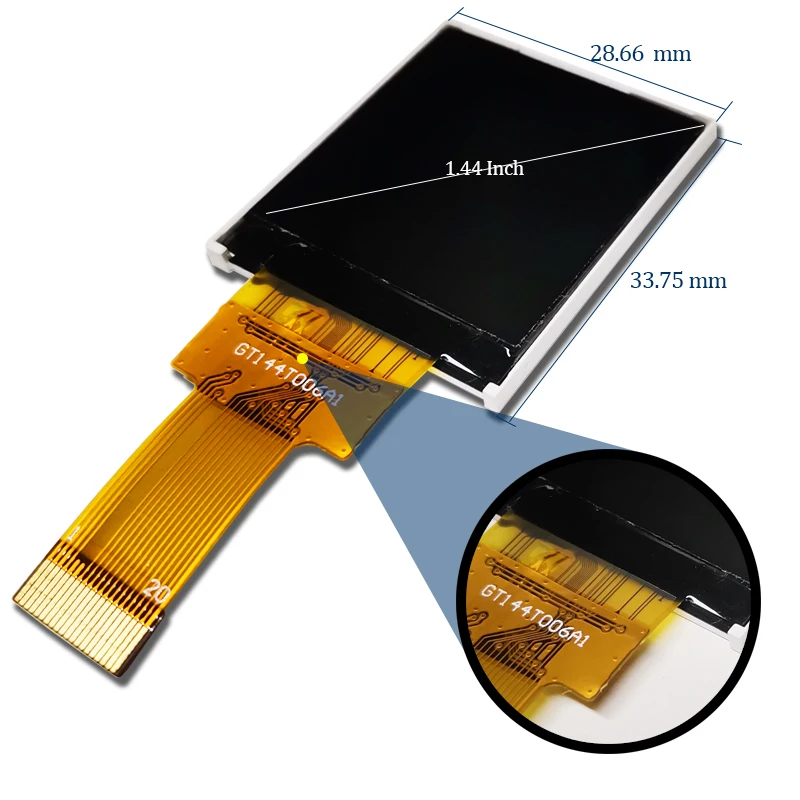

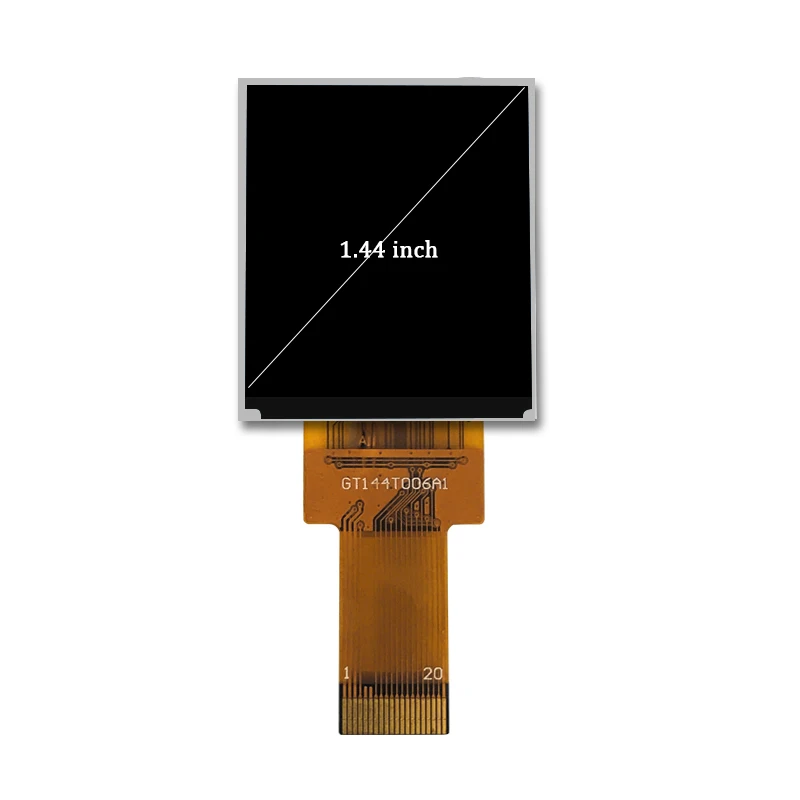

This TFT LCD has a 1.44 (Vertical screen) inch diagonally measured active display area with 128*3RGB*128 resolution.
The driver used for this project is the St7735s or compatible and can display 65K colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
This TFT LCD has a 1.44 (Vertical screen) inch diagonally measured active display area with 128*3RGB*128 resolution.
The driver used for this project is the St7735s or compatible and can display 65K colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
item | value |
Type | TFT LCD |
Display Size | 29.0(W)*34.41(H)*2.25(T)mm |
Place of Origin | China |
Brand Name | Chenghao |
Module type | 1.44"TFT |
Number of Dots | 128*3(RGB)*128 |
Display Mode | TN/Transmissive/Normally white |
Module size | 29.0(W)*34.41(H)*2.25(T)mm |
TFT Active area | 25.5(W)*26.5(H)mm |
Interface | i80-system 8-bit interface |
Luminace | 200cd/m2 |
Suppor OEM Touch Panel | Yes |
Resolution | 128*128 |
Color | Full Color |
Our Strength
Customized Solution
Quality Certificates
Cooperation Partner
Applications
Company Profile
About FAQ
Q: Are you open to OEM processing?
A: YES!
Q:Can we customize product? What cost will be included?A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel
and so on.
and so on.
Q: Payment Terms?
A:Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.
Q: What is your delivery method?
A:DHL/ UPS / FEDEX/TNT , Or ship the goods to your HK forwarder.
Q:Products are in stock? How long can you deliver?
A: Our inventory is mainly raw materials,semi-finished and a small amount of finished products.
After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery TAKES 5-6 weeks
After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery TAKES 5-6 weeks
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material
transportation.
transportation.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
Q: What certification could provide ?
A: Products by RoHS, CE, SGS certification.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
Q:The product specification is in Chinese or English?
A:The version of product specification is English.
