hydraulic hoisting winch high torque planetary speed
- Категория: Редукторы скорости >>>
- Поставщик: Shandong,Daixin,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1190.13 $* | 1250.15 $* |
| Aug-17-2025 | 1180.49 $* | 1239.78 $* |
| Jul-17-2025 | 990.99 $* | 1040.73 $* |
| Jun-17-2025 | 1160.80 $* | 1218.42 $* |
| May-17-2025 | 1010.55 $* | 1061.51 $* |
| Apr-17-2025 | 1140.50 $* | 1197.56 $* |
| Mar-17-2025 | 1130.37 $* | 1187.35 $* |
| Feb-17-2025 | 1120.40 $* | 1176.87 $* |
| Jan-17-2025 | 1110.21 $* | 1166.39 $* |
Характеристики
Product Overview

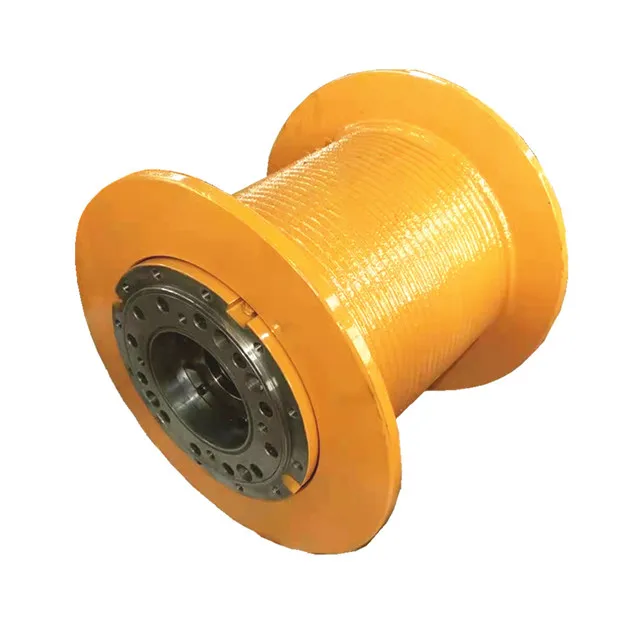

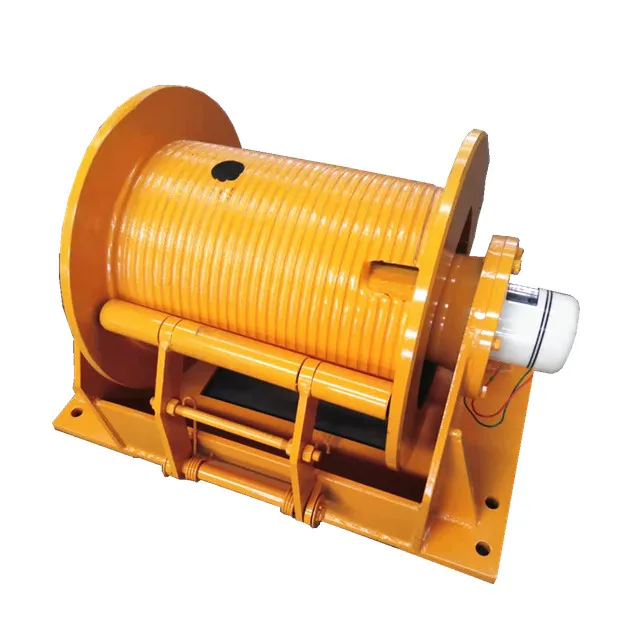

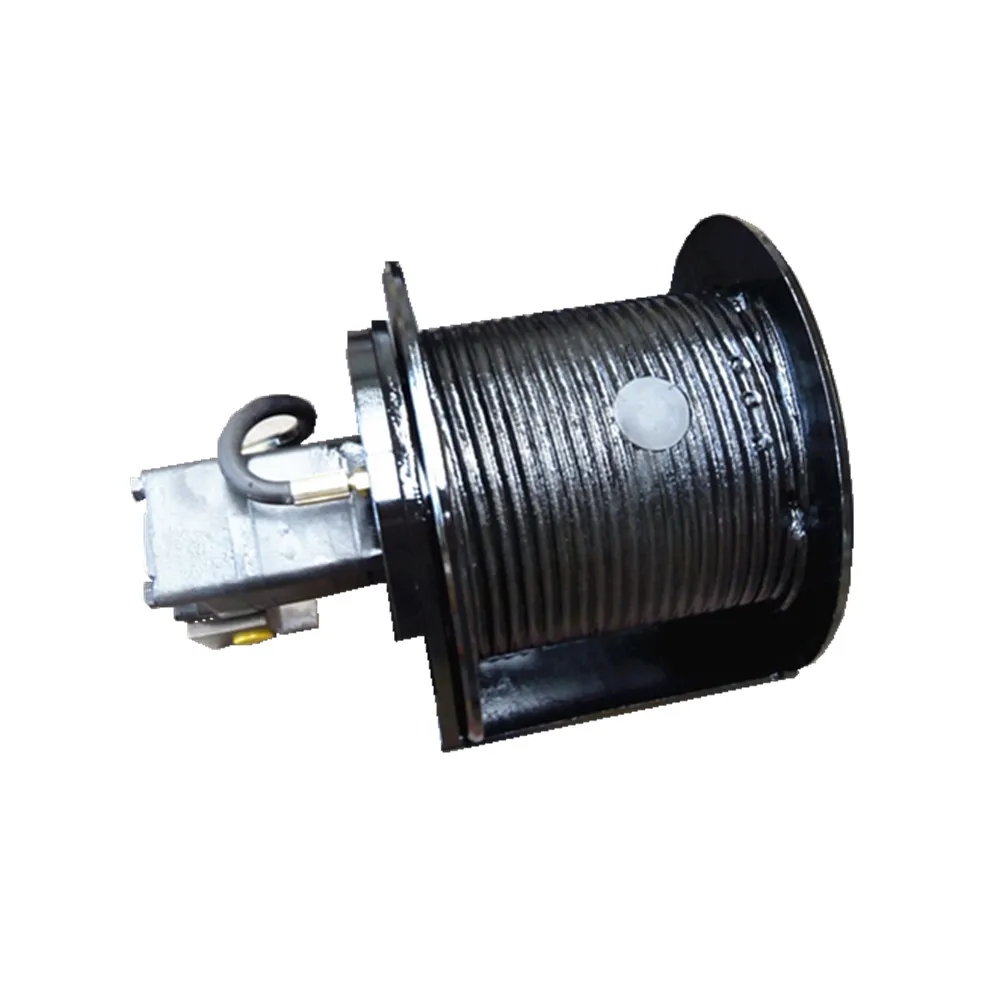

Hydraulic hoisting winch high torque planetary speed reducer winch
Daixin planetary reducer gearbox is designed with large torque, high start and transmission efficiency, low-speed stability, compact radial size, low noise, etc.
The main devices we are making are walking reducers, lifting reducers and swing reducers.
They are widely used for vehicle cranes, crawler cranes, truck mounted cranes, marine cranes, aerial work trucks, excavators, etc.
The main devices we are making are walking reducers, lifting reducers and swing reducers.
They are widely used for vehicle cranes, crawler cranes, truck mounted cranes, marine cranes, aerial work trucks, excavators, etc.
Product Paramenters
Product Name | Hoisting Winch |
Model | QBL85C2 |
Usage | lifting winch for cranes |
Max. reducer output torque | 10500 Nm |
Reduction ratio | 37.6:1 |
Max. reducer output speed | 50.9 r/min |
Max. Line pull | 43 KN (4th layer) |
Drum diameter | 385 mm |
Drum width | 543 mm |
Wire rope capacity | 224 m (dia. 15mm, 5 layers) |
Application | crane, truck cranes, aerial truck, etc |
Customization | acceptable |
Mounting base | Optional |
Main Features
1) Compact size
2) Low noise
3) High transmission efficiency
4) Good working condition under lower speed
5) Customized hydraulic motors and brakes for different request
6) One Year Warranty from reception
7) Free components for replacement within warranty period
8) Professional and tailored solution for different requirements
9) Free technical support at any time
10) Customer training is available.
2) Low noise
3) High transmission efficiency
4) Good working condition under lower speed
5) Customized hydraulic motors and brakes for different request
6) One Year Warranty from reception
7) Free components for replacement within warranty period
8) Professional and tailored solution for different requirements
9) Free technical support at any time
10) Customer training is available.
Product packaging
Packing and shipping
1. Packed by wooden box, fumigation-free for export and import standard.
2. Shipped by sea or air with customer require
Company Profile
Shandong Daixin Intelligent Technology Co., Ltd is a scientific and technological enterprise engaged in the research, development and production of planetary gear transmission products, like walking reducers, swing reducers, lifting reducers, hydraulic planetary winches, etc.
The company has always put quality management as the top priority of the company's development. The planetary gear transmission productions are manufactured not only meet the international ISO 4301 and ISO9001 standards, but also meet the US SAE J706 and the European Union CE standards.
Advanced equipments and standardized production process
Output over 10000 units yearly
Output over 10000 units yearly
Daixin Intelligent Technology relies on quality, reputation and service to develop, cultivate and consolidate the national and global markets.
Currently, the cooperative customers include: the famous construction machinery manufacturers Sany and Zoomlion, the largest wrecker manufacturer Guangdong Yuehai Company, and the largest high-altitude vehicle manufacturer Xuzhou Handler Company. Products are also exported to Russia, Canada, India, Malaysia and other countries.
Thank you for the time
Looking forward to hearing from you.
