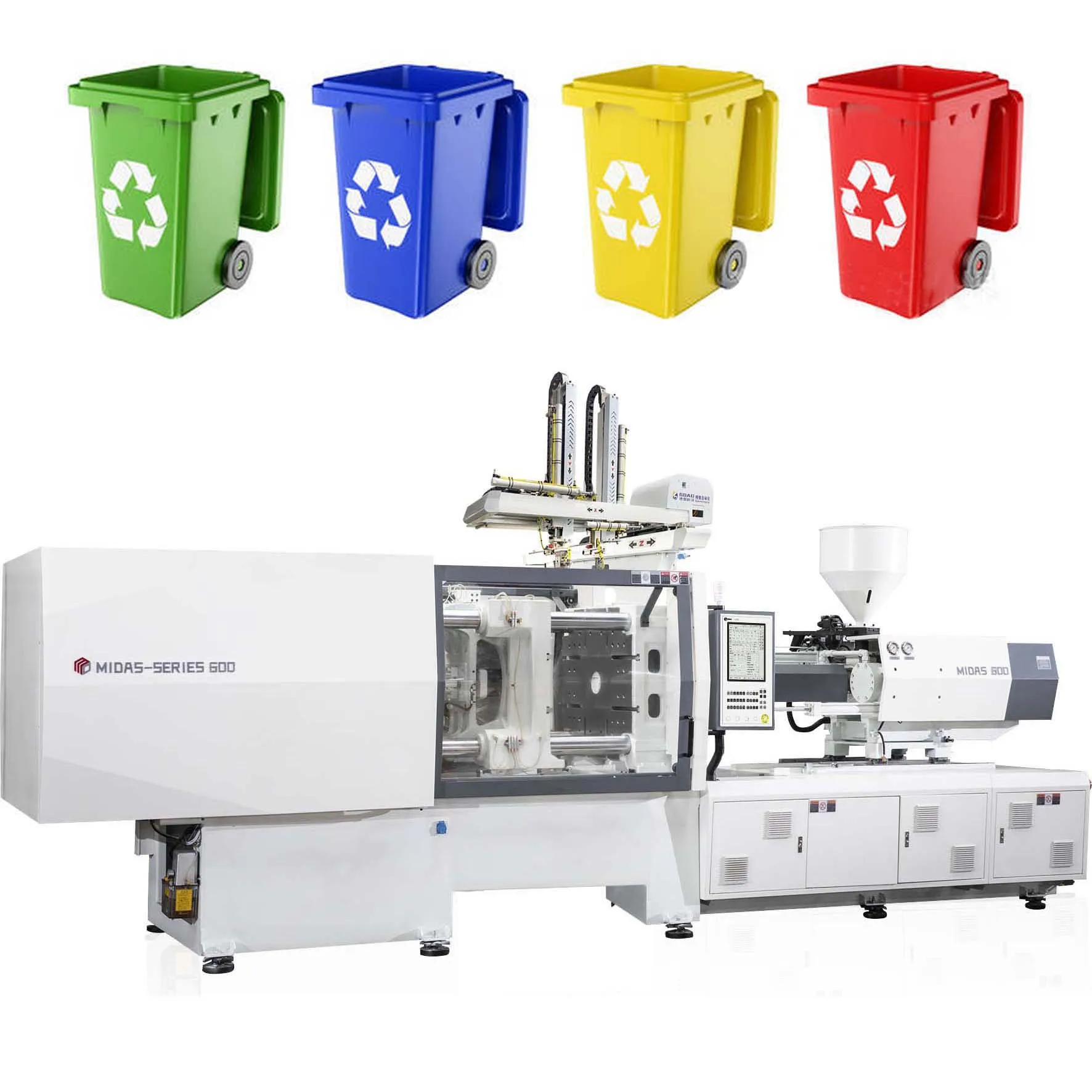

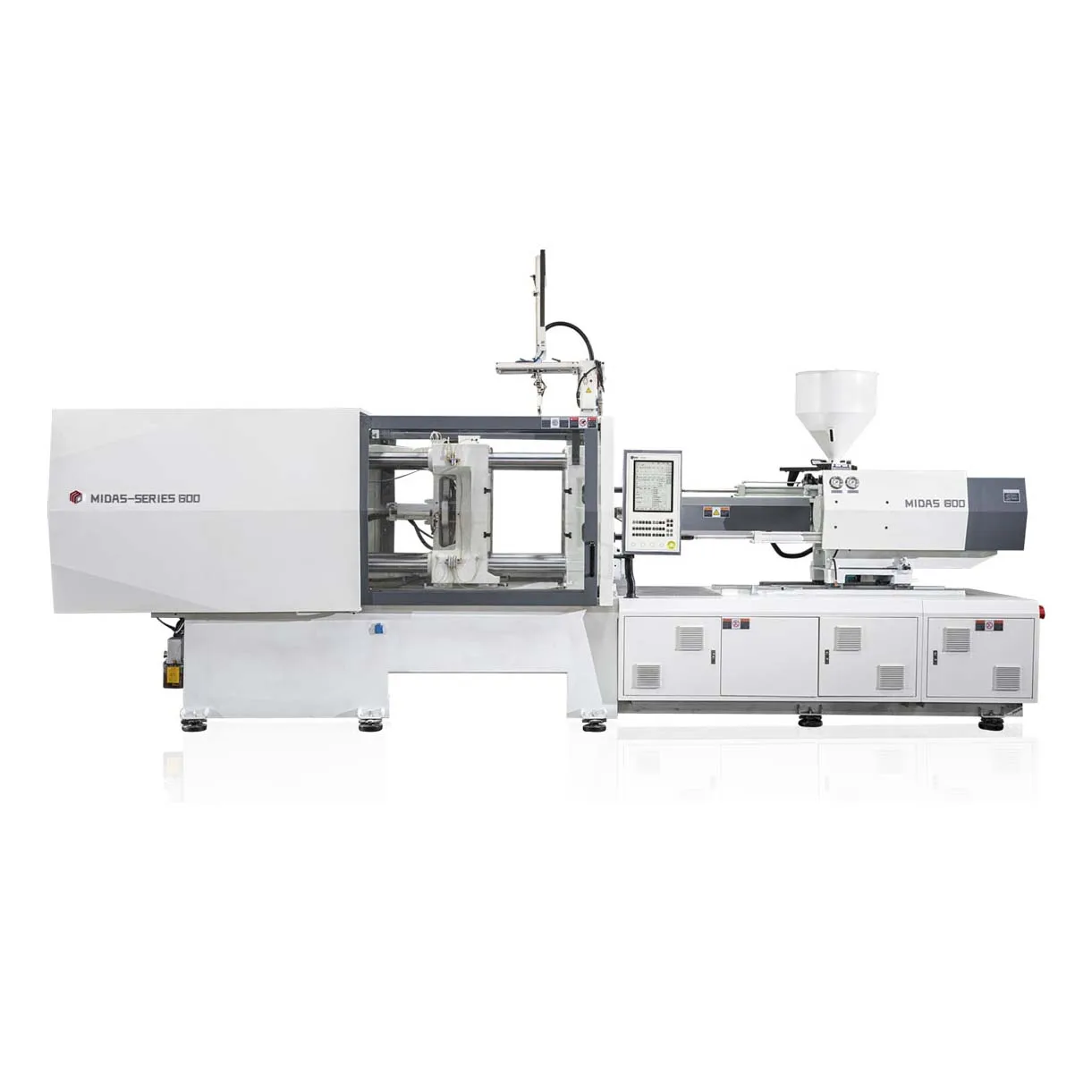

Станок для литья под давлением M600(600 тонн) цвета слоновой кости
- Категория: Plastic Injection Machines >>>
- Поставщик: Ningbo,Hoy,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 63760.25 $* | 66948.87 $* |
| Aug-19-2025 | 63224.72 $* | 66385.98 $* |
| Jul-19-2025 | 53044.67 $* | 55696.78 $* |
| Jun-19-2025 | 62153.29 $* | 65261.82 $* |
| May-19-2025 | 54116.13 $* | 56822.67 $* |
| Apr-19-2025 | 61081.84 $* | 64135.69 $* |
| Mar-19-2025 | 60545.11 $* | 63572.22 $* |
| Feb-19-2025 | 60010.83 $* | 63011.93 $* |
| Jan-19-2025 | 59474.24 $* | 62448.56 $* |
Характеристики
1.Technology parameters:
DESCROPTION | UNIT | MODEL: M600 | ||
| A | B | C | |
INJECTION UNIT | ||||
Screw Diameter | mm | 85 | 90 | 100 |
Injection Pressure | kg/cm2 | 198 | 177 | 143 |
Shot Volume (Theoretical) | cm3 | 2554 | 2863 | 3534 |
Shot Weight (PS) | g | 2324 | 2605 | 3216 |
oz | 81.98 | 91.89 | 113.44 | |
Injection Rate | cm3/s | 519 | 582 | 719 |
Plasticizing Capacity | kg/hr | 83 | 96 | 128 |
Screw Speed | rpm | 145 | ||
CLAMPING UNIT | ||||
Clamp Force | kn | 6000 | ||
Space Between Tie Bars (W*H) | mm | 870X820 | ||
Max. Mold Height | mm | 885 | ||
Min. Mold Height | mm | 400 | ||
Mold Locating Ring Diameter | mm | 160 | ||
Ejector Stroke | mm | 250 | ||
Ejector Force | kn | 160 | ||
OTHERS | ||||
Motor Power | kw | 55(200*2500) | ||
Heater Power | kw | 40 | ||
Oil Tank Capacity | l | 800 | ||
Machine Dimension (LxWxH) | m*m*m | 9.3X2.1X2.6 | ||
Machine Weight | Ton | 26.2 | ||
2.The famous and high-performance components
3. Application Industry
4. Innovation Technology
