Мобильный телескопический конвейер для обработки сыпучих материалов горнодобывающей
- Категория: Укладчик и разборщик >>>
- Поставщик: Zoomry,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.18 $* | 0.77 $* |
| Aug-18-2025 | 0.79 $* | 0.97 $* |
| Jul-18-2025 | 0.50 $* | 0.62 $* |
| Jun-18-2025 | 0.33 $* | 0.29 $* |
| May-18-2025 | 0.60 $* | 0.56 $* |
| Apr-18-2025 | 0.11 $* | 0.50 $* |
| Mar-18-2025 | 0.7 $* | 0.63 $* |
| Feb-18-2025 | 0.2 $* | 0.77 $* |
| Jan-18-2025 | 0.84 $* | 0.35 $* |
Характеристики
Product Description
Customized Mobile Stacking System Telescopic Stacker Belt Conveyor
According to the field use needs of material yard, open-pit mine, wharf and concentrator, the
equipment can realize flexible movement and stacking.
By rotating the stacking material in the sector area and the stretching characteristic of the
blanking point, the stacking material can reach 30,000-50,000 tons.
Product name | Customized mobile telescopic radial stacker price | ||||||
Material | Carbon steel | ||||||
Belt width | 800mm-1600mm or per customer's request | ||||||
Max Capacity | 450t/h-2400t/h or per customer's request | ||||||
Certification | ISO9001:2008,GB,DIN,ISO,CEMA,JIS | ||||||
Application | Mining, Port, Cement, Steel, Metallurgy, Electric Power, Coal, Machinery and Other Industries. | ||||||
Advantages | Portable, rotatable, height adjustable, conveying length retractable, radial movement | ||||||

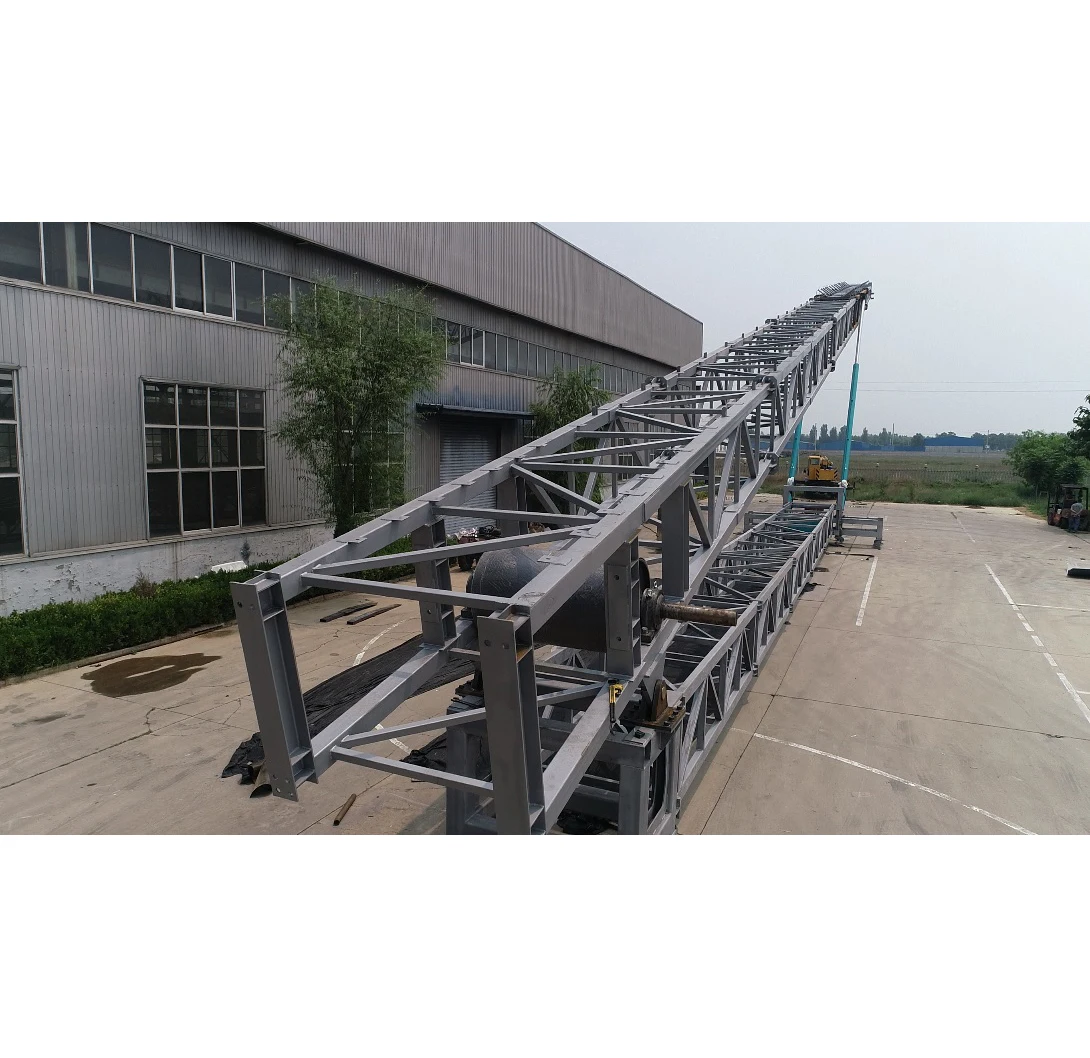

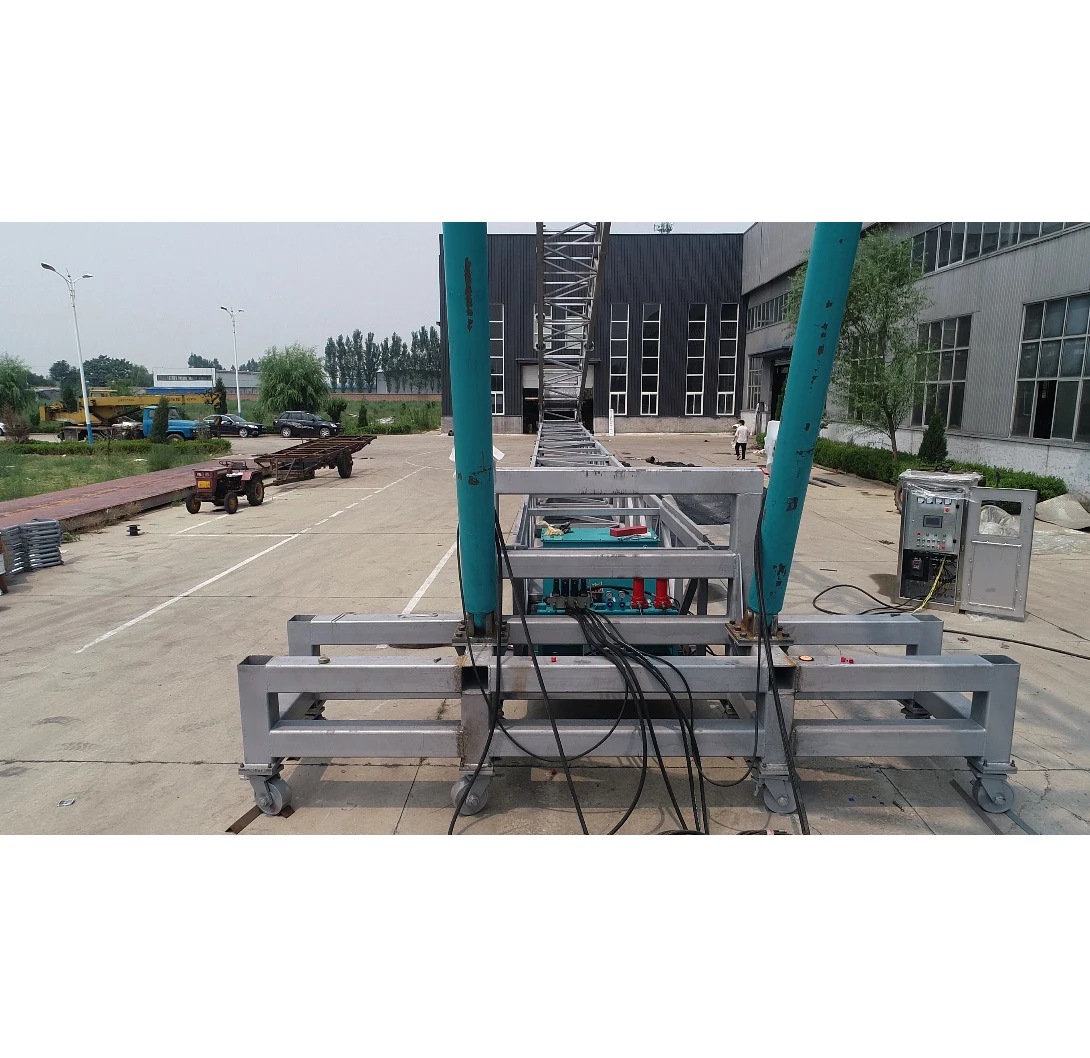

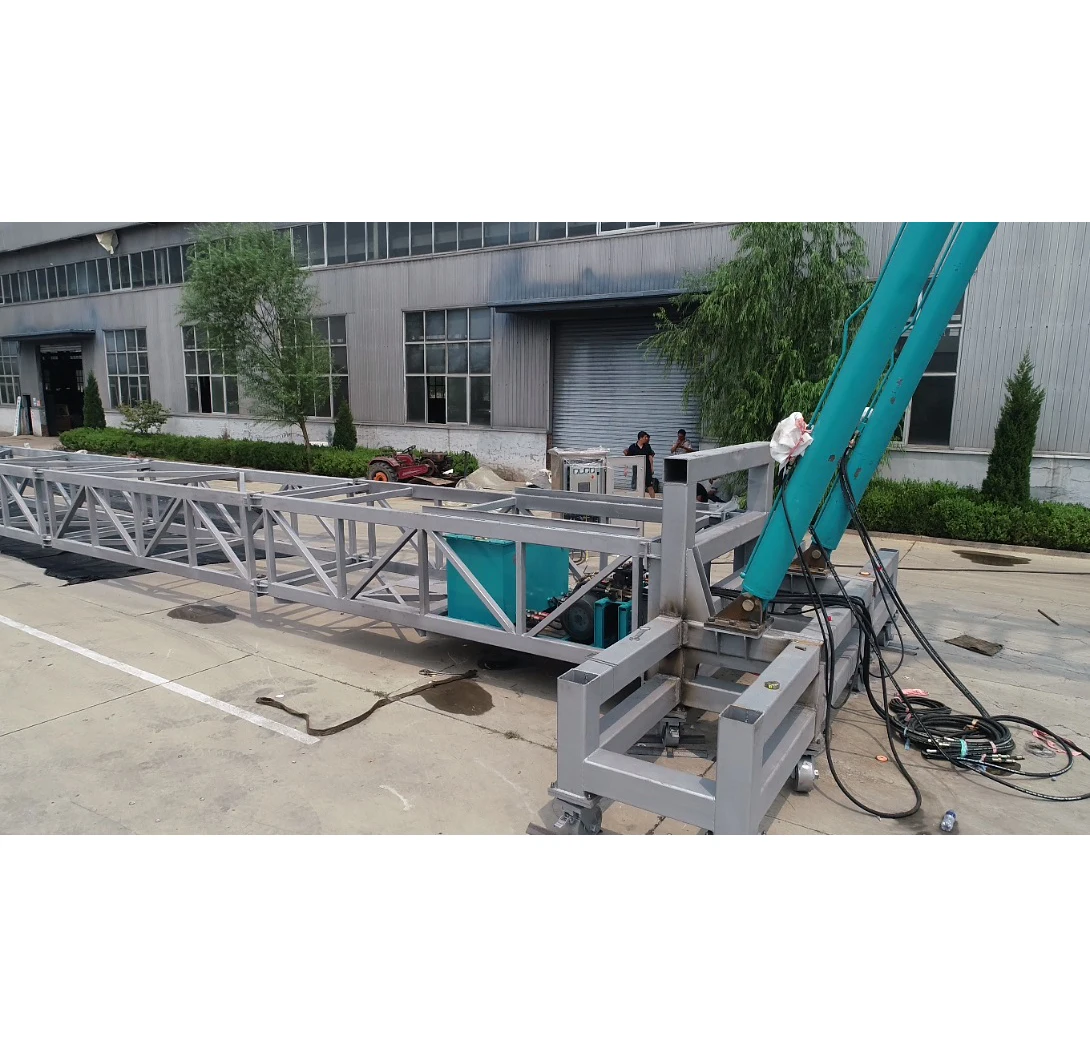

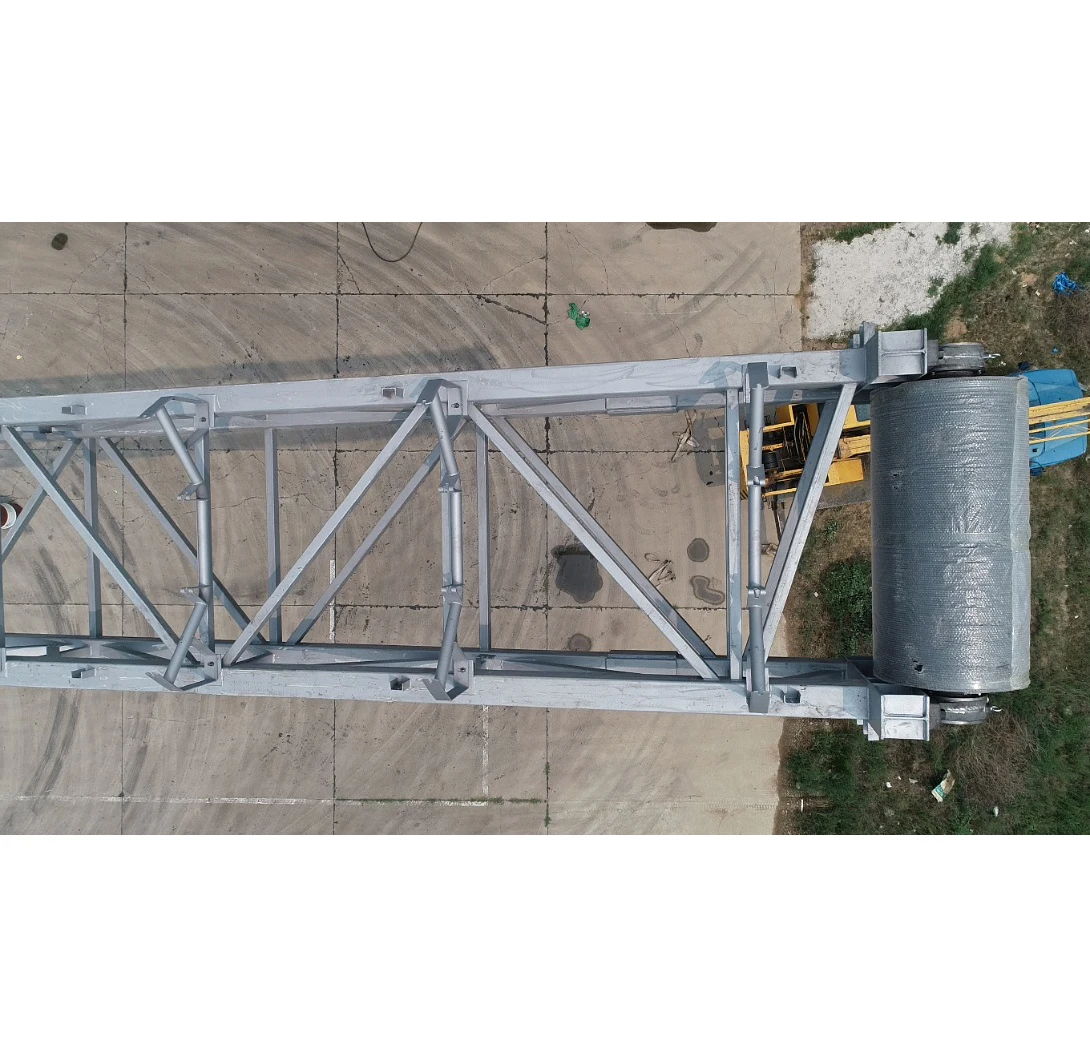

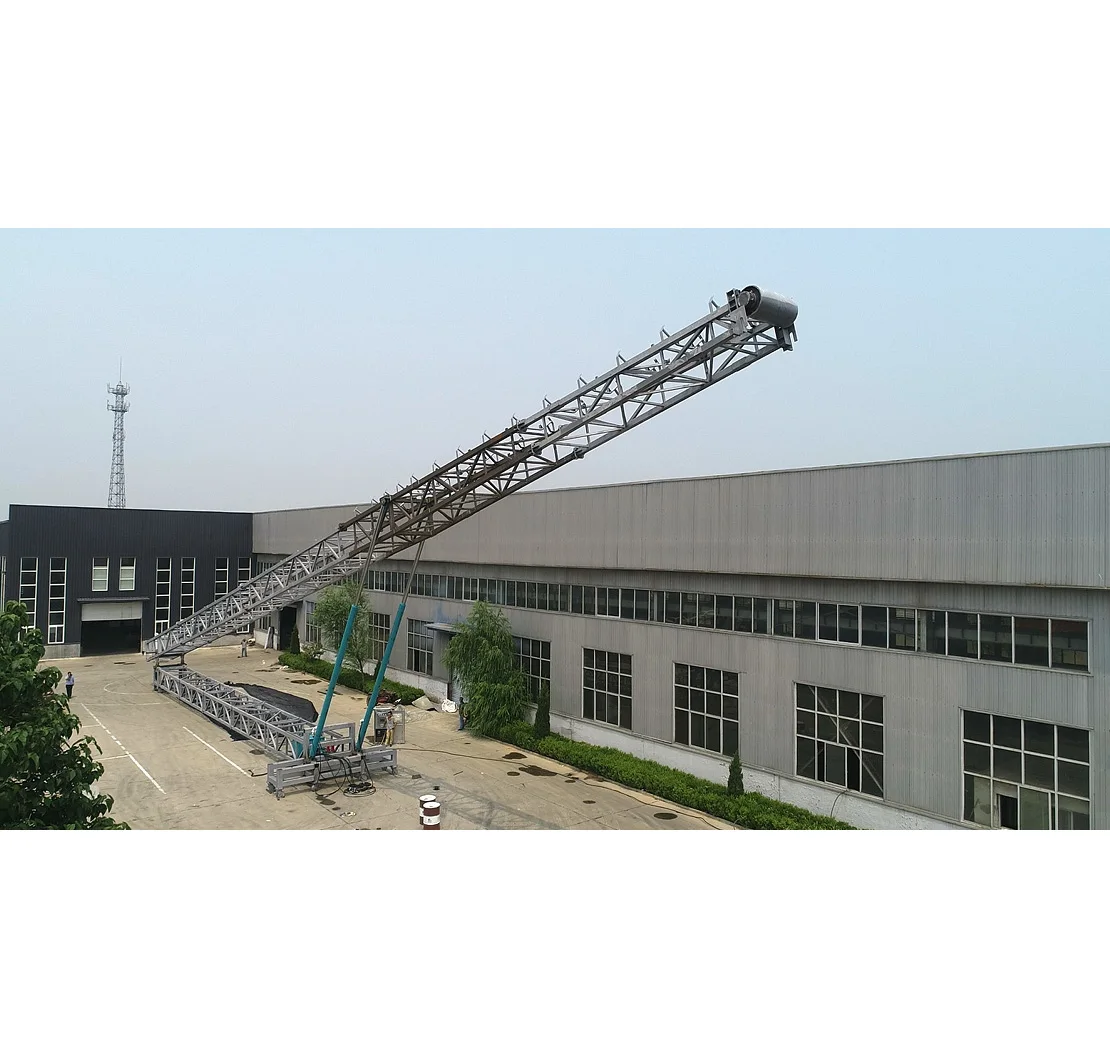

Product Show
The application advantages as follows:
1. Rotating the stacker fan-shaped and increase the stacker capacity;
2. The length is able to further increased the stacking capacity;
3 it can be moved as a whole, easy for users to change the place of use
4 through the expansion and contraction of the hydraulic cylinder, the stacker angle adjustable, can reduce the dust and easy to move and maintenance at the same time
5. Non-standard design of length and transportation capacity according to users’ needs;
Type | Width mm | Max Capacity m³/h | Speed m/s | Length m | Max inclined angle | Telescopic length m |
ZR80SF | 800 | 450 | 2.5 | 40 | 20° | 10-15 |
ZR100SF | 1000 | 700 | 2.5 | 40 | 20° | 10-15 |
ZR120SF | 1200 | 1000 | 2.5 | 50 | 20° | 15-20 |
ZR140SF | 1400 | 1500 | 2.5 | 50 | 20° | 15-20 |
ZR160SF | 1600 | 2400 | 2.5 | 55 | 20° | 15-20 |
* Proven best method of stockpiling in the industry for maintaining material quality.
* Up to 30% more capacity on same foot print compared to conventional stackers.
* Greatly reduces segregation, degradation, compaction and contamination when stockpiling.
* Provides a higher quality product at a lower stockpiling cost per tonne
* Eliminates need for wheel loaders to build stockpiles – reduced labour and maintenance costs.
* Loading rates up to 3,000TPH.
* Fully extended lengths up to 58 metres (190ft)
* Eliminate double handling of materia
* Up to 30% more capacity on same foot print compared to conventional stackers.
* Greatly reduces segregation, degradation, compaction and contamination when stockpiling.
* Provides a higher quality product at a lower stockpiling cost per tonne
* Eliminates need for wheel loaders to build stockpiles – reduced labour and maintenance costs.
* Loading rates up to 3,000TPH.
* Fully extended lengths up to 58 metres (190ft)
* Eliminate double handling of materia

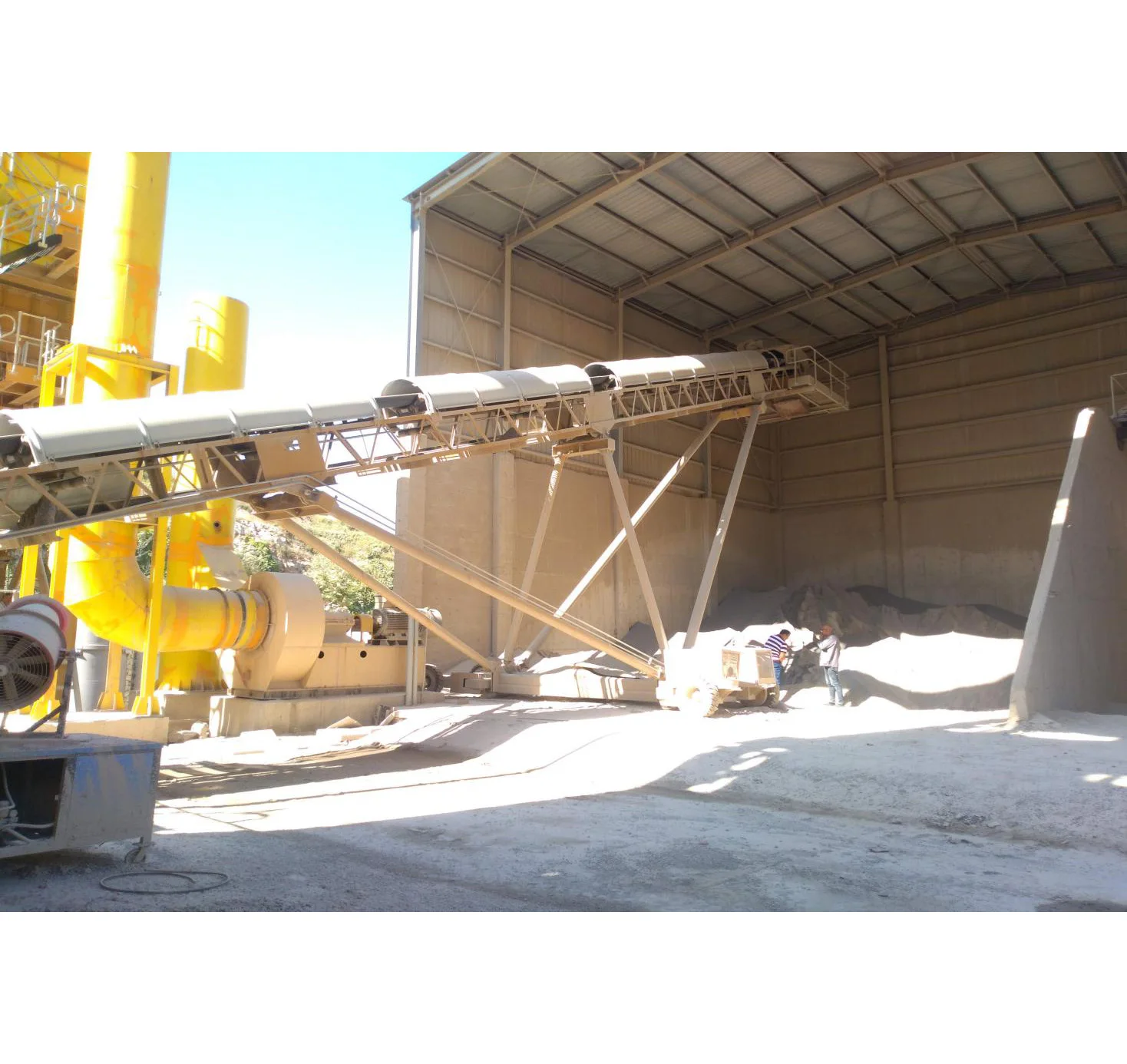

Typical project
Our Company
Zoomry Heavy Industry Co., Ltd. a leader in Bulk material handling system with a portfolio of products, covering all the major material handling fields. Zoomry has a highly skilled projects division specializing in the design, manufacture, installation and commissioning of belt conveyors, crusher, screening, bucket teeth and crowler of excavator for use in mining, power plant, cement plant, port, municipal work.
According to the needs of customers, the feasible solution of bulk material handling system is tailor-made, make more economic, greener, and energy saving. Such as curved overland conveyor and steep belt conveyor, are specially designed for customers. Strive to continuously improve the detail quality and service life of the core components of belt conveyor, reduce maintenance costs.
Our Service
The first-class after-sales service team provides customers with technical support 24 hours a day, escorting the safe and reliable operation of the equipment.
1.Your inquiry related to our product will be replied within 24hours.(E-mail or TM)
2.Well-trained & experienced staff are to answer all your inquiries in English.
3.Working time: 9:00am – 5:30pm, Monday to Friday (UTC 8).
4.Your business relationship with us will be confidential to any third party.
5.Good after-sale service offered, please get back if you got question.
2.Well-trained & experienced staff are to answer all your inquiries in English.
3.Working time: 9:00am – 5:30pm, Monday to Friday (UTC 8).
4.Your business relationship with us will be confidential to any third party.
5.Good after-sale service offered, please get back if you got question.
Packing & Delivery
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge, so customers only need to pay the cost of freight. And the cost of freight is quite low as we get a big discount from the international express agency.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
