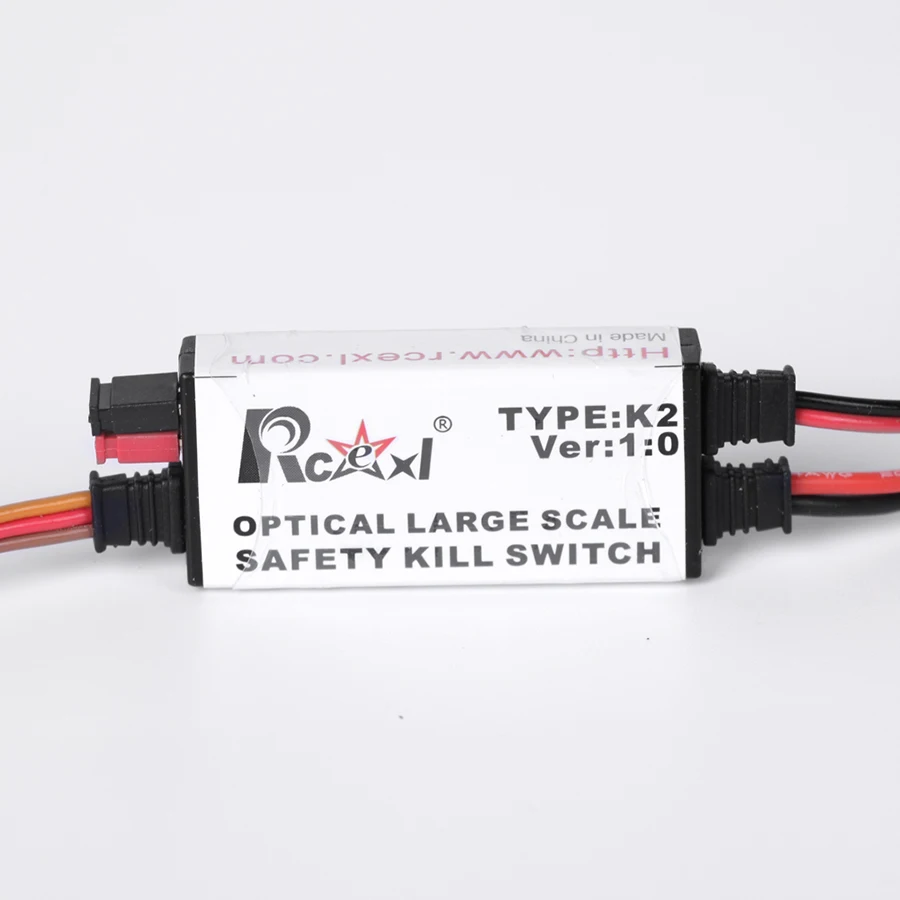

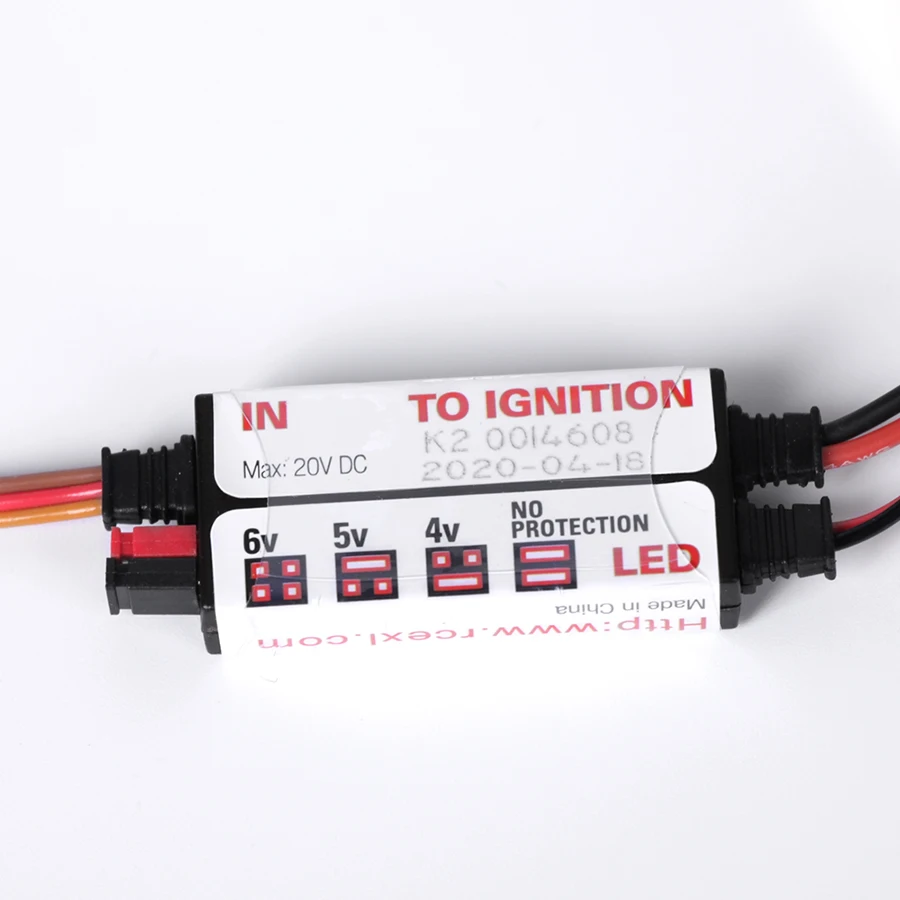

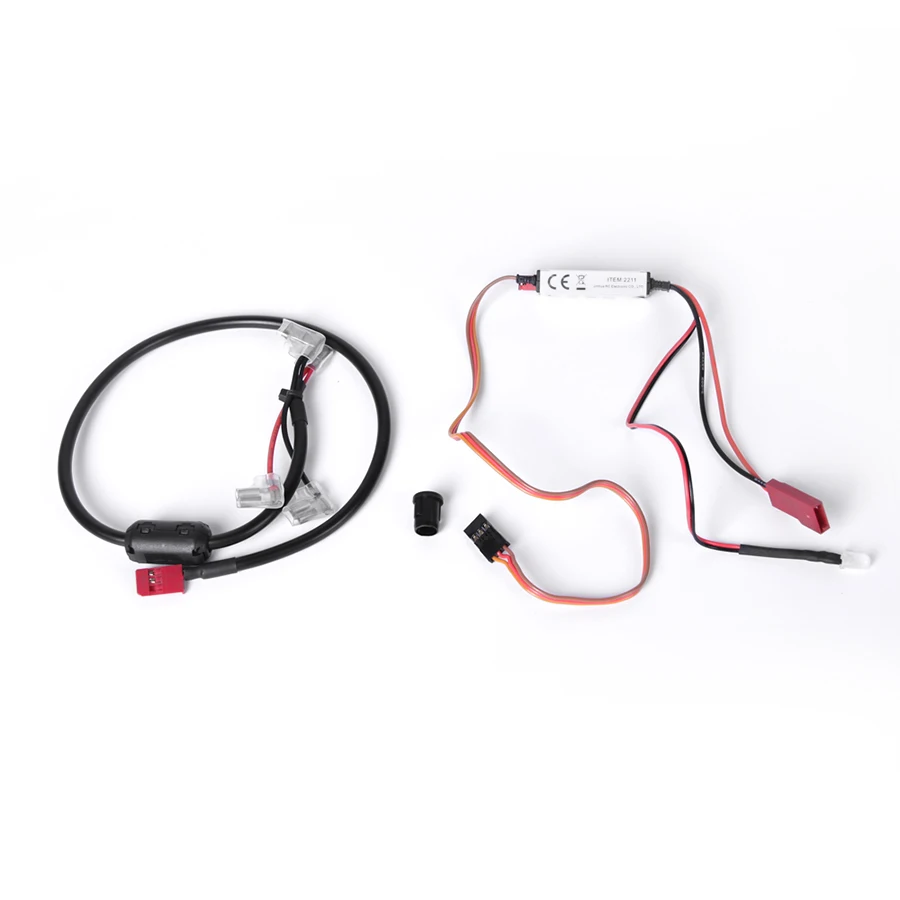

Дистанционный предохранительный переключатель с дистанционным управлением для двигателя

Описание и отзывы

Трекер стоимости

Характеристики

Features:

Works on any gasoline engine land or sea
with a magneto drive ignition (not compatible with CDI driven ignition systems).

Remote LED to indicate if the ignition is
live.

Fiber optically coupled to eliminate
interference.

Li-Po/Li-Ion/LiFe/Ni-Cd/Ni-MH compatible.

Input range from 3V, 3 amps up to 20V, 16
amps.

Surface mount technology.

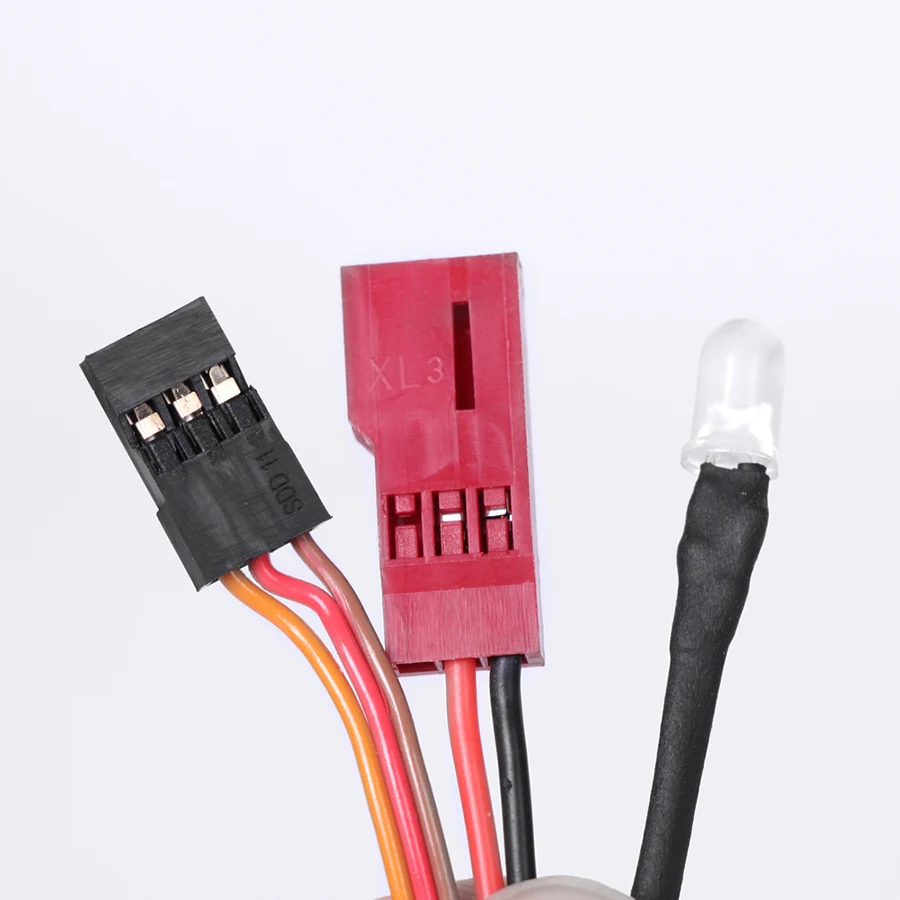

High-quality wiring with universal servo
connectors.

Only 0.3 oz/8 g.

Manually shut off engine from assigned
button on transmitter.

Automatically shuts down power to the
ignition on loss of signal or low voltage.



Installation:

1. Connect Safety Kill Switch into AUX1 or
an open channel.

2. Install the kill switch in a
convenient, secure and protected location. The receiver or receiver battery box
is ideal.

3. Mount LED in a visible location.

4. Secure the Safety Kill Switch in
position with foam tape in order to prevent vibration damage.

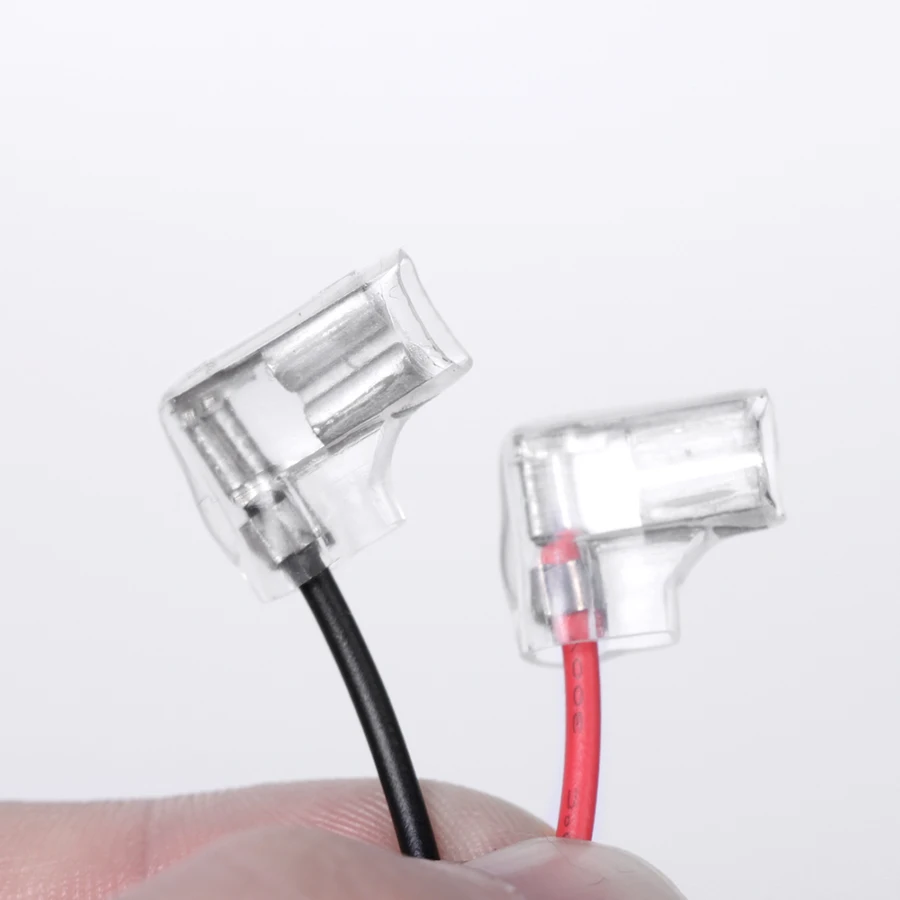

5. Connect the Safety Kill Switch cable to
the ignition coil terminals. Polarity doesn’t matter.

6. Zip tie ignition cable away from the
flywheel and any moving parts.
