Сверхкритический процесс извлечения двуокиси углерода
- Категория: Extractor >>>
- Поставщик: Sinoped,International,(Liaoning),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.16 $* | 0.81 $* |
| Aug-19-2025 | 0.57 $* | 0.65 $* |
| Jul-19-2025 | 0.83 $* | 0.12 $* |
| Jun-19-2025 | 0.90 $* | 0.8 $* |
| May-19-2025 | 0.33 $* | 0.35 $* |
| Apr-19-2025 | 0.47 $* | 0.67 $* |
| Mar-19-2025 | 0.30 $* | 0.32 $* |
| Feb-19-2025 | 0.20 $* | 0.52 $* |
| Jan-19-2025 | 0.71 $* | 0.16 $* |
Характеристики
Supercritical Co2 Fluid Extraction Machine/essential Oil/plant/herb Oil Extractor
Product Description
The technology of SFE(Supercritical Fluid Extraction) is a new subject from Modern Chemicals Industries, which is one of the
advanced Separation Technology. As for SCF(Supercritical Fluid), it is was that fluid on Critical Point(Pc, Tc) under Thermodynamic State, the Critical Point is the state point when interface of Gas and Liquid disappear, which process very novel physical& chemical characters. It density degree close to liquid, viscosity degree close to gas, but bigger diffusion coefficient&dielectric constant, smaller viscosity etc. these characters have contributed to good separation effects. So the SFE is mainly about Separation, the solution will touch with extracted materials under High Pressure& Suitable Temperature, the Solutes would be diffused into the solution, then change the operation Conditions, to make the Solutes separate out.
advanced Separation Technology. As for SCF(Supercritical Fluid), it is was that fluid on Critical Point(Pc, Tc) under Thermodynamic State, the Critical Point is the state point when interface of Gas and Liquid disappear, which process very novel physical& chemical characters. It density degree close to liquid, viscosity degree close to gas, but bigger diffusion coefficient&dielectric constant, smaller viscosity etc. these characters have contributed to good separation effects. So the SFE is mainly about Separation, the solution will touch with extracted materials under High Pressure& Suitable Temperature, the Solutes would be diffused into the solution, then change the operation Conditions, to make the Solutes separate out.
Model | HA120-50-01 |
Max. extract pressure | 50MPa |
Single extract cylinder volume | 1L |
Extraction temperature | Room temp – 75℃ |
Max. flow | 0-50L/h(adjustable) |
Kettle material | 1Cr18Ni9Ti |
Separation kettle volume | 600ml * 2sets |
Separation kettle pressure | 30MPa |
CO2 store tank volume | 3L |
CO2 store tank pressure | 16MPa |
Dimension | 1700*1520*1000mm |
Weight | 300KG(Approximate) |

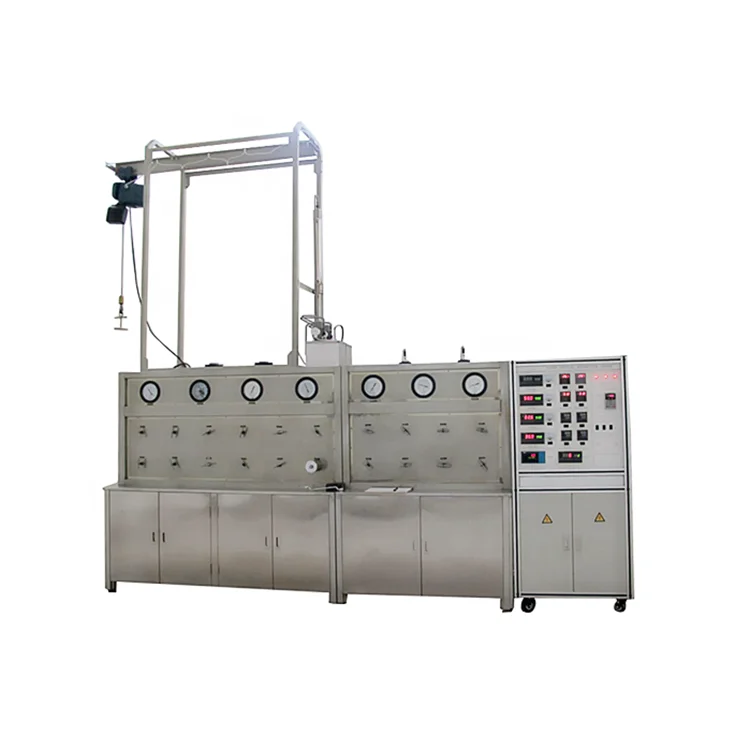

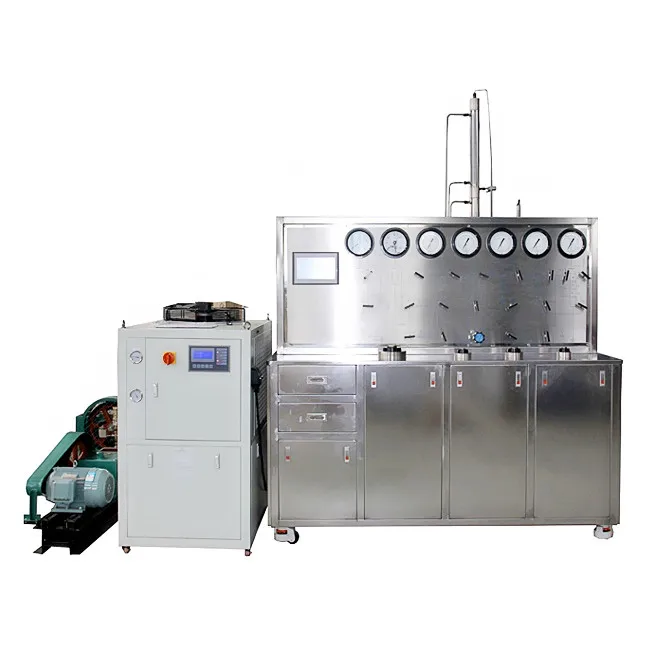

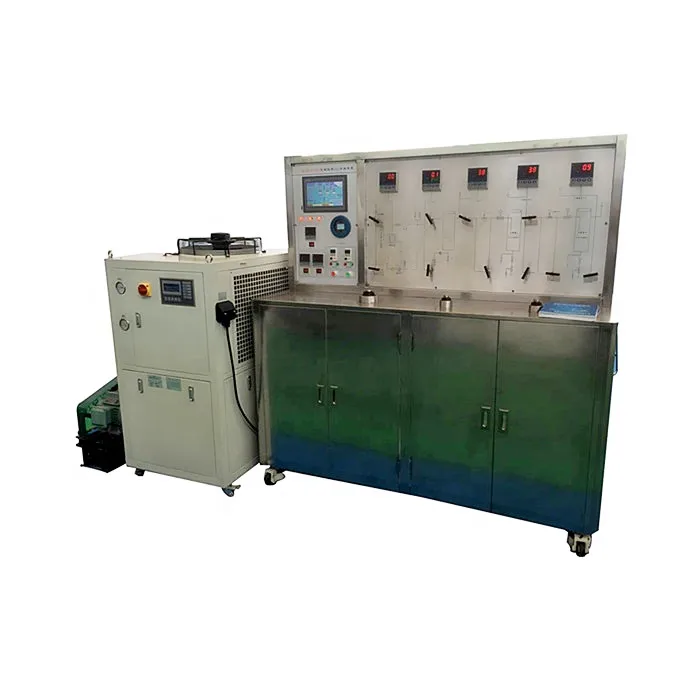

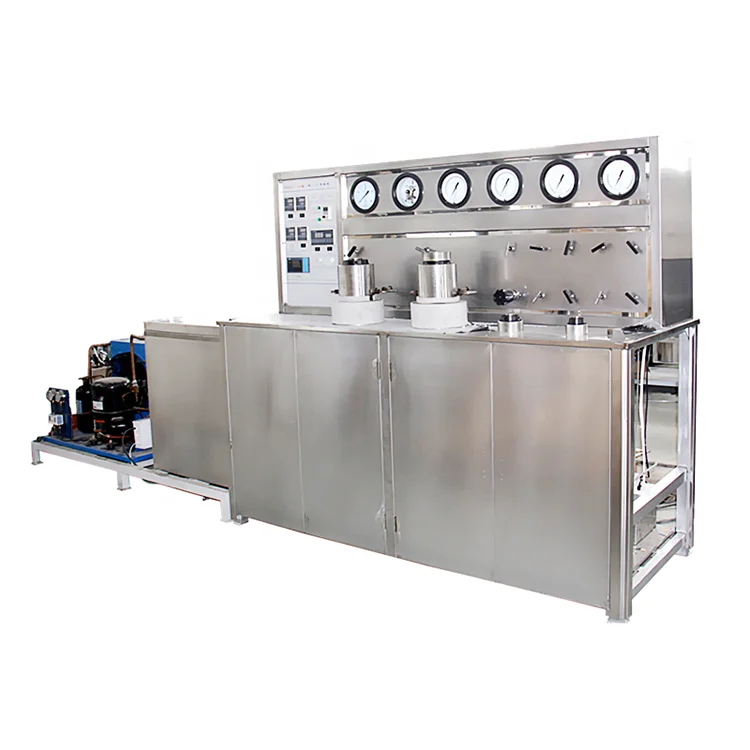

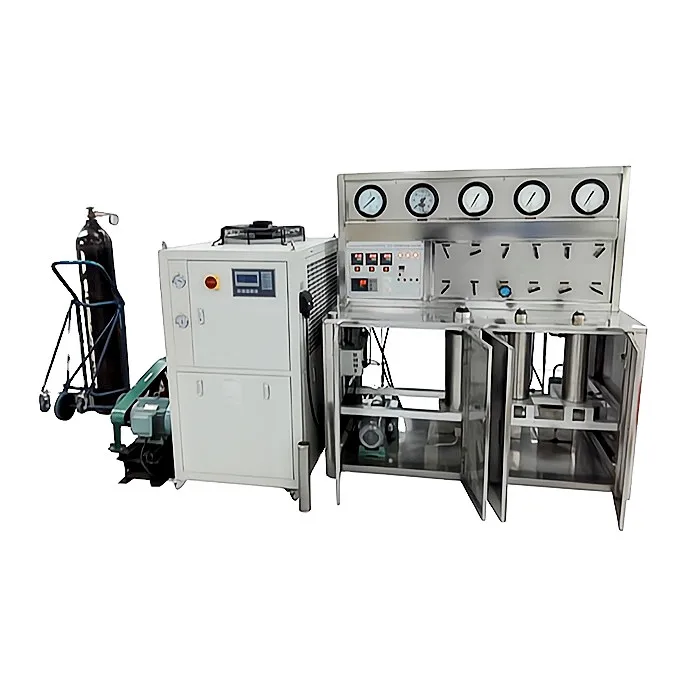

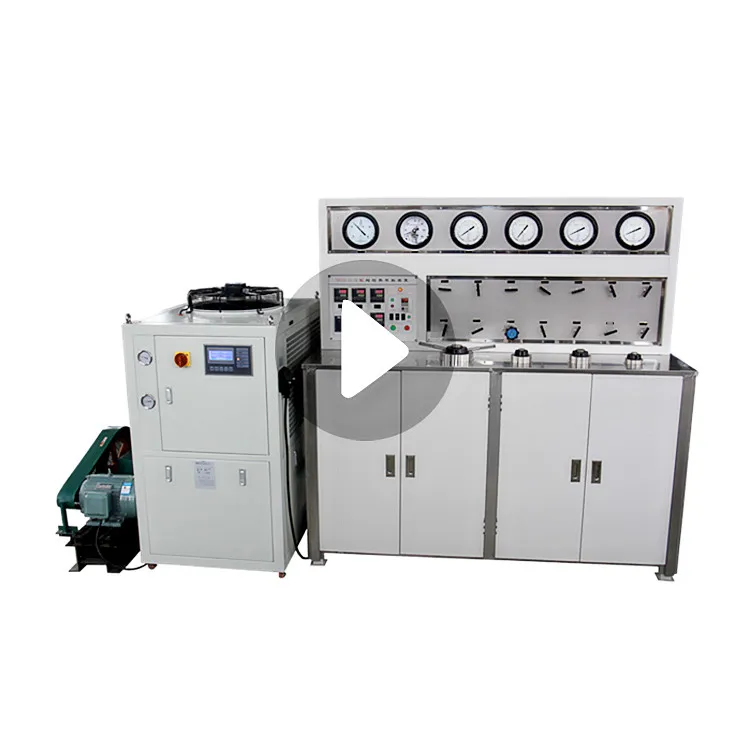

Super Critical CO2 Extraction Device
NO | MAIN CONFIGURATION | PARAMETER | ||
1 | Extraction Kettle | 1L, 2L, 5L/50Mpa, 10L, 24L/40Mpa, 50-200L/32Mpa, Dual purpose for solid and liquid, equipped with water jacket for circulated heating with adjustable temperature. | ||
2 | Separation Kettle | 0.3-10L/Mpa, 50-100L/16-22Mpa, Equipped with water jacket for circulated heating with adjustable temperature. | ||
3 | Fine Distillation Column | inner diameter 25X2-3m/30Mpa,35X2-3m/30Mpa, 48X4-6m/30Mpa, 78X4-6m/30Mpa According to technological requirement, 4-section, 6-section or 8-section temperature control are available and relative stuffing can be selected and loaded by customer according to technological requirement. | ||
4 | High Pressure Pump | 20L/40Mpa.h double-plunger, 50L/50Mpa.h double-plunger frequency-modulating, 400L/40Mpa.h three-plunger frequency-modulating, 800l/40Mpa.h three-plunger frequency-modulating, the pump head application. | ||
5 | Take Pump | in the course of extraction, the entraner is used to change polarities of CO2 so as to extend range of application. | ||
6 | Cooling System | equipped with semi-sealed or full-sealed compressor to meet technological requirement. | ||
7 | Heat Exchange and Temperature Control System | according to technological requirement, the heat exchange and temperature control system are equipped for extraction kettle, separtion kettle and fine distillation column respectively to control the temperature of water circulation at -85℃ and the temperature pf oil circulation at -150℃; the digital display double-screen is used to control the temperature of water bath and to measure the temperature of CO2 fluid with accuracy of temperatire control at ±1℃. | ||
8 | Pressure Control (Protection) | equipped with the electro connecting pressure gauge at the outlet of the high pressure pump and set the working prssure to release pressure and make automatic protection in case overpressure occurs; equipped with safety valves for high pressure pump, extraction kettle, separtio kettle, fine distillation column according to their maximum working pressure to release pressure and make automatic protection in case overpressure occurs; equipped with back-pressure valve system at the outlet of the extraction kettle which has stable pressure and is easy to make adjustment. The control accuracy of pressure (dynamic) is ± 0.1MPa. | ||
9 | Display of Flow | the metal rotor flow meter with remote transferable digital display for instant flow and accumulated flow respectively. | ||
10 | Pipelines | all containers, valves, pipe fittings and pipelines contacting with fluid are all made of stainless steel. | ||
11 | Others | three-phase-four-wire power supply with 380V/50Hz and CO2 with foodstuff grade ≥99.5% are prepared by customer itself. | ||
Compared with other models
Model | Extraction Capacity | Pressure | Combined Type | Dimension(mm) |
HA 120-50-01 | 1L | 50Mpa | one extracting pot-two separating pot | 2600*2600*1800 |
HA 120-50-05 | 5L | 50Mpa | one extracting pot-two separating pots-one column | 2600*2600*1800 |
HA 120-50-10 | 10L | 50Mpa | one extracting pot-two separating pots-one column | 3200*2600*1800 |
HA 120-50-20 | 10L*2 | 50Mpa | one extracting pot-two separating pots-one column | 3200*2600*1800 |
HA 120-50-48 | 24L*2 | 50Mpa | two extracting pot-two separating pots-one column | 5500*3500*4500 |
HA 120-50-100 | 50L*2 | 50Mpa | two extracting pot-two separating pots-one column | 6000*6000*4500 |
Features:
1.Easy to operate and adjust;
2.Well selectivity. Can extract out requested component according to control pressure and temperature.
3.Low operating temperature. Operation often happen under room temperature, which is much better for Heat-sensitive Materials.Because during extraction process, it has avoid “when oxygen oxygenation” and “when light reaction”, product can keep its natural tastes.
4.Finish within one step, CO2 won’t be left on the products.
5.CO2 is one kind gas of non-poisonous, tasteless, inflammable, cheap and can be cycle use.
6.Quick extraction speed.
1.Easy to operate and adjust;
2.Well selectivity. Can extract out requested component according to control pressure and temperature.
3.Low operating temperature. Operation often happen under room temperature, which is much better for Heat-sensitive Materials.Because during extraction process, it has avoid “when oxygen oxygenation” and “when light reaction”, product can keep its natural tastes.
4.Finish within one step, CO2 won’t be left on the products.
5.CO2 is one kind gas of non-poisonous, tasteless, inflammable, cheap and can be cycle use.
6.Quick extraction speed.
Characteristics of the Super Critical CO2fluid：
1. Low Critical temperaturesuitable for extraction and purification of heat sensitive compound.
2. Being capable to provide inert environment to avoid oxidation of products and affection of effectivecontent of extracts.
3. Fast extraction speed, no toxicity, non-flammable, safe application and no pollution upon Environment.
4. No residue of solvent, no nitrate and ions of heavy metal.
1. Low Critical temperaturesuitable for extraction and purification of heat sensitive compound.
2. Being capable to provide inert environment to avoid oxidation of products and affection of effectivecontent of extracts.
3. Fast extraction speed, no toxicity, non-flammable, safe application and no pollution upon Environment.
4. No residue of solvent, no nitrate and ions of heavy metal.
Our Workshop
Customer Case
Packing & Delivery
Company Profile
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute.
With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined
reactors,fermentors,centrifuges, granulators, mixers, spray dryer, pulverizers, tablet presses, soft and hard blister packing
machines,capsule filling machines, cartoners and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan,Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides
machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute.
With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined
reactors,fermentors,centrifuges, granulators, mixers, spray dryer, pulverizers, tablet presses, soft and hard blister packing
machines,capsule filling machines, cartoners and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan,Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides
machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
FAQ
1.SINOPED provide one-stop service(pre-sale,production,packing&after-sales) and we have independent R&D and design team to help customer solve pre-sale questions what they concern about.
2.At the same time,we will combine our own equipment to demonstrate to customers at sight.
During the equipment production process,we will continue to contact customers,and double confirm question.
3.When machine finish production,we will show customers for final confirmation.
For Package,we will adopt to standard woodencase,also will make waterproof treatment inside.
4.For after-sales,SINOPED provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.
And SINOPED will arrange engineer to answer customer question for install,debuging,etc all the time.
If necessarry,we will arrange video online to guide customer,also will arrange translator that customer can be better understand.
2.At the same time,we will combine our own equipment to demonstrate to customers at sight.
During the equipment production process,we will continue to contact customers,and double confirm question.
3.When machine finish production,we will show customers for final confirmation.
For Package,we will adopt to standard woodencase,also will make waterproof treatment inside.
4.For after-sales,SINOPED provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.
And SINOPED will arrange engineer to answer customer question for install,debuging,etc all the time.
If necessarry,we will arrange video online to guide customer,also will arrange translator that customer can be better understand.
Exhibition
Feedback
