60 ВАТТ 150 см Светодиодная линейная лампа наружная соединяемая подвесная рейка IP65 система
- Категория: >>>
- Поставщик: Shenzhen,Topsung,Lighting,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 24.78 $* | 24.66 $* |
| Jul-15-2025 | 20.20 $* | 20.73 $* |
| Jun-15-2025 | 24.57 $* | 24.13 $* |
| May-15-2025 | 24.90 $* | 24.32 $* |
| Apr-15-2025 | 19.5 $* | 19.48 $* |
| Mar-15-2025 | 23.9 $* | 23.60 $* |
| Feb-15-2025 | 23.39 $* | 23.77 $* |
| Jan-15-2025 | 23.64 $* | 23.47 $* |
Характеристики
60 watt 150cm led linear light outdoor linkable pendant batten IP65 trunking system
Linkable max 42Meter
Product Description
Feature of Linkable led linear lighting fixture
100-130lm/W, PF0.93, RA80
2835 Epistar Chip
PC/PMMC cover
6063 Pure ALuminum Housing Housing
SAA, CE, ROHS approval
| 600mm | 20Watt |
| 1200mm | 40Watt |
| 1500mm | 60Watt |
Specification of Linkable LED linear lights
| Model No. | Product Specification | ||||||||||
| Power | Dimension (ft/mm) | Lumen | Input Voltage | SMD type | RA | Beam Angle | IP Rate | material | Certificate | Warranty | |
| TS-LHL2F20 | 20±1W | 2ft (22*73*600) | 100-110lm/W | AC100-277V | 2835 | ≥80 | 180° | IP42 | PC PMMA 6063 Alum Housing | CE ROHS SAA | 3 year |
| TS-LHL4F40 | 40±1W | 4ft (22*73*1200) | 2835 | ≥80 | 180° | IP42 | |||||
| TS-LHL5F60 | 60W±1W | 6ft (22*73*1500) | 2835 | ≥80 | 180° | IP42 | |||||
Features of 1500mm Linkable Linear Lights

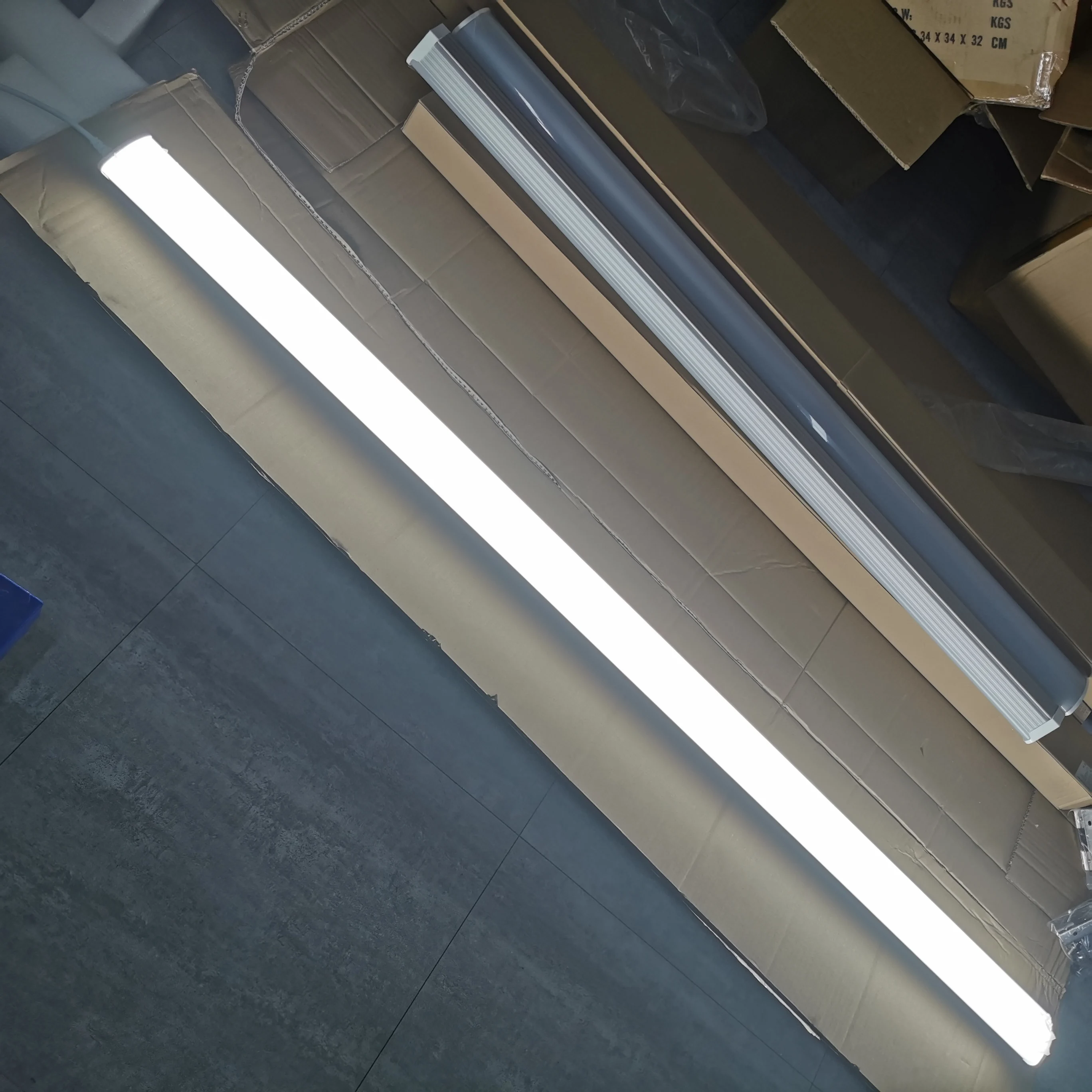

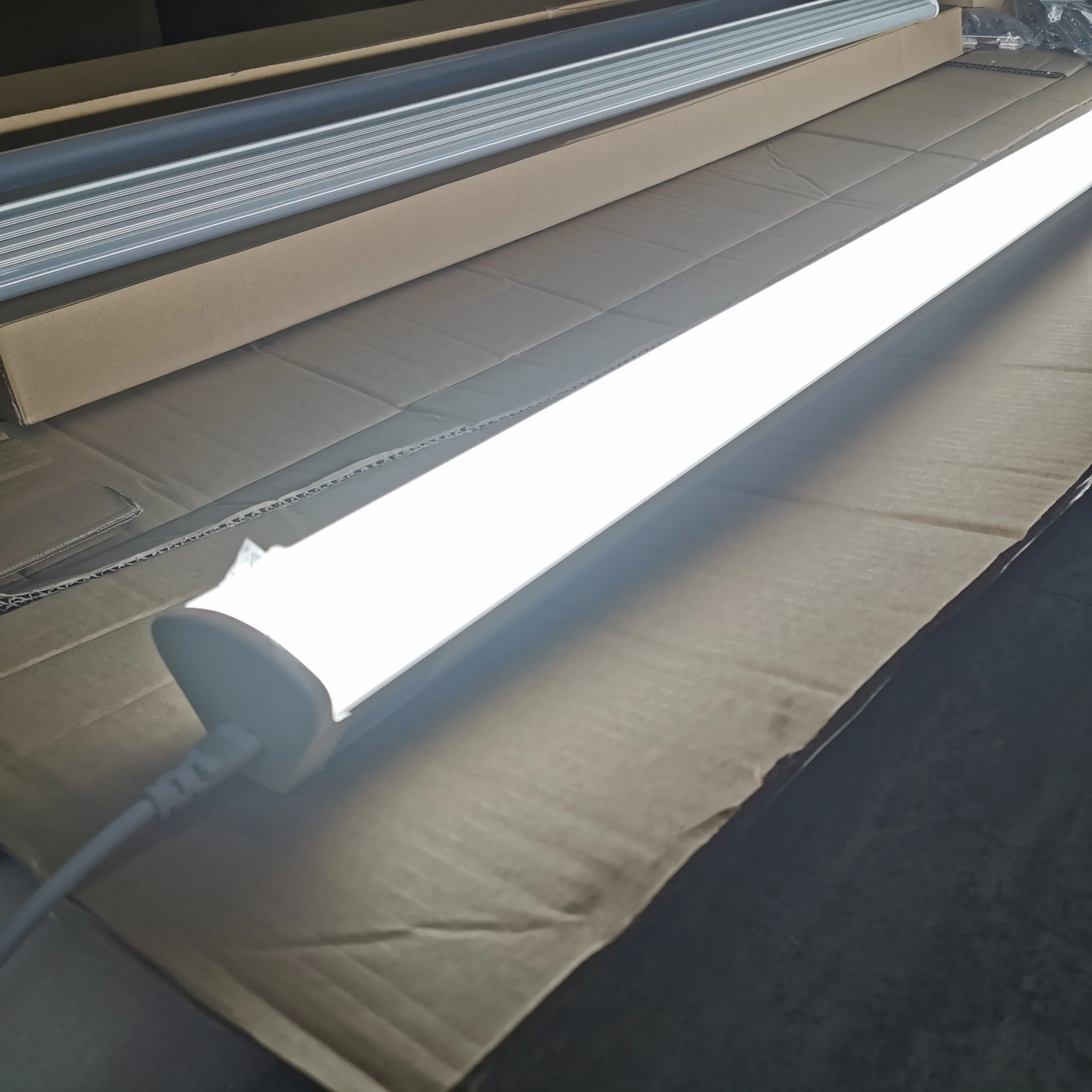

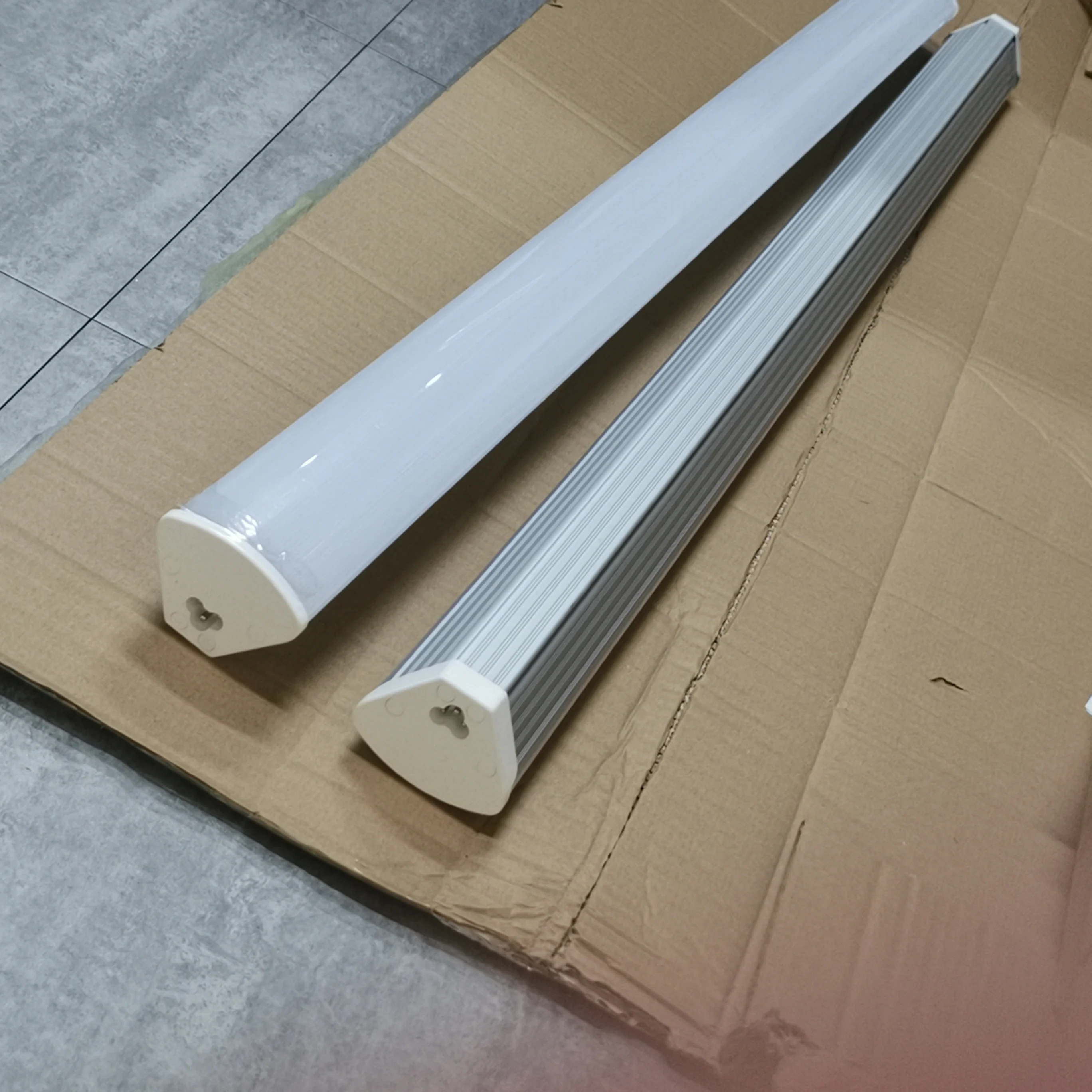

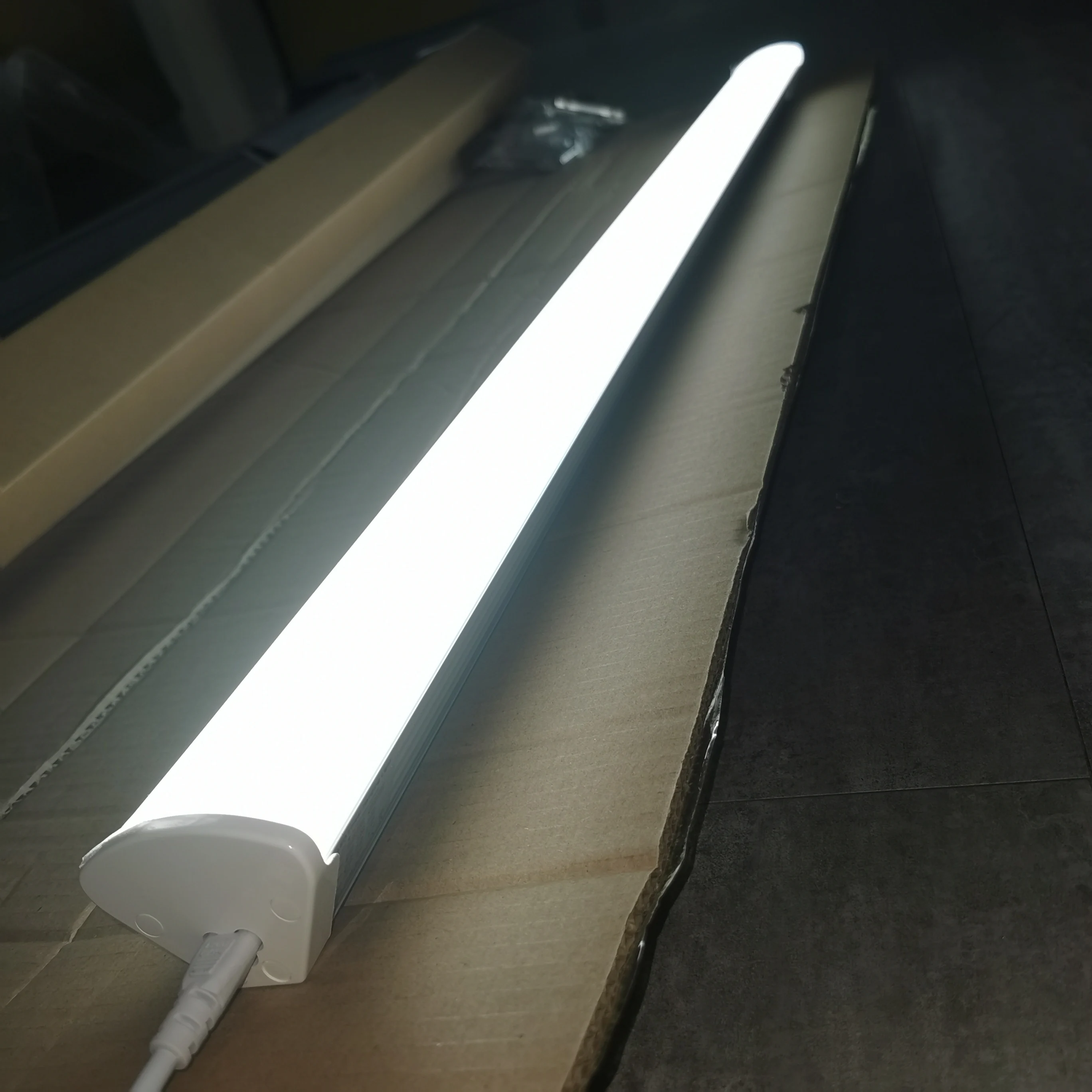

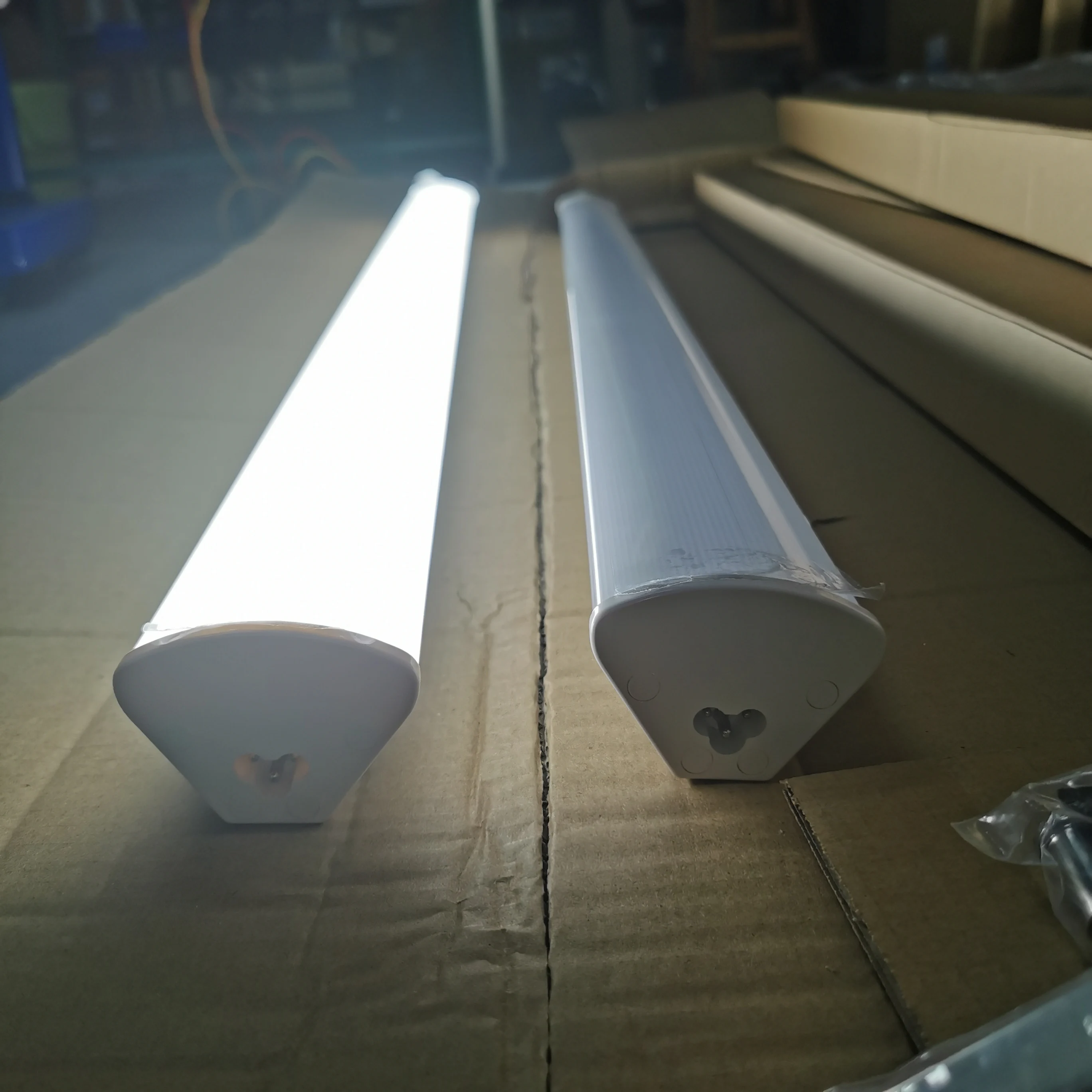

More pictures of Linkable LED linear Light
Installation of Linkable LED linear Light
1.Confirm the rated voltage before the installation to keep the porduct from being damaged
2.Cut off the power until the installation is finished
3.Contact us when any problems happen,Never open the product without permition.
4.Basic electronic knowledge or professinal indication is needed for operator
5.Product surface temperature control during normal operation environment within 65 ℃, the bad environment to reduce product life cycle
6.Never use the prodcut in a humid environment
Packaging & Shipping
Packing of Linkable LED linear Light
| Model No. | Package |
| TS-LHL2F20 | 1.1pcs/PE bag in one white box,20boxes/ctn. 2.N.W:600g/pcs,G.W.:13kg/ctn 3.box size:160*60*150mm,ctn size:625*335*175mm |
| TS-LHL4F40 | 1.1pcs/PE bag in one white box,10boxes/ctn. 2.N.W:1kg/pcs,G.W.:12kg/ctn 3.box size:235*70*205mm,ctn size:485*370*230mm |
| TS-LHL5F60 | 1.1pcs/PE bag in one white box,10boxes/ctn. 2.N.W:1.3kg/pcs,G.W.:16kg/ctn 3.box size:280*80*240mm,ctn size:575*420*265mm |
Application of Linkable Linear Light
Commercial lighting, outdoor quantitative, engineering projects
Residential/institution buildings
Corridor, warehouse, parking lot, the tunnel3 foot 900mm led linear suspension lighting ce rohs approval
Certificate
Company Information
Shenzhen Topsung Lighting Co.,Limited with 12 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD.
Topsung main procuts include:
LED Decoration lights:
1) LED Neon Flex 2) LED Rope light 3) LED strings and christmas lights
Indoor LED Lights:
1) LED panel light
2) LED Linear Batten light
- New Batten Lights
- Tri-proof Linear Lights
- Linear Flood Light
- Linear High Bay
- Linkable linear Lights
3) LED tube lights
Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!
