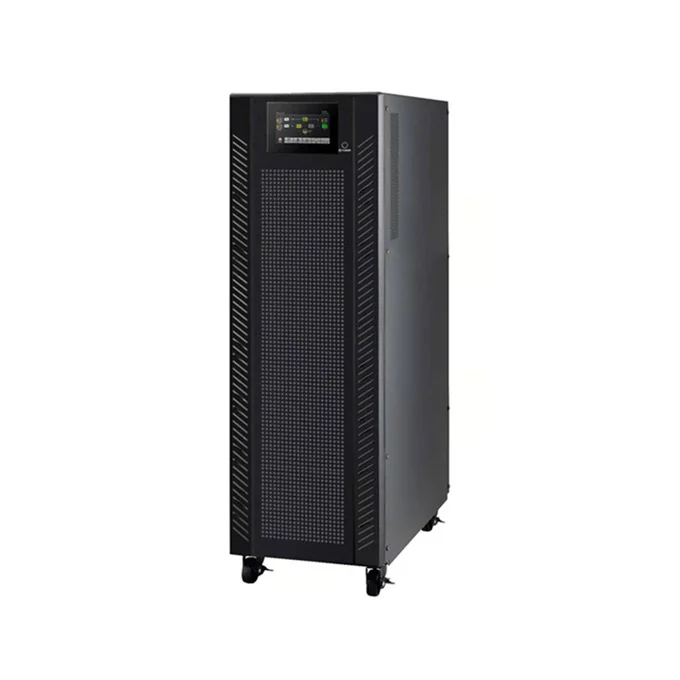

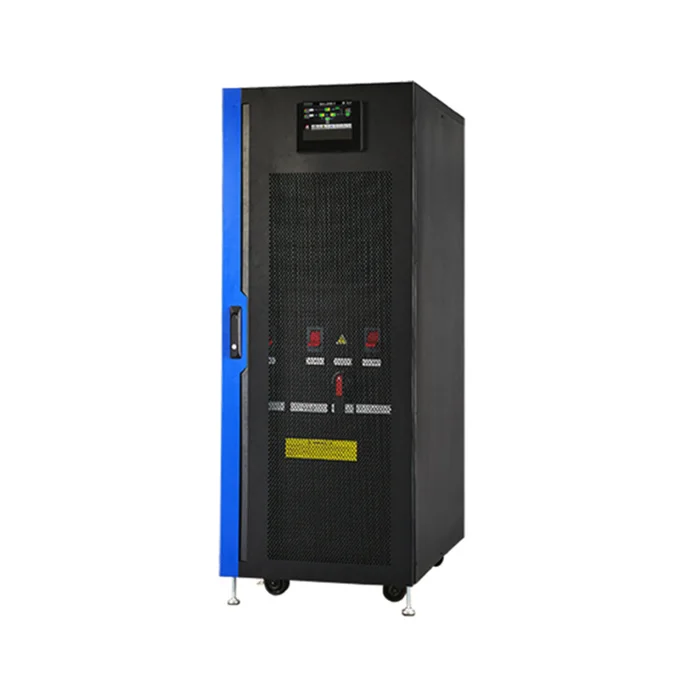

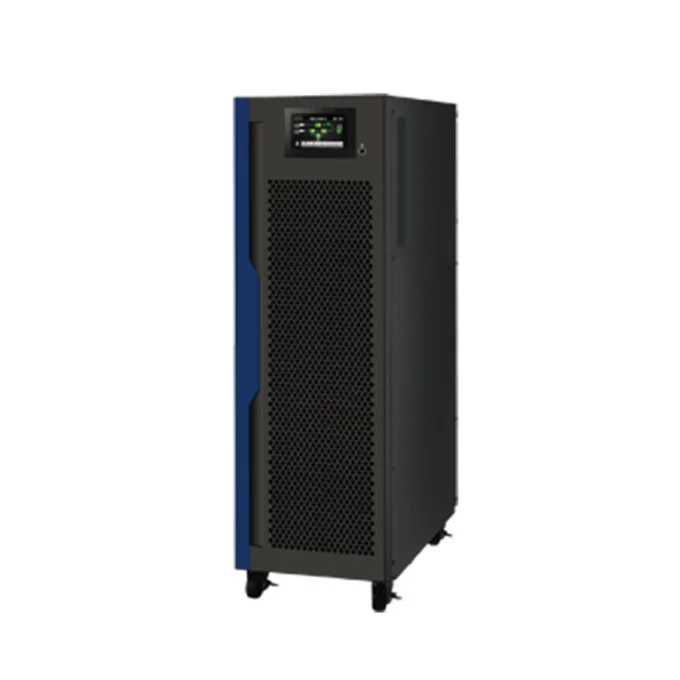

[Galleon T33] #10 ~ 200KVA высокочастотный

*  DSP Technology Guarantees High Reliability

     DSP and MCU dual chips to secure the product reliability.

*  Output Power Factor 1

    For critical applications, this 3-phase online UPS with output power factor 1 ensures higher efficiency

    and advanced performance.

*  Adapting the Latest Silicon Carbide Diodes to Enhance the System Efficiency

    Through adapting the latest Silicon carbide diodes,no matter it's in AC mode and battery mode,

    the efficiency is higher than 96%.

*  Dual Inputs

    Galleon T33 is also available for optional dual inputs to support various inputs to have flexibility for system configuration.

*  Power Walk-in Function

    Galleon T33 is designed to have flexible power walk-in by way of adjusting the power walk-in time.

    This setting will optimize generator sizing and reduce the impact to the AC source by having different

    walk-in time period for different paralleled UPS system when AC grid is recovered.

*  Adjustable Charging Current

    Users can adjust charging current via LCD setting based on various battery configurations.

*  High Overload Capability

    Supporting 110% overload capacity for 60 min and up to 1 min overload condition at 150% load.

*  Optional Programmable Relay Dry Contact Card

    Configurable 4 dry contact ports definition through software for various applications.

*  Voice Warning / Error Code Notice

    Inbuilt the speaker to have human voice for the warning / error codes notice instead of traditional beeps.

*  Very Powerful Charger to Shorten the Recharge Time

    Adapting the charger rating equals to 30% of UPS capacity on 10/20Kva. Charger rating is also 20% of UPS capacity

    for 30Kva and above models.

*  Adjustable Battery Design

    The number of connected batteries can be adjusted flexibly based on different power demands.

*  Dynamic Password Feature Optimizes Service Performance

    This dynamic password is automatically generated from our exclusive utility tool. Each time when it is required

    to change service-related settings, this utility tool Would generate an unique password on time basis.

    It secures UPS from unexpected Operation due to unauthorized settings.

*  Parallel up to 6 Units with Common Battery Pack

    Supports maximum 6 units in parallel with common battery pack for the parallel system.

*  5" Color Touch Type LCD Display

    Inbuilt 5" color touch type LCD display with 500 event / data logs.

   Please get datasheet and user manual from sales if you need .

	Datasheet	Galleon T33_10~200K_Datasheet
	User Manual	Galleon T33_10K-20K-40K-80K_User Manual
	User Manual	Galleon T33_30K-60K-100K-120K-180K-200K_User Manual
