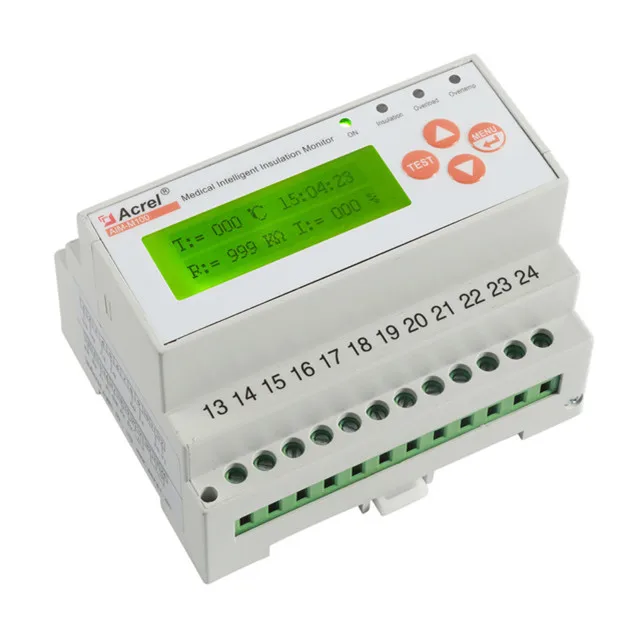

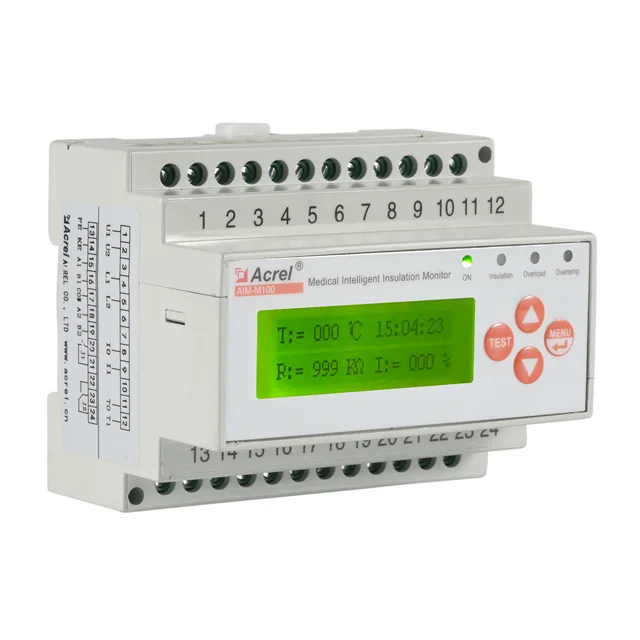

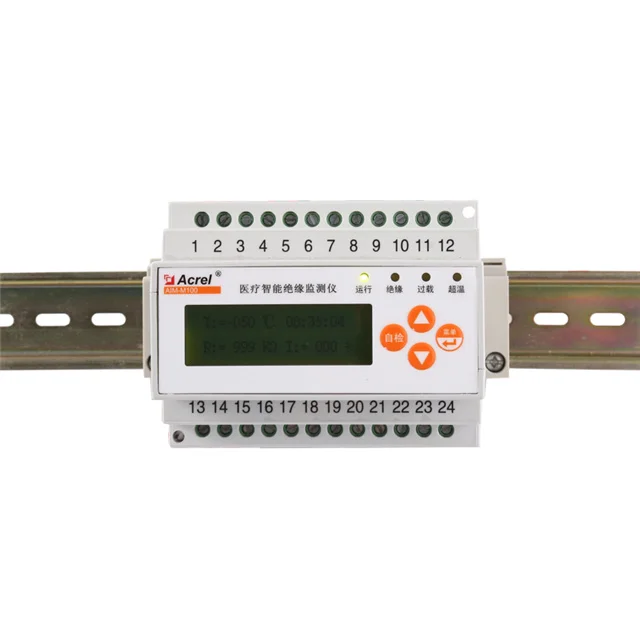

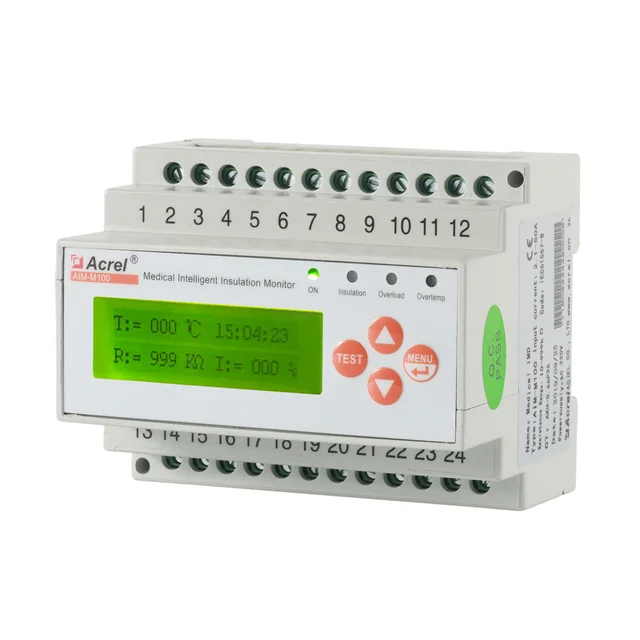

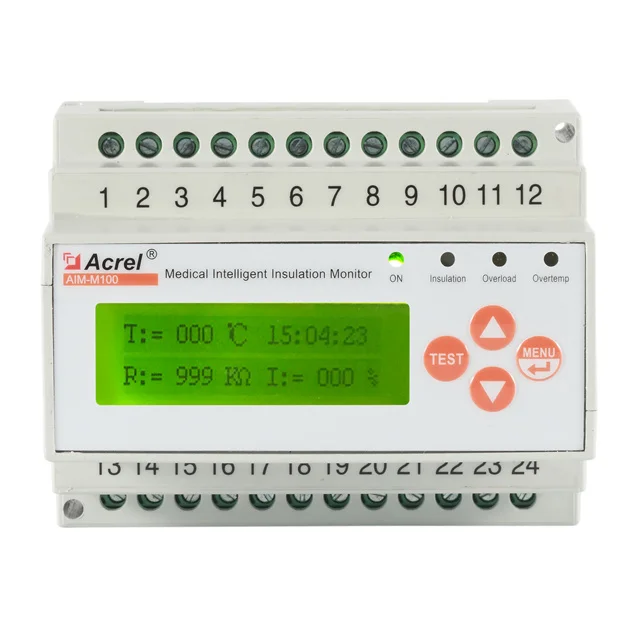

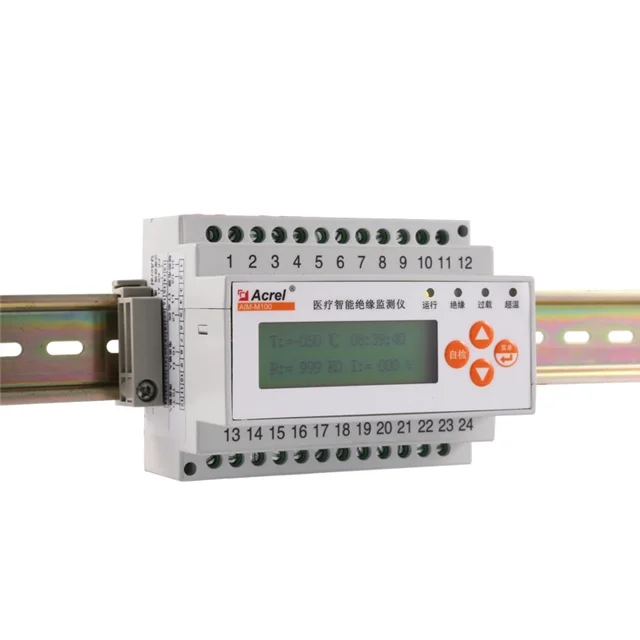

Устройство контроля изоляции операционной комнаты Acrel AIM-M10 для
- Категория: Resistance Meters >>>
- Поставщик: Jiangsu,Acrel,Electrical,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.89 $* | 0.43 $* |
| Aug-15-2025 | 0.1 $* | 0.19 $* |
| Jul-15-2025 | 0.46 $* | 0.0 $* |
| Jun-15-2025 | 0.8 $* | 0.64 $* |
| May-15-2025 | 0.48 $* | 0.57 $* |
| Apr-15-2025 | 0.42 $* | 0.76 $* |
| Mar-15-2025 | 0.39 $* | 0.52 $* |
| Feb-15-2025 | 0.26 $* | 0.74 $* |
| Jan-15-2025 | 0.80 $* | 0.97 $* |
Характеристики
Product Description
Hospital Isolated Power Supply & Insulation Monitor Device
The medical hospital isolated power supply system is mainly used in important Class 2 medical locations such as operating rooms, ICU/CCU intensive care unit, providing safe, reliable and continuous power distribution for the important equipment at these locations.
Medical IT system insulation monitoring and fault locating products (five-piece set) include AITR series medical isolation transformer, AIM-M100 medical intelligent insulation monitoring instrument, AKH-0.66P26 current transformer, ACLP10-24 DC power supply, and AID series(AID100, AID120, AID130, AID150) centralized alarm and display instrument.
Medical IT system insulation monitoring and fault locating products (five-piece set) include AITR series medical isolation transformer, AIM-M100 medical intelligent insulation monitoring instrument, AKH-0.66P26 current transformer, ACLP10-24 DC power supply, and AID series(AID100, AID120, AID130, AID150) centralized alarm and display instrument.
Function
● Insulation monitoring for medical IT systems
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● RS485 (MODBUS-RTU) + CAN
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● RS485 (MODBUS-RTU) + CAN
Specification
Model | AIM-M100 | ||
Auxiliary Power | Voltage | AC220V | |
Frequency | 50/60Hz | ||
Maximum power consumption | <8VA | ||
Insulation Monitoring | Relative percentage accuracy | 0~±10% | |
Insulation resistance measuring range | 10~999kΩ | ||
Alarm value range | 50~999kΩ | ||
Response time | <2s | ||
Current Monitoring | Measuring range | 2.1~5A | |
Measurement accuracy | 5% | ||
Display method | percentage display | ||
Alarm value range | 50~999kΩ | ||
Temperature monitoring | Thermal resistor | PT100 | |
Measuring range | -50℃~+200℃ | ||
Alarm value range | 0℃~+200℃ | ||
Alarm output | Output | 2 relay outputs (programmable) | |
contact capacity | AC 250V/3A DC30V/3A | ||
Communication | 2 RS485, Modbus-RTU | ||
Rated impulse voltage/pollution class | 4KV/3 | ||
EMC & EMR | IEC1326-2-4 | ||
Medical isolated power supply system
Insulation monitoring system with fault locator
Customized service
If you have any special requirements, for example another application or special power supply and size ,please feel free to Contact Us.
Dimensions
Wiring Diagram
Customer Photos
Certifications
IEC
EMC
CE
Packing & Delivery
Company Profile
Acrel Electric Co., Ltd. [Stock Code: 300286.SZ]
Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users. Substation automation system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
