DLG 5KWh 10KWh 15KWh on Grid & off система хранения солнечной энергии LFP батареи и гибридный инвертор в

Описание и отзывы

Трекер стоимости

Характеристики





Datasheet

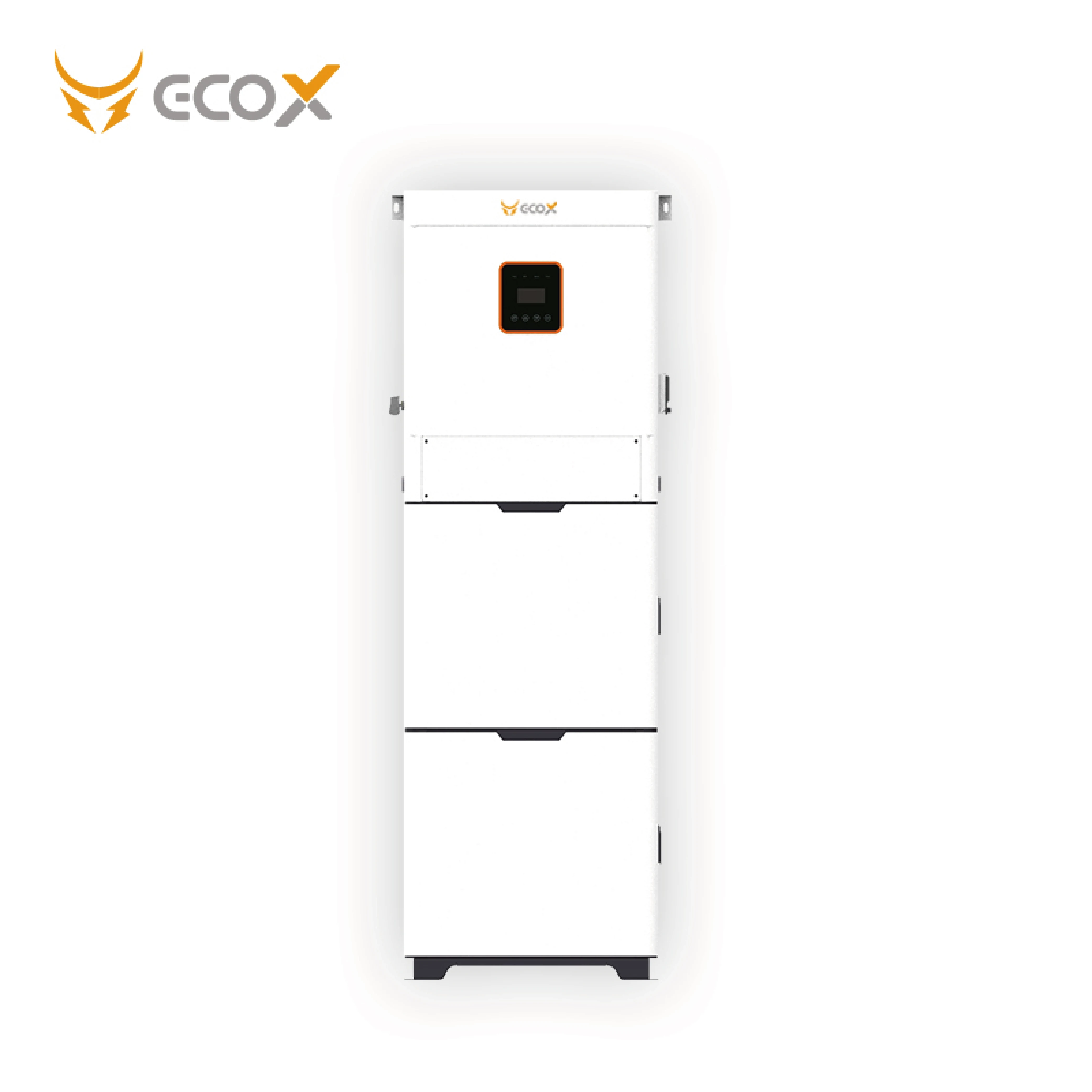

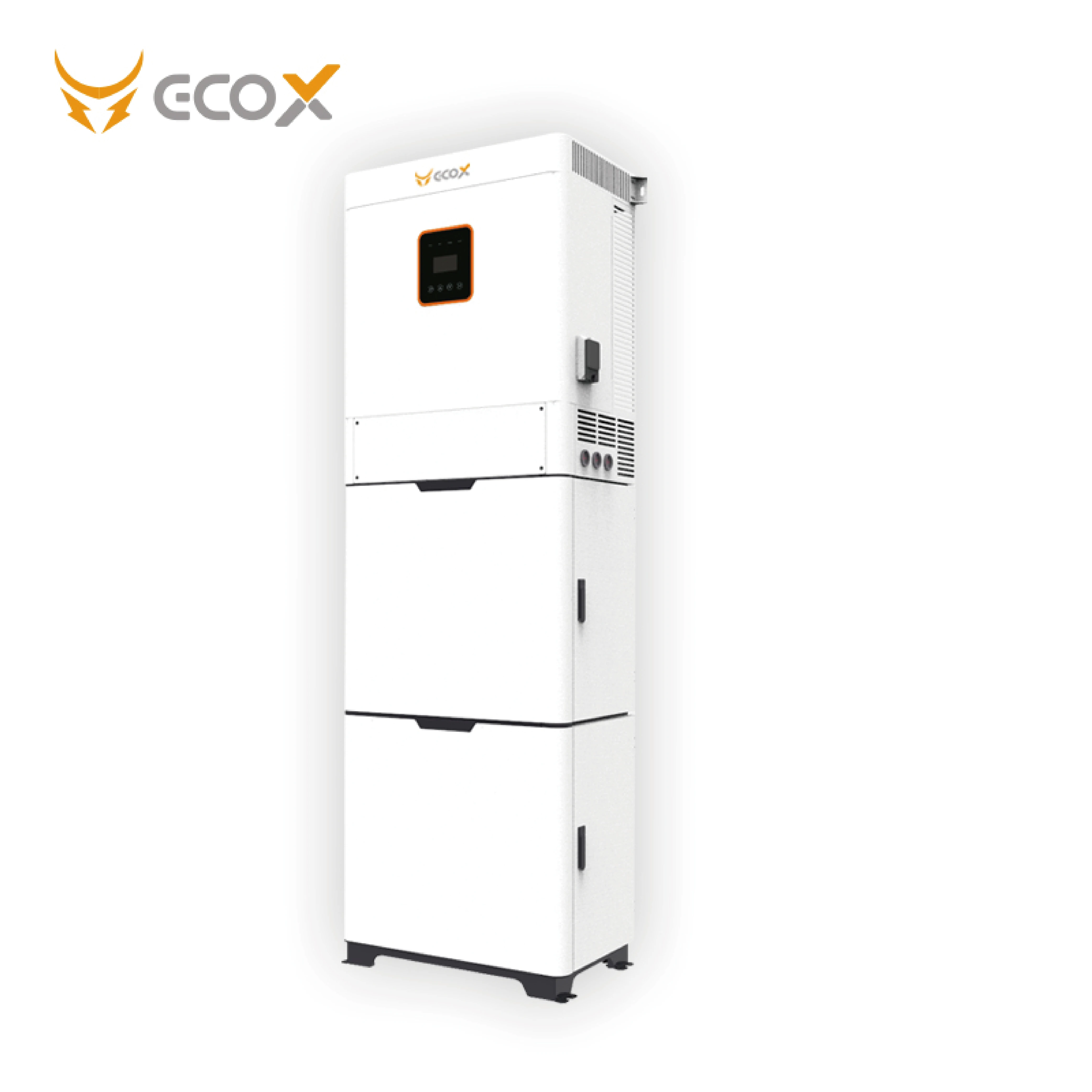

Energy Storage All In One
Model NO.	R3KL1-A	R3K6L1-A	R4KL1-A	R4K6L1-A	R5KL1-A	R6KL1-A
Inverter Parameters
Max. Input Power	4.6kW	4.6kW	6.0kW	5.0kW	7.0kW	7.0kW
Max. Input Current	2*14A	2*14A	2*14A	2*14A	2*14A	2*14A
Max. PV Voltage	550V	550V	550V	550V	550V	550V
MPPT Tracker/Strings	2	2	2	2	2	2
MPPT Range	125~550V	125~550V	125~550V	125~550V	125~550V	125~550V
Charge/Discharge Power	3.0kW	3.6kW	4.0kW	4.6kW	5.0kW	5.6kW
Phase	Single	Single	Single	Single	Single	Single
Rated Output Voltage	230V	230V	230V	230V	230V	230V
Rated Output Current	13A	16A	17.4A	20A	21.7A	26A
Grid Voltage Range	180~270V	180~270V	180~270V	180~270V	180~270V	180~270V
Rated Output Frequency	50 /60Hz	50 /60Hz	50 /60Hz	50 /60Hz	50 /60Hz	50 /60Hz
Backup Power Supply	EPS	EPS	EPS	EPS	EPS	EPS
Display	LED	LED	LED	LED	LED	LED
Operating Tempreture	-10~60℃	-10~60℃	-10~60℃	-10~60℃	-10~60℃	-10~60℃
Relative Humidity	15~85%	15~85%	15~85%	15~85%	15~85%	15~85%
Battery Technical Parameters
Parallel Battery Modules	1	2	3	4	5	6
Battery Capacity	2.4kWh	4.8 kWh	7.2 kWh	9.6kWh	12.0kWh	14.4kWh
Usage Life of Battery	>10 years	>10 years	>10 years	>10 years	>10 years	>10 years
MAX. Charge/Discharge Current	25	50	75	100	125	150
System Parameters
AC Output	220V±10%	220V±10%	220V±10%	220V±10%	220V±10%	220V±10%
Battery Type	Lithium Phosphate	Lithium Phosphate	Lithium Phosphate	Lithium Phosphate	Lithium Phosphate	Lithium Phosphate
Protection Class	IP20	IP20	IP20	IP20	IP20	IP20
Dimensions(W/D/H)mm	580/350/1800	580/350/1800	580/350/1800	580/350/1800	580/350/1800	580/350/1800
Weight(KG)	81	104	127	150	173	196
Safety Regulations	CE,IEC,CEC,EN...	CE,IEC,CEC,EN...	CE,IEC,CEC,EN...	CE,IEC,CEC,EN...	CE,IEC,CEC,EN...	CE,IEC,CEC,EN...
